Section 100 (Electrical Component Locator): Switches
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCHES LOCATION
| Component |
Location |

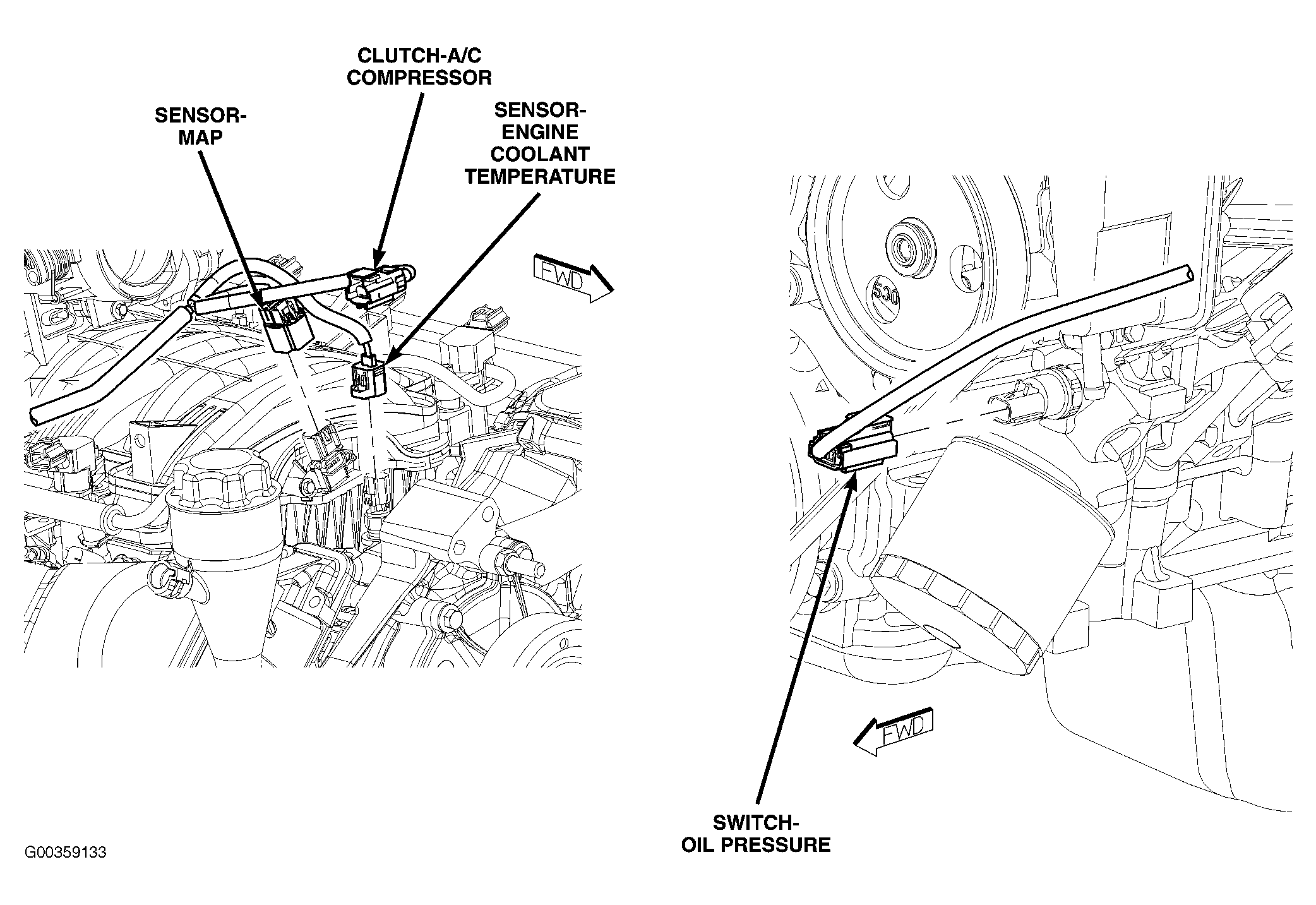

| Oil Pressure Switch (3.7L & 4.7L) |
Lower front of engine. See Figure. |
| Parking Brake Switch |
Below center console. See Figure. |

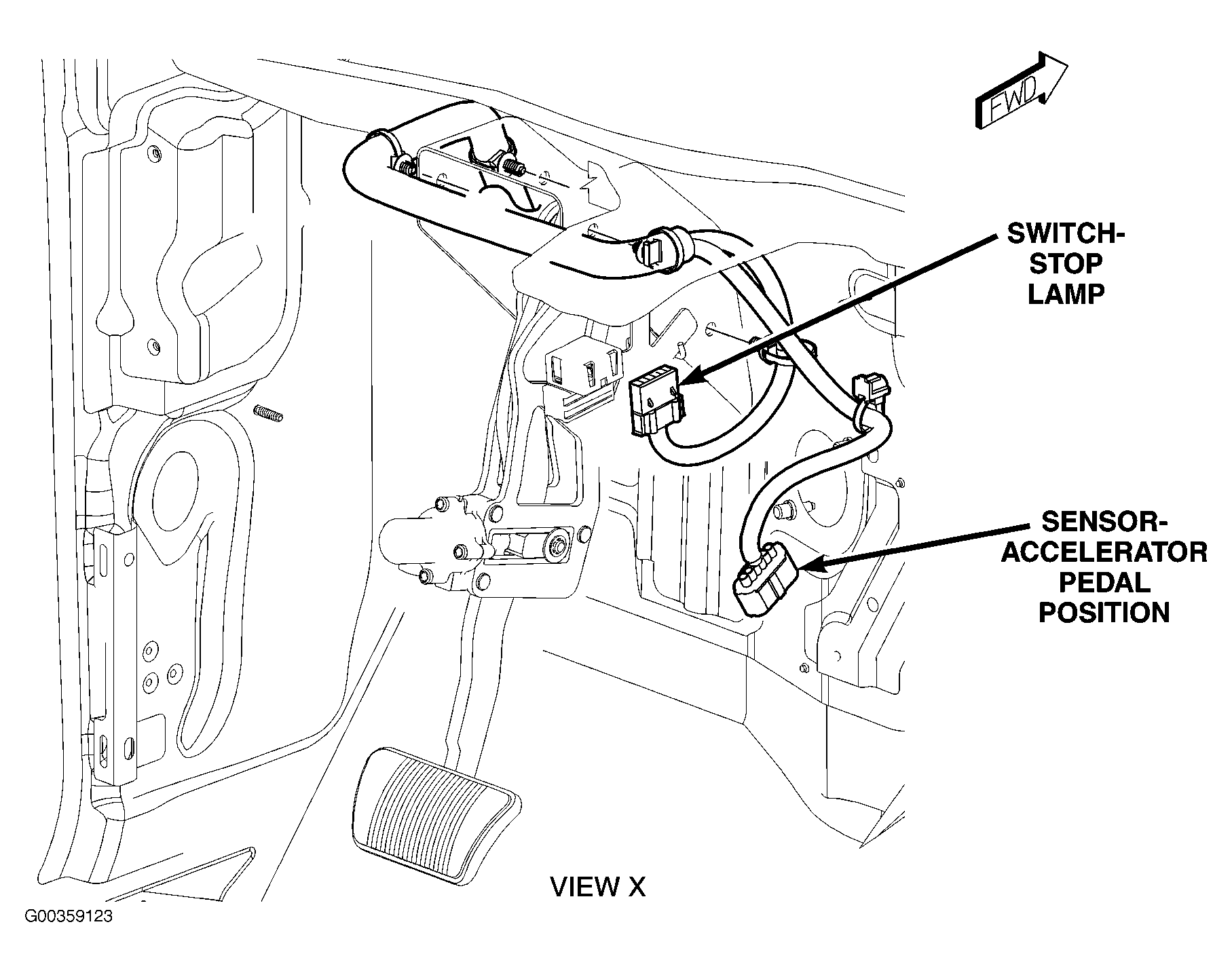

| Stop Lamp Switch (3.7L & 4.7L) |
Lower left side of dash. See Figure. |

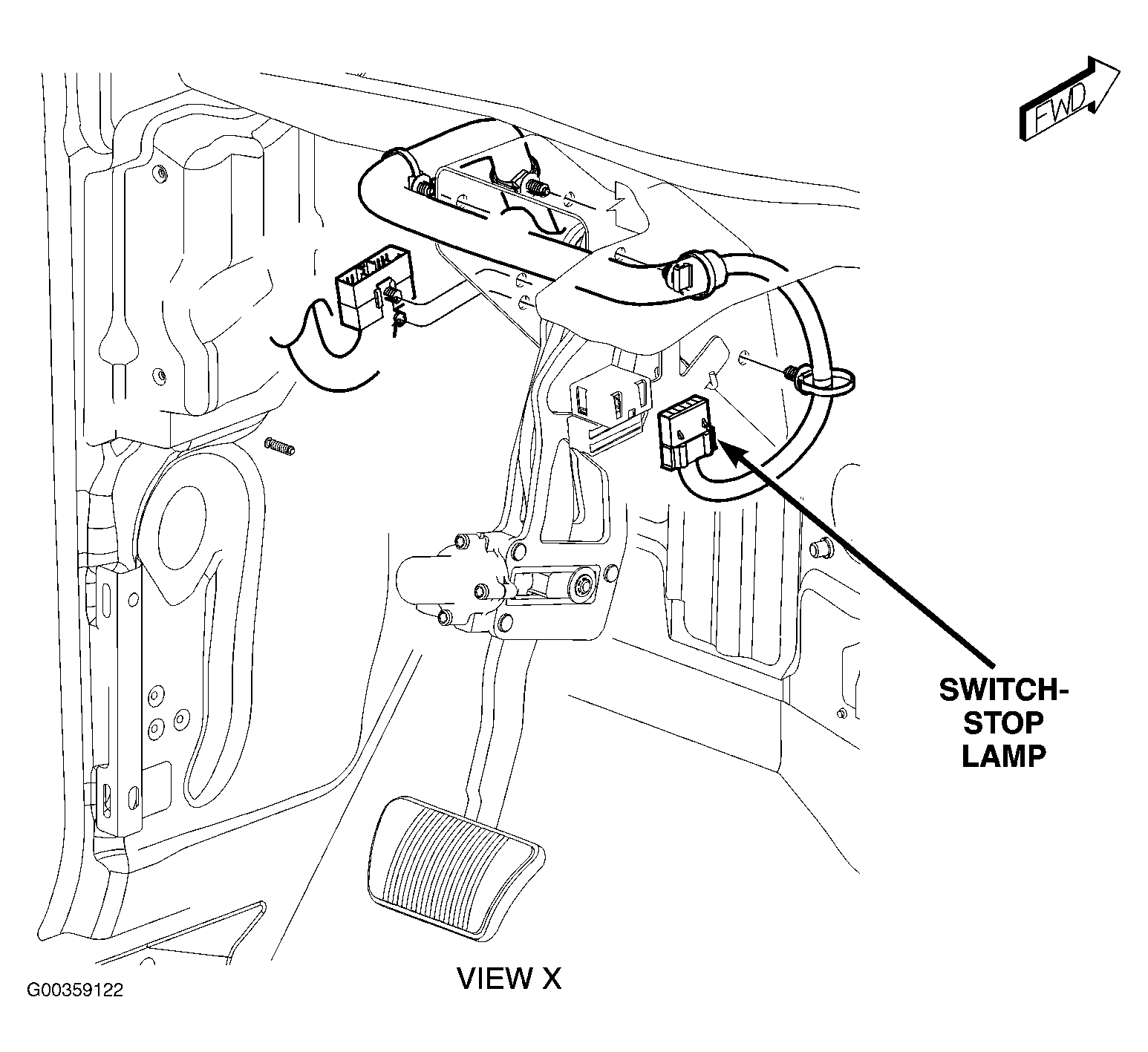

| Stop Lamp Switch (5.7L) |
Lower left side of dash. See Figure. |
