Solenoids & Solenoid Valves
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SOLENOIDS & SOLENOID VALVES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch (3.7L & 4.7L) | Top front of engine. See Figure. |
| A/C Compressor Clutch (5.7L) | Lower left front of engine. See Figure. |
| Axle Valve Solenoid (Rear) | Under rear of vehicle. See Figure. |
| DHS Pressure Control Solenoid | Front of frame. |
| Directional Control Valve B Solenoid | Front of frame. See Figure. |
| Directional Control Valve G Solenoid | Front of frame. See Figure. |
| Electrohydraulic Control Unit Assembly | Right side of transmission. See Figure. |
| EVAP/Purge Solenoid | Left side of engine compartment. See Figure. |
| Exhaust Gas Recirculation Valve Assembly (4.7L) | Top left rear of engine. See Figure. |

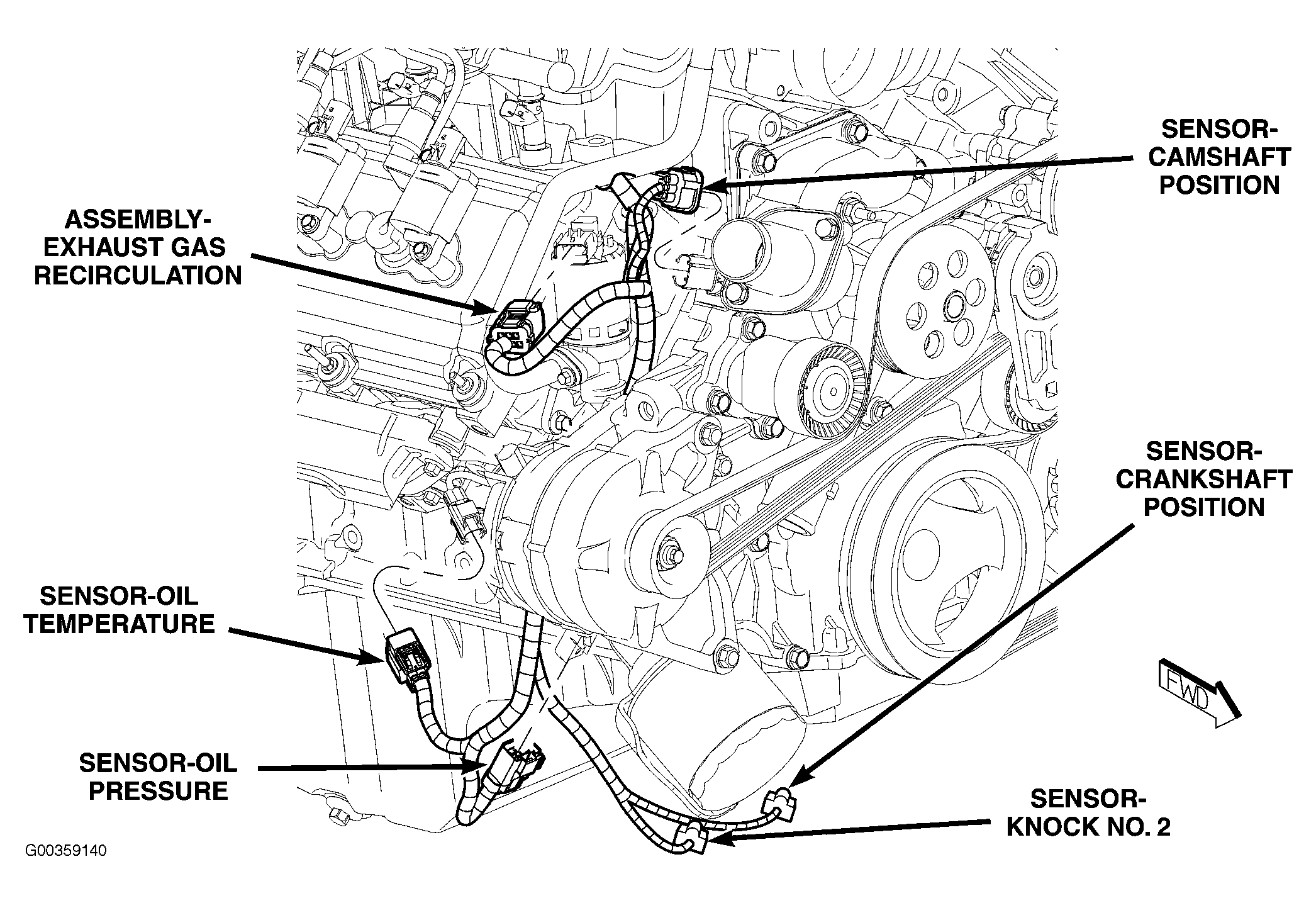

| Exhaust Gas Recirculation Valve Assembly (5.7L) | Right front of engine. See Figure. |
| Front Axle Valve Solenoid | Front of frame. See Figure. |
| Front Differential Solenoid | Front of frame. |
| Fuel Injector No. 1 (3.7L & 4.7L) | Top left front of engine. See Figure. |
| Fuel Injector No. 1 (5.7L) | Top left front of engine. See Figure. |
| Fuel Injector No. 2 (3.7L & 4.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 2 (5.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 3 (3.7L & 4.7L) | Top left of engine. See Figure. |
| Fuel Injector No. 3 (5.7L) | Top left of engine. See Figure. |
| Fuel Injector No. 4 (3.7L & 4.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 4 (5.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 5 (3.7L & 4.7L) | Top left of engine. See Figure. |
| Fuel Injector No. 5 (5.7L) | Top left of engine. See Figure. |
| Fuel Injector No. 6 (3.7L & 4.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 6 (5.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 7 (3.7L & 4.7L) | Top left of engine. See Figure. |
| Fuel Injector No. 7 (5.7L) | Top left of engine. See Figure. |
| Fuel Injector No. 8 (4.7L) | Top right of engine. See Figure. |
| Fuel Injector No. 8 (5.7L) | Top right of engine. See Figure. |
| Multi Displacement System Solenoid (Cyl 1) | Top of engine. |
| Multi Displacement System Solenoid (Cyl 4) | Top of engine. |
| Multi Displacement System Solenoid (Cyl 6) | Top of engine. |
| Multi Displacement System Solenoid (Cyl 7) | Top of engine. |
| Natural Vacuum Leak Detection Assembly | Under left rear of vehicle. See Figure. |
| Rear Differential Solenoid | Front of frame. |
| Speed Control Servo | Right rear of engine compartment. See Figure. |
| Transmission Solenoid/TRS Assembly (4.7L) | Left side of transmission. See Figure. |
| Transmission Solenoid/TRS Assembly (5.7L) | Left side of transmission. See Figure. |
