Sending Units & Sensors
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|
| ABS Wheel Speed Sensor (Left Front) | Left front of engine compartment. |
| ABS Wheel Speed Sensor (Left Rear) | Under left rear of vehicle. See Figure. |
| ABS Wheel Speed Sensor (Right Front) | Right front of engine compartment. See Figure. |
| ABS Wheel Speed Sensor (Right Rear) | Under right rear of vehicle. See Figure. |
| Accelerator Pedal Position Sensor (Diesel) | Base of accelerator pedal. |
| Accelerator Pedal Position Sensor (5.7L) | Base of accelerator pedal. See Figure. |

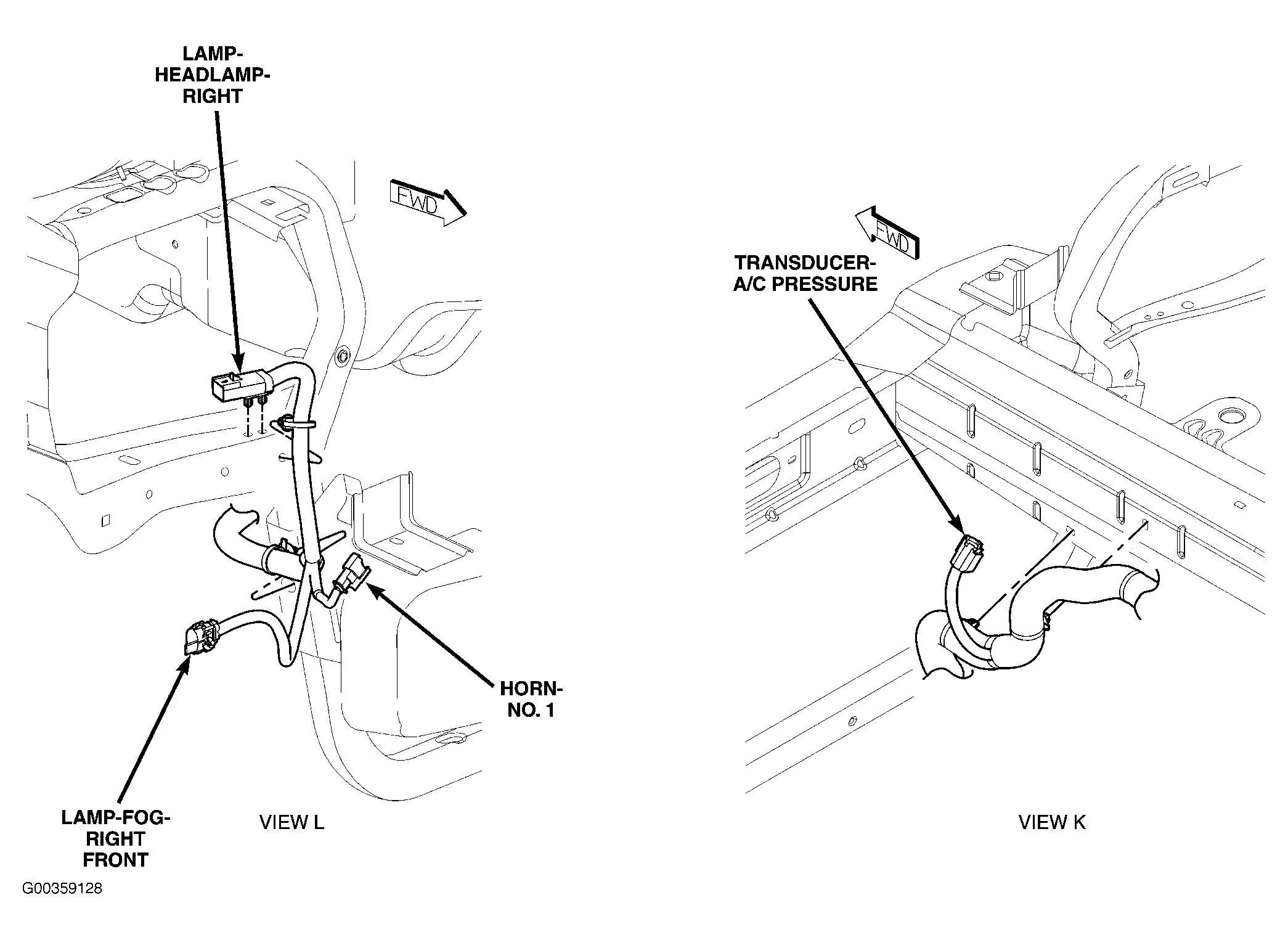

| A/C Pressure Transducer | Right front of engine compartment. See Figure. |
| Ambient Air Temperature Sensor | Front center of engine compartment. See Figure. |
| Auto Headlamp Sensor | Top center of dash. |
| Brake Fluid Level Sensor | Left rear of engine compartment. See Figure. |
| Brake Pressure Sensor | Left side of engine compartment. See Figure. |
| Brake Travel Sensor | Left side of engine compartment. See Figure. |

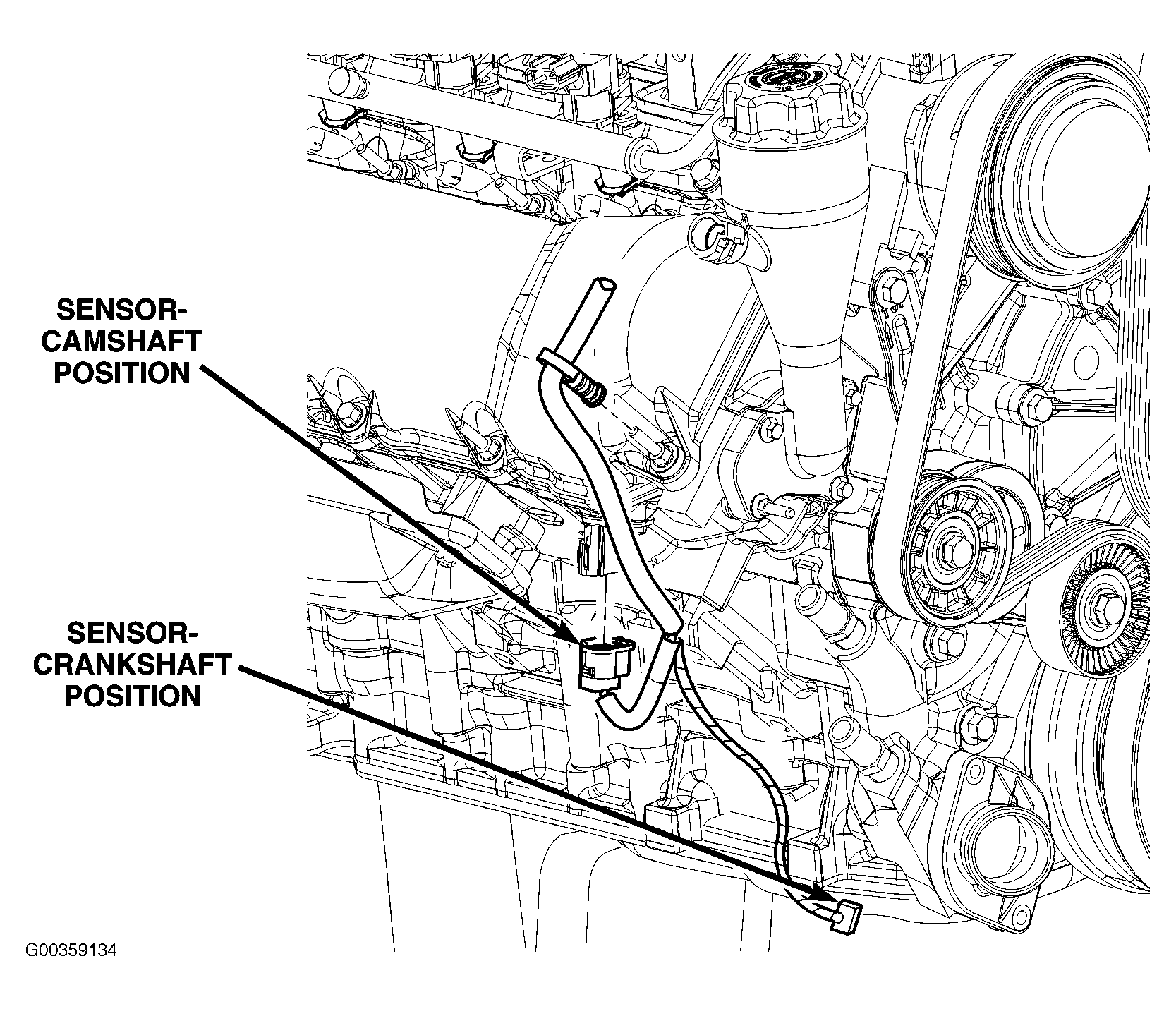

| Camshaft Position Sensor (3.7L & 4.7L) | Right front of engine. See Figure. |
| Camshaft Position Sensor (5.7L) | Right front of engine. See Figure. |
| Crankshaft Position Sensor (3.7L & 4.7L) | Right rear side of the cylinder block. See Figure. |
| Crankshaft Position Sensor (5.7L) | Right rear side of the cylinder block. See Figure. |
| DHS Pressure Control Sensor | Front of frame. See Figure. |
| DHS Pressure Sensor | Front of frame. See Figure. |
| Dynamics Sensor (ESP) | Behind right front seat. See Figure. |
| Engine Coolant Temperature Sensor (3.7L & 4.7L) | Top front of engine. See Figure. |
| Engine Coolant Temperature Sensor (5.7L Except HEC) | Top front of engine. |
| Engine Coolant Temperature Sensor (5.7L HEC) | Left front of engine. |
| Evaporator Temperature Sensor | Left side of HVAC unit. See Figure. |
| Impact Sensor (Left Front) | Left front of engine compartment. See Figure. |
| Impact Sensor (Right Front) | Right front of engine compartment. See Figure. |
| Input Speed Sensor (4.7L) | Left side of transmission. See Figure. |
| Input Speed Sensor (5.7L) | Left side of transmission. See Figure. |
| Intake Air Temperature Sensor (3.7L & 4.7L) | Top front of engine. See Figure. |
| Intake Air Temperature Sensor (5.7L) | Top front of engine. See Figure. |
| Knock Sensor No. 1 (5.7L) | Left side of engine. See Figure. |
| Knock Sensor No. 2 (5.7L) | Front of engine. See Figure. |
| Knock Sensor (3.7L & 4.7L) | Right side of engine. See Figure. |
| Lateral Acceleration Sensor | Front center of headliner. |
| Line Pressure Sensor (4.7L) | Right rear of transmission. See Figure. |
| Line Pressure Sensor (5.7L) | Right rear of transmission. See Figure. |
| MAP Sensor (3.7L & 4.7L) | Top front of engine. See Figure. |
| MAP Sensor (5.7L) | Top rear of engine. See Figure. |
| Oil Pressure Sensor | Lower right front of engine. See Figure. |
| Oil Temperature Sensor | Lower right front of engine. See Figure. |
| Output Speed Sensor (4.7L) | Left side of transmission. See Figure. |
| Output Speed Sensor (5.7L) | Left side of transmission. See Figure. |
| Oxygen Sensor (Left Front) (3.7L) | Near left front of transmission. See Figure. |
| Oxygen Sensor (Left Front) (4.7L) | Near left front of transmission. See Figure. |
| Oxygen Sensor (Left Front) (5.7L) | Left rear of engine. See Figure. |
| Oxygen Sensor (Left Rear) (3.7L) | Near rear of transmission. See Figure. |
| Oxygen Sensor (Left Rear) (4.7L) | Near right side of transmission. See Figure. |
| Oxygen Sensor (Left Rear) (5.7L) | Near right front of transmission. See Figure. |
| Oxygen Sensor (Right Front) (3.7L) | Near right front of transmission. See Figure. |
| Oxygen Sensor (Right Front) (4.7L) | Near right front of transmission. See Figure. |
| Oxygen Sensor (Right Front) (5.7L) | Near right front of transmission. See Figure. |
| Oxygen Sensor (Right Rear) (3.7L) | Near right rear of transmission. See Figure. |
| Oxygen Sensor (Right Rear) (4.7L) | Near right rear of transmission. See Figure. |
| Oxygen Sensor (Right Rear) (5.7L) | Near right rear of transmission. See Figure. |
| Park Assist Sensor No. 7 | Right side of rear bumper. See Figure. |
| Park Assist Sensor No. 8 | Right middle of rear bumper. See Figure. |
| Park Assist Sensor No. 9 | Left middle of rear bumper. See Figure. |
| Park Assist Sensor No. 10 | Left side of rear bumper. See Figure. |
| Rain Sensor | Front of headliner. |
| Seat Track Position Sensor (Driver) | Below driver seat. See Figure. |
| Seat Track Position Sensor (Passenger) | Below passenger seat. |
| Seat Weight Sensor (Left Front) | Left front of passenger seat. |
| Seat Weight Sensor (Left Rear) | Left rear of passenger seat. |
| Seat Weight Sensor (Right Front) | Right front of passenger seat. |
| Seat Weight Sensor (Right Rear) | Right rear of passenger seat. |
| Side Impact Sensor (Left 1) | Left "B" pillar. See Figure. |
| Side Impact Sensor (Left 2) | Rear of left rear door. See Figure. |
| Side Impact Sensor (Right 1) | Right "B" pillar. See Figure. |
| Side Impact Sensor (Right 2) | Behind right rear door. See Figure. |
| Sun Sensor | Top center of dash. |
| Throttle Position Sensor (3.7L & 4.7L) | Top of engine. See Figure. |
| Washer Fluid Level Sensor | Left front of engine compartment. See Figure. |
