Section 100 (Electrical Component Locator): Grounds
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GROUNDS LOCATION
| Component | Location |
|---|---|

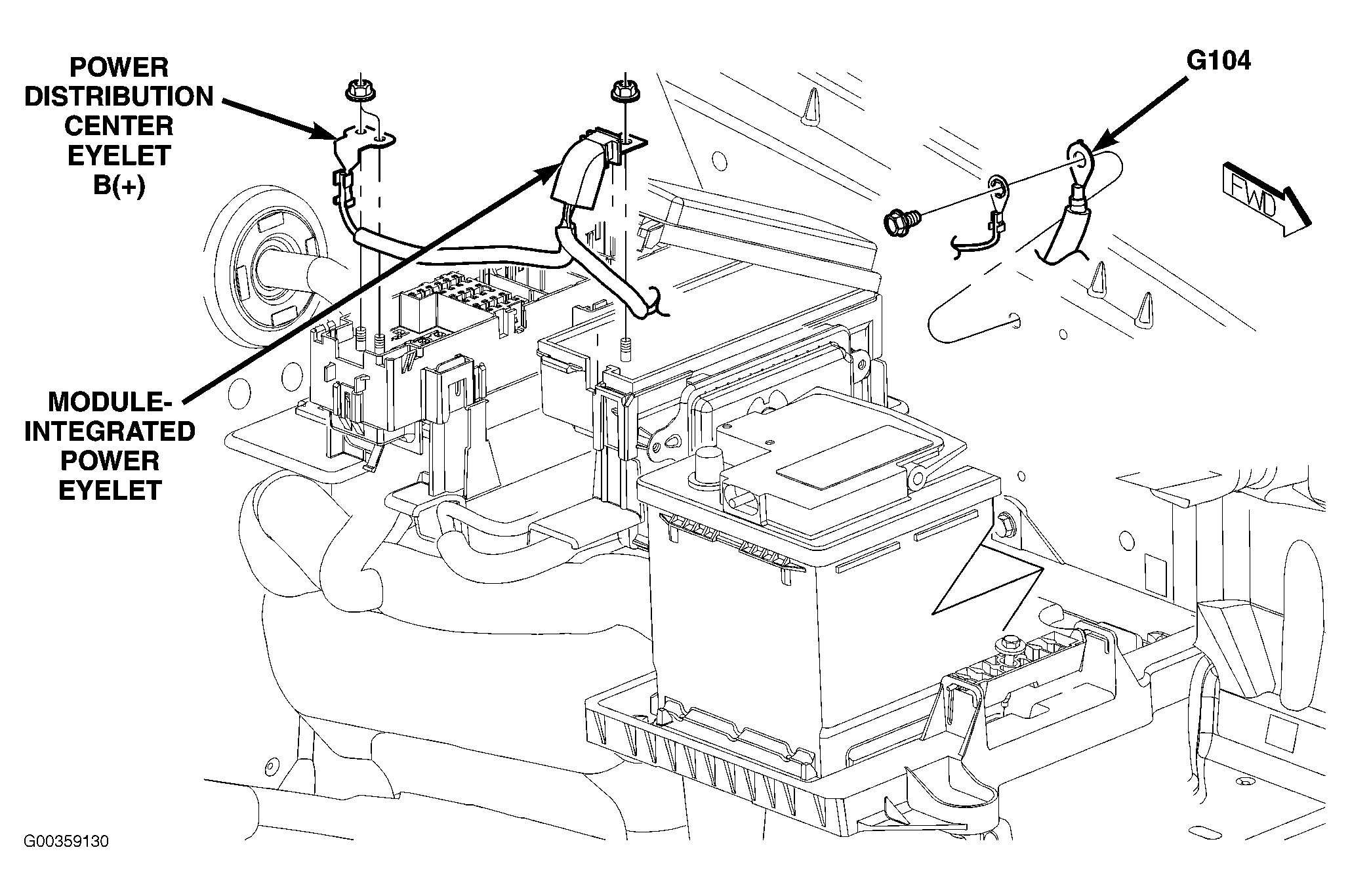

| G100 | Left rear of engine compartment. See Figure. |
| G101 | Left side of engine compartment. See Figure. |
| G102 | Left side of engine compartment. See Figure. |
| G103 | In headlamp & dash harness. |
| G104 | Left side of engine compartment. See Figure. |
| G105 (3.7L & 4.7L) | Lower left rear of engine. See Figure. |
| G105 (5.7L) | Lower left rear of engine. See Figure. |
| G200 | Near breakout to data link connector. |
| G201 | Under center console. See Figure. |
| G300 | Behind passenger seat. See Figure. |
| G301 | Rear of left rear door. See Figure. |
| G302 | Below left rear seat. See Figure. |
| G303 | Near left side of driver seat. See Figure. |
