BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|

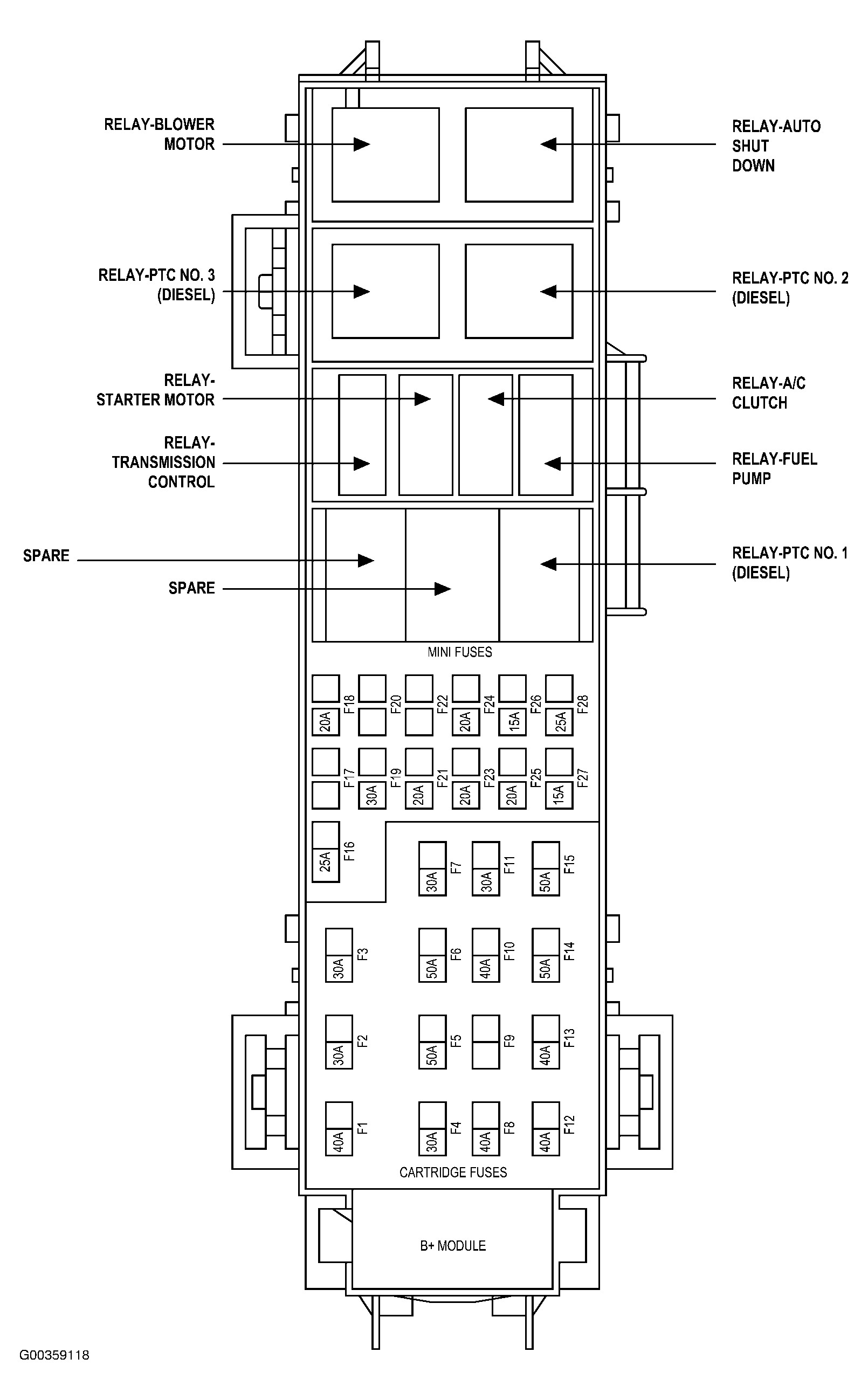

| A/C Clutch Relay | Power distribution center. See Figure. |

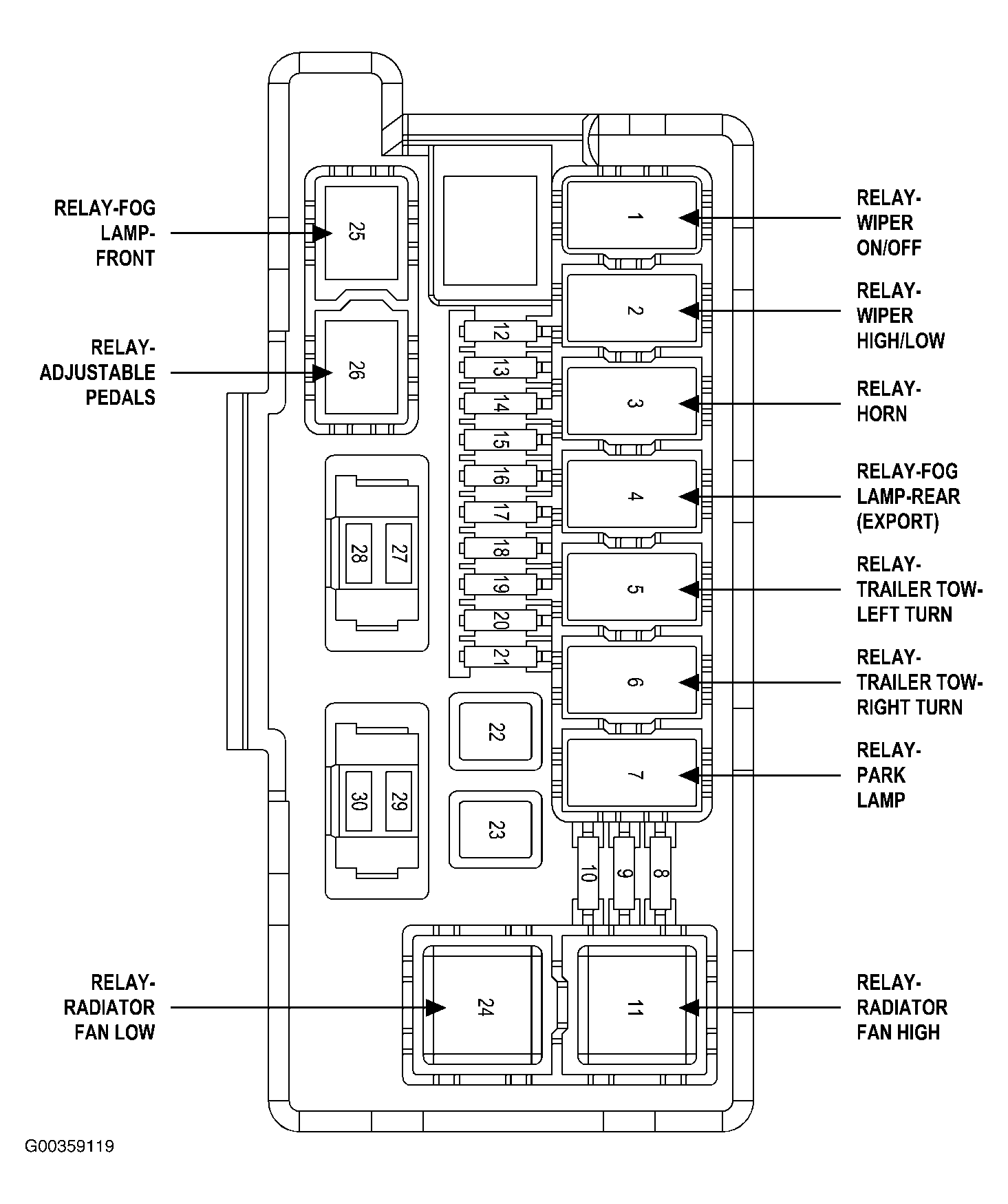

| Adjustable Pedals Relay | Integrated power module. See Figure. |
| Auto Shut Down Relay | Power distribution center. See Figure. |
| Blower Motor Relay | Power distribution center. See Figure. |
| Front Fog Lamp Relay | Integrated power module. See Figure. |
| Fuel Pump Relay | Power distribution center. See Figure. |
| Horn Relay | Integrated power module. See Figure. |
| Park Lamp Relay | Integrated power module. See Figure. |
| Radiator Fan High Relay | Integrated power module. See Figure. |
| Radiator Fan Low Relay | Integrated power module. See Figure. |
| Starter Motor Relay | Power distribution center. See Figure. |
| Trailer Tow Relay (Left Turn) | Integrated power module. See Figure. |
| Trailer Tow Relay (Right Turn) | Integrated power module. See Figure. |
| Transmission Control Relay | Power distribution center. See Figure. |
| Wiper High/Low Relay | Integrated power module. See Figure. |
| Wiper On/Off Relay | Integrated power module. See Figure. |
