Trim Panel: Removal

Lower the window.
Remove the clip attaching the window glass regulator handle to the regulator. Remove the handle.
Remove the screws attaching trim panel to door. See Fig 1.
Using a special tool C-4829 or equivalent, remove push-in fasteners attaching trim panel to door.
Lift the trim panel upward and separate the trim panel from the door.

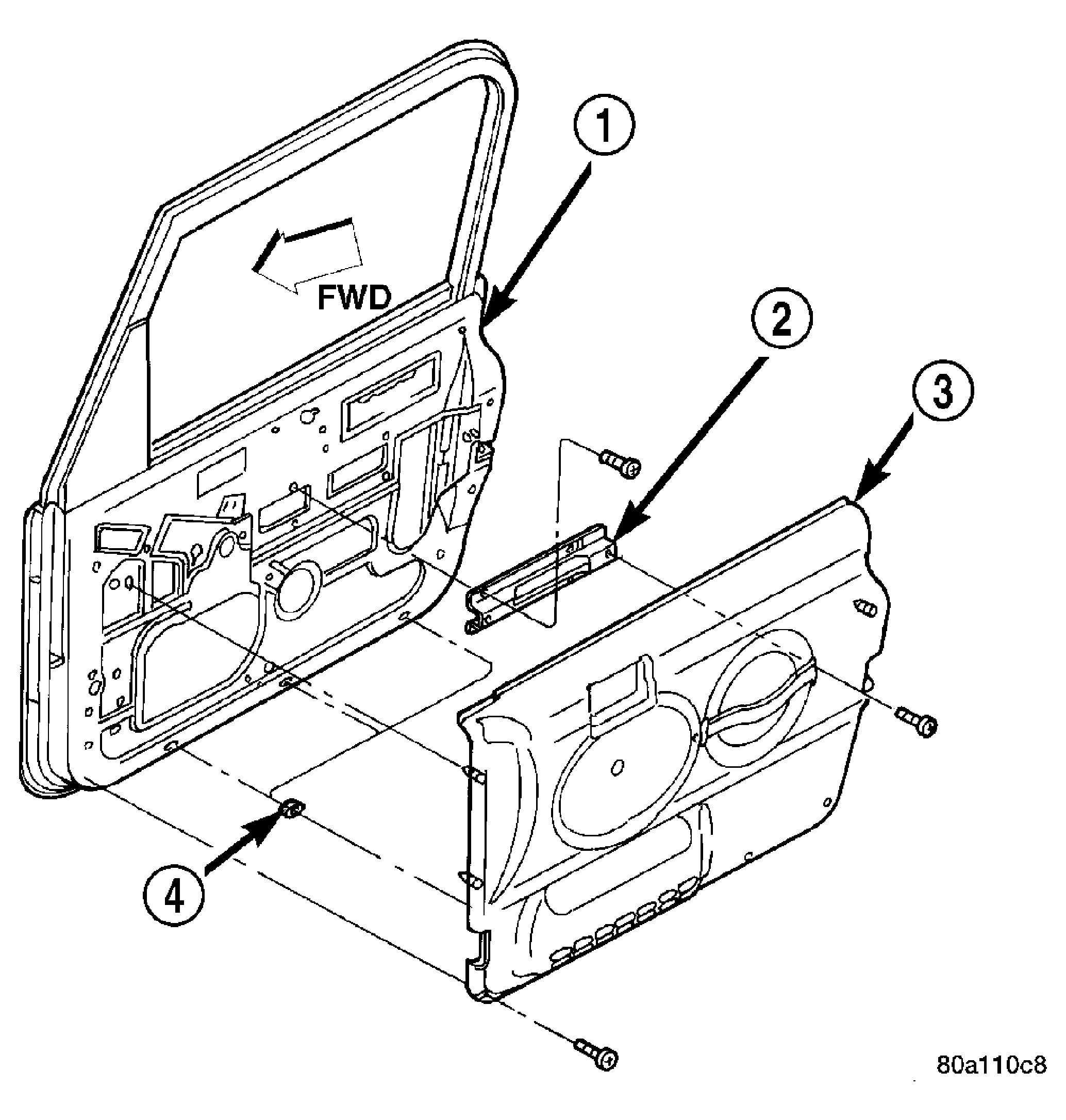

Fig 1: GRAB HANDLE SUPPORT BRACKET

Courtesy of DAIMLERCHRYSLER CORP.

1 - FULL DOOR

2 - GRAB HANDLE BRACKET

3 - TRIM PANEL

4 - NUT
