Axle Lock Switch (Off-Road Package) - 8 Way

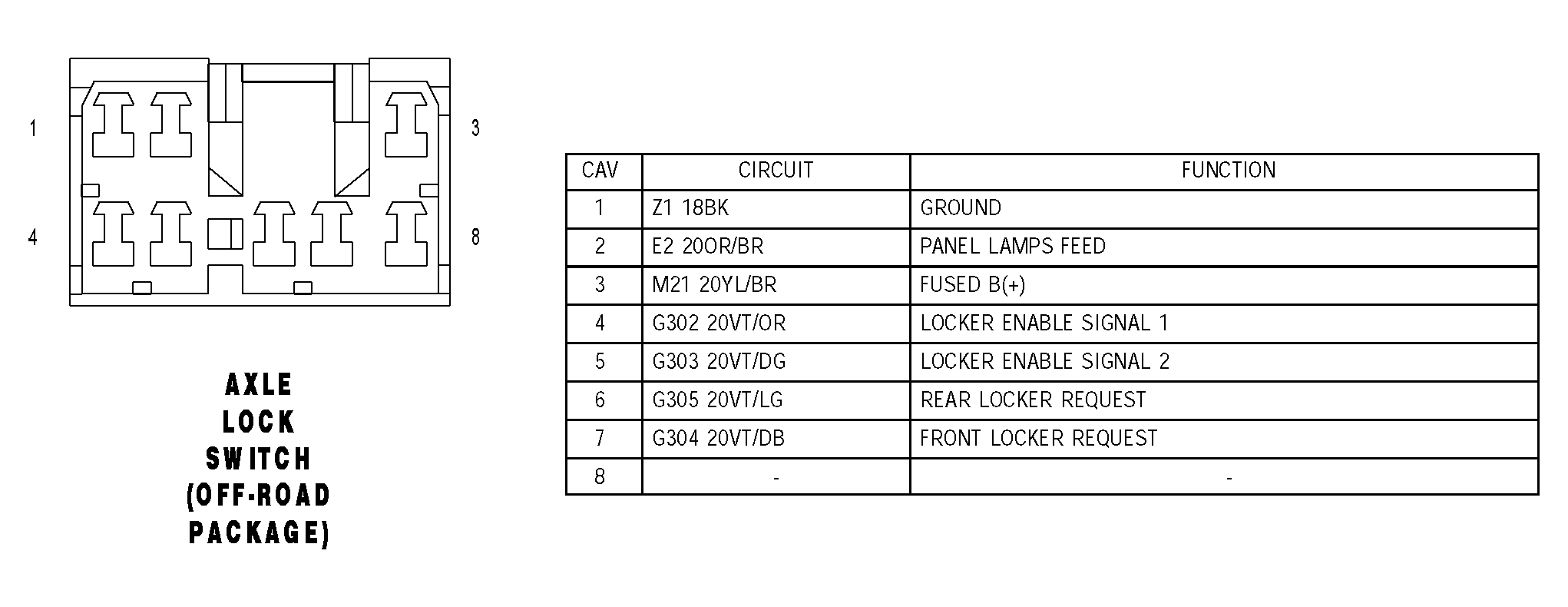

Fig 1: Identifying Axle Lock Switch (Off-Road Package) Connector Pinouts

G04550667

Courtesy of DAIMLERCHRYSLER CORP.
