Rear Seat: Removal

Remove the add-a-trunk, if equipped. (Refer to BODY/INTERIOR/ADD-A-TRUNK - REMOVAL)
Using the latch handle, fold the seat back down and tip the seat assembly forward. See Fig 1.
Squeeze the release bar and disengage the front latches. See Fig 2.
Remove the seat through tailgate opening.

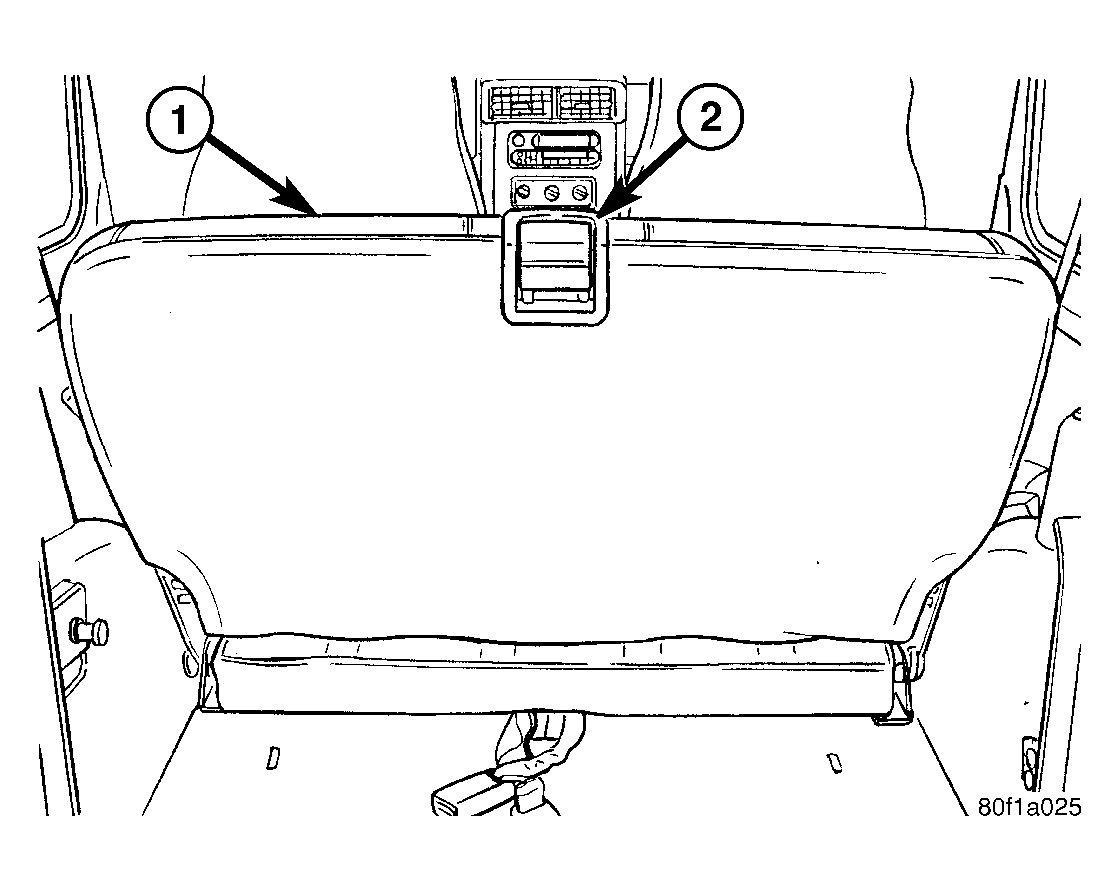

Fig 1: REAR SEAT BACK

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR SEAT BACK

2 - RELEASE HANDLE

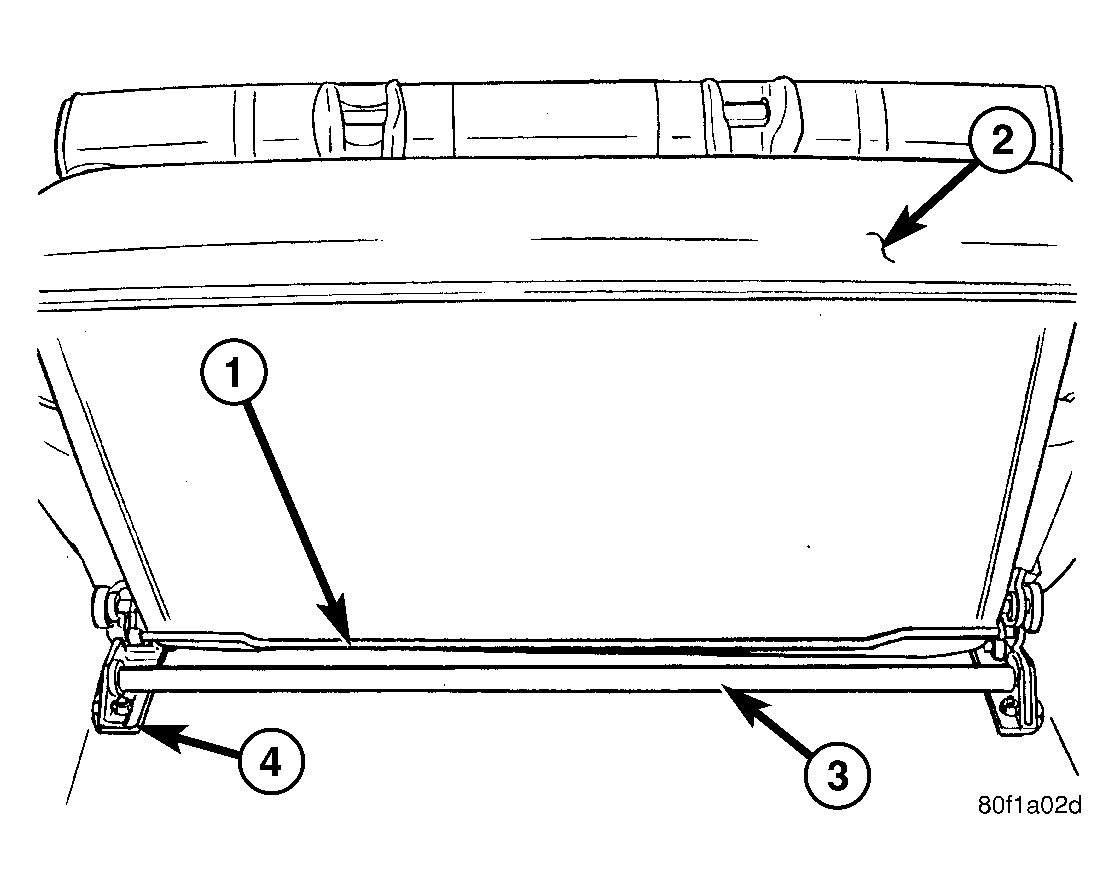

Fig 2: REAR SEAT RELEASE LATCH ROD

Courtesy of DAIMLERCHRYSLER CORP.

1 - RELEASE LATCH ROD

2 - REAR SEAT CUSHION

3 - REAR SEAT LATCH ASSEMBLY

4 - REAR SEAT LATCH STRIKER (4)
