Front Seat Back Cover: Removal
- Remove the seat. (Refer to BODY/SEATS/SEAT - REMOVAL)
- Disconnect the j-straps at the bottom of the seat back.
- Remove the bottom hog rings.
- Remove the upper hog rings.
- Remove the support rods from the seat back.

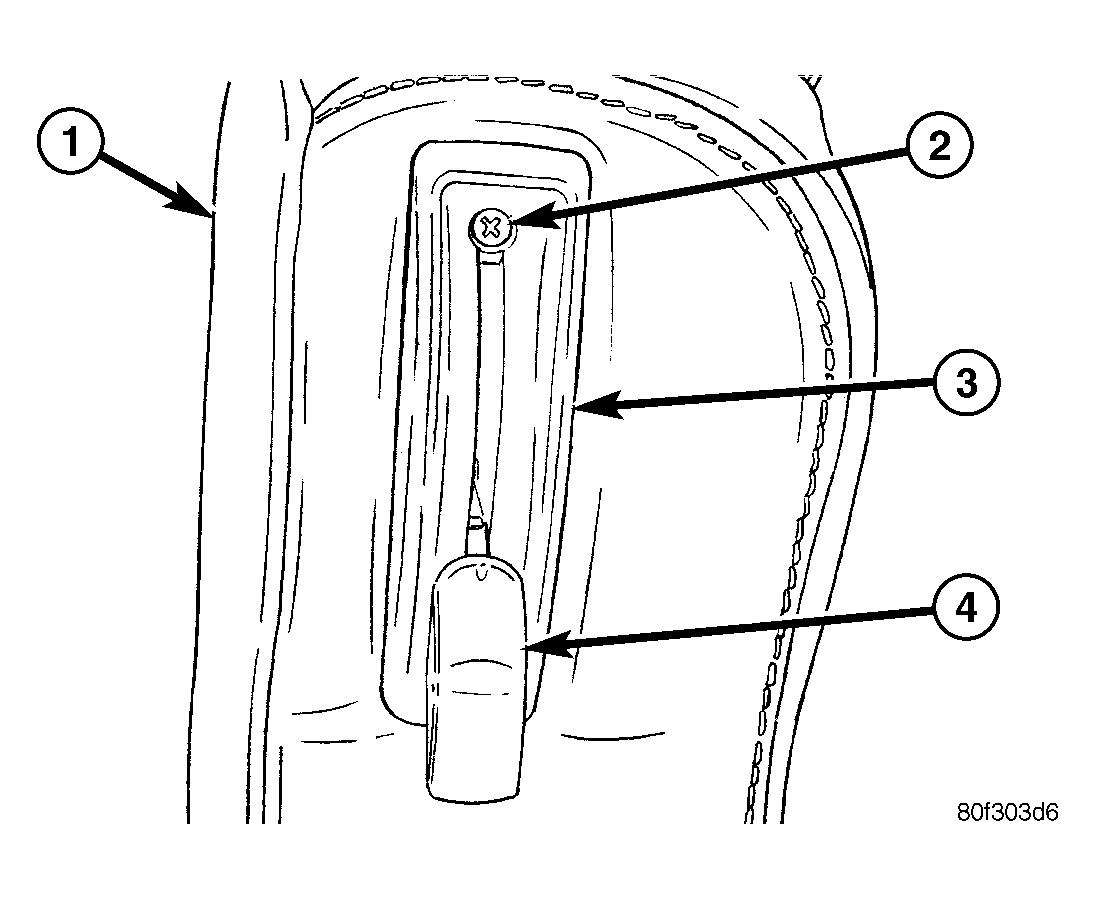

- Using a trim stick C-4755 or equivalent, remove and discard the seat release handle knob. See Fig 1.
- Remove the screw and remove the release handle bezel.
- Remove the seat cover and cushion.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - SEAT BACK |
| 2 - BEZEL SCREW |
| 3 - RELEASE HANDLE BEZEL |
| 4 - RELEASE HANDLE KNOB |
