Passenger Airbag On-Off Switch (LHD) - 6 Way

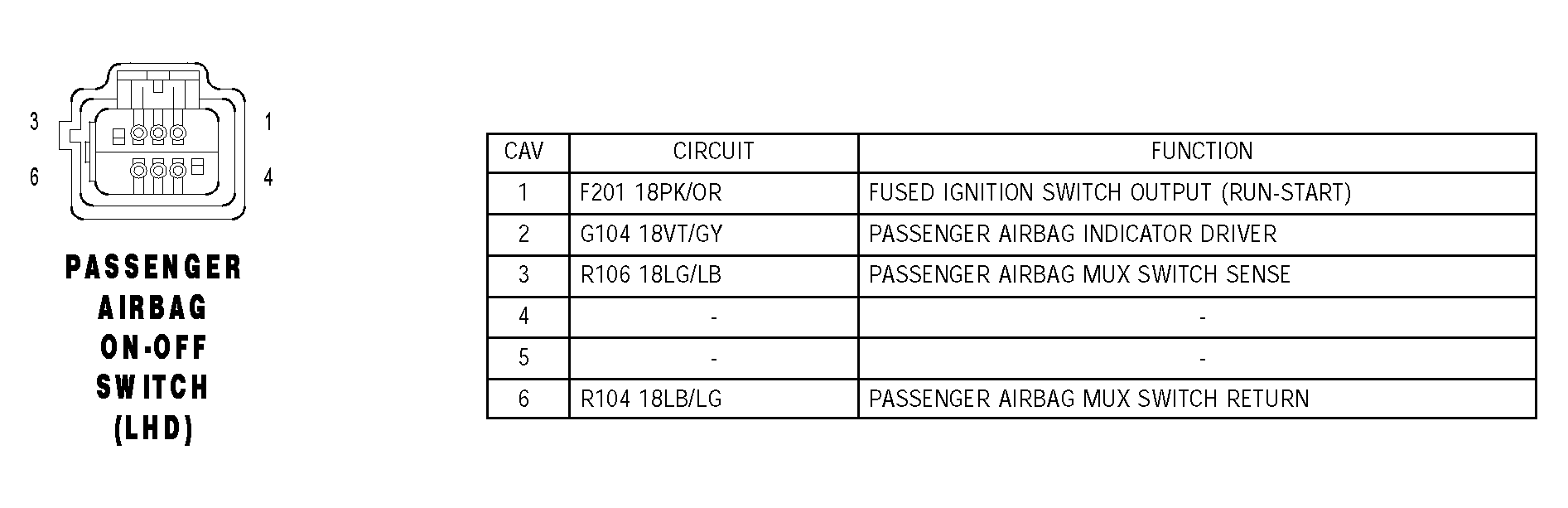

Fig 1: Identifying Passenger Airbag On-Off Switch Connector Pinouts (LHD) - 6 Way

G04550687

Courtesy of DAIMLERCHRYSLER CORP.
