Weld Locations

DESCRIPTION	FIGURE
CROSSMEMBERS/STRAINERS	Fig 1.
FRONT FLOOR PAN (1 OF 3)	Fig 2.
FRONT FLOOR PAN (2 OF 3)	Fig 3.
FRONT FLOOR PAN (3 OF 3)	Fig 4.
REAR FLOOR PAN (1 OF 2)	Fig 5.
REAR FLOOR PAN (2 OF 2)	Fig 6.
DASH PANEL - LEFT HAND DRIVE	Fig 7.
COWL ASSEMBLY - LEFT HAND DRIVE (1 OF 3)	Fig 8.
COWL ASSEMBLY - LEFT HAND DRIVE (2 OF 3)	Fig 9.
COWL ASSEMBLY - LEFT HAND DRIVE (3 OF 3)	Fig 10.
DASH COWL ASSEMBLY - LEFT HAND DRIVE	Fig 11.
WINDSHIELD FRAME	Fig 12.
DASH PANEL - RIGHT HAND DRIVE	Fig 13.
COWL ASSEMBLY - RIGHT HAND DRIVE (1 OF 3)	Fig 14.
COWL ASSEMBLY - RIGHT HAND DRIVE (2 OF 3)	Fig 15.
COWL ASSEMBLY - RIGHT HAND DRIVE (3 OF 3)	Fig 16.
DASH COWL ASSEMBLY - RIGHT HAND DRIVE	Fig 17.
BODY SIDE ASSEMBLY	Fig 18.
WHEELHOUSE ASSEMBLY	Fig 19.
SPORT BAR ASSEMBLY (ROLL BAR)	Fig 20.
HALF DOOR ASSEMBLY	Fig 21.
FULL DOOR ASSEMBLY (1 OF 2)	Fig 22.
FULL DOOR ASSEMBLY (2 OF 2)	Fig 23.
FRONT FENDER ASSEMBLY	Fig 24.
HOOD ASSEMBLY	Fig 25.
TAILGATE ASSEMBLY	Fig 26.
RADIATOR GUARD ASSEMBLY	Fig 27.
DASH, COWL AND FLOOR ASSEMBLY - LEFT HAND DRIVE	Fig 28.
DASH, COWL AND FLOOR ASSEMBLY - RIGHT HAND DRIVE	Fig 29.
FRONT AND REAR FLOOR PAN	Fig 30.
BODY SIDE (1 OF 2)	Fig 31.
BODY SIDE (2 OF 2)	Fig 32.
BODY COMPLETE (1 OF 4)	Fig 33.
BODY COMPLETE (2 OF 4)	Fig 34.
BODY COMPLETE (3 OF 4)	Fig 35.
BODY COMPLETE (4 OF 4)	Fig 36.
BODY COMPLETE LONG WHEEL BASE (LWB) (1 OF 3)	Fig 37.
BODY COMPLETE LWB (2 OF 3)	Fig 38.
BODY COMPLETE LWB (3 OF 3	Fig 39.
REAR FLOOR LWB (1 OF 3)	Fig 40.
REAR FLOOR LWB (2 OF 3)	Fig 41.
REAR FLOOR LWB (3 OF 3)	Fig 42.
UNDERBODY COMPLETE LWB (1 OF 3)	Fig 43.
UNDERBODY COMPLETE LWB (2 OF 3)	Fig 44.
UNDERBODY COMPLETE LWB (3 OF 3)	Fig 45.
BODY SIDE COMPLETE LWB (1 OF 2)	Fig 46.
BODY SIDE COMPLETE LWB (2 OF 2)	Fig 47.
BODY COMPLETE LWB (1 OF 4)	Fig 48.
BODY COMPLETE LWB (2 OF 4)	Fig 49.
BODY COMPLETE LWB (3 OF 4)	Fig 50.
BODY COMPLETE LWB (4 OF 4)	Fig 51.

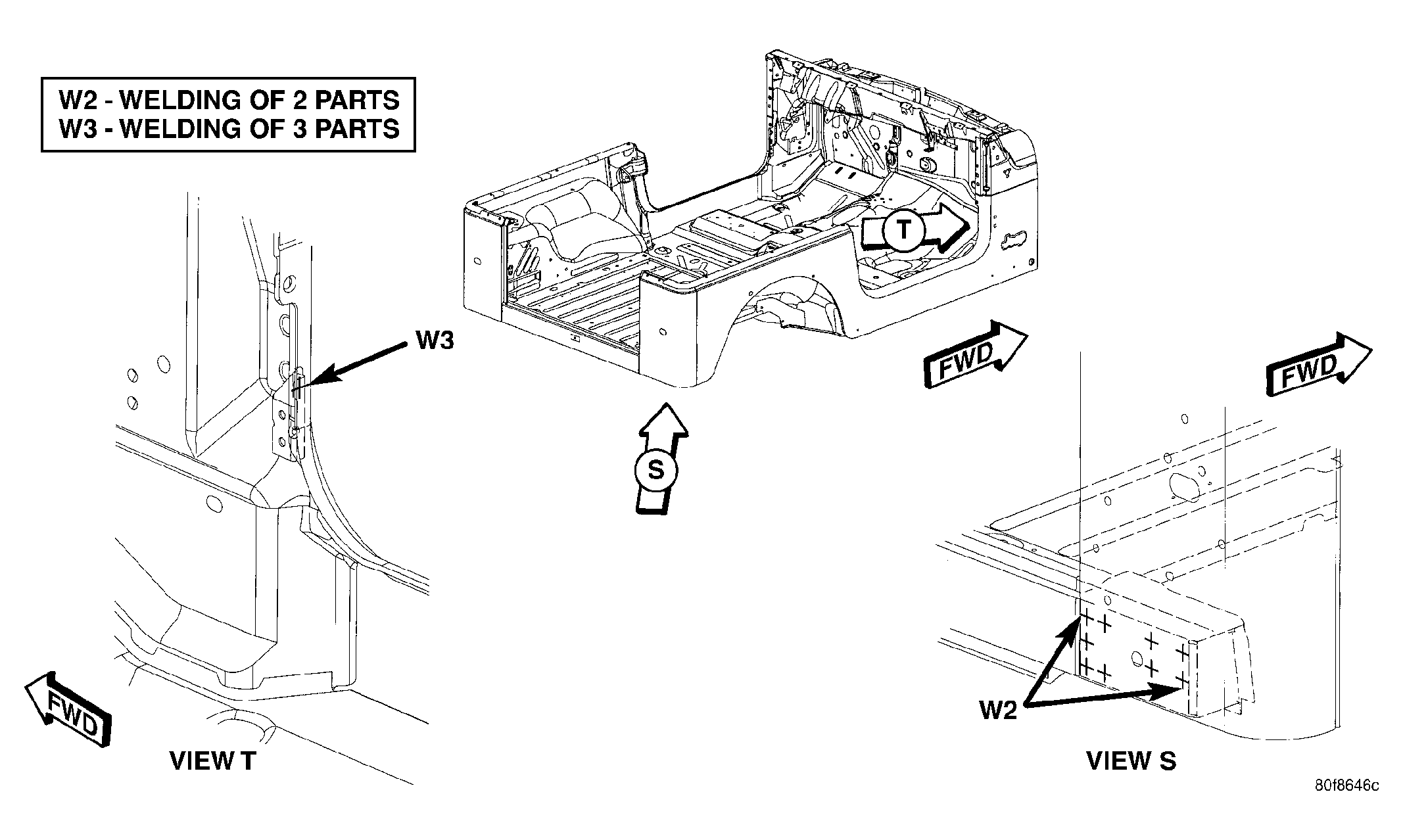

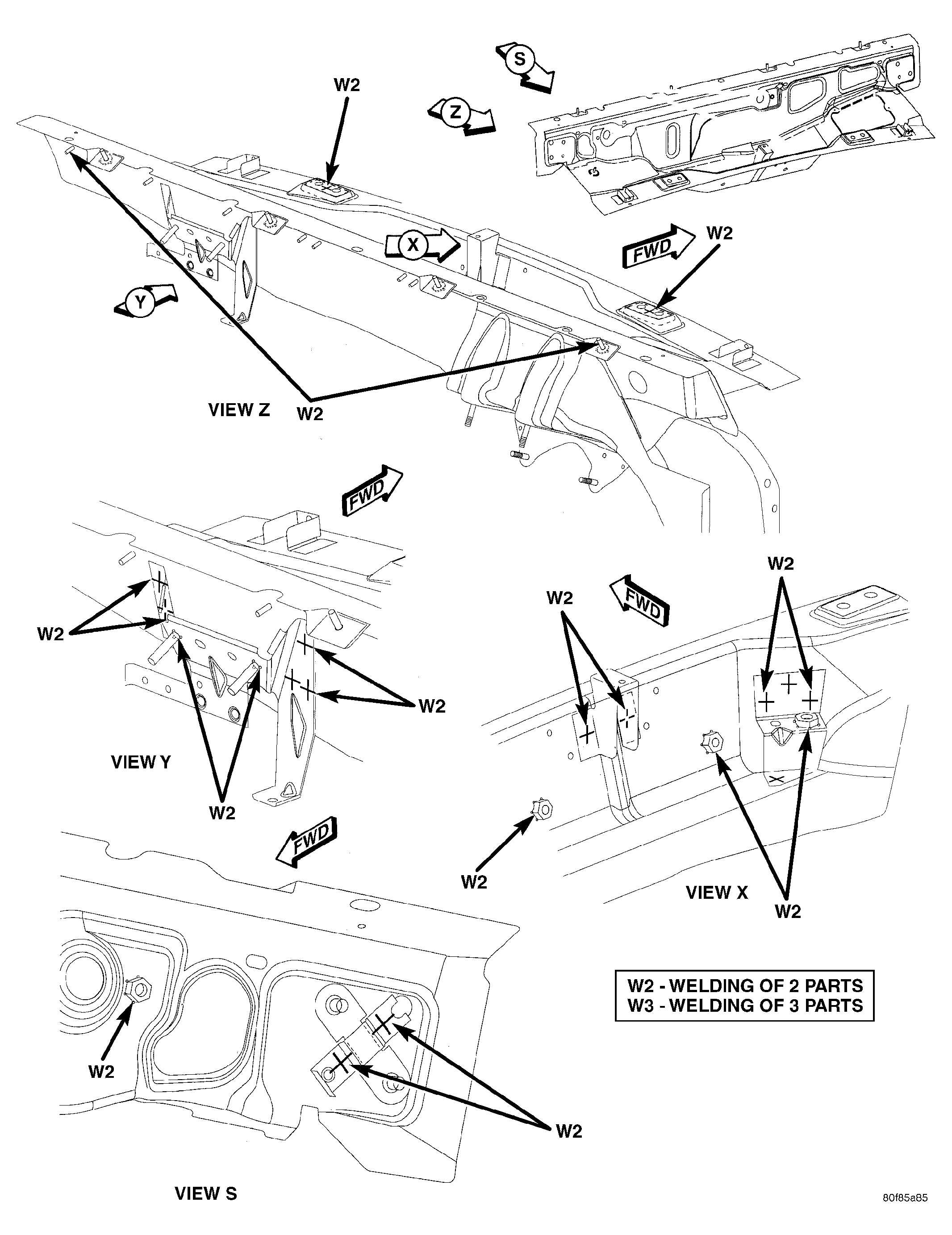

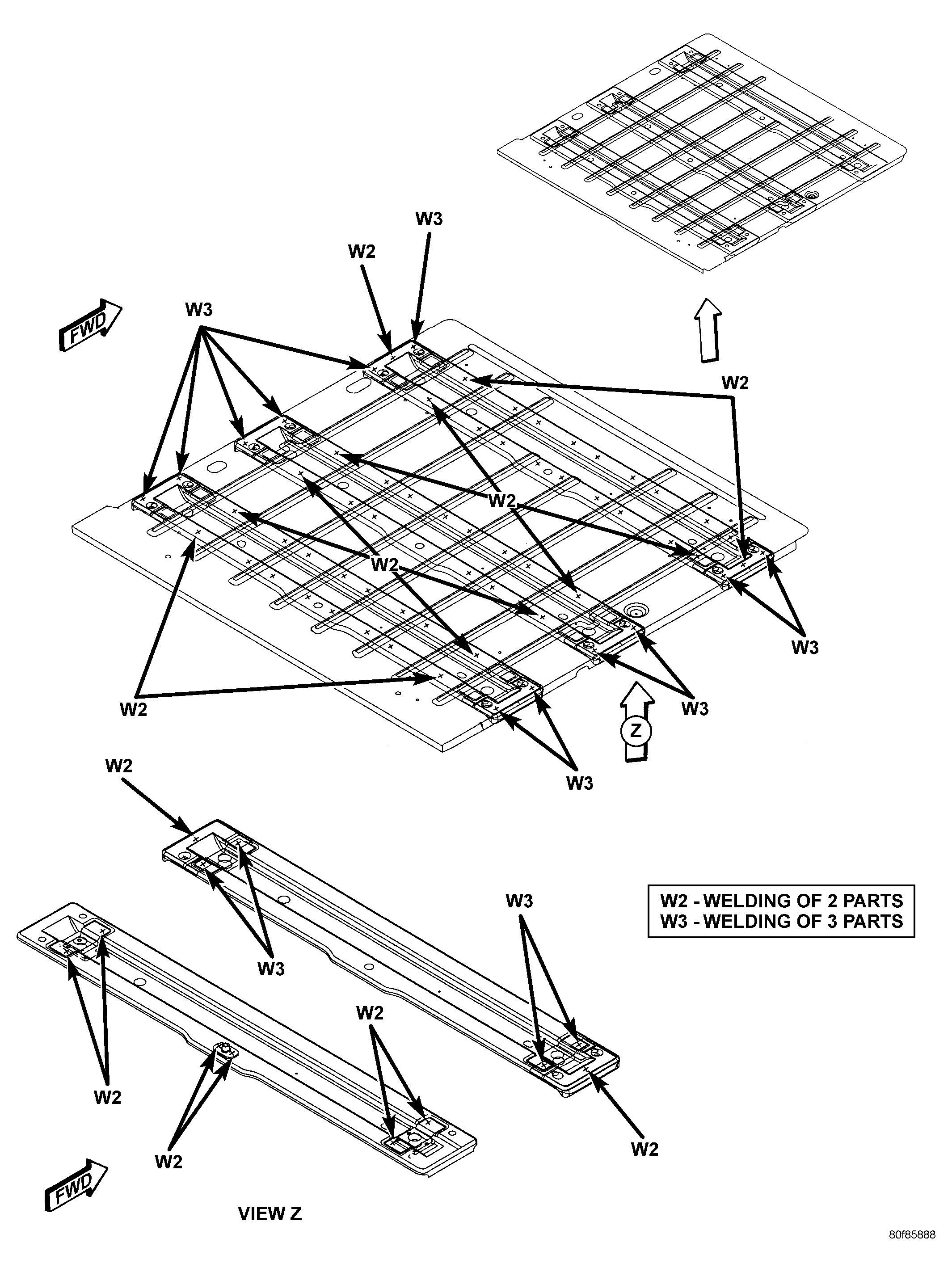

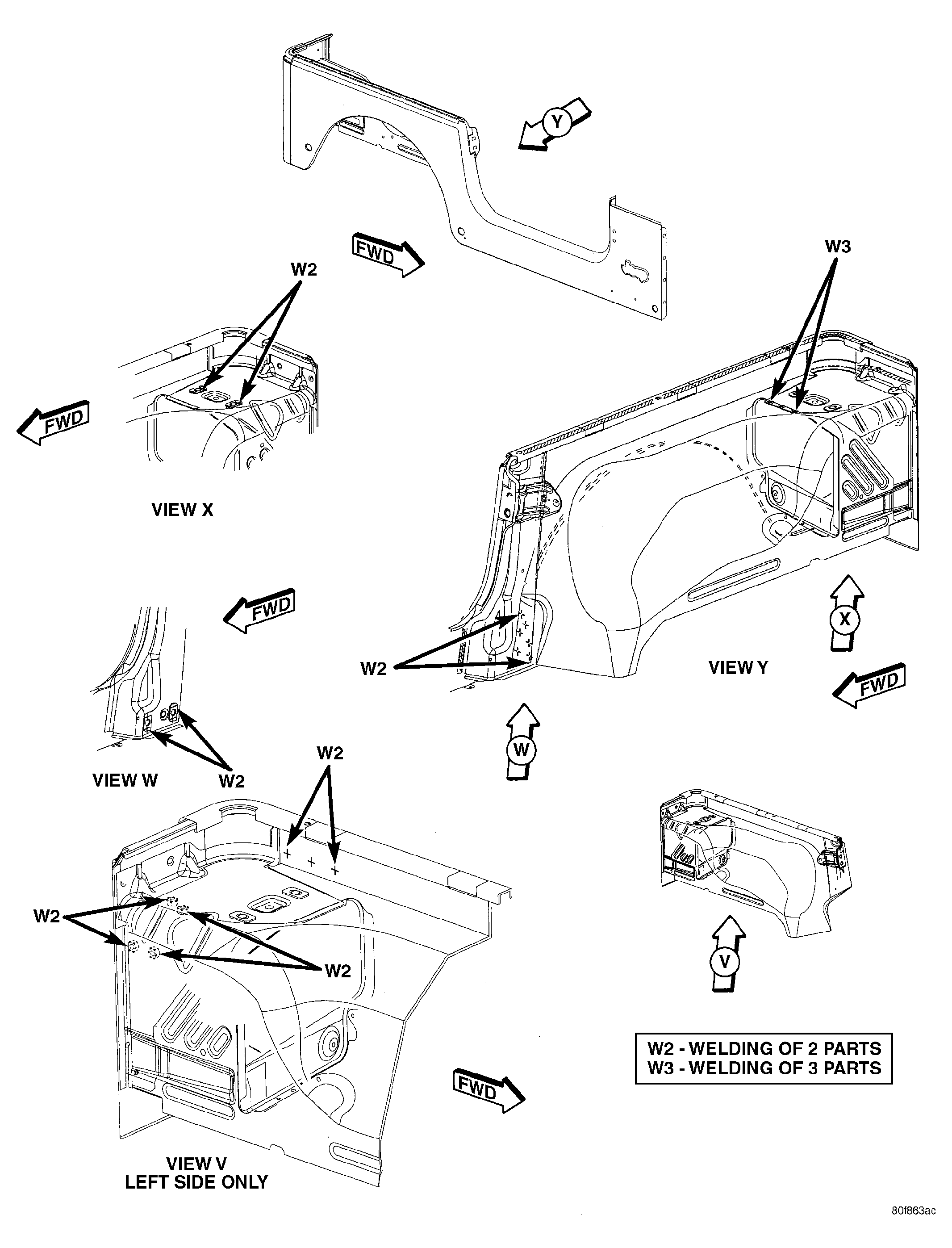

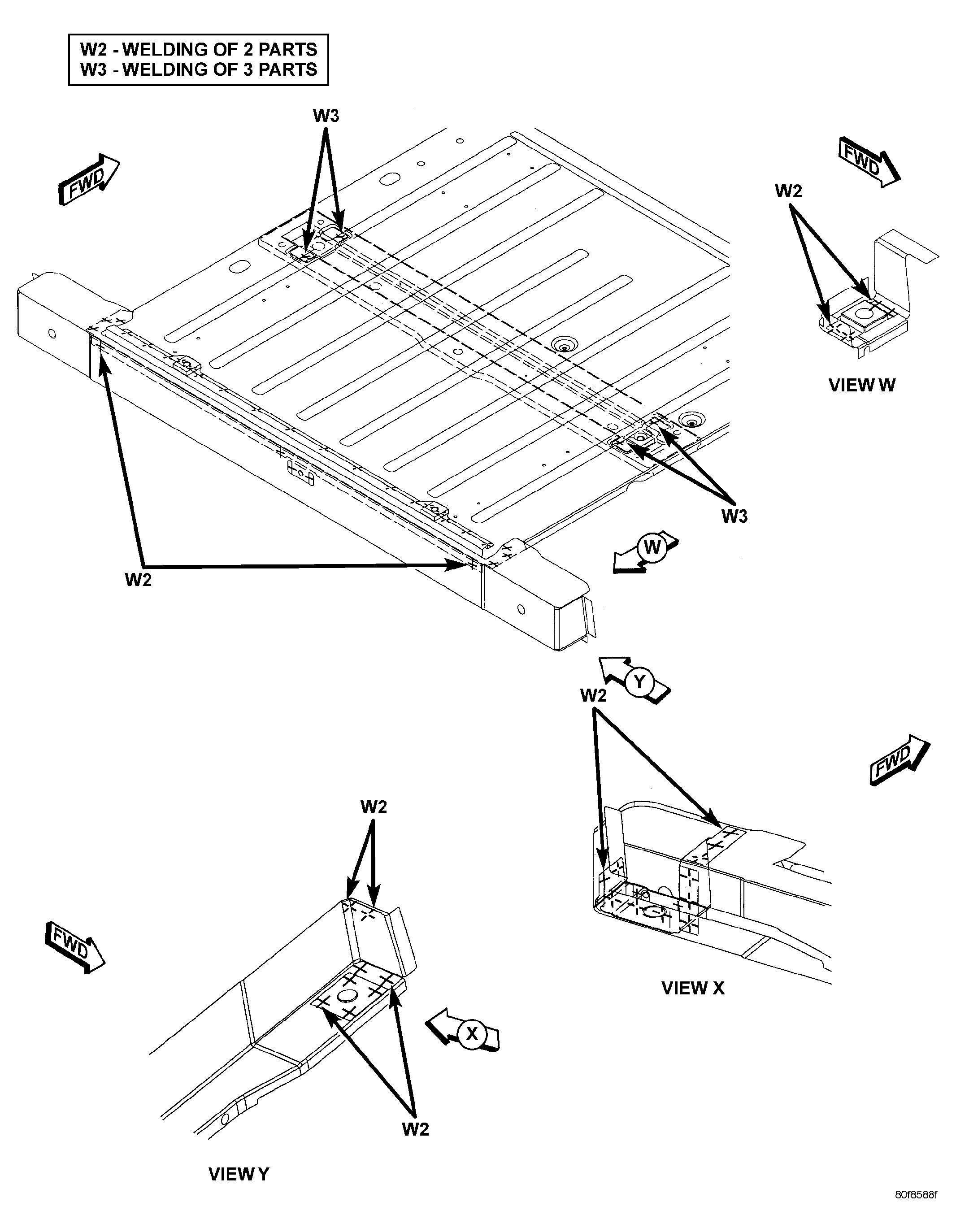

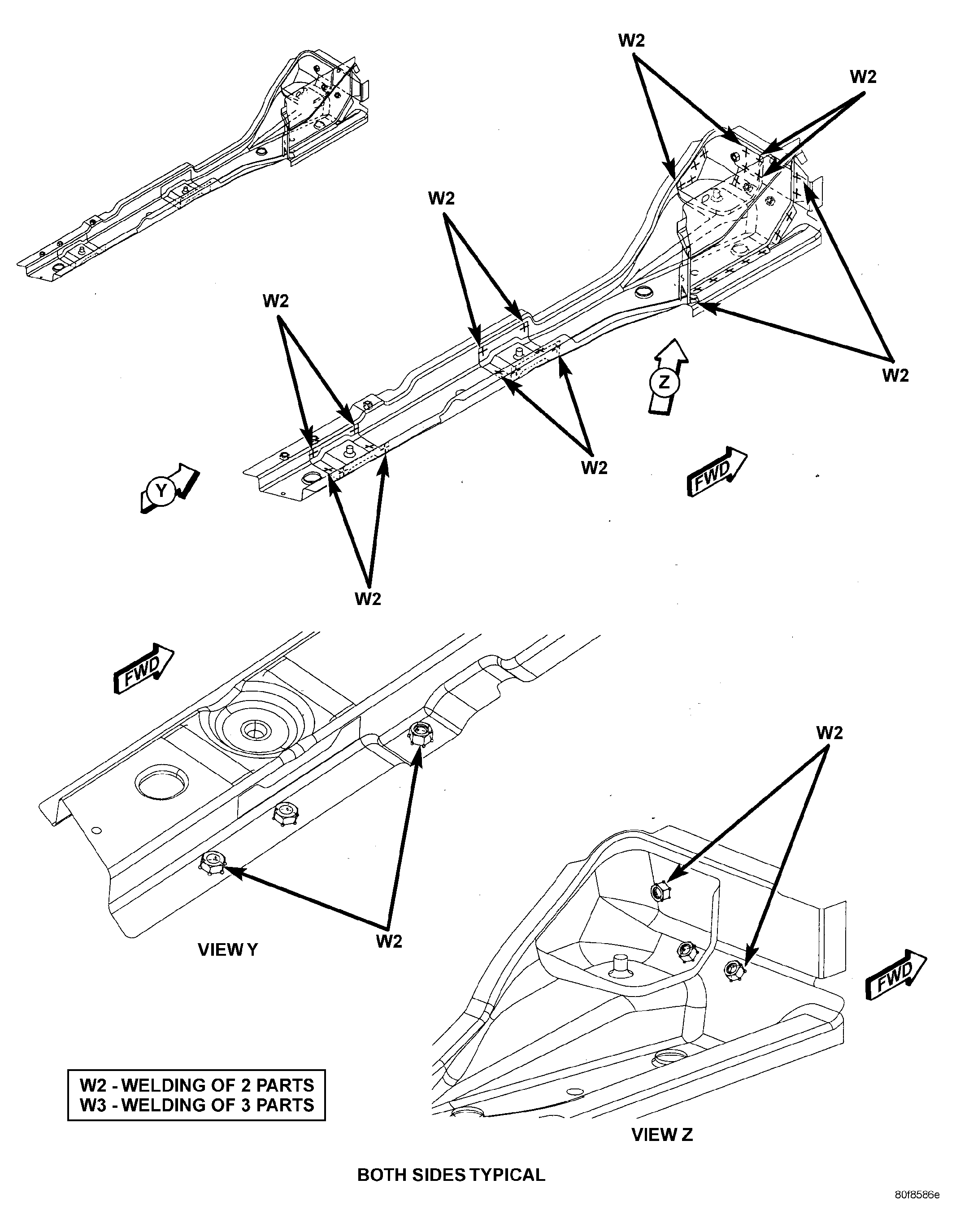

Fig 1: CROSSMEMBERS/STRAINERS

Courtesy of DAIMLERCHRYSLER CORP.

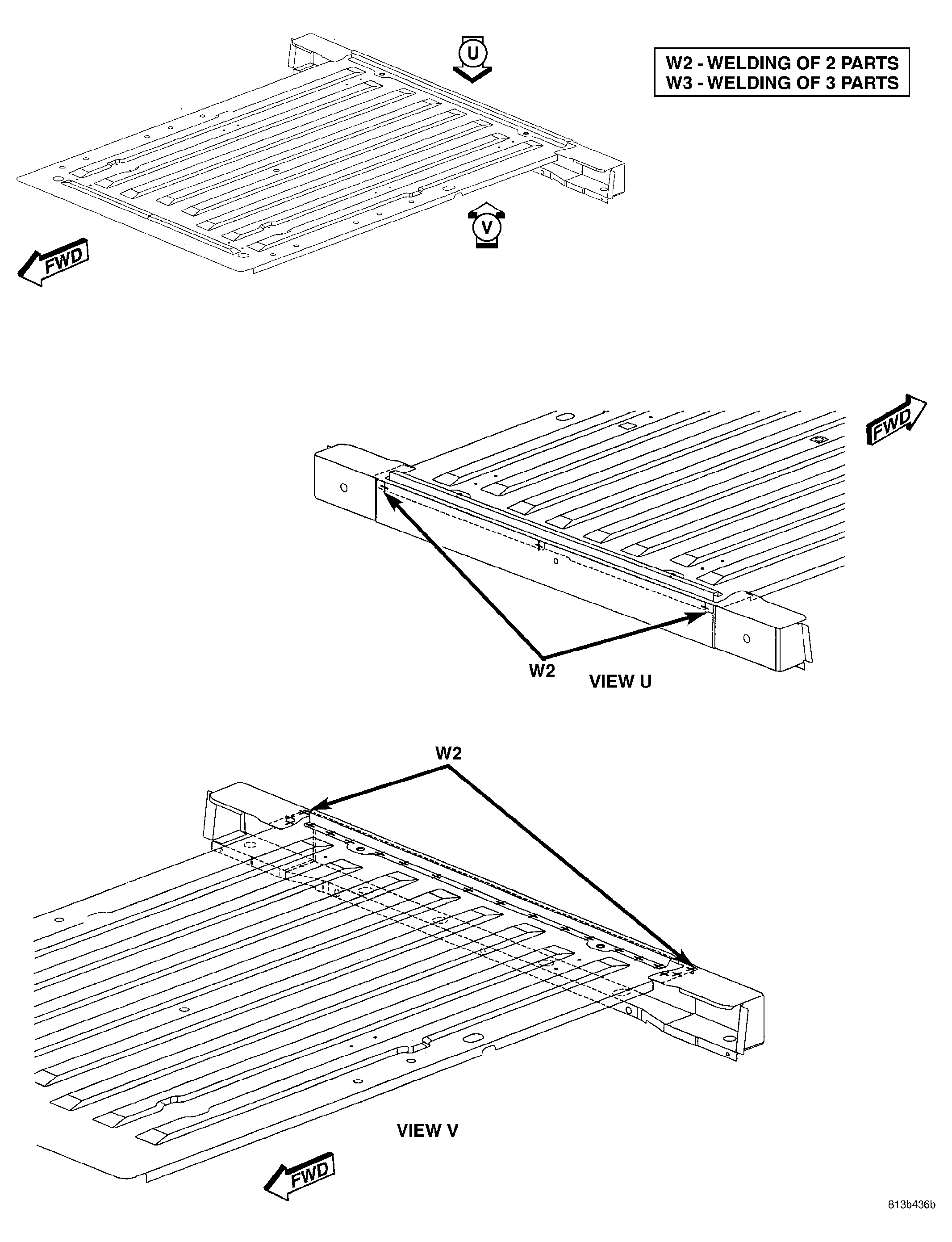

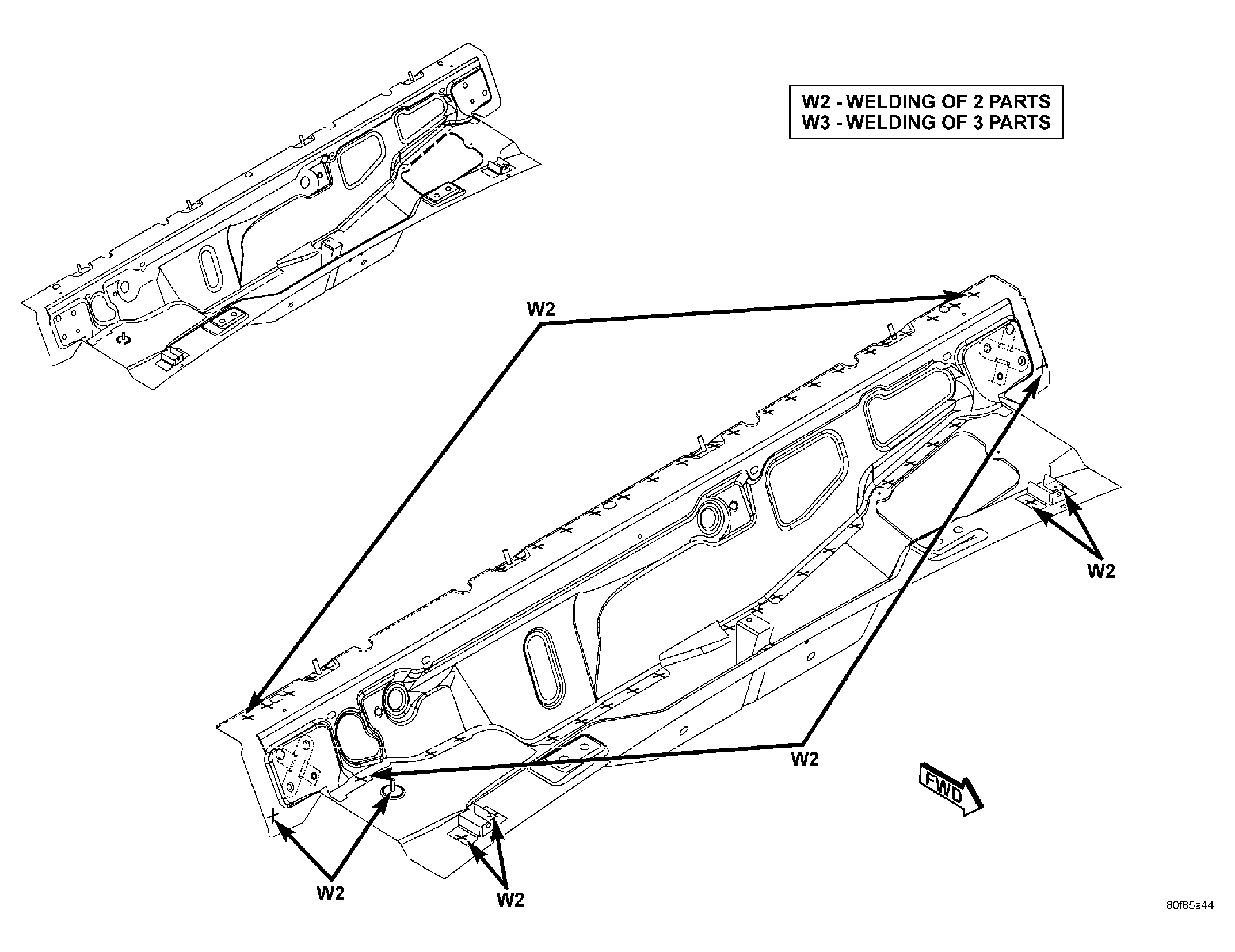

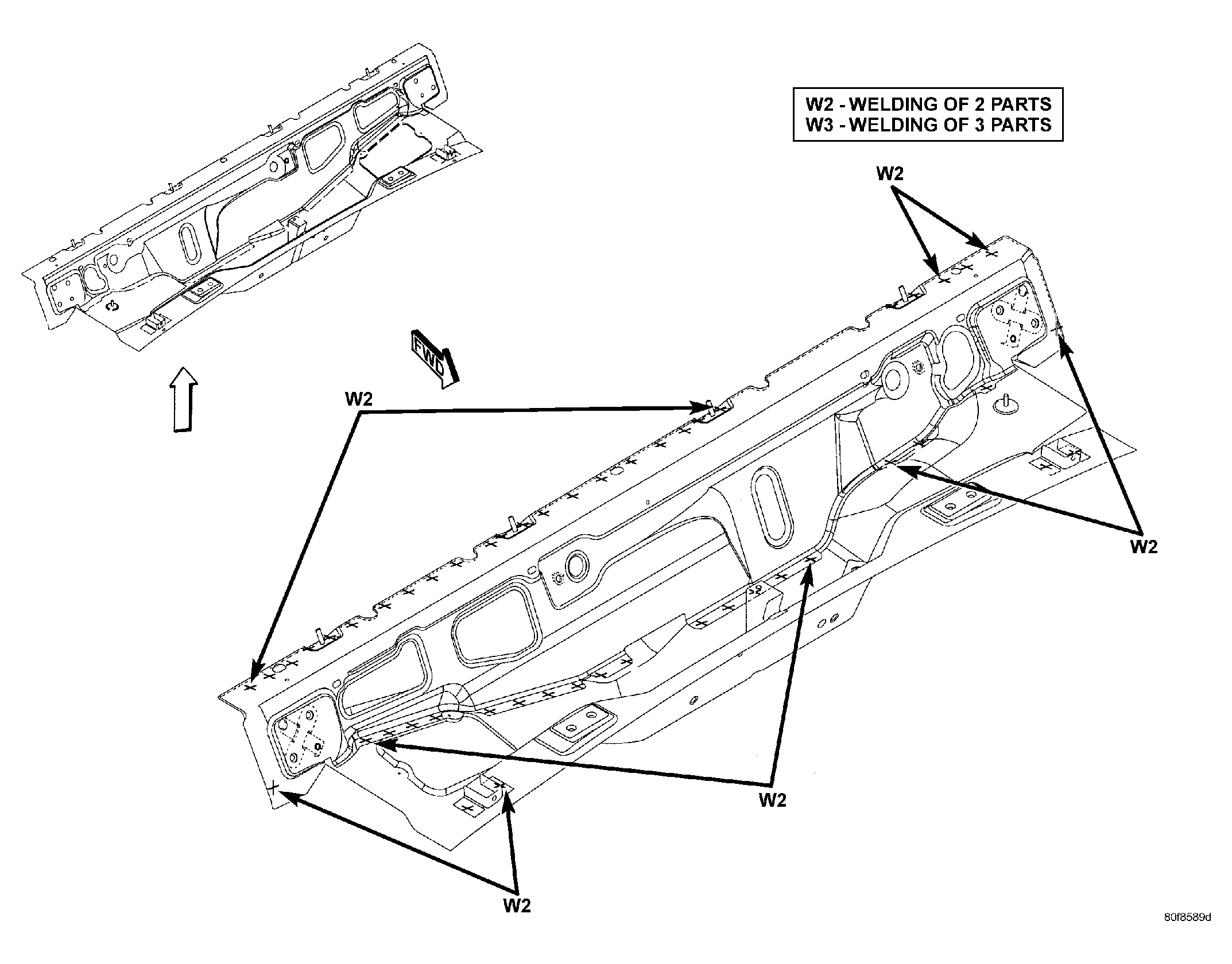

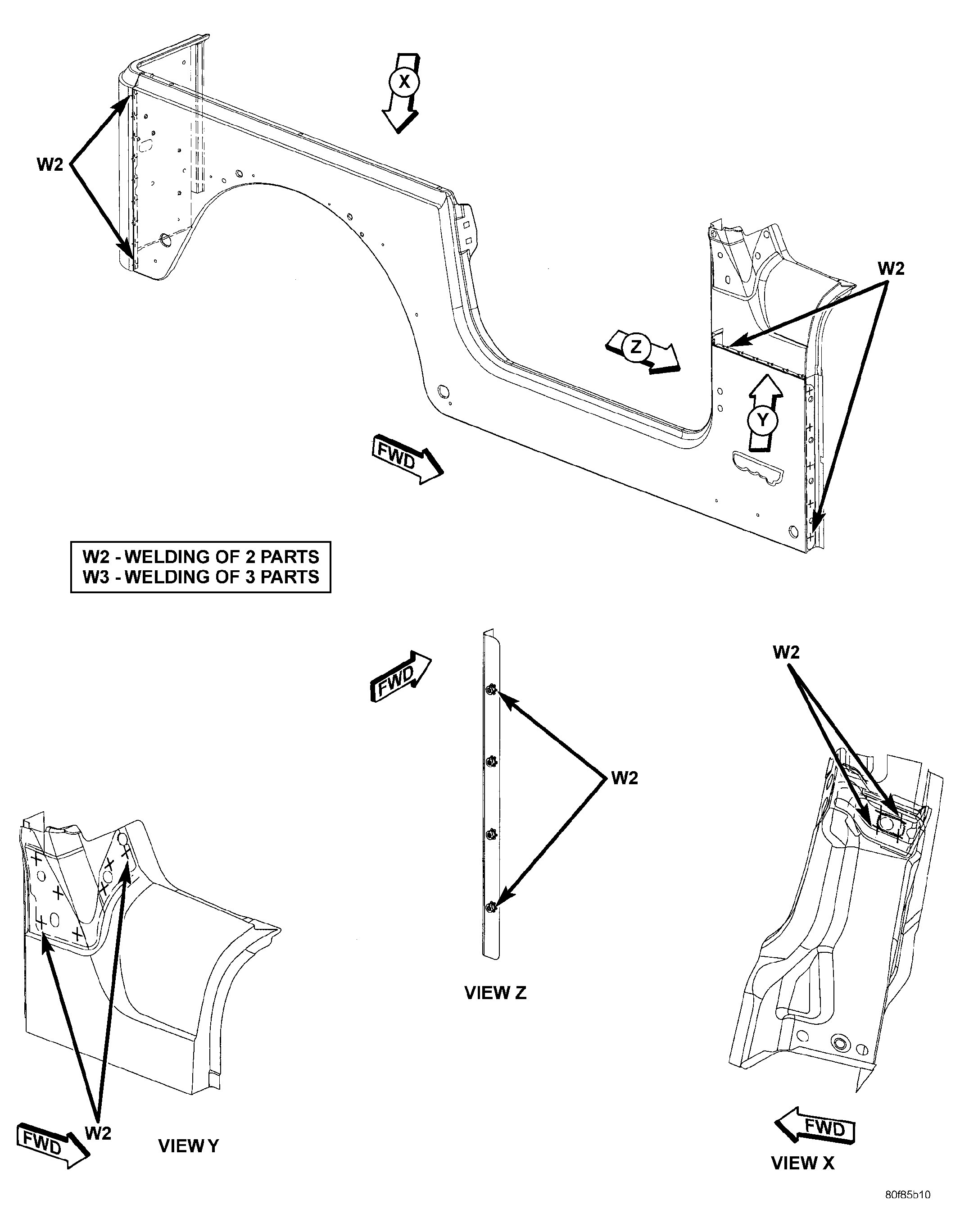

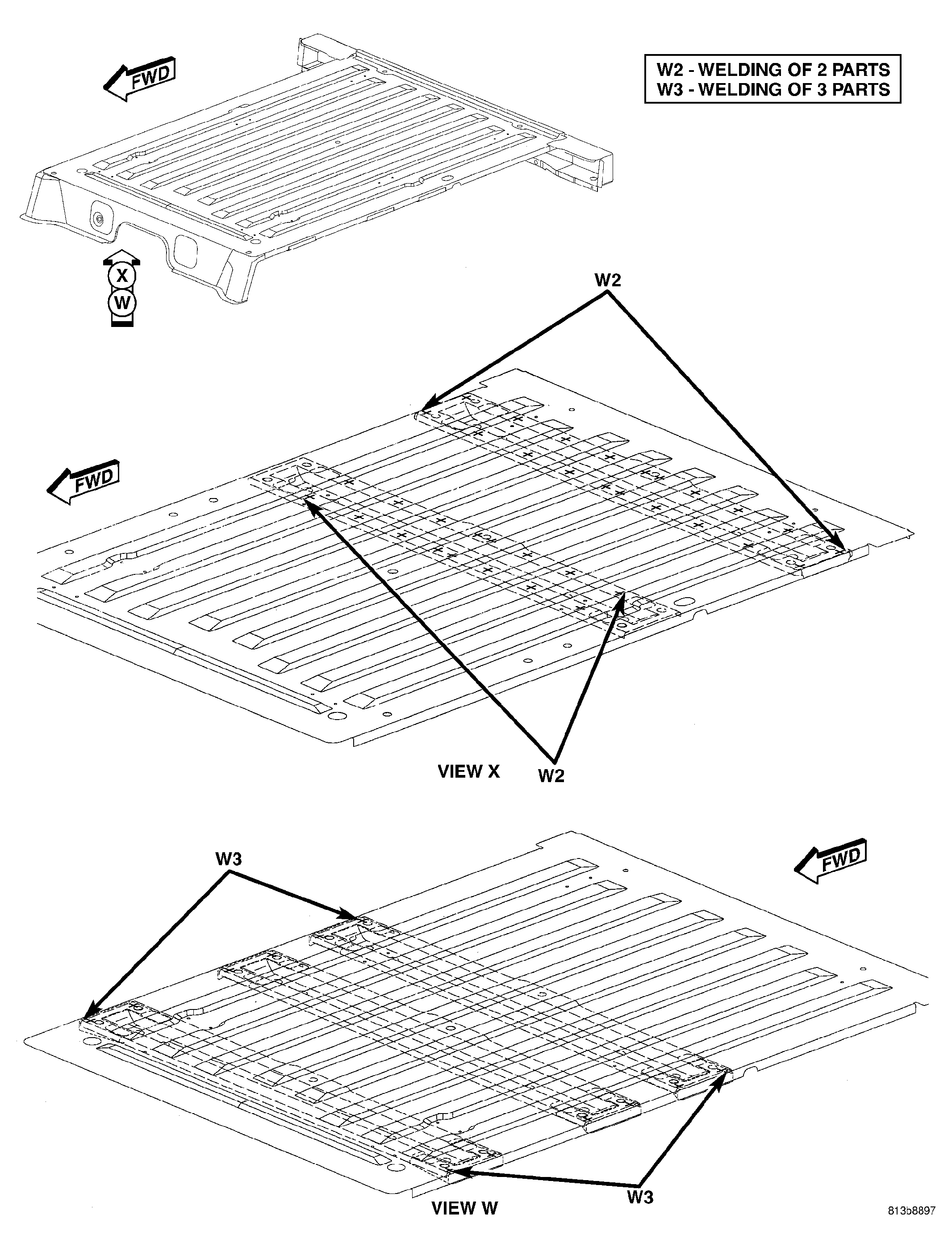

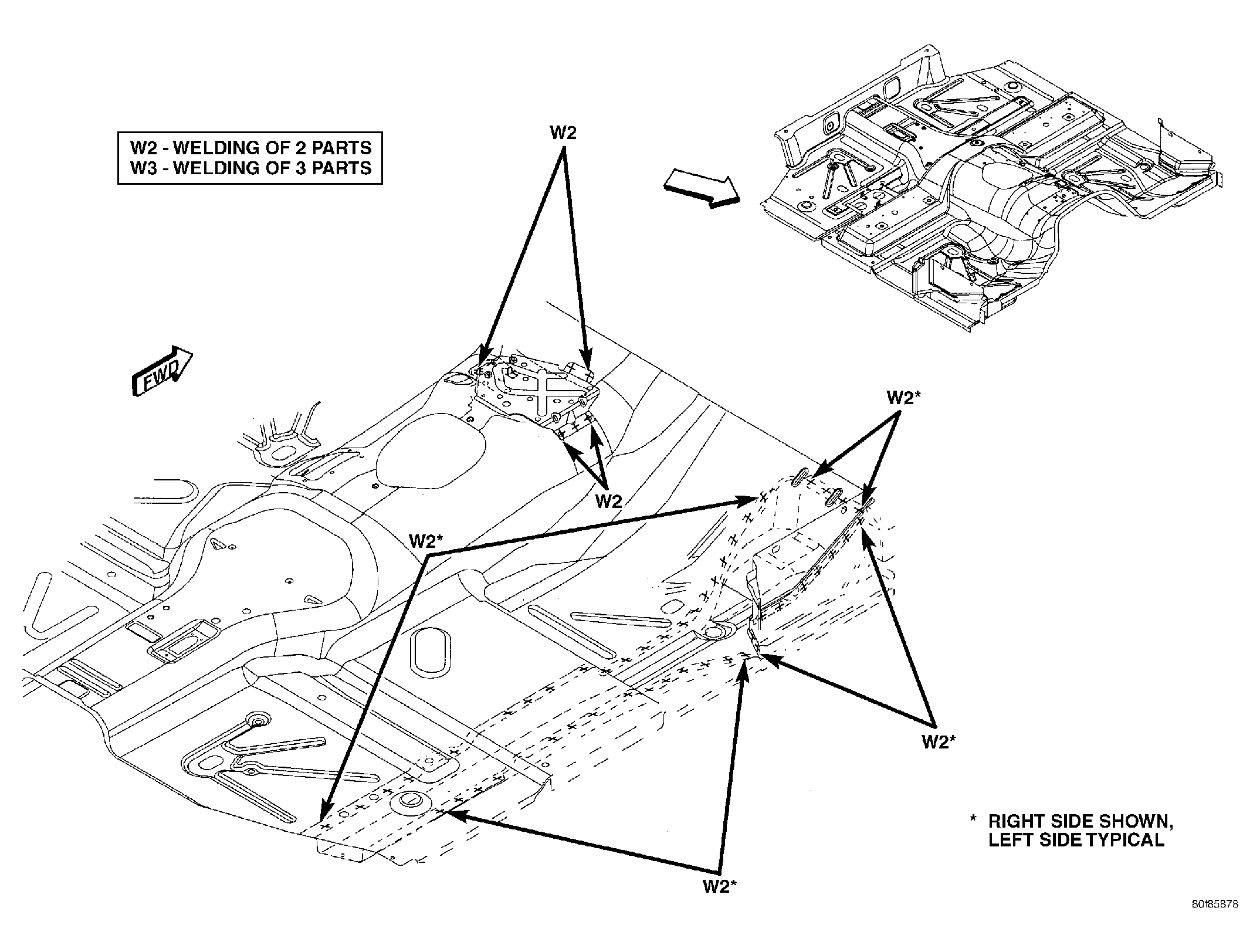

Fig 2: FRONT FLOOR PAN (1 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

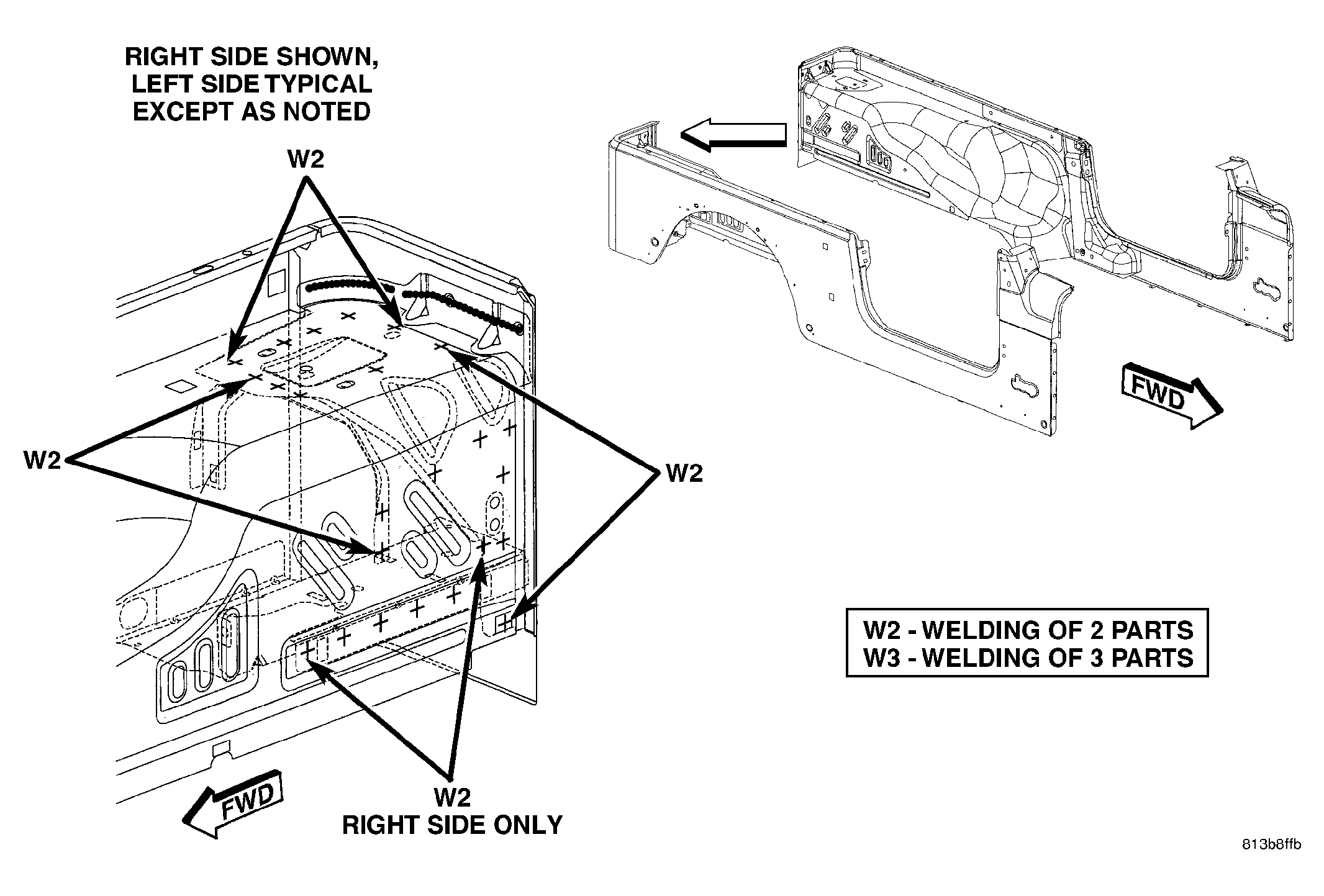

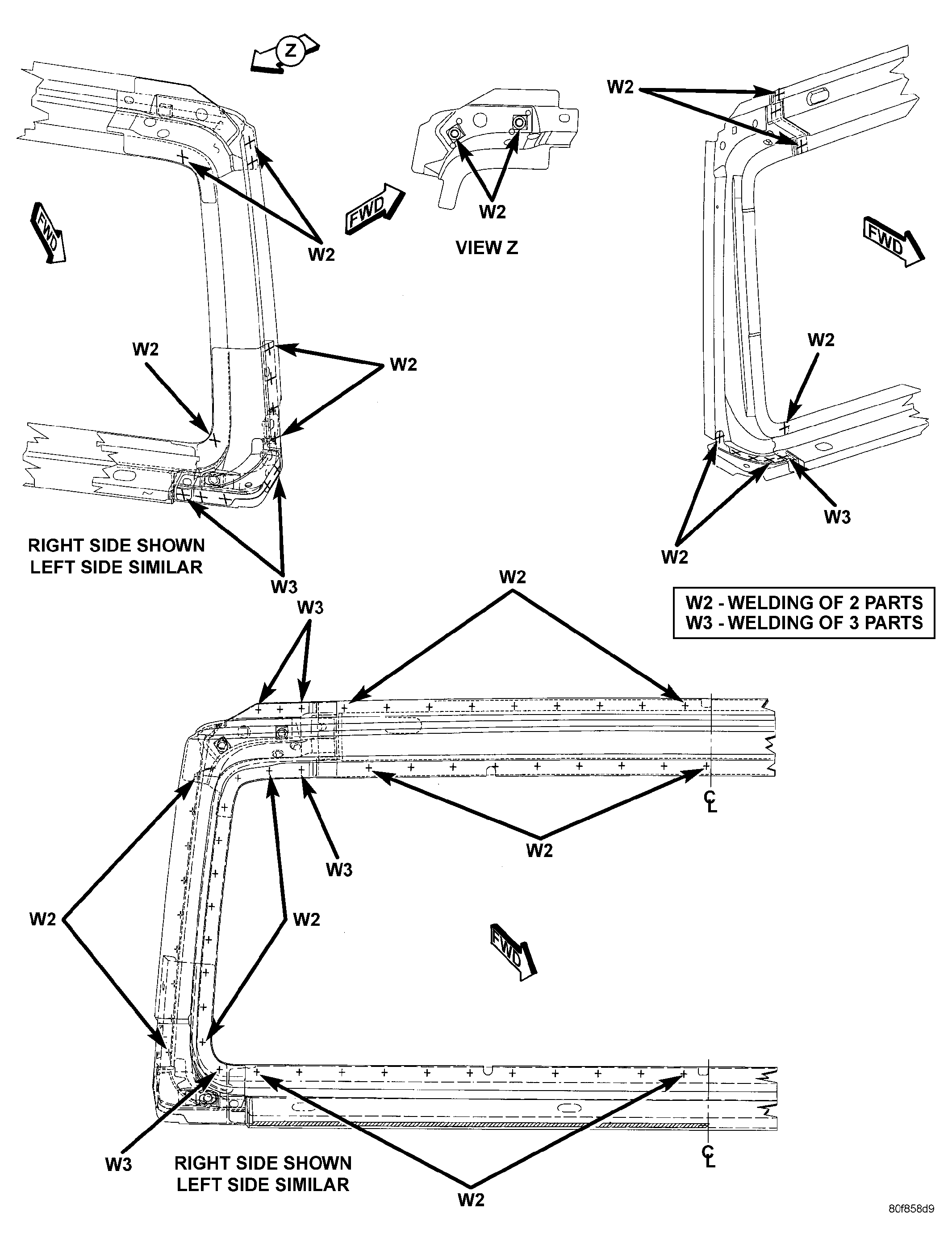

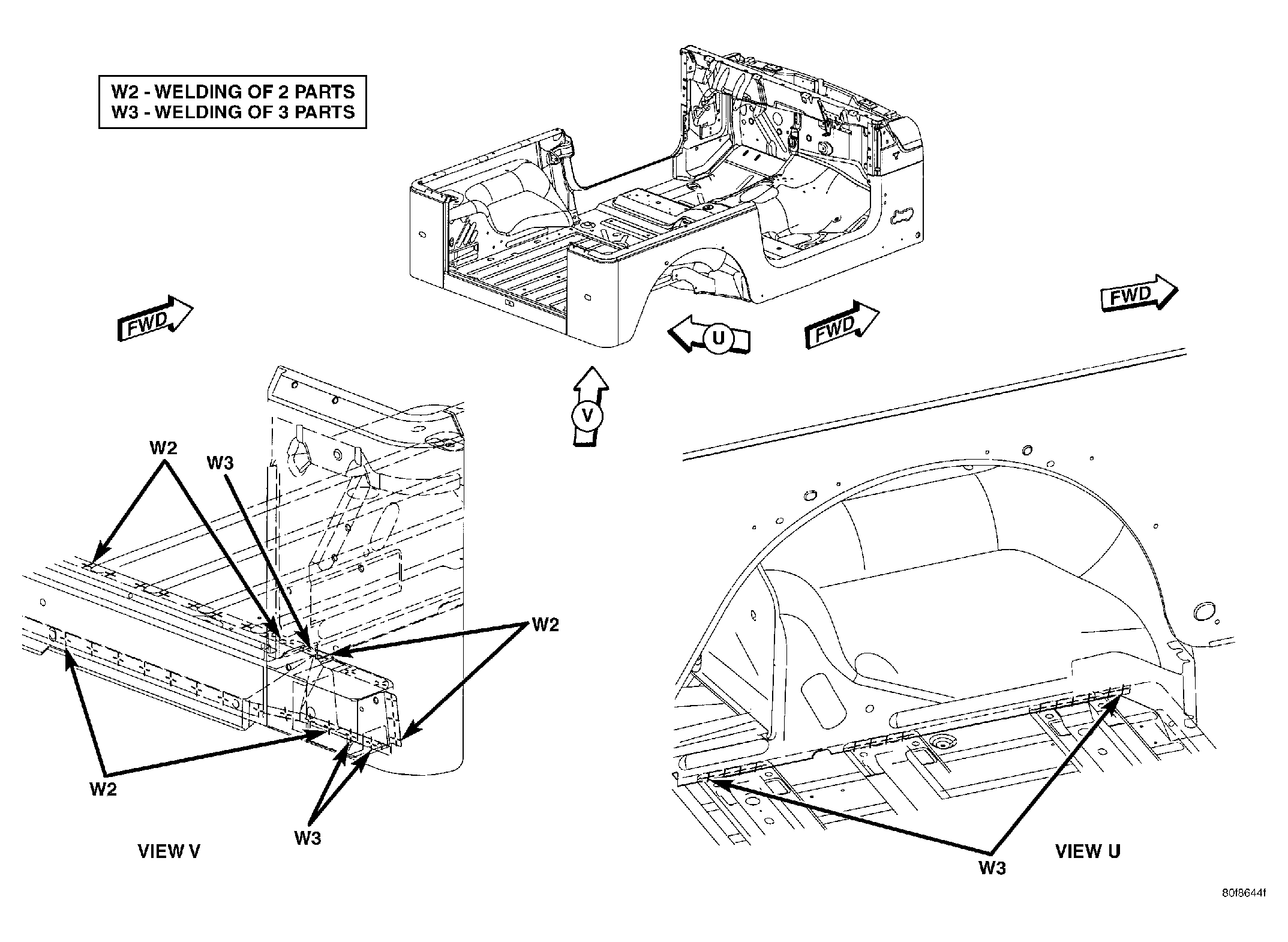

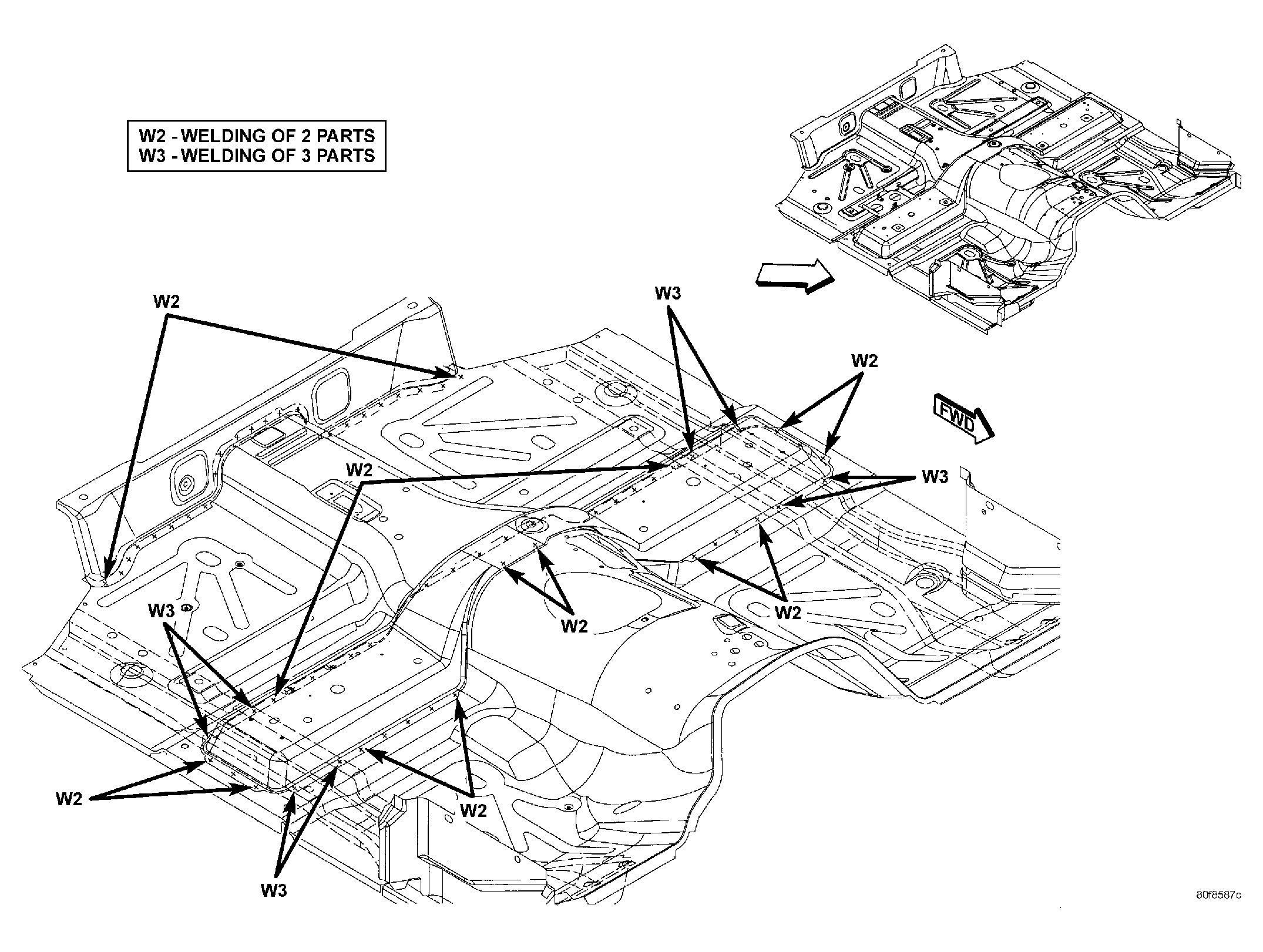

Fig 3: FRONT FLOOR PAN (2 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

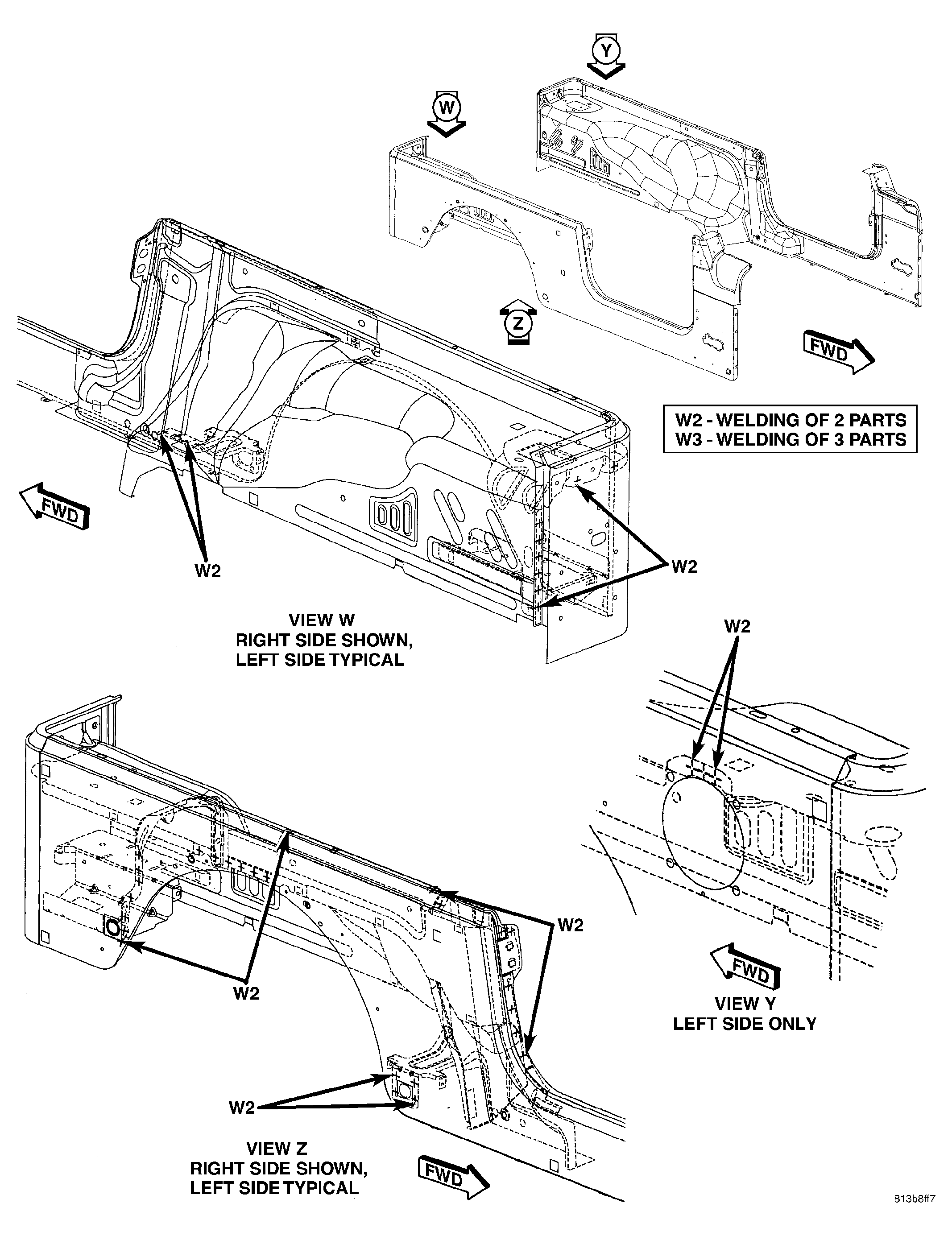

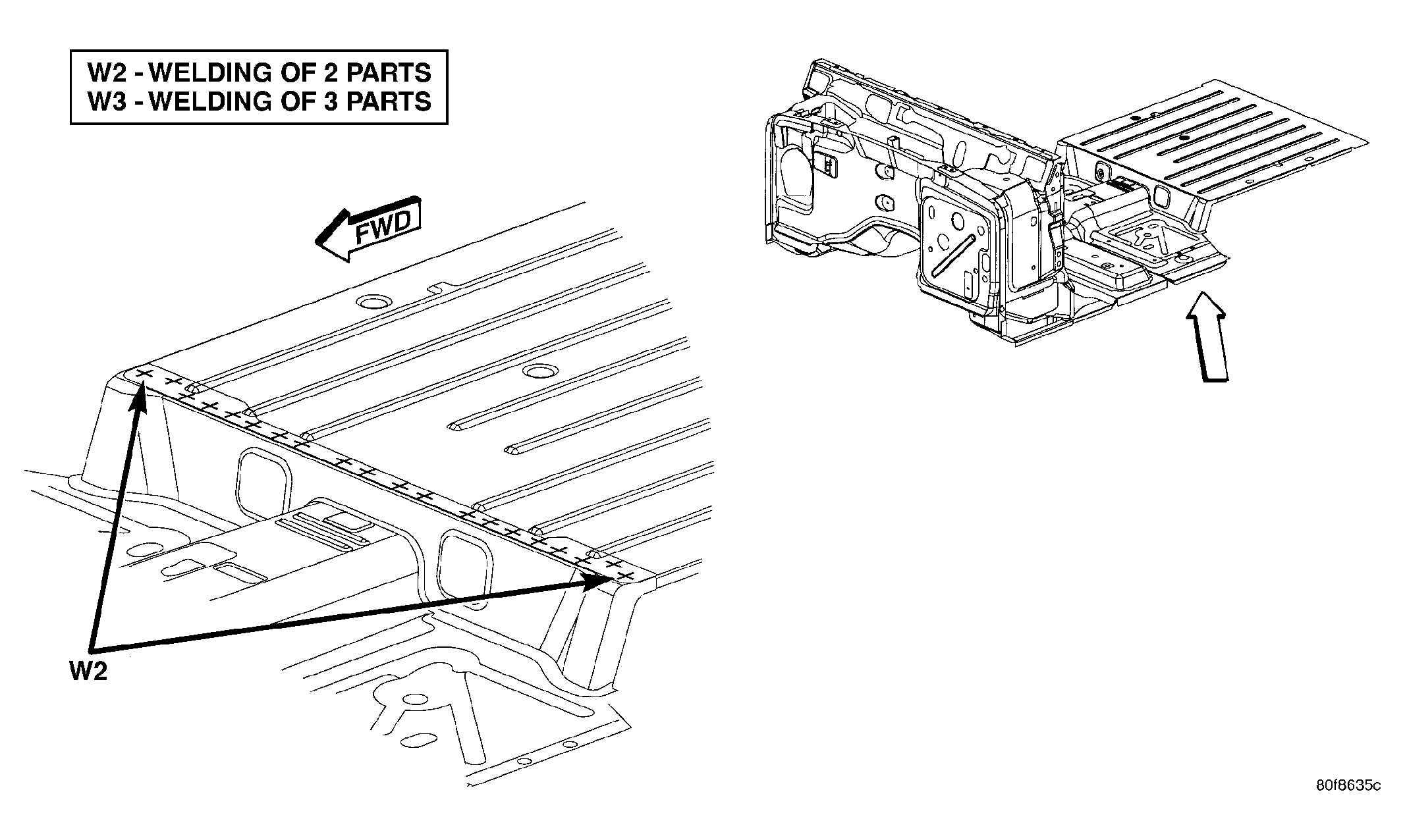

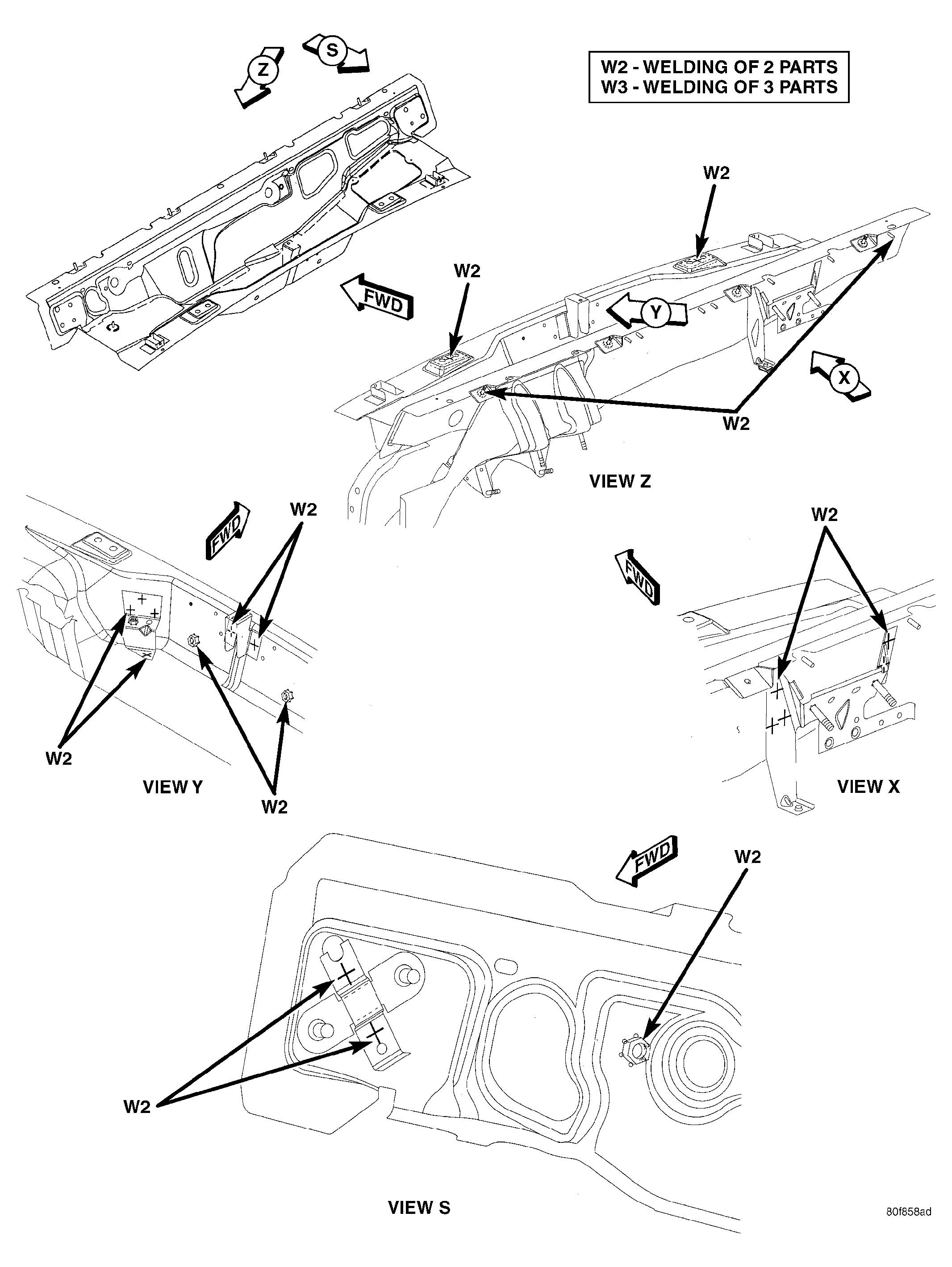

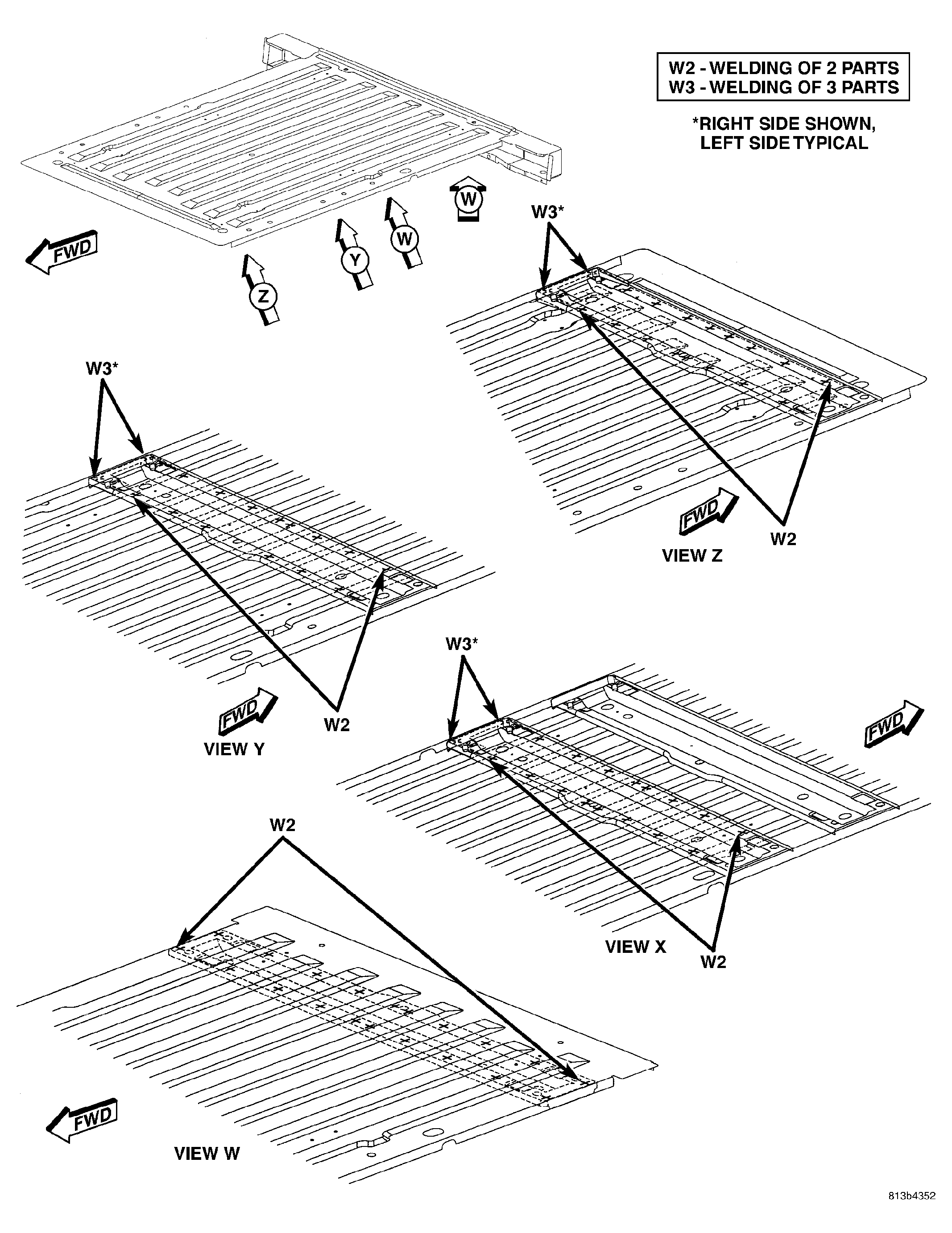

Fig 4: FRONT FLOOR PAN (3 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

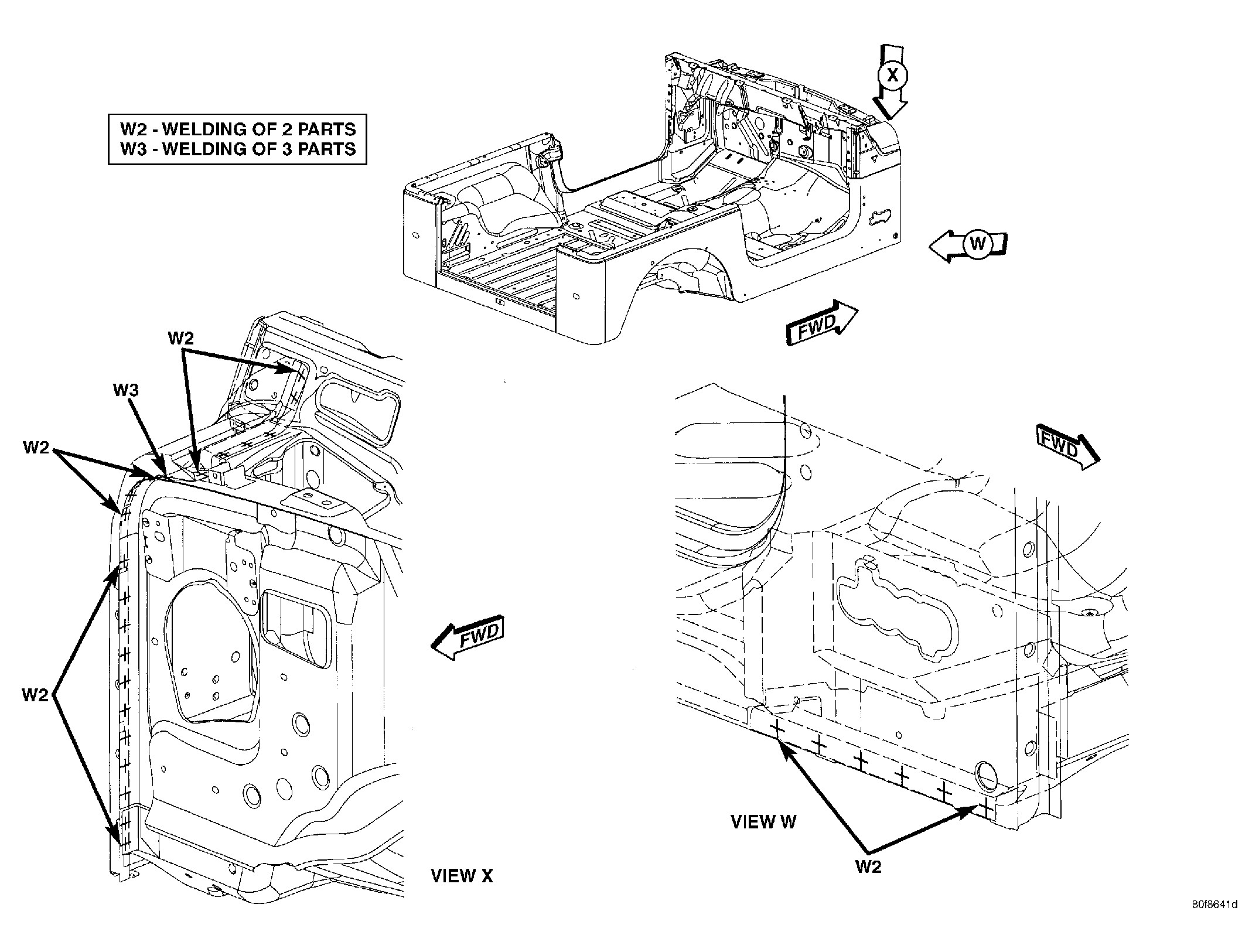

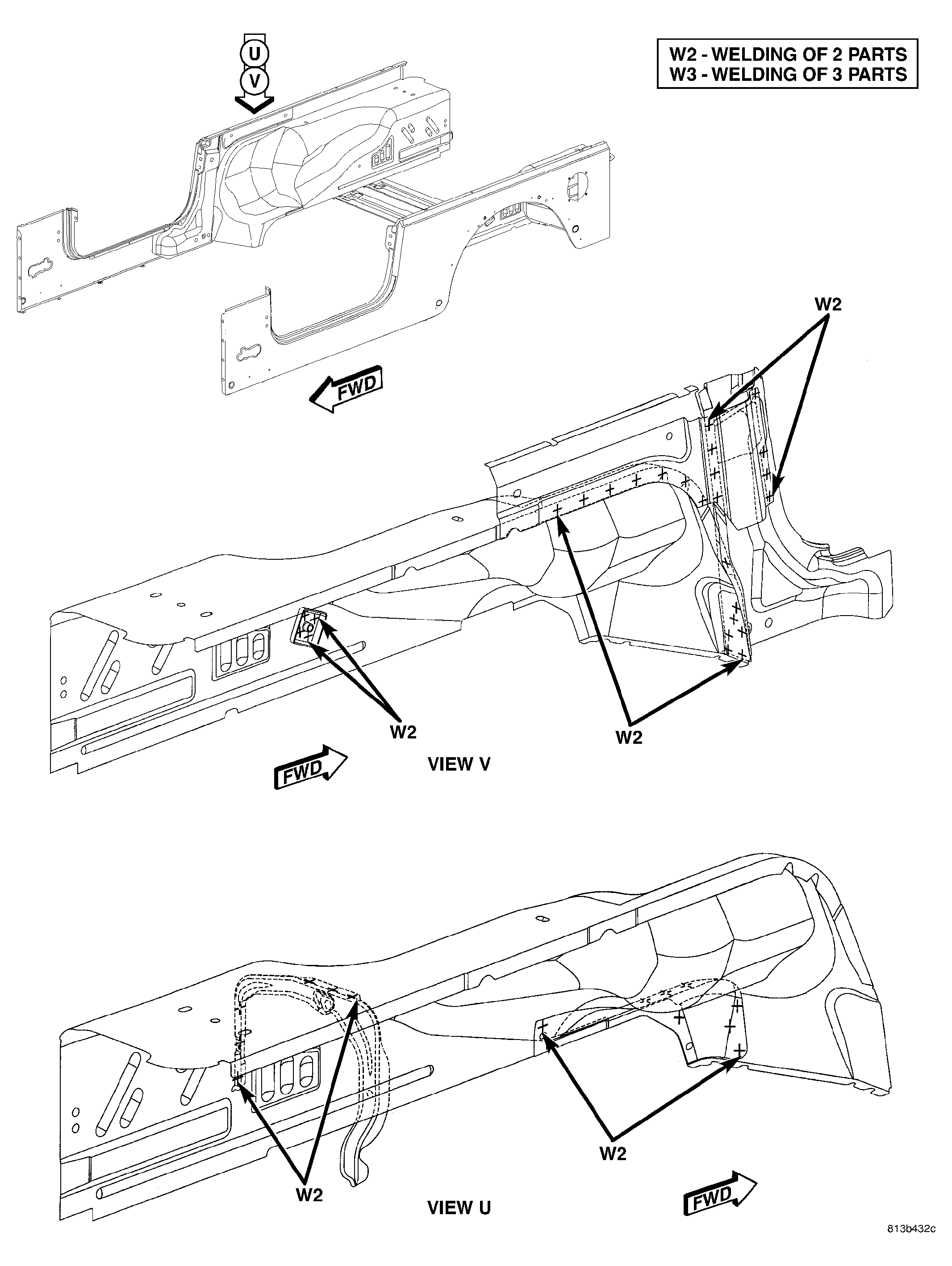

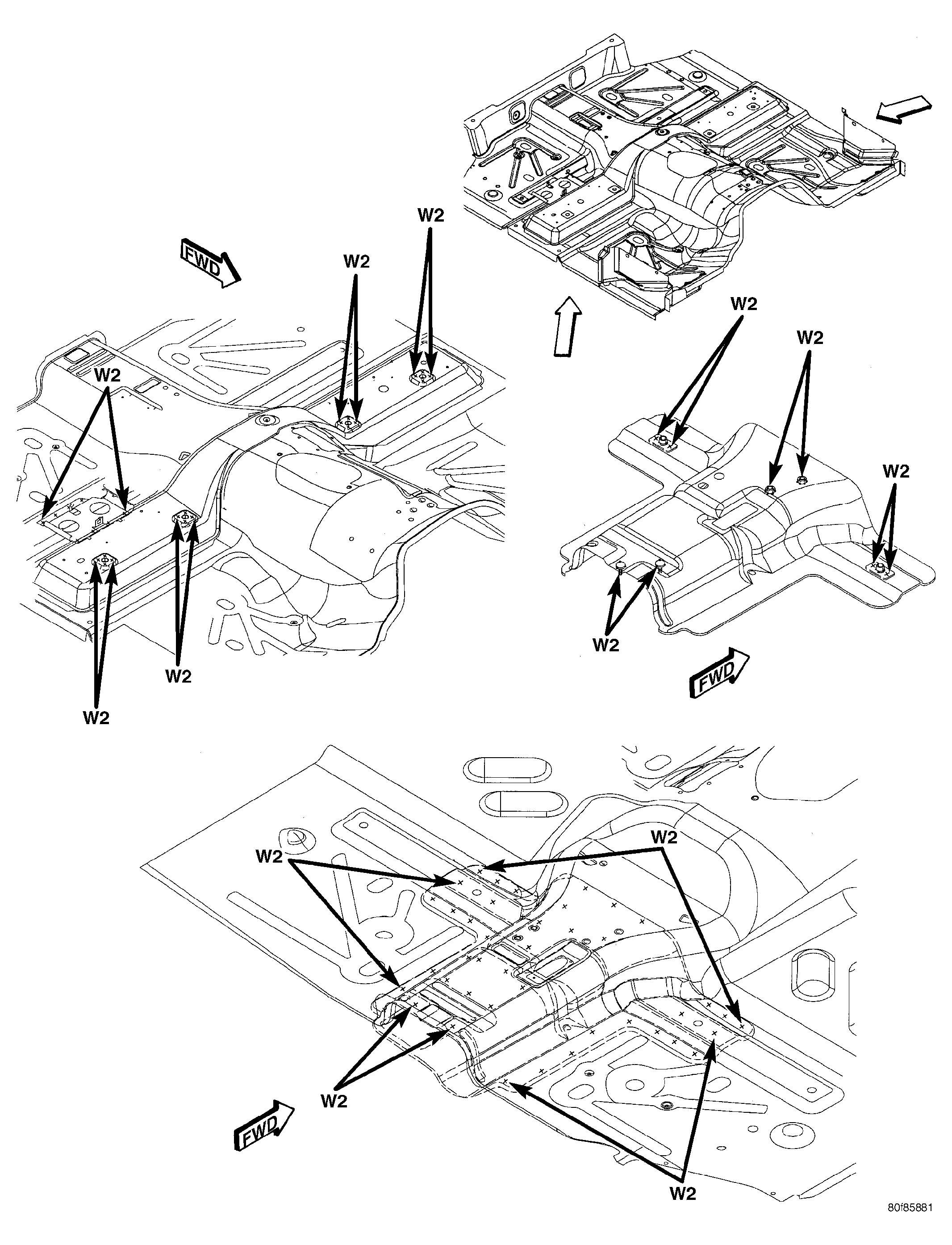

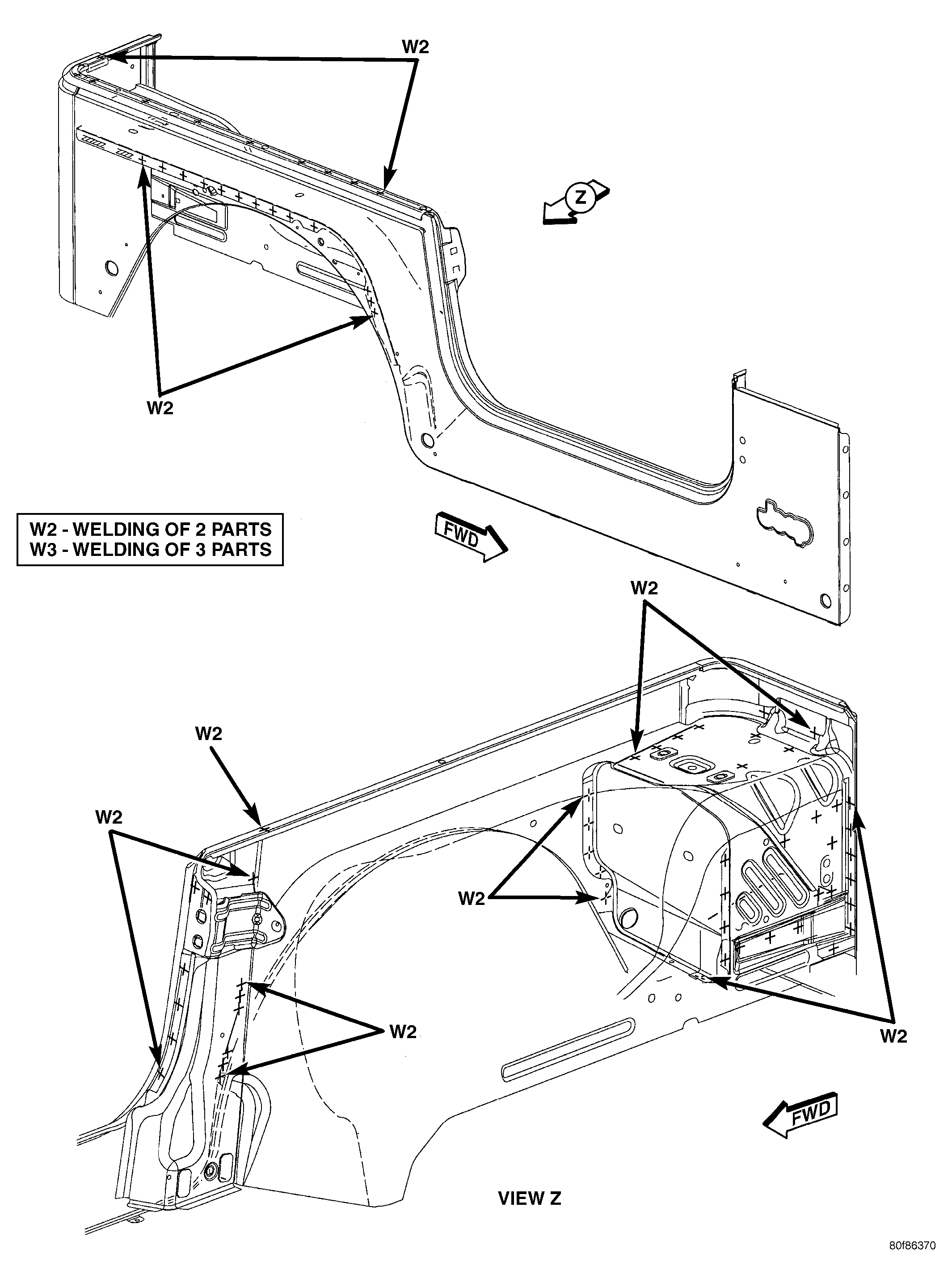

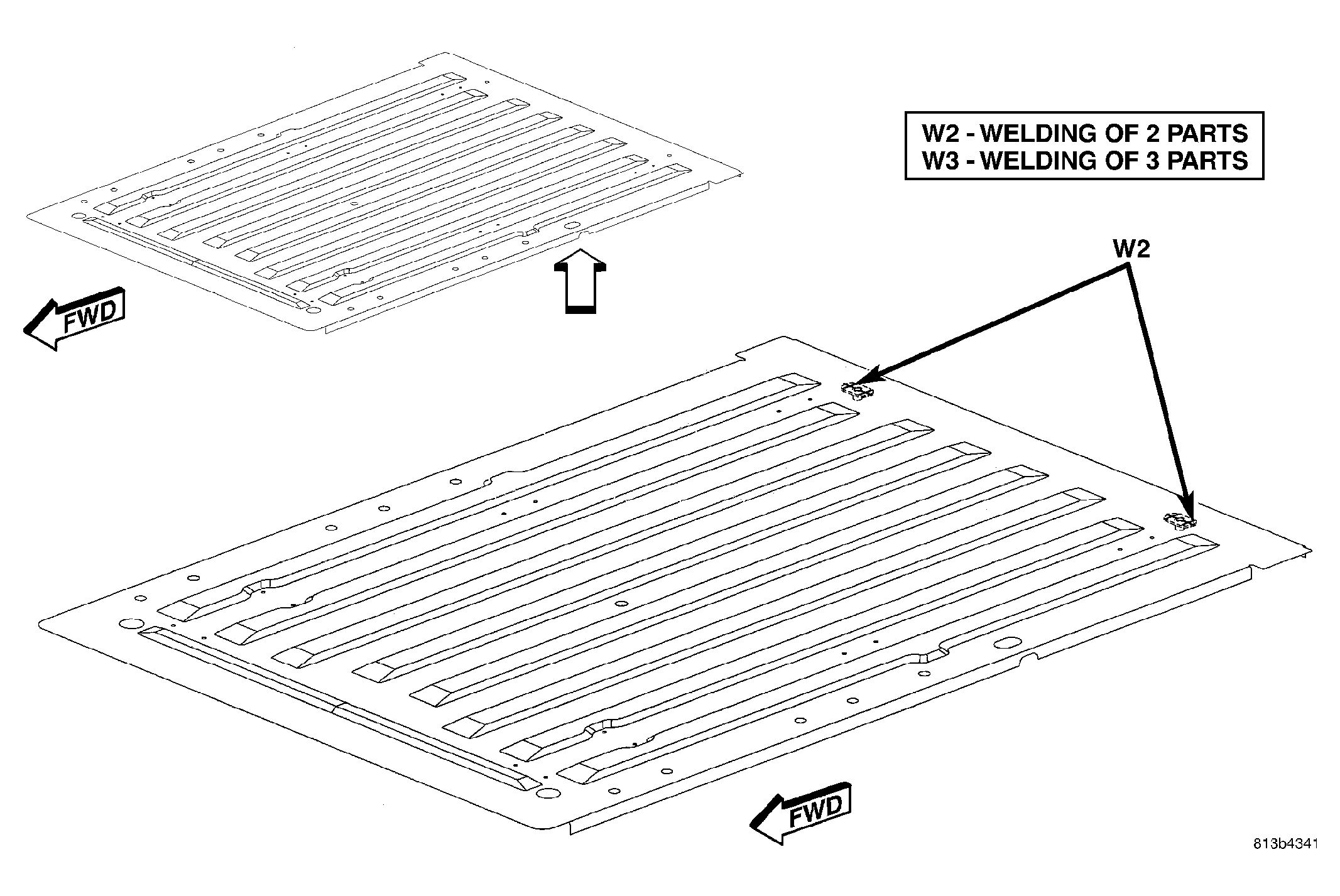

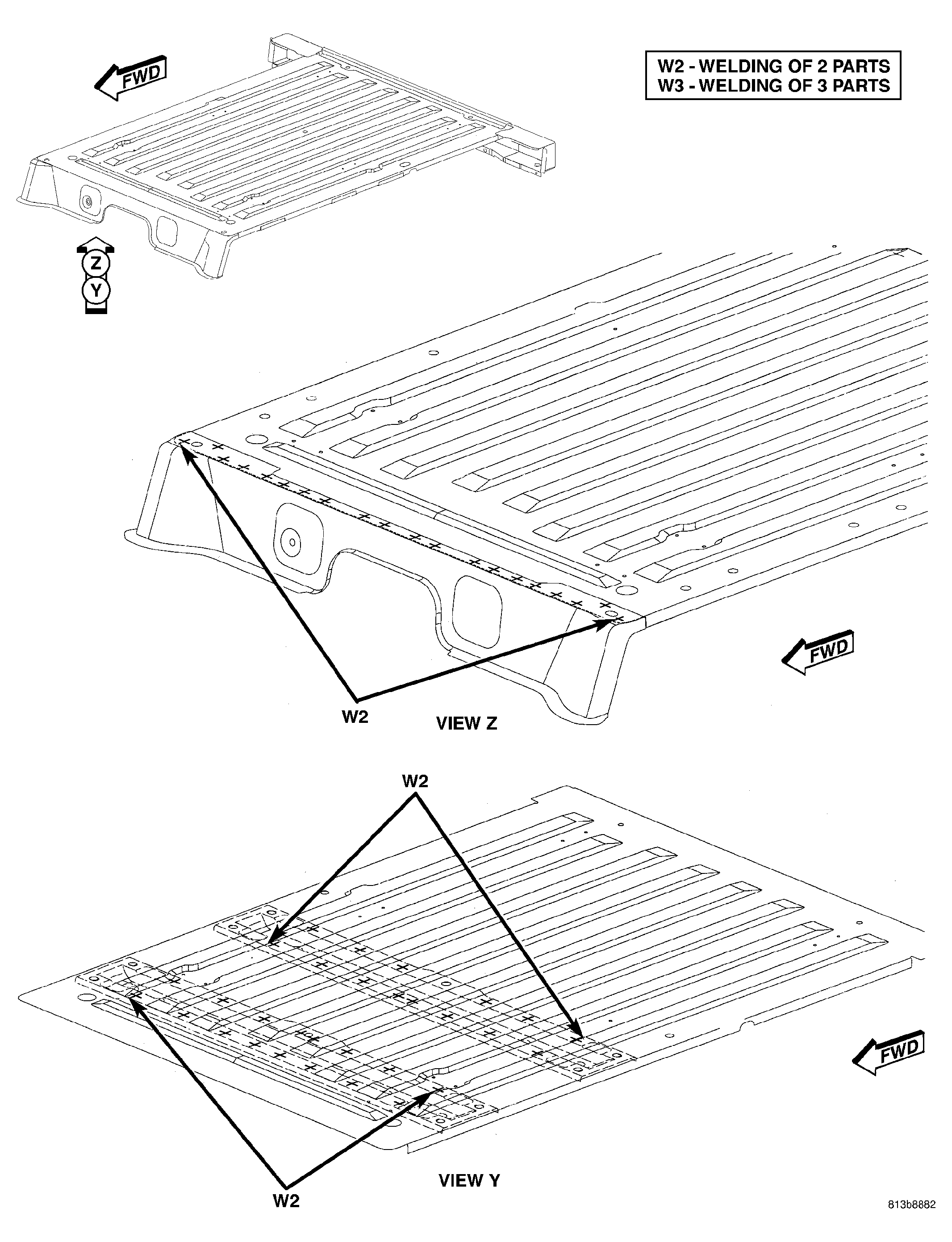

Fig 5: REAR FLOOR PAN (1 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

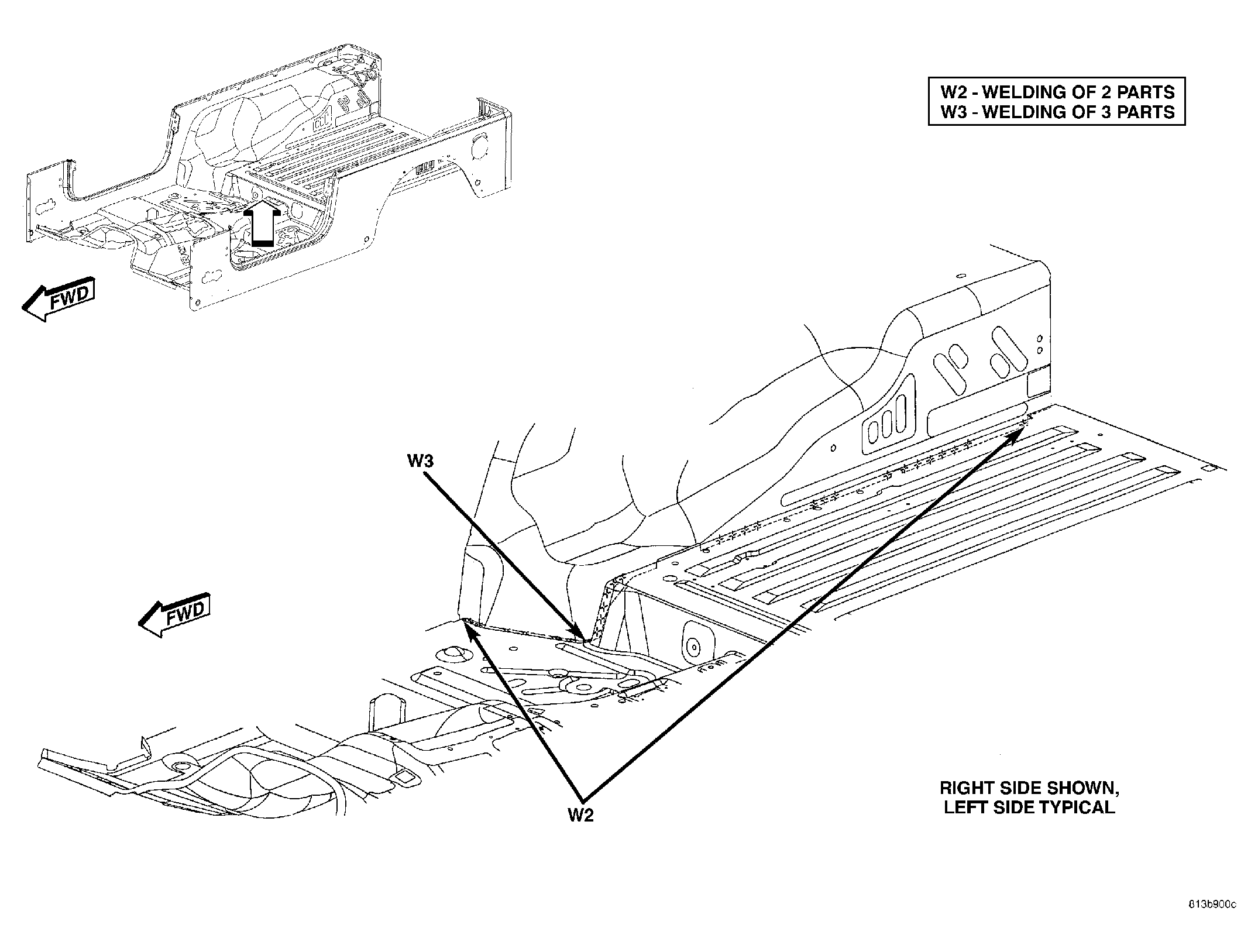

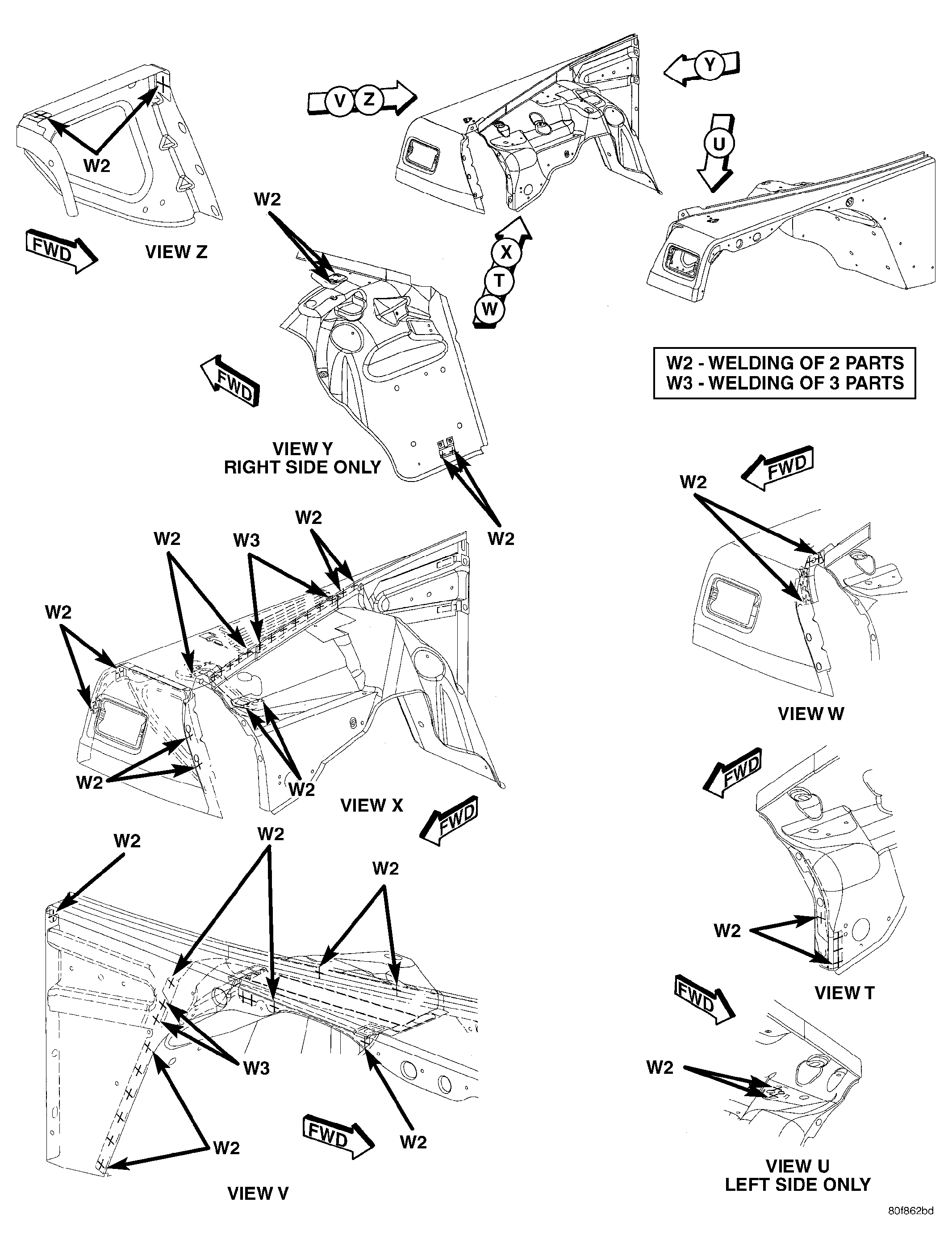

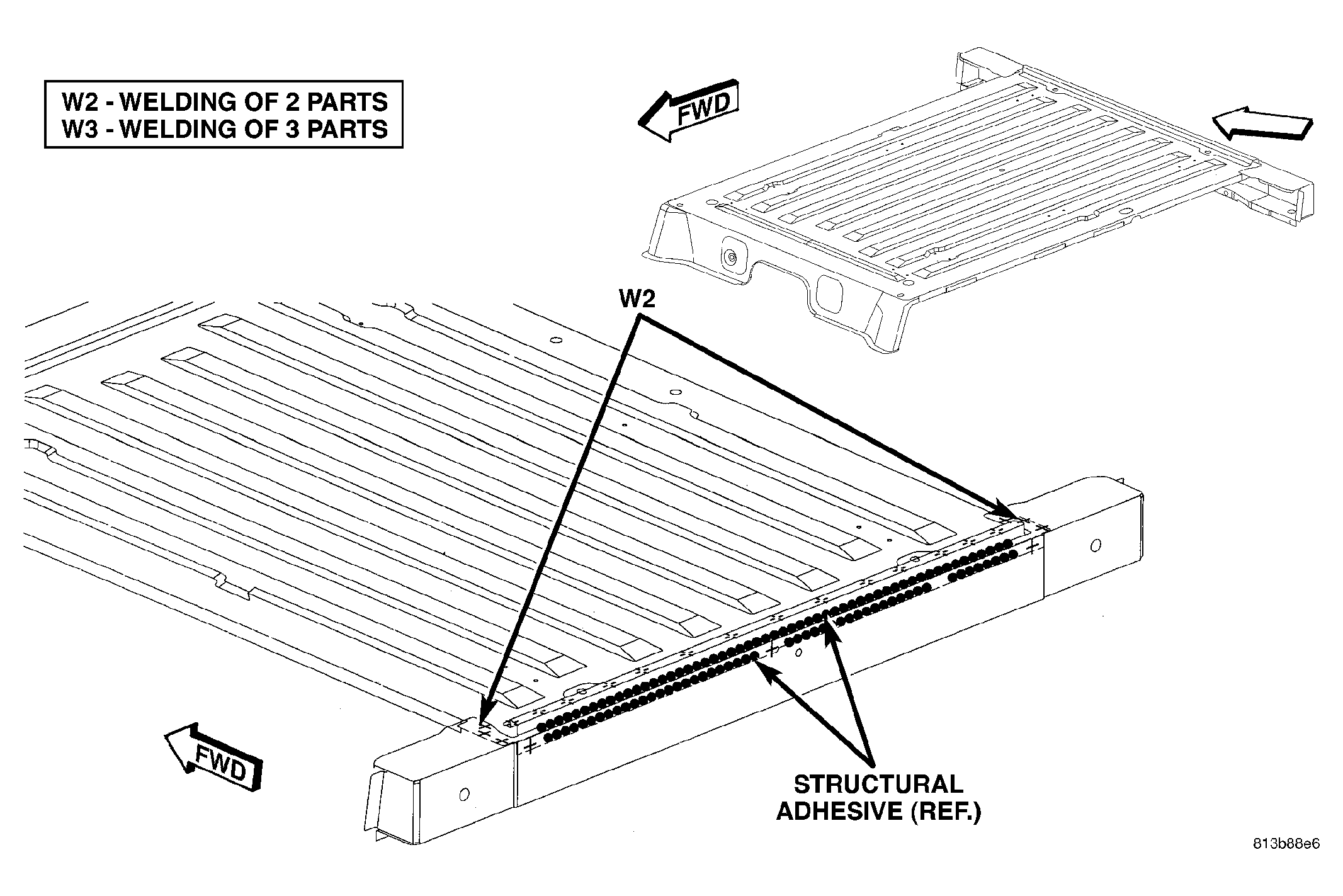

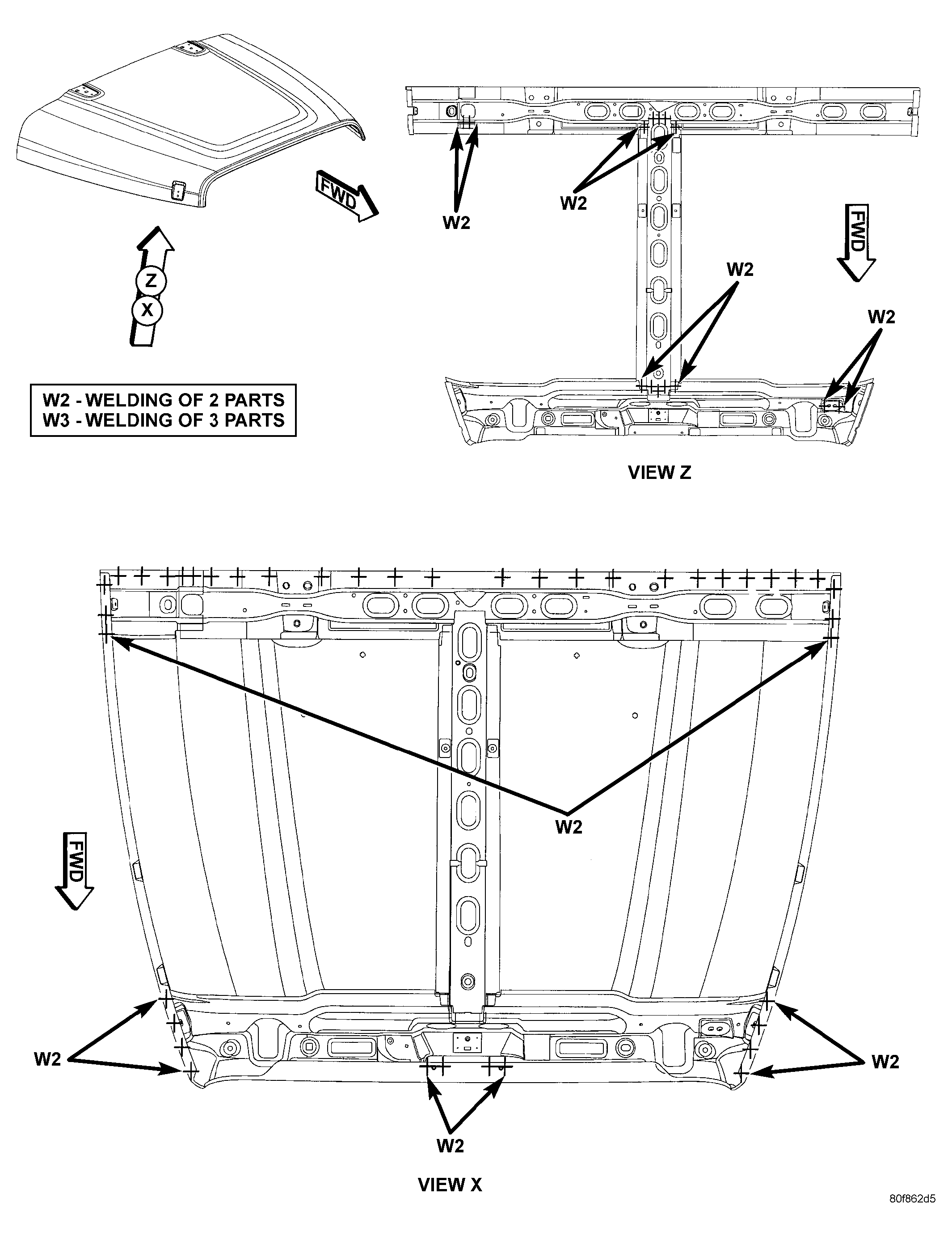

Fig 6: REAR FLOOR PAN (2 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

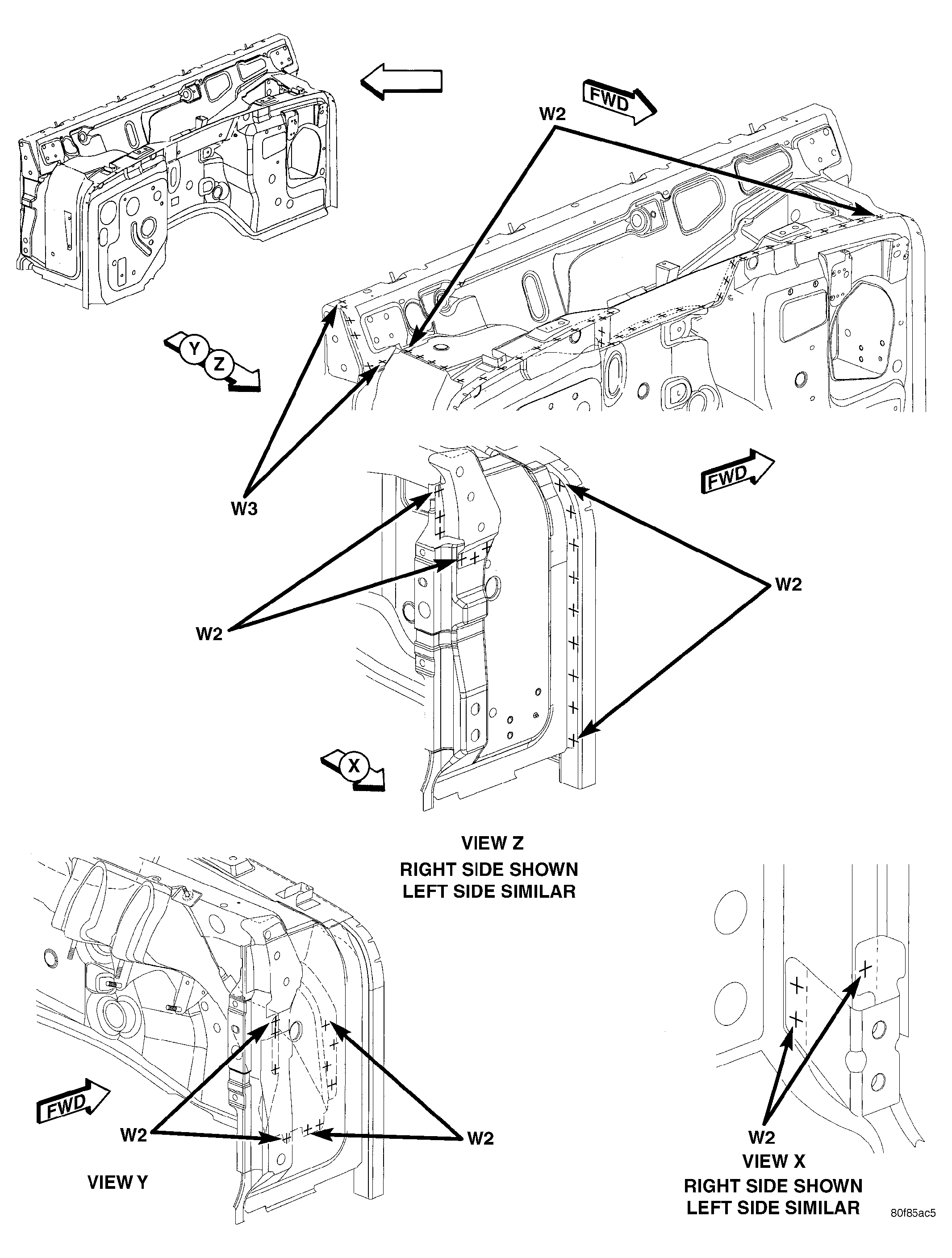

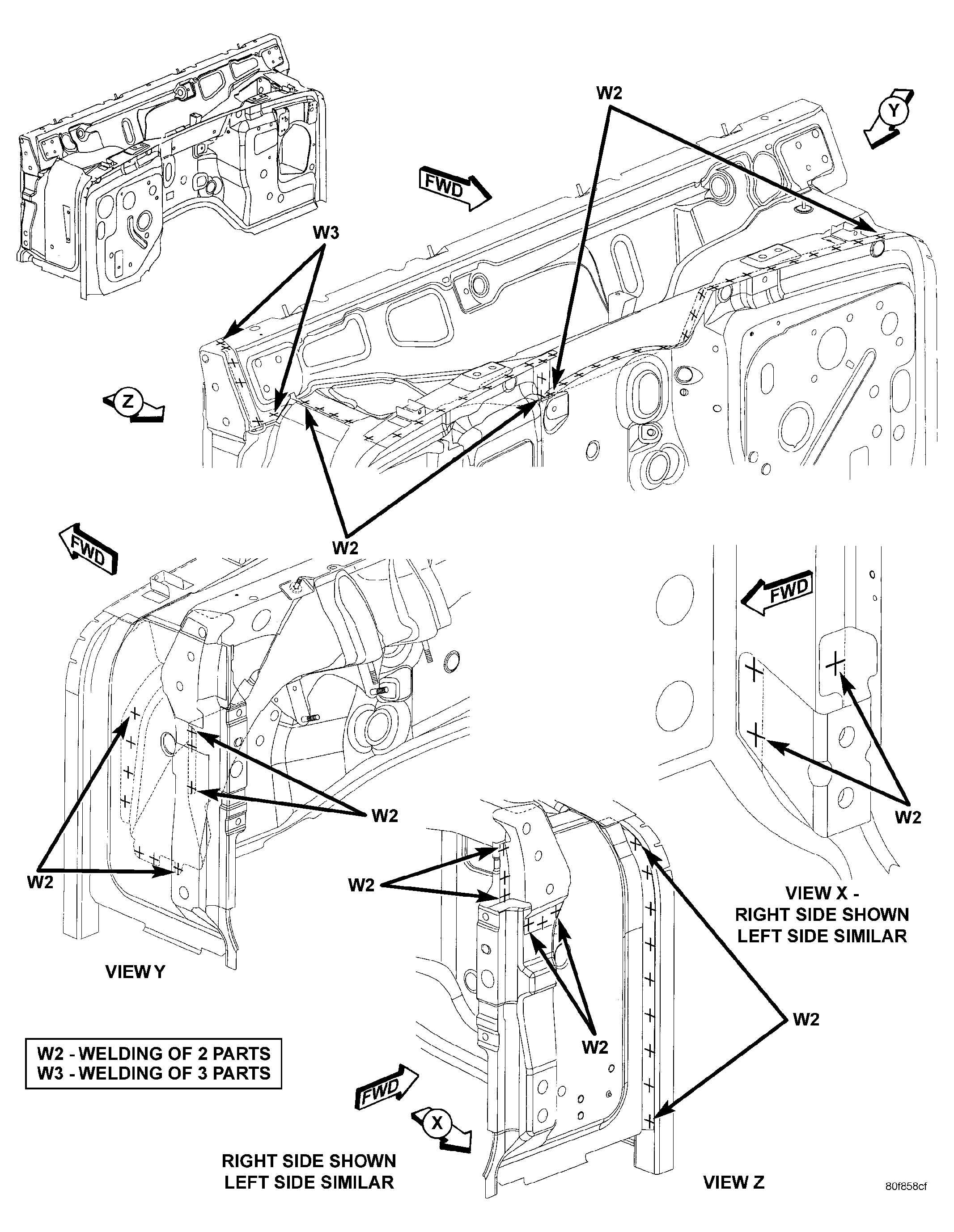

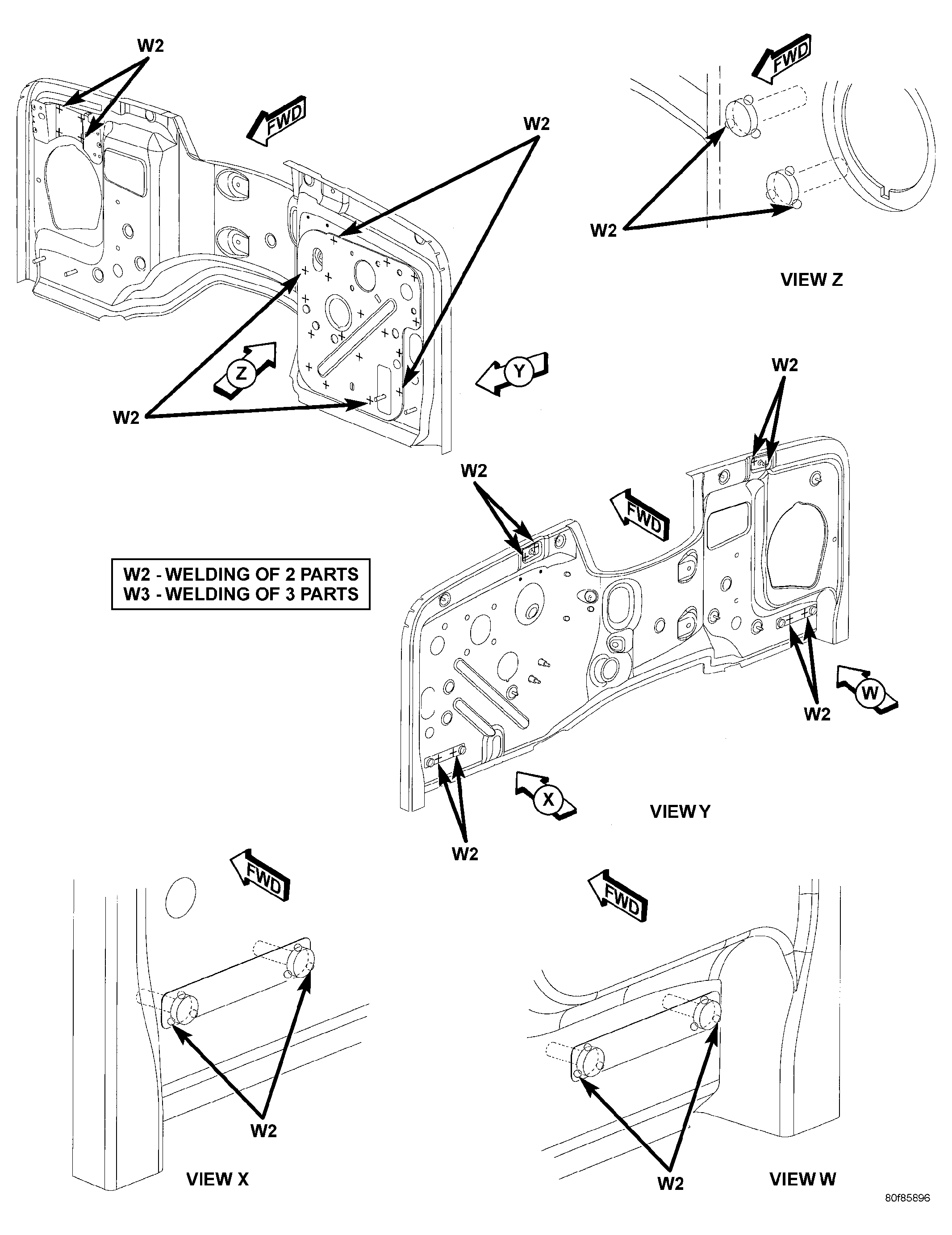

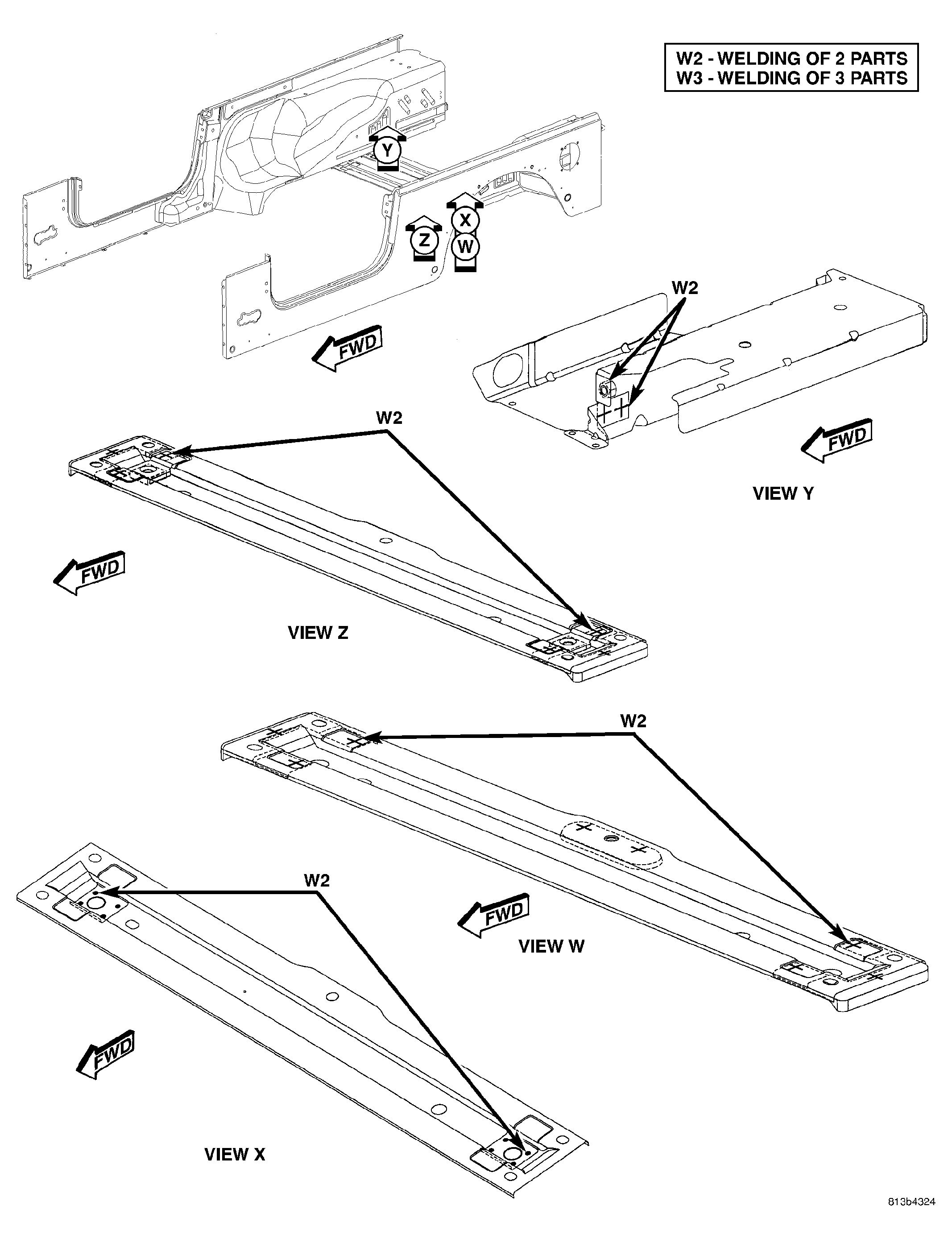

Fig 7: DASH PANEL - LEFT HAND DRIVE

Courtesy of DAIMLERCHRYSLER CORP.

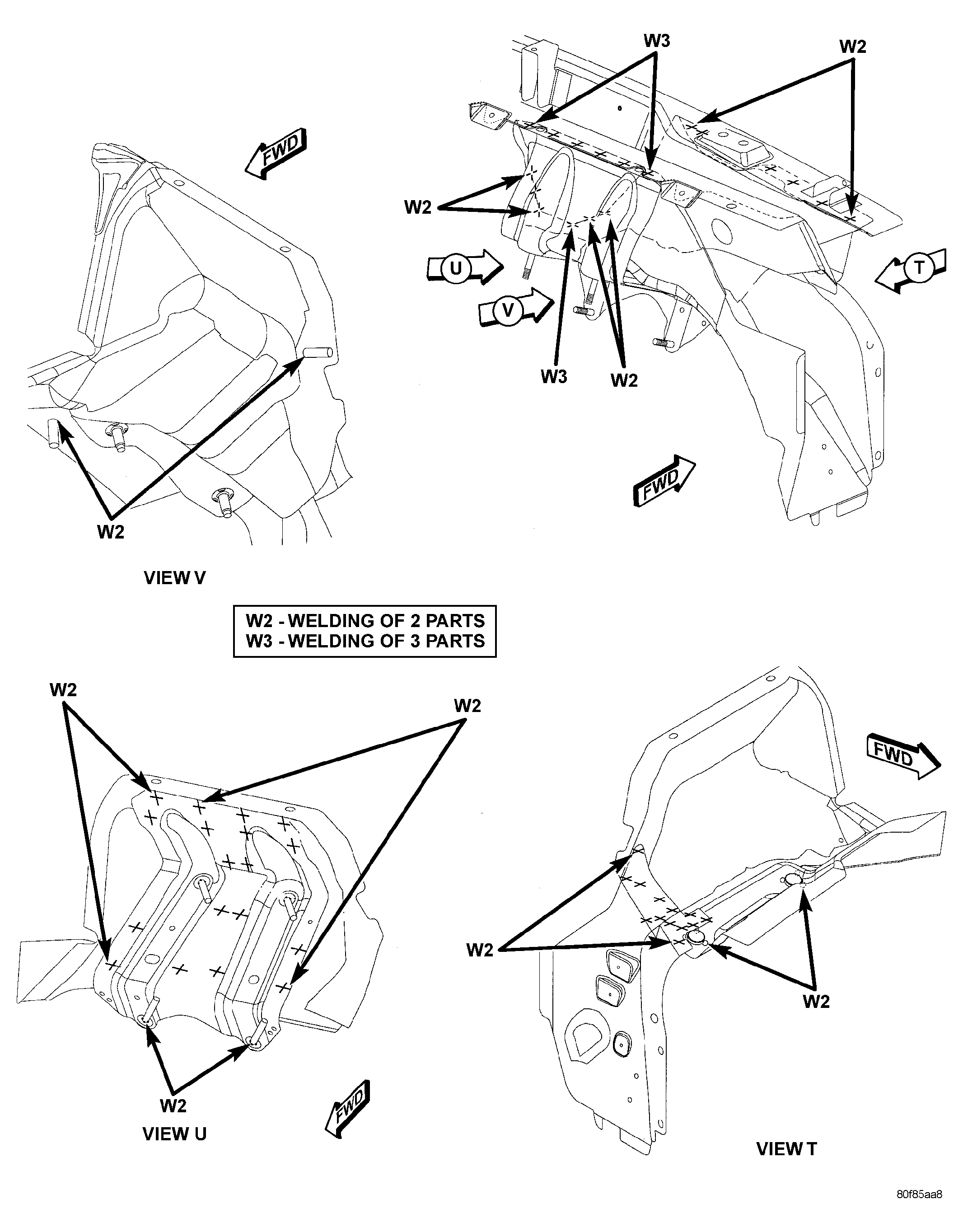

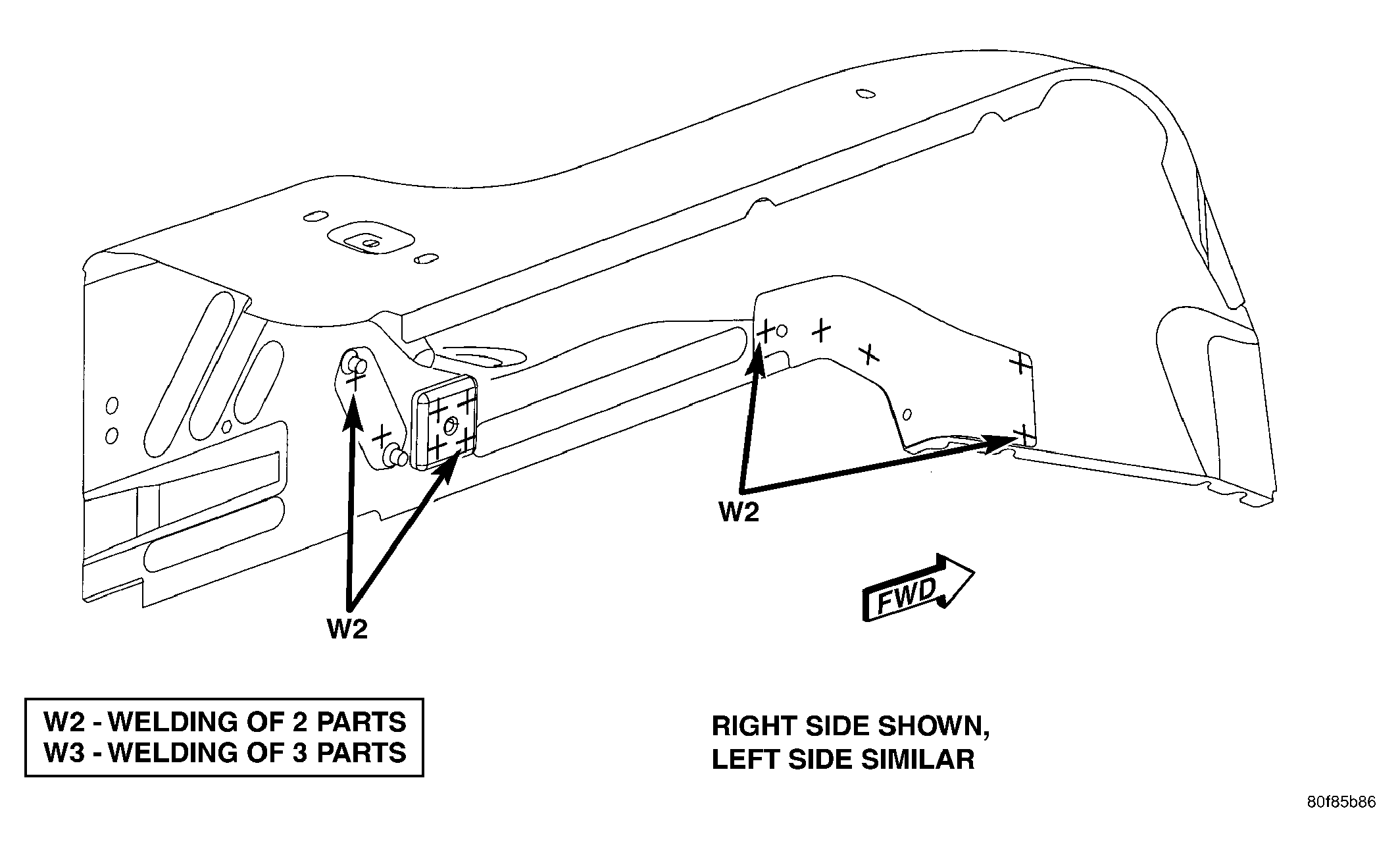

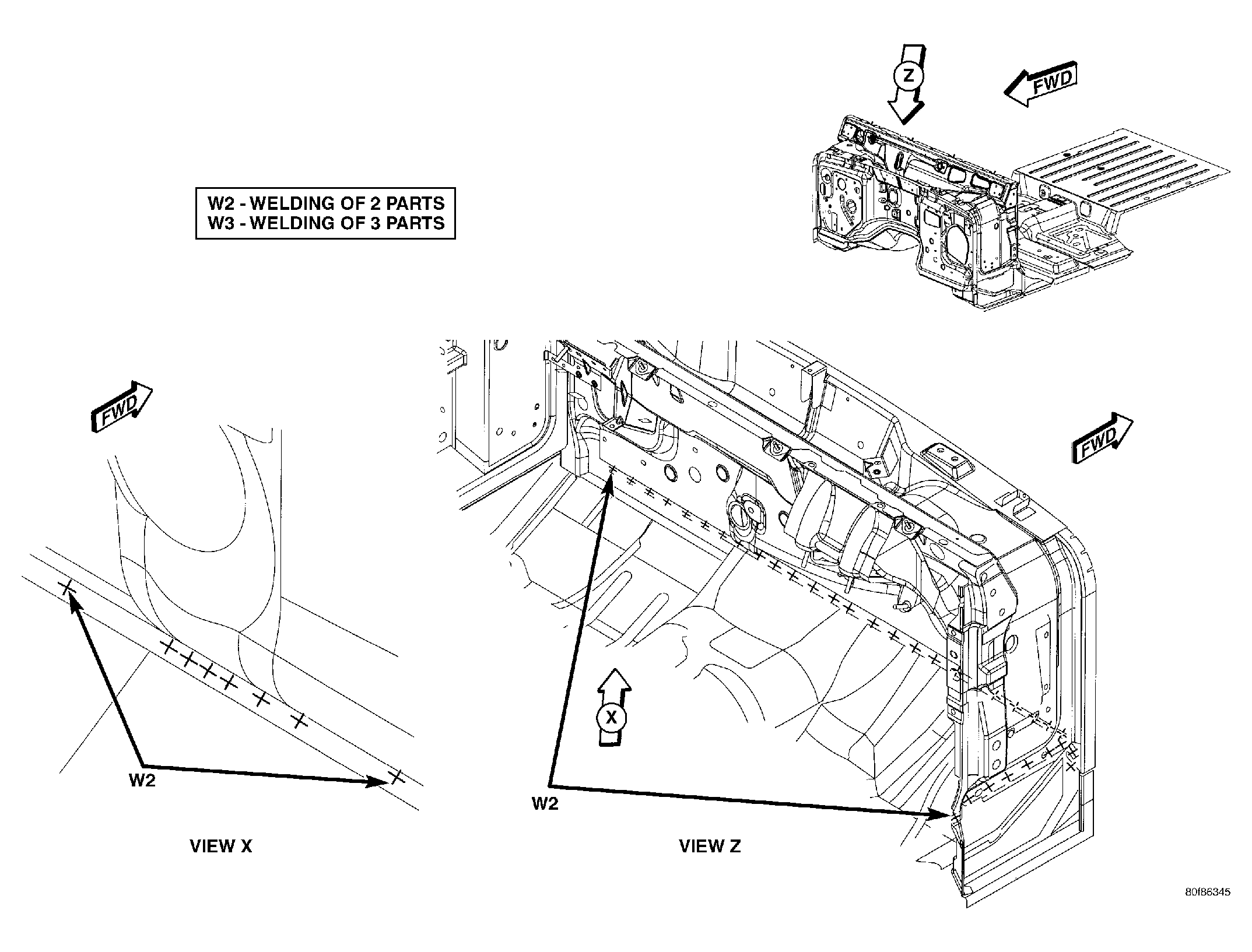

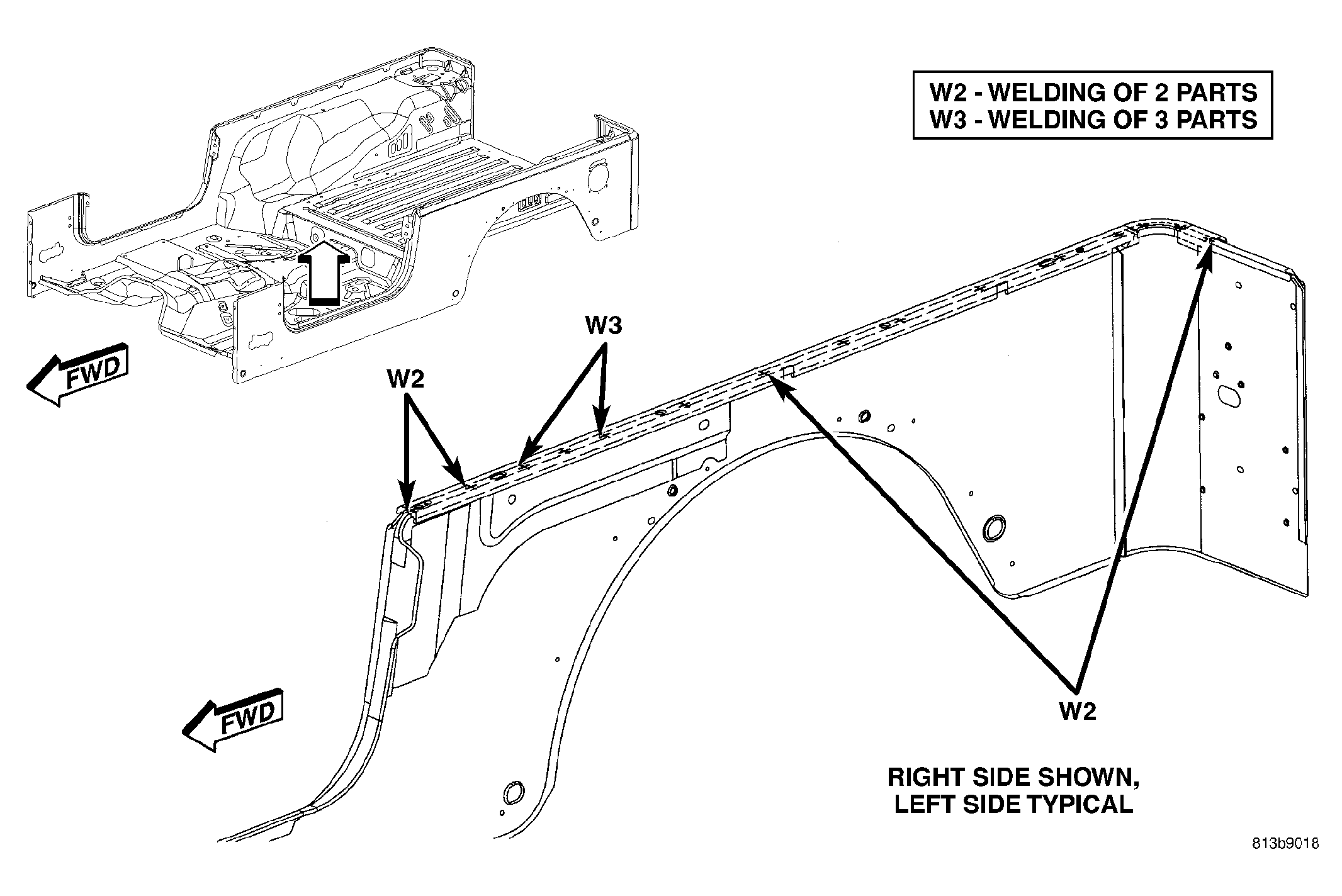

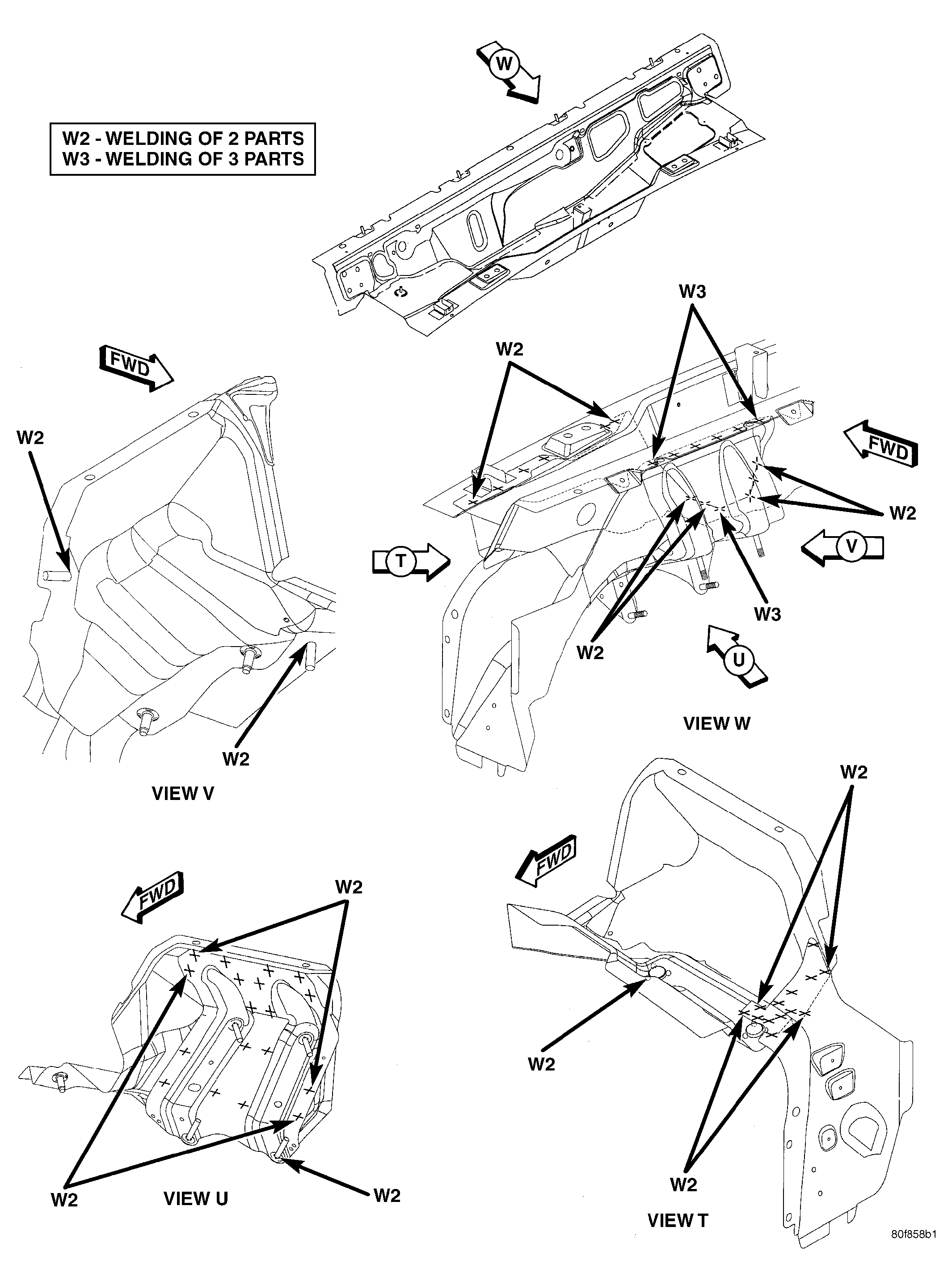

Fig 8: COWL ASSEMBLY - LEFT HAND DRIVE (1 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: COWL ASSEMBLY - LEFT HAND DRIVE (2 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: COWL ASSEMBLY - LEFT HAND DRIVE (3 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: DASH COWL ASSEMBLY - LEFT HAND DRIVE

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: WINDSHIELD FRAME

Courtesy of DAIMLERCHRYSLER CORP.

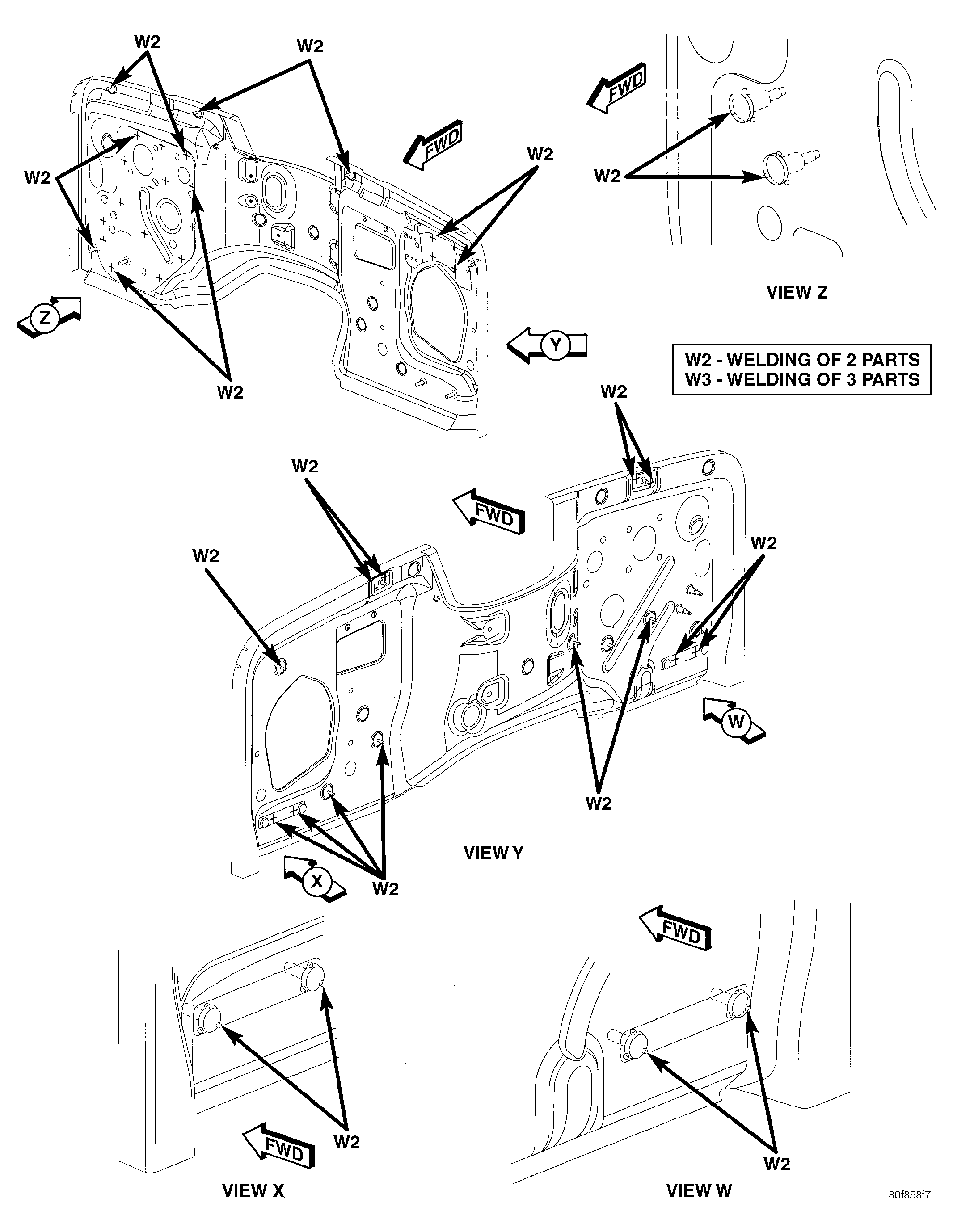

Fig 13: DASH PANEL - RIGHT HAND DRIVE

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: COWL ASSEMBLY - RIGHT HAND DRIVE (1 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: COWL ASSEMBLY - RIGHT HAND DRIVE (2 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: COWL ASSEMBLY - RIGHT HAND DRIVE (3 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: DASH COWL ASSEMBLY - RIGHT HAND DRIVE

Courtesy of DAIMLERCHRYSLER CORP.

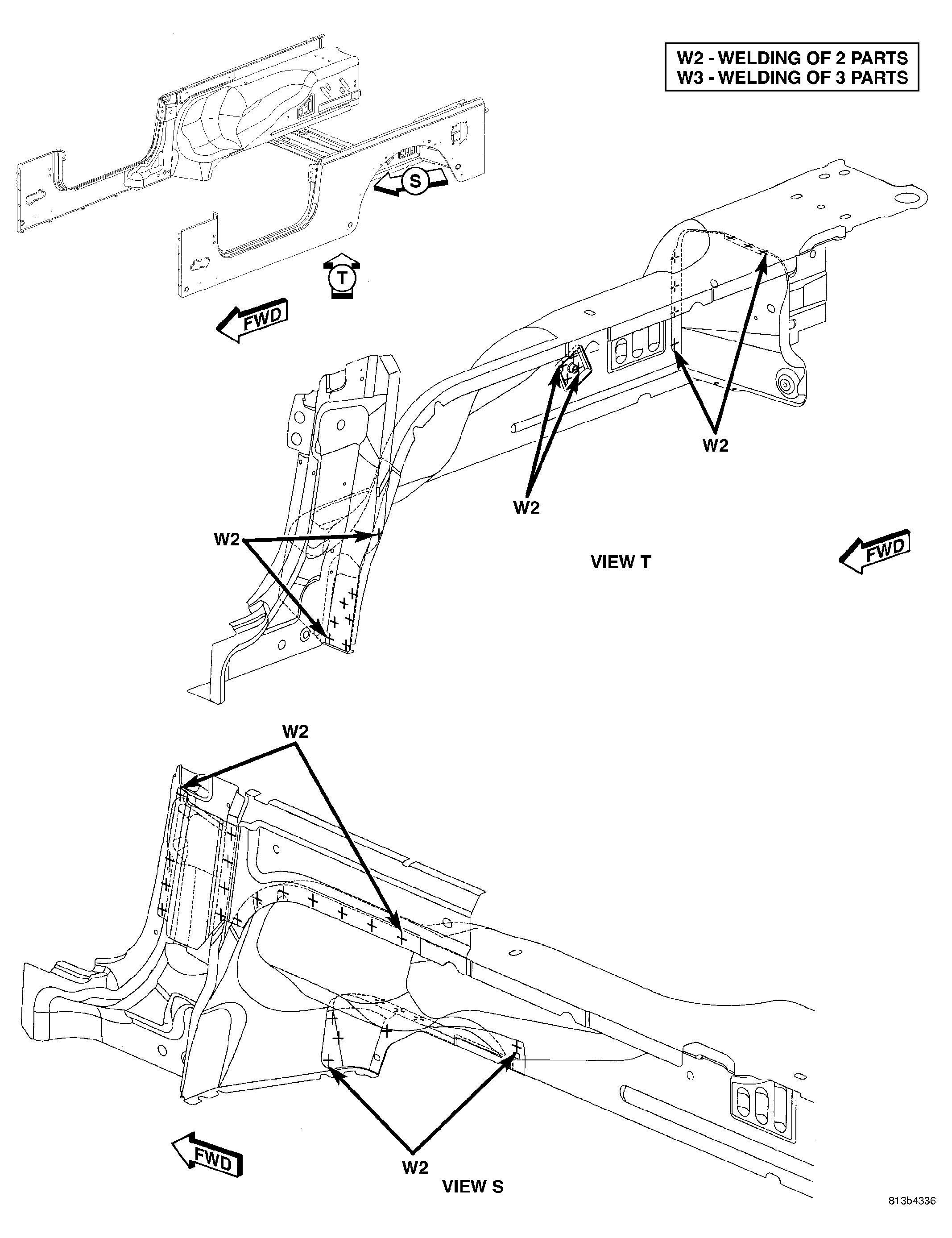

Fig 18: BODY SIDE ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

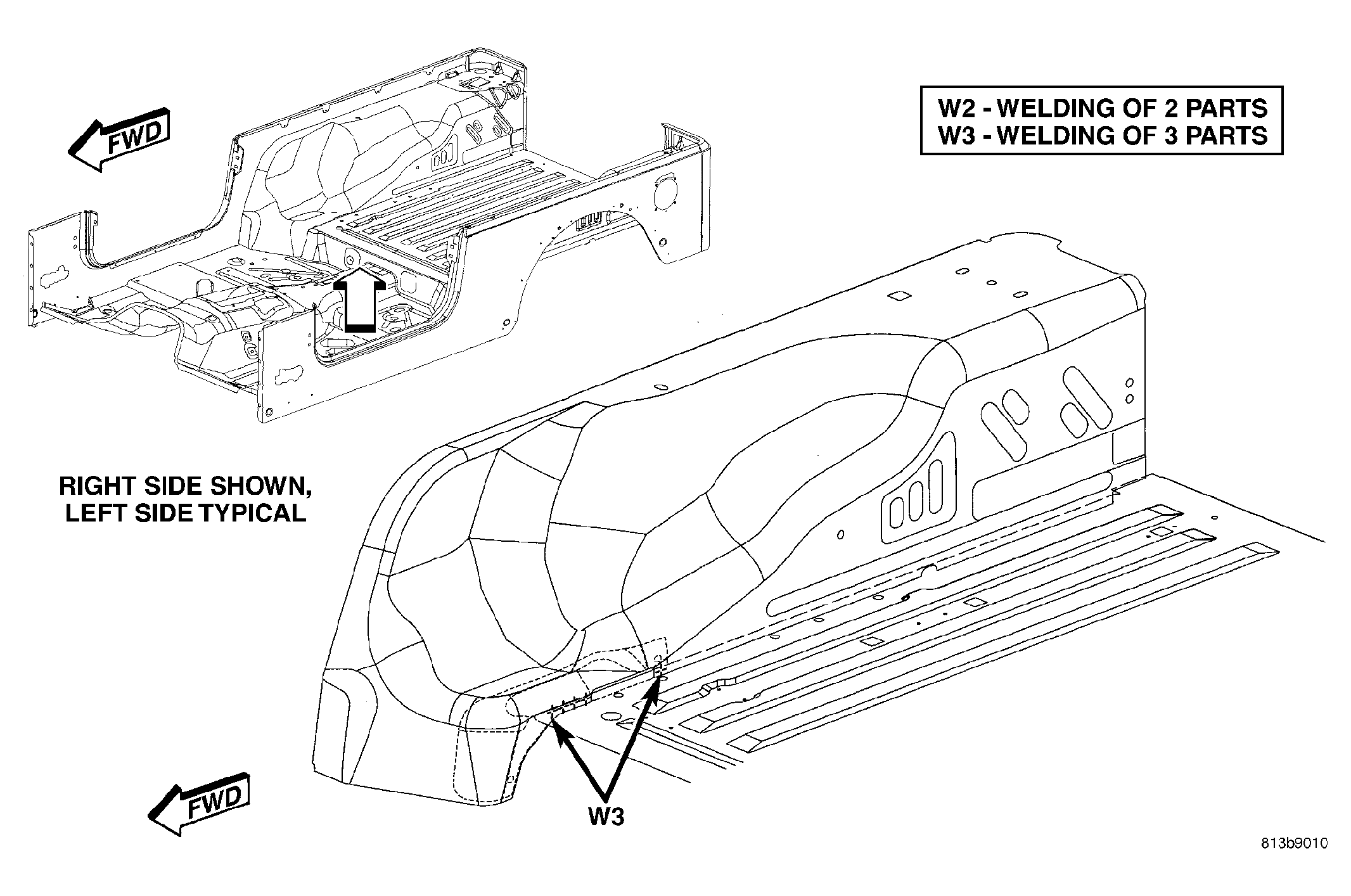

Fig 19: WHEELHOUSE ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

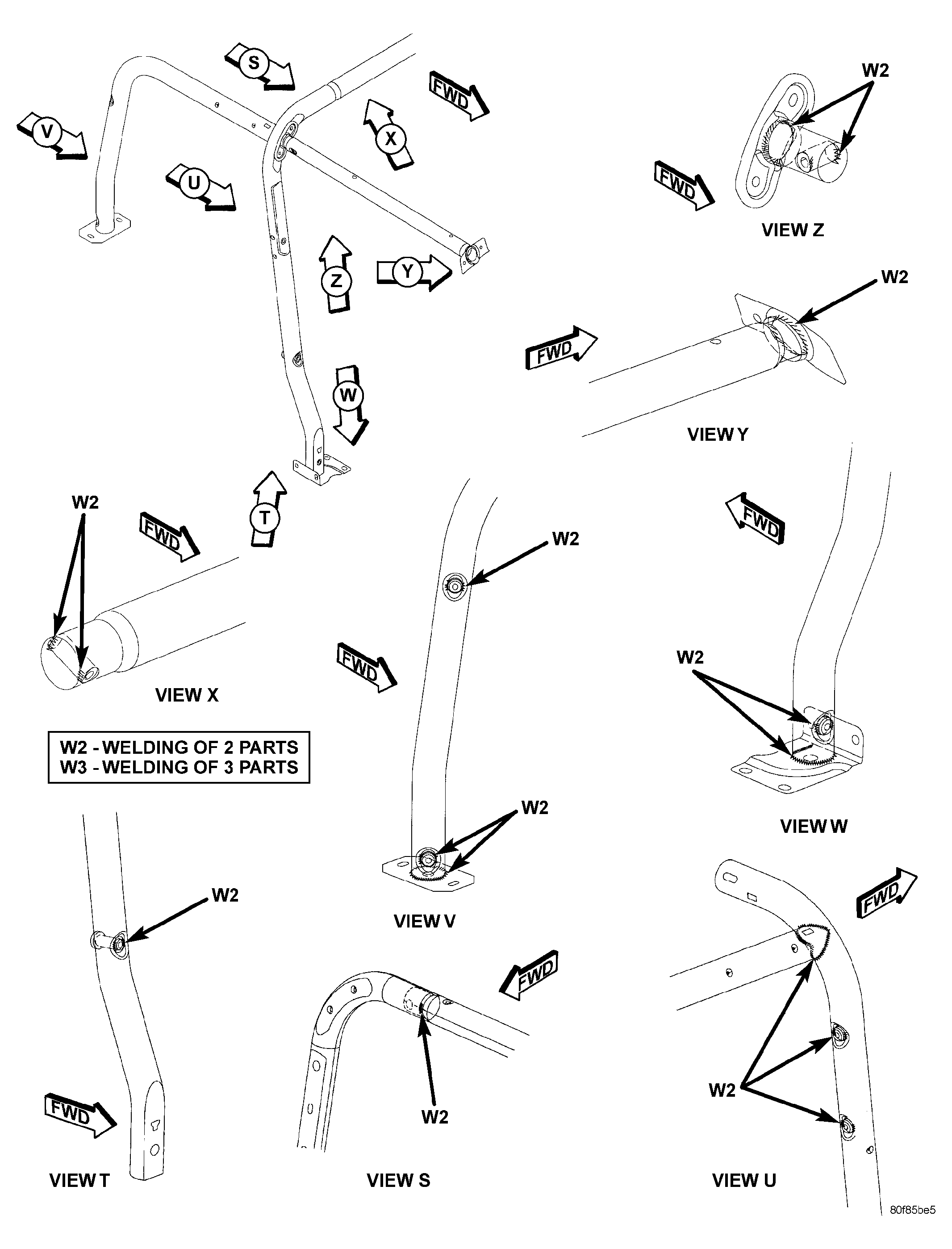

Fig 20: SPORT BAR ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

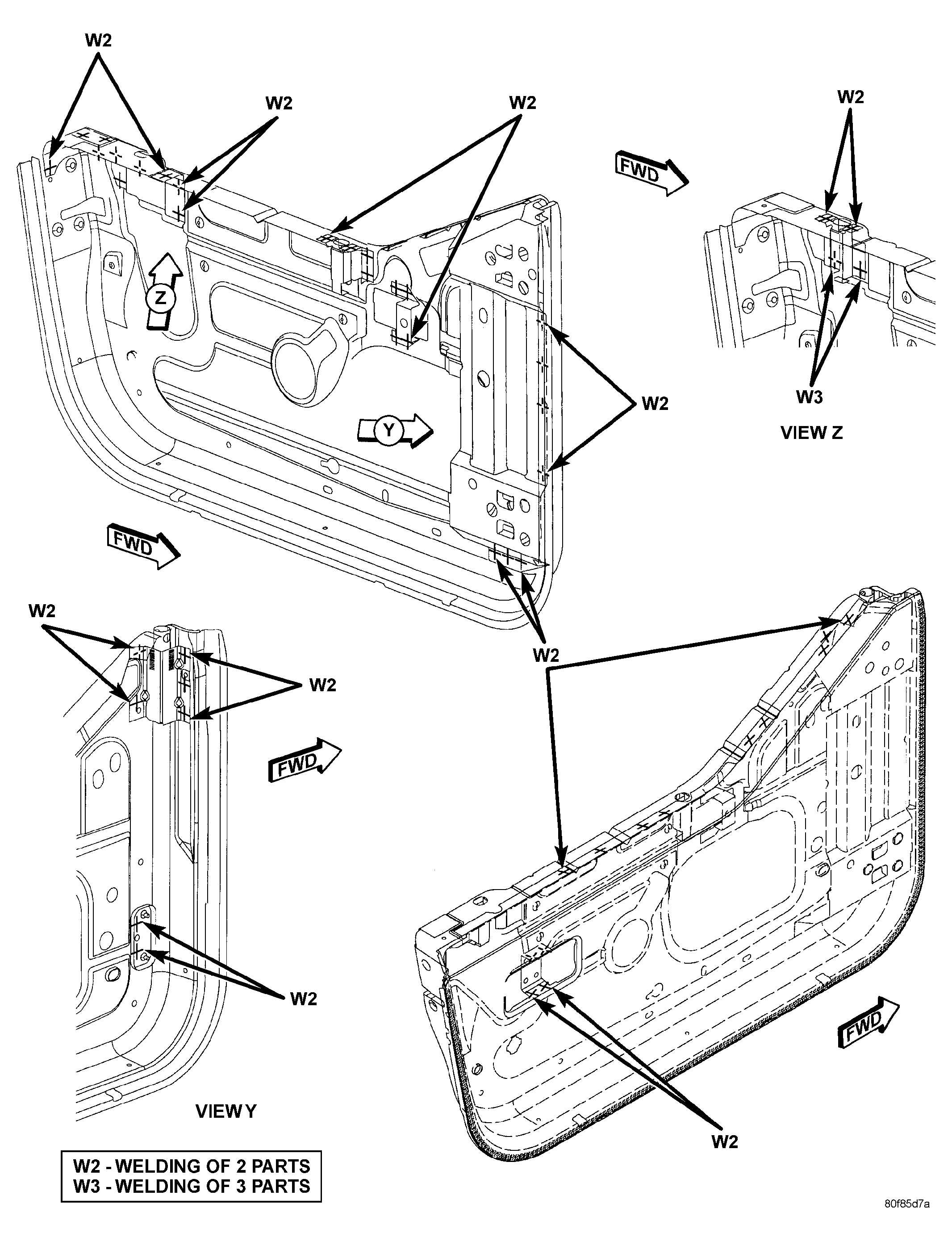

Fig 21: HALF DOOR ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

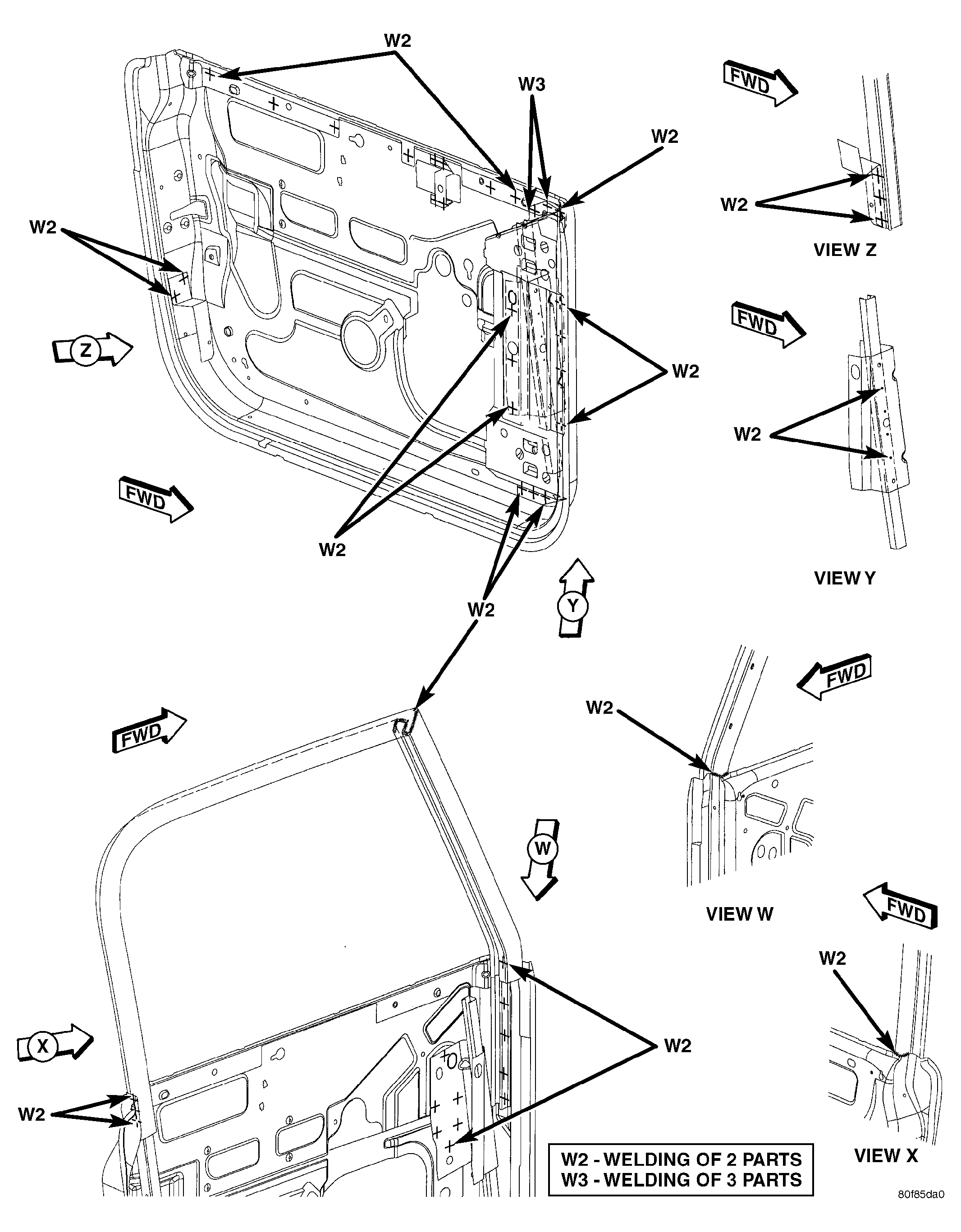

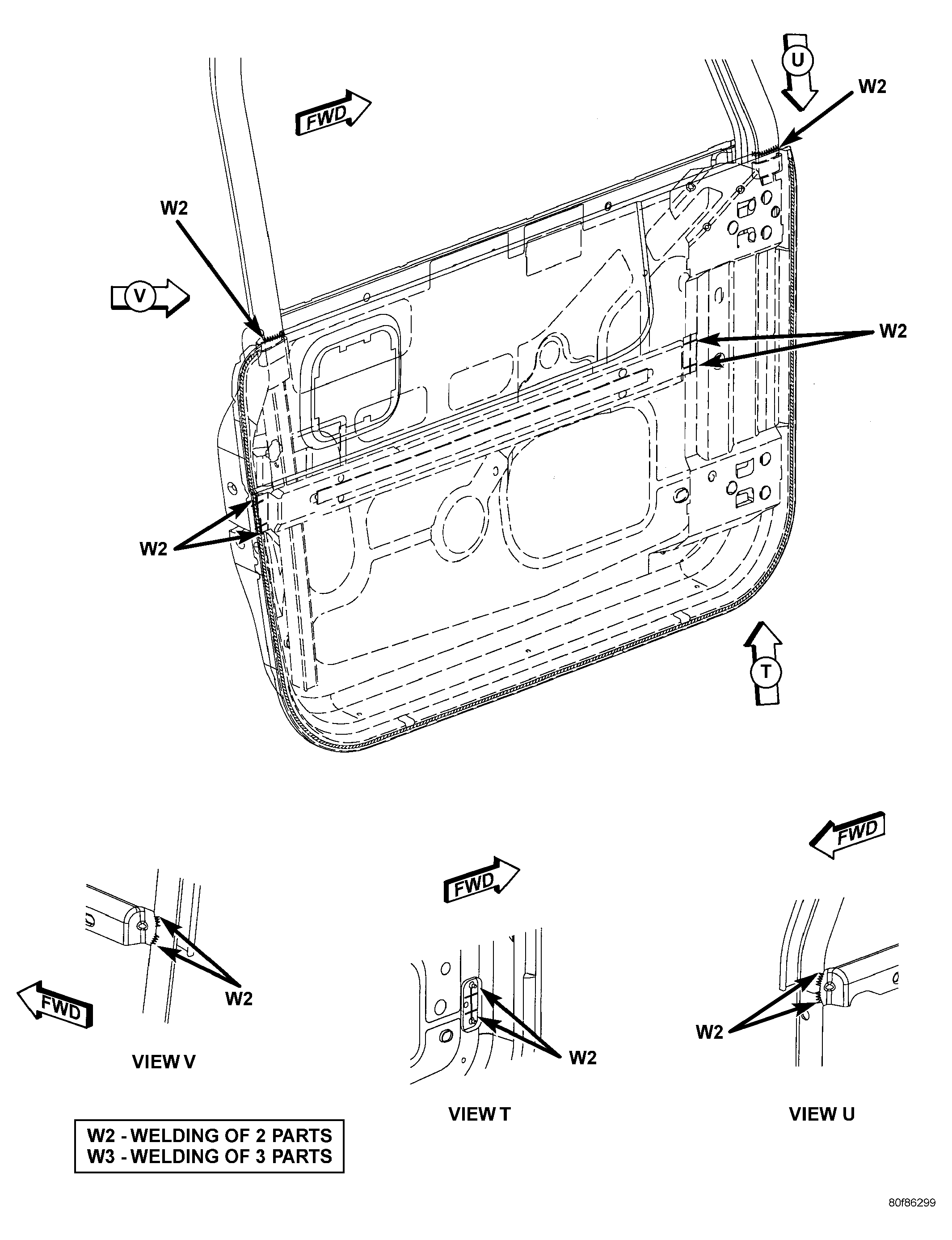

Fig 22: FULL DOOR ASSEMBLY (1 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: FULL DOOR ASSEMBLY (2 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: FRONT FENDER ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: HOOD ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

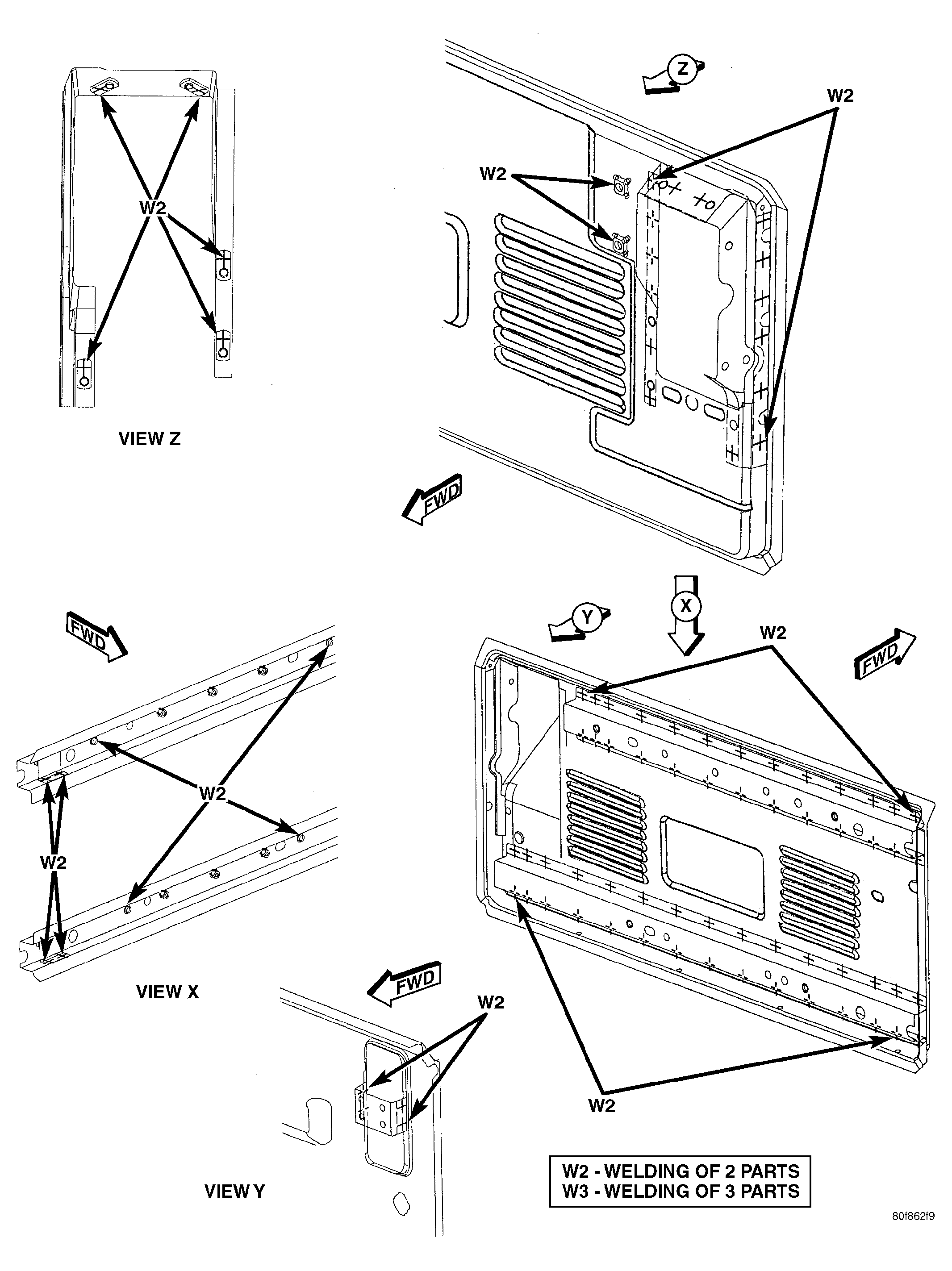

Fig 26: TAILGATE ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

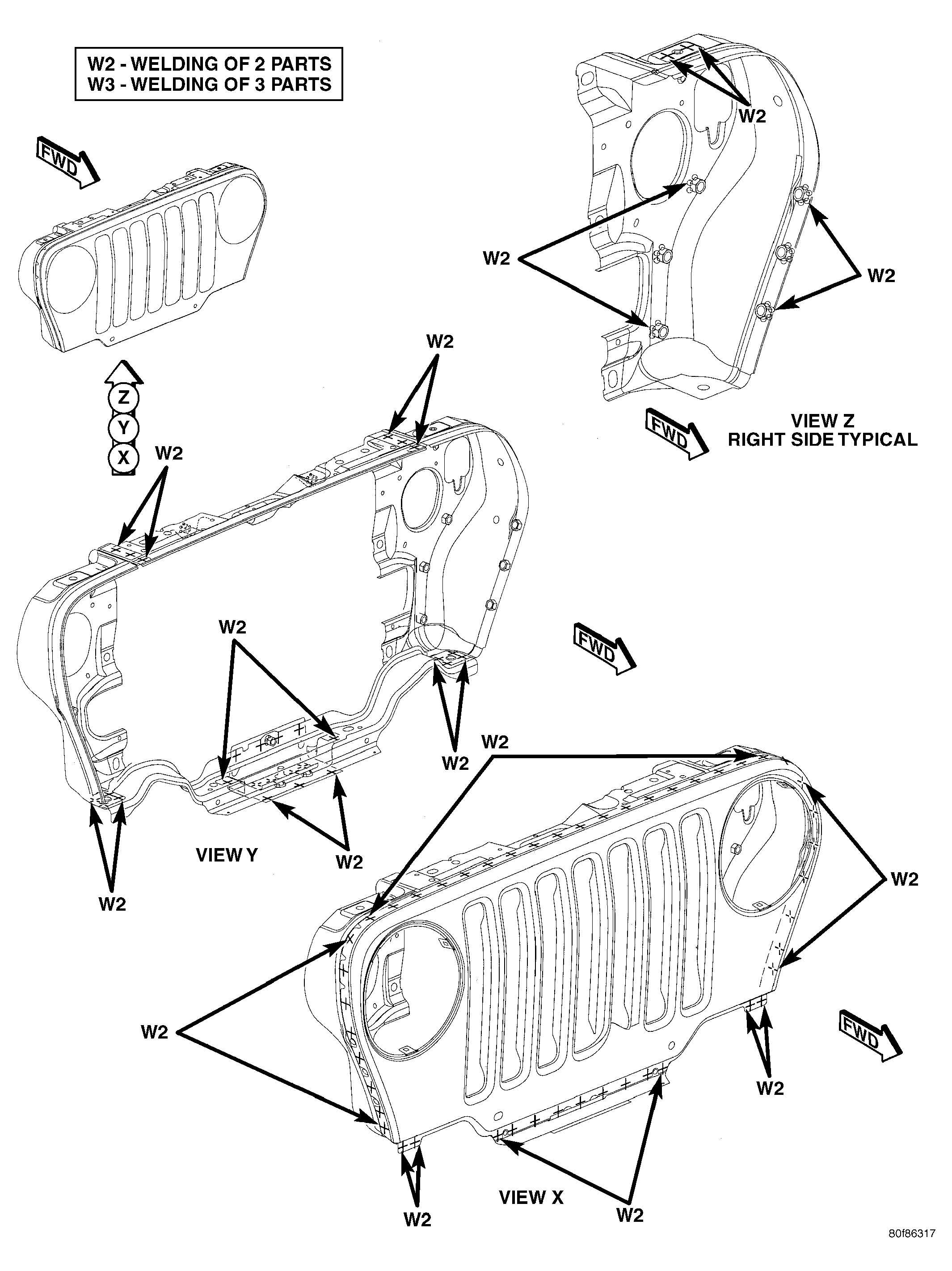

Fig 27: RADIATOR GUARD ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

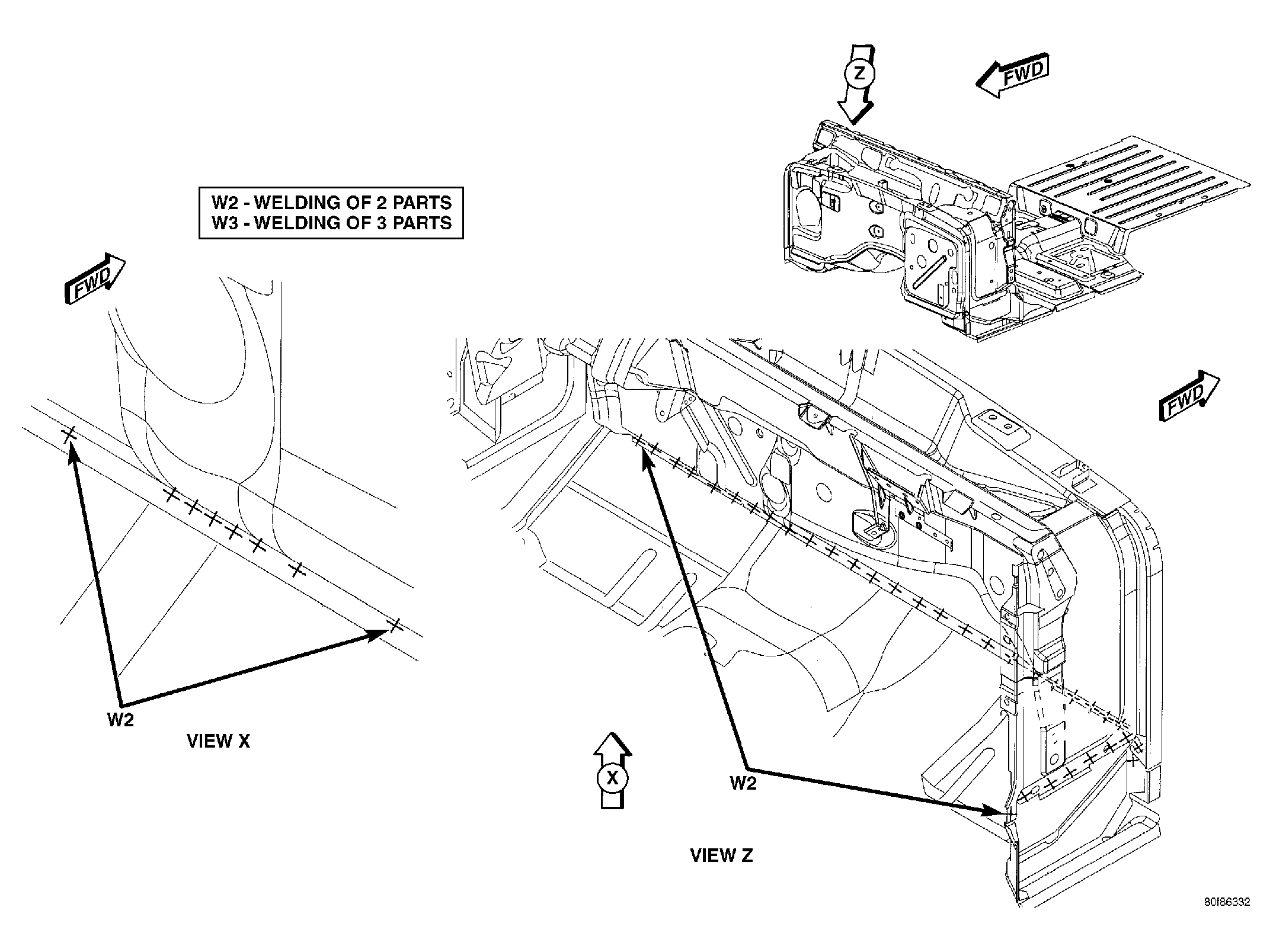

Fig 28: DASH, COWL AND FLOOR ASSEMBLY - LEFT HAND DRIVE

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: DASH, COWL AND FLOOR ASSEMBLY - RIGHT HAND DRIVE

Courtesy of DAIMLERCHRYSLER CORP.

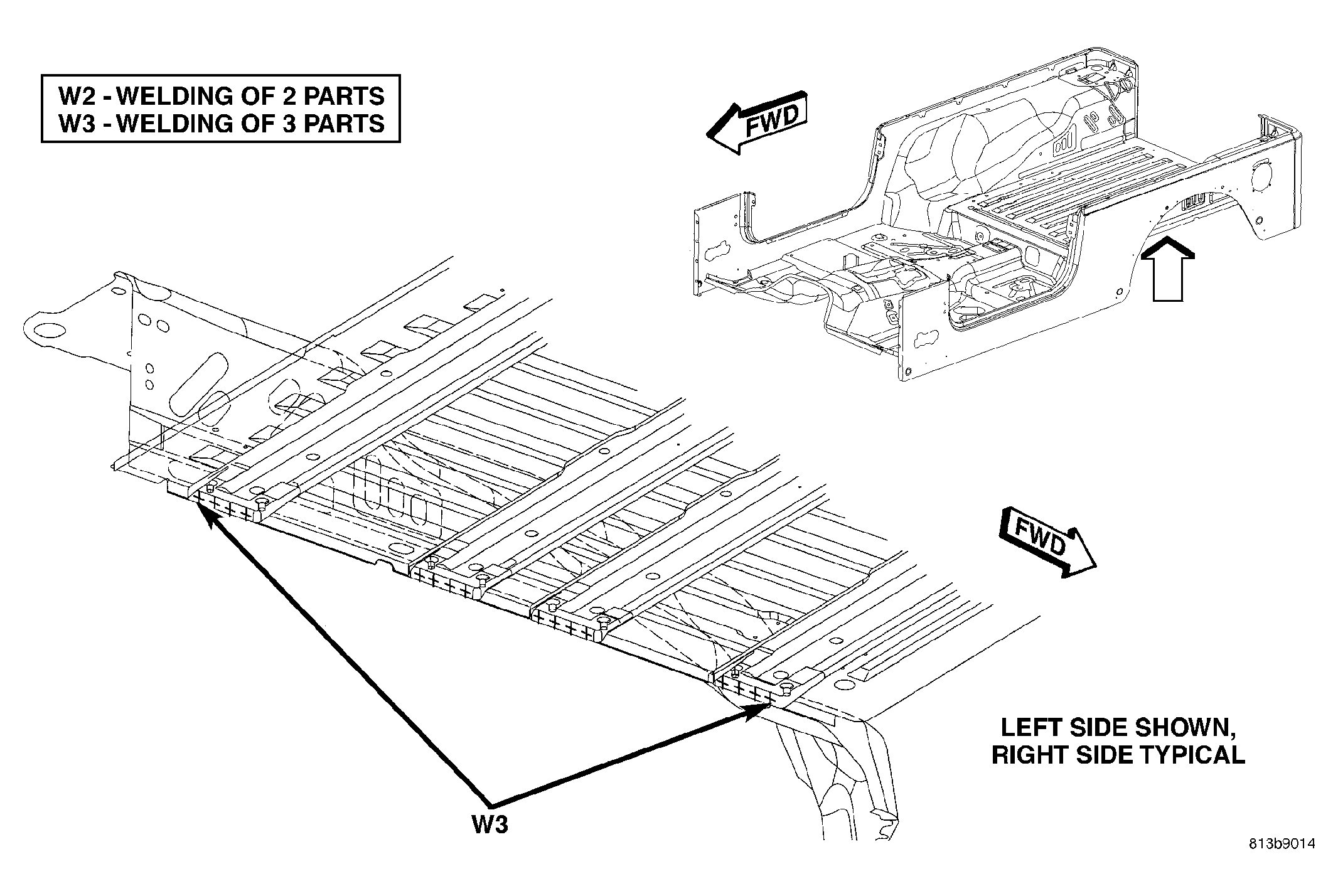

Fig 30: FRONT AND REAR FLOOR PAN

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: BODY SIDE (1 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 32: BODY SIDE (2 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

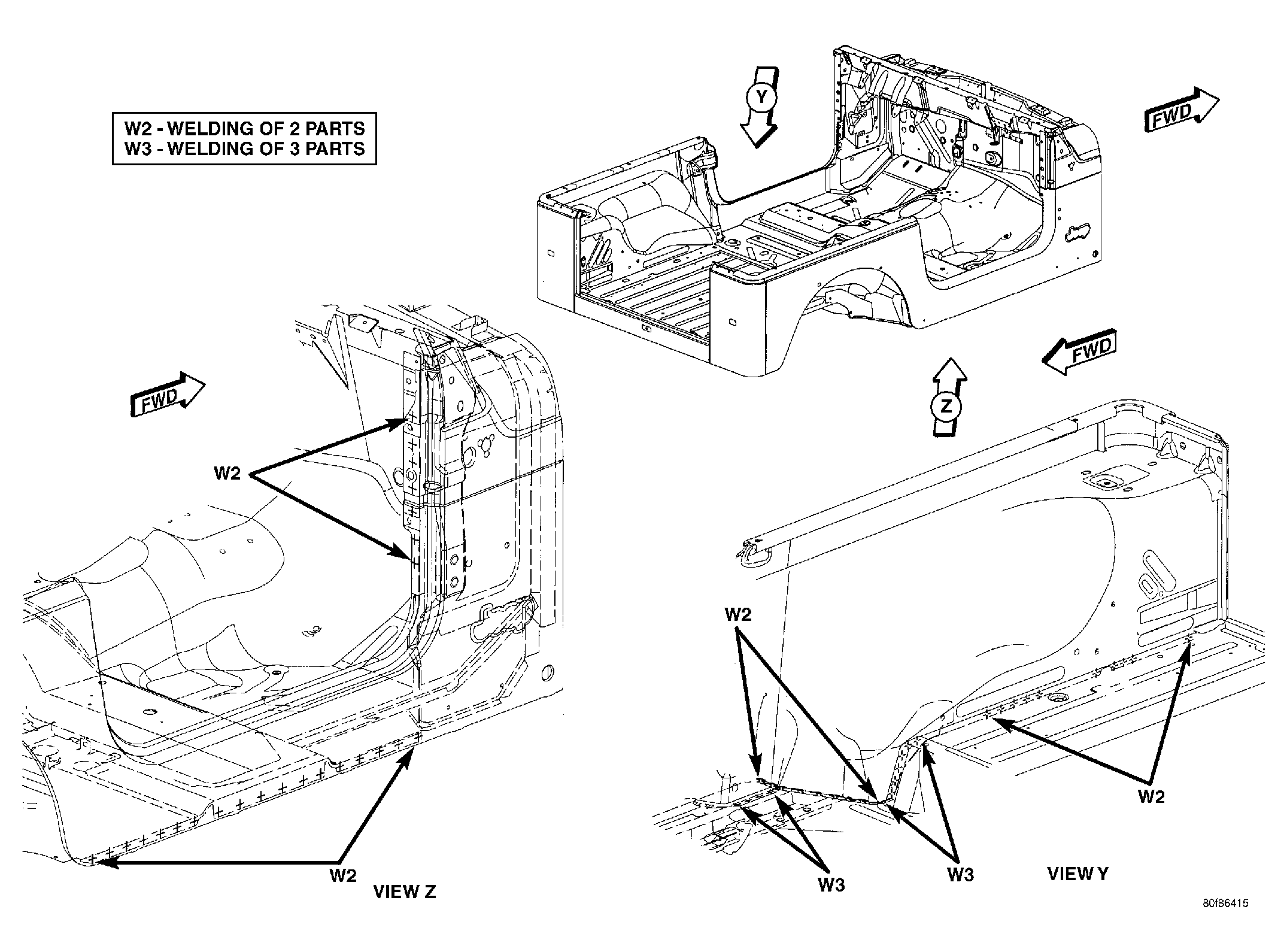

Fig 33: BODY COMPLETE (1 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: BODY COMPLETE (2 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: BODY COMPLETE (3 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 36: BODY COMPLETE (4 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 37: BODY COMPLETE LONG WHEEL BASE (LWB) (1 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 38: BODY COMPLETE LWB (2 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: BODY COMPLETE LWB (3 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 40: REAR FLOOR LWB (1 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: REAR FLOOR LWB (2 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 42: REAR FLOOR LWB (3 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 43: UNDERBODY COMPLETE LWB (1 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: UNDERBODY COMPLETE LWB (2 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: UNDERBODY COMPLETE LWB (3 OF 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 46: BODY SIDE COMPLETE LWB (1 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 47: BODY SIDE COMPLETE LWB (2 OF 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: BODY COMPLETE LWB (1 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 49: BODY COMPLETE LWB (2 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 50: BODY COMPLETE LWB (3 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 51: BODY COMPLETE LWB (4 OF 4)

Courtesy of DAIMLERCHRYSLER CORP.
