DTC P0300: Multiple Cylinder Mis-Fire, DTC P0301: Cylinder #1 Misfire, DTC P0302: Cylinder #2 Misfire, DTC P0303: Cylinder #3 Misfire, DTC P0304: Cylinder #4 Misfire, DTC P0305: Cylinder #5 Misfire, DTC P0306: Cylinder #6 Misfire: Testing

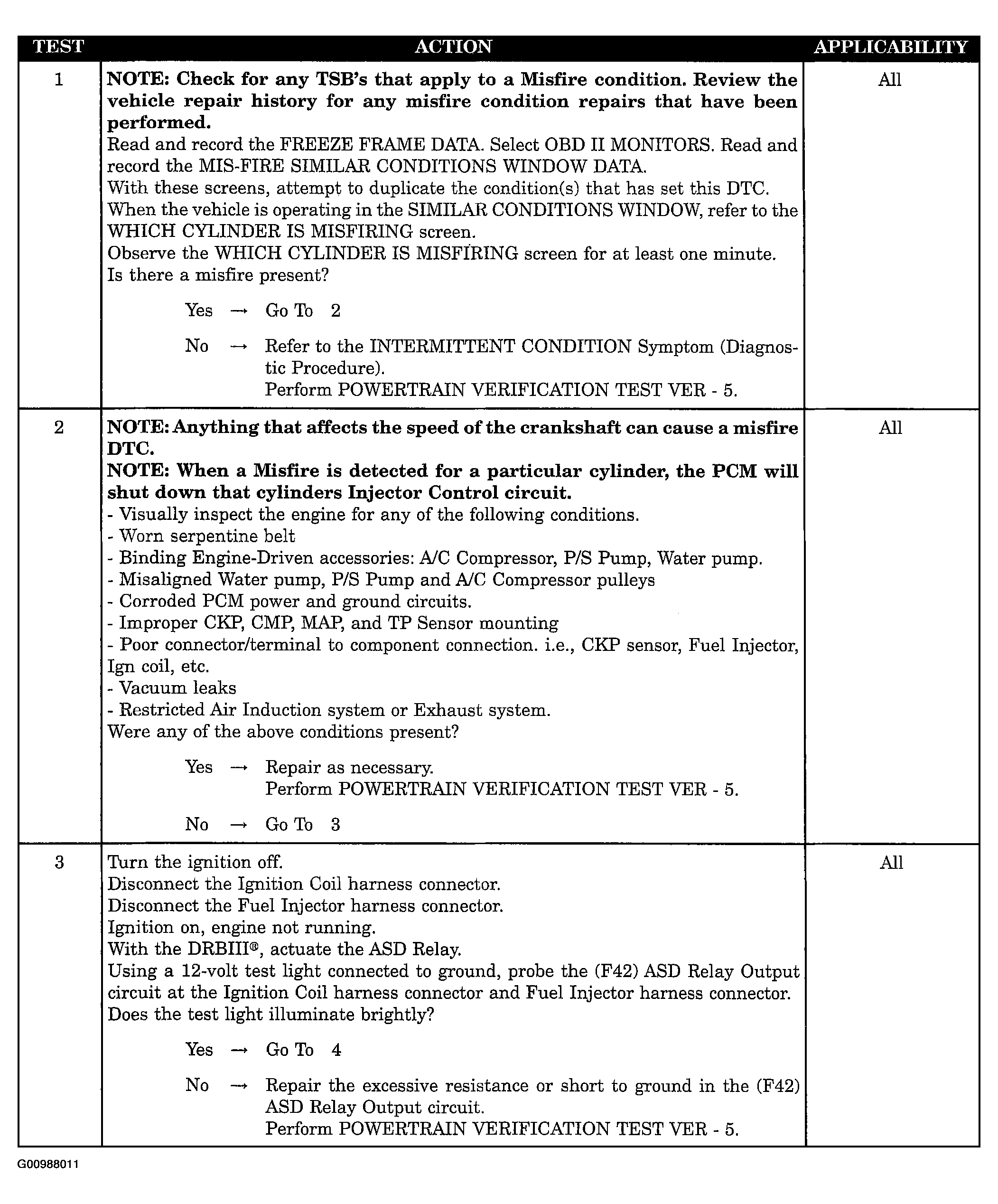

Fig 1: Testing: DTC P0300: Multiple Cylinder Mis-Fire (1 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

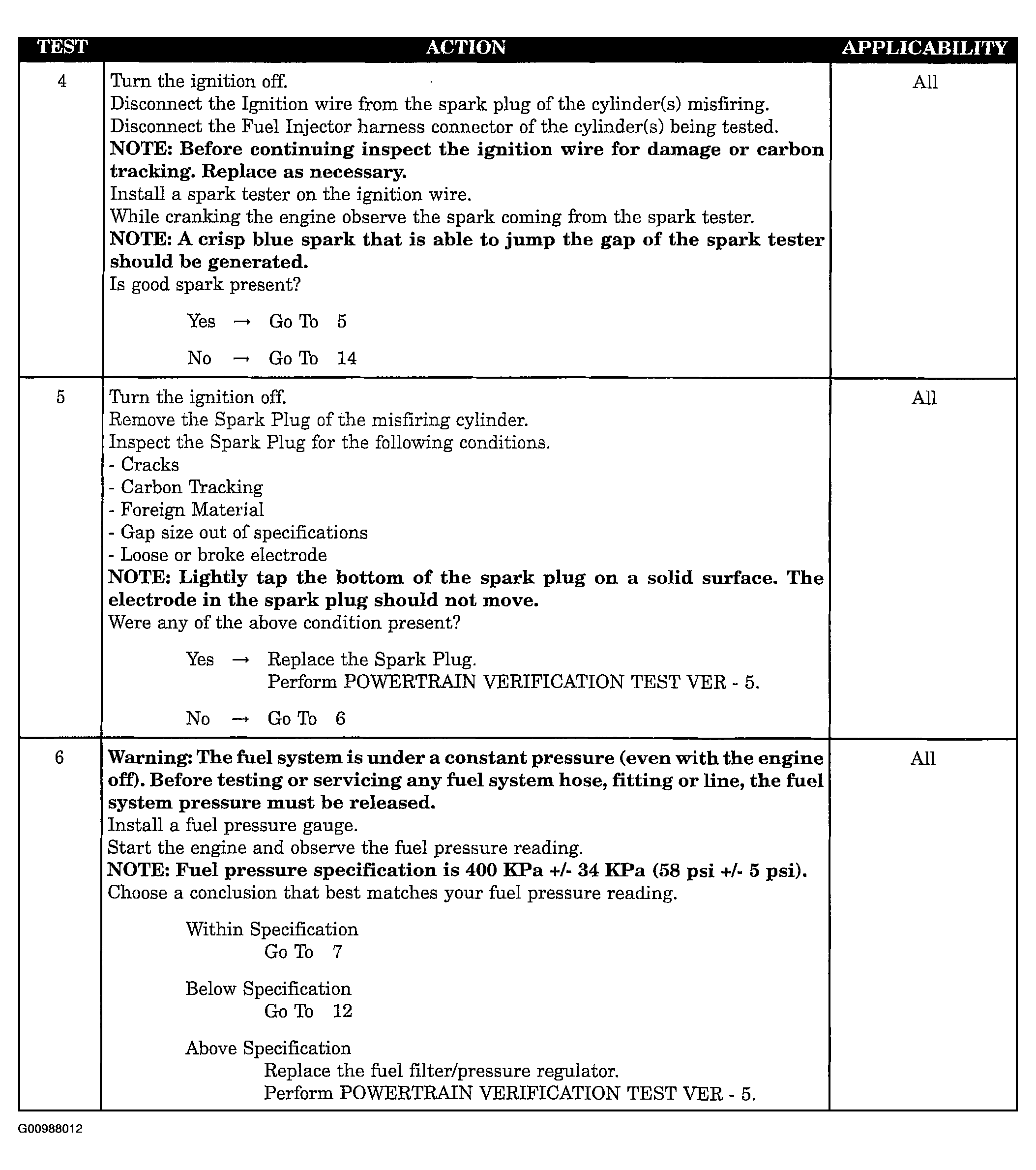

Fig 2: Testing: DTC P0300: Multiple Cylinder Mis-Fire (2 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

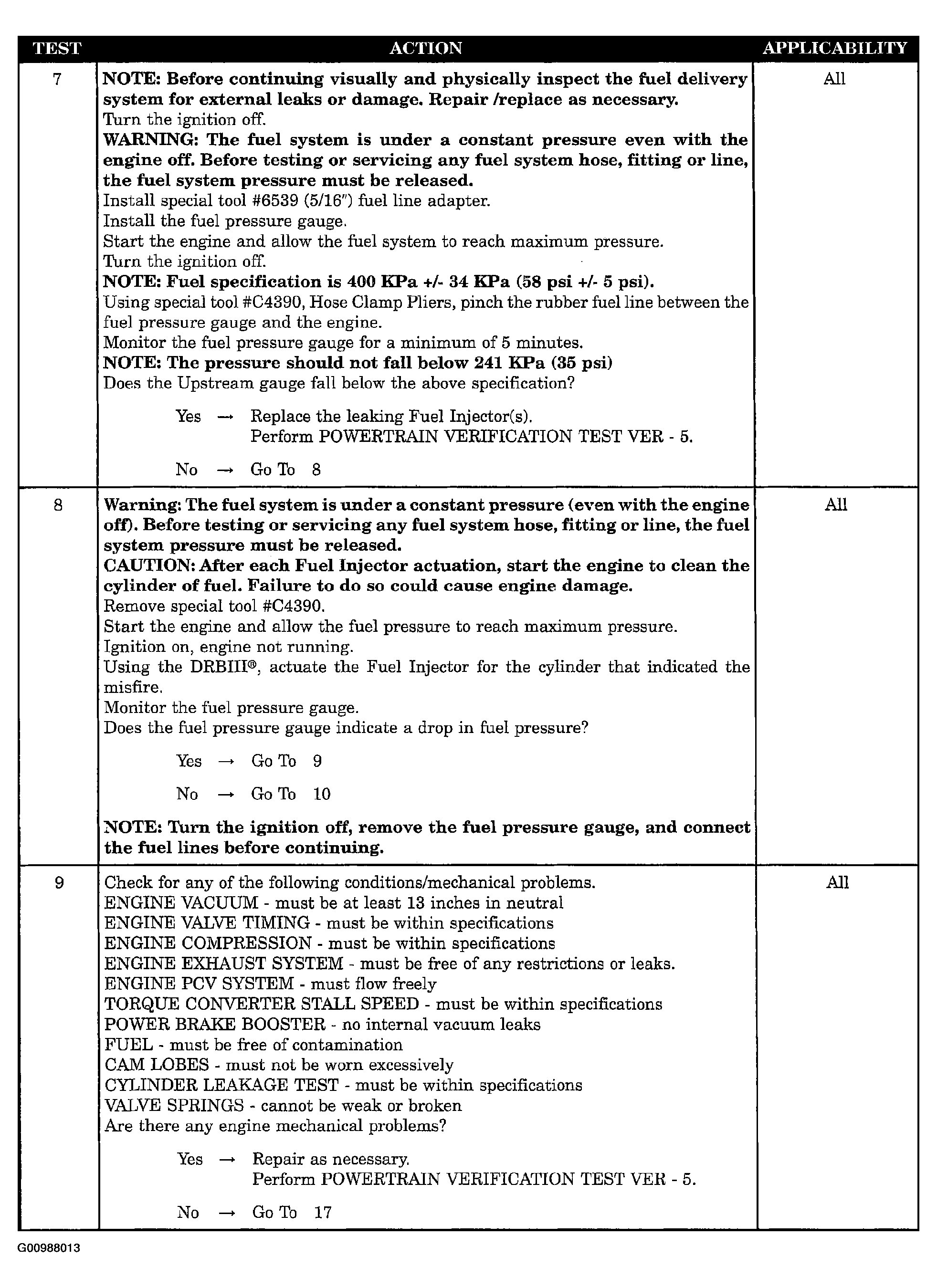

Fig 3: Testing: DTC P0300: Multiple Cylinder Mis-Fire (3 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

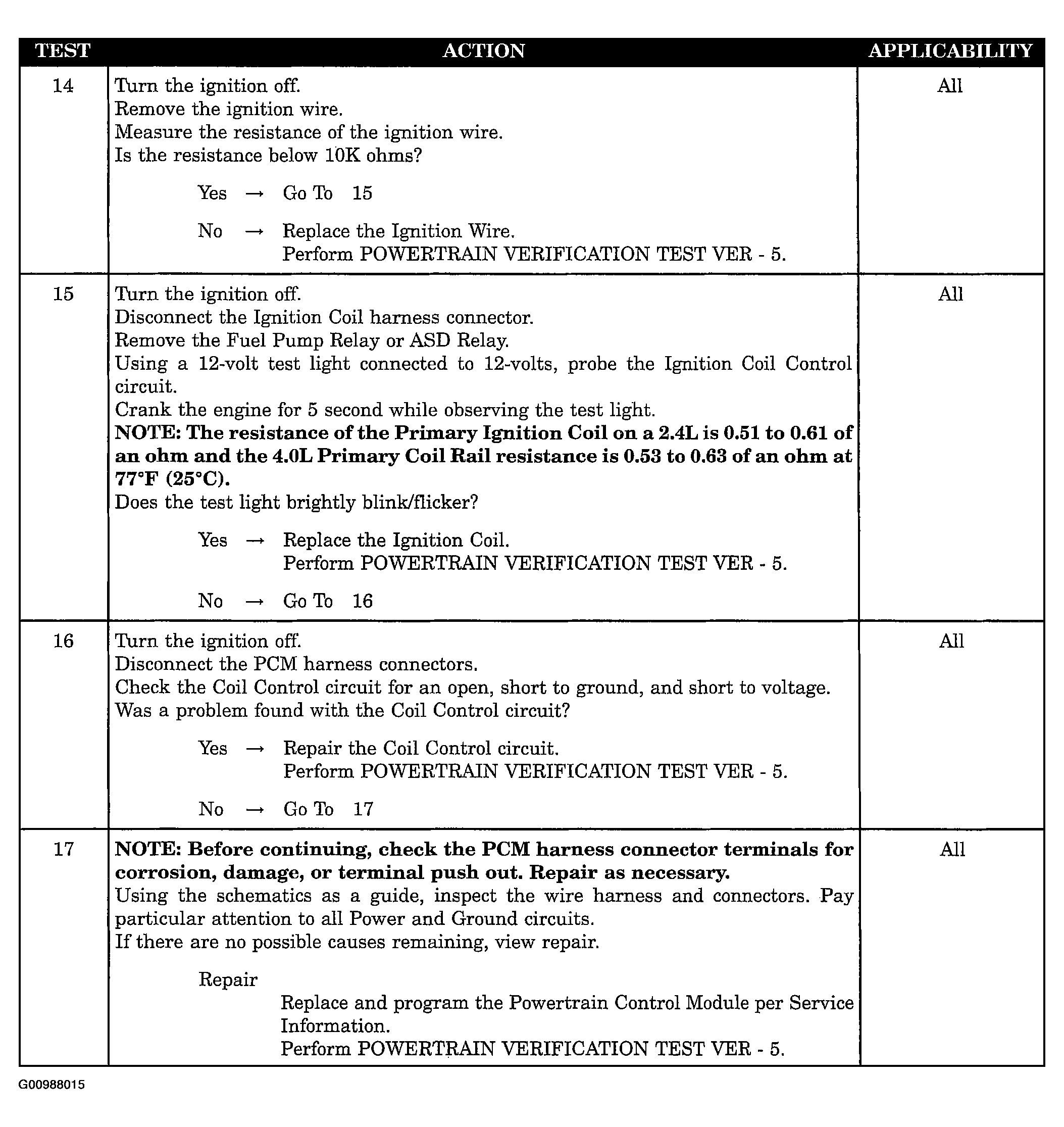

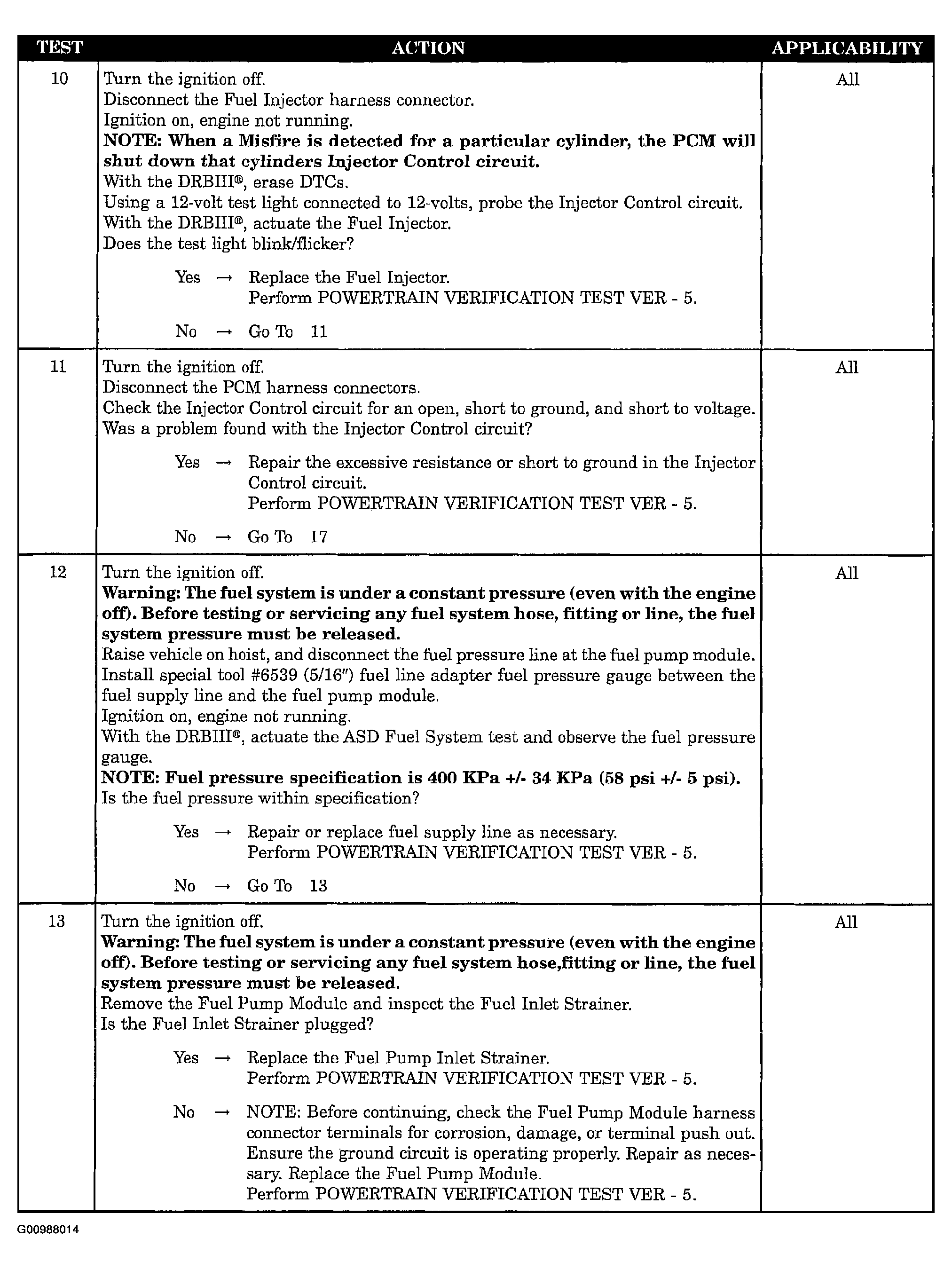

Fig 4: Testing: DTC P0300: Multiple Cylinder Mis-Fire (4 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Testing: DTC P0300: Multiple Cylinder Mis-Fire (5 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.
