Removal & Installation (Disc Brakes)

Raise and support vehicle. Remove rear wheel. Loosen parking brake cable tensioner nut at equalizer. See Figure . Remove cable from equalizer. See Fig 1 . Remove cable from frame bracket. Remove cable from axle bracket. Remove brake cable from actuator lever. See Fig 2 .
To install, reverse removal procedure. Adjust parking brake cable at equalizer using tensioner nut. See Figure .

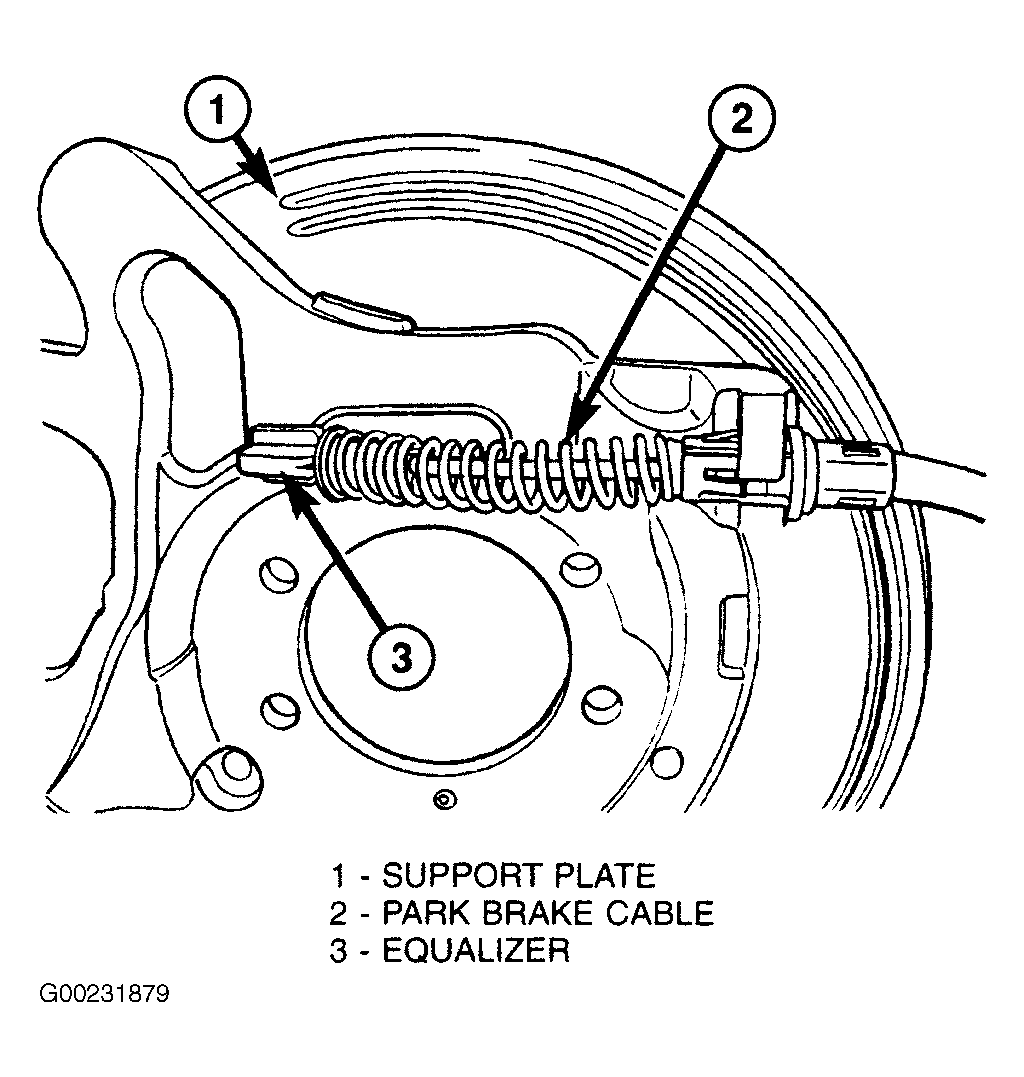

Fig 1: Removing Brake Cable From Equalizer
Courtesy of DAIMLERCHRYSLER CORPORATION

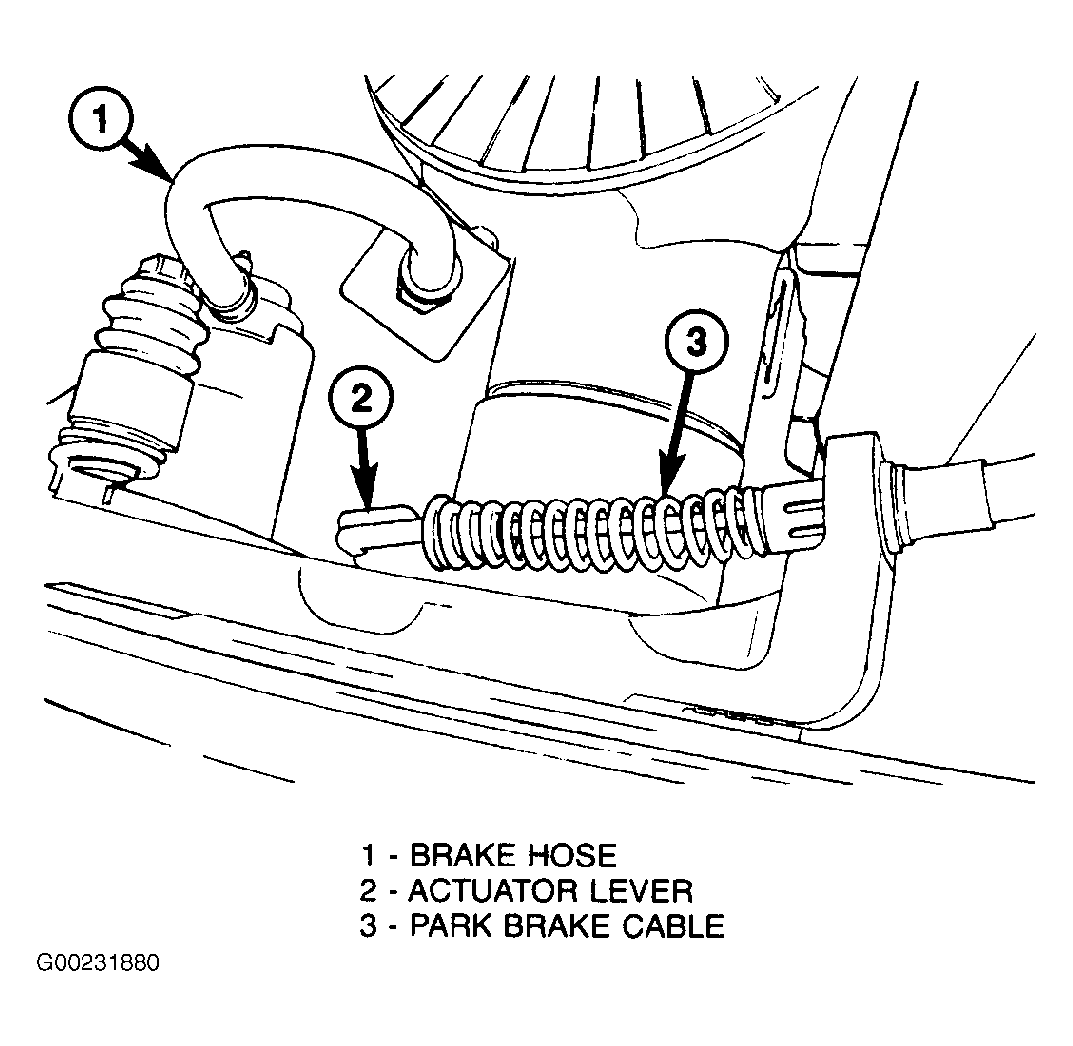

Fig 2: Removing & Installing Brake Cable At Actuator Lever
Courtesy of DAIMLERCHRYSLER CORPORATION
