Vehicle Speed Sensor: Description

WARNING: This page is about a different variant/trim than selected.

The 3-wire Vehicle Speed Sensor (VSS) is located in the transfer case rear extension.

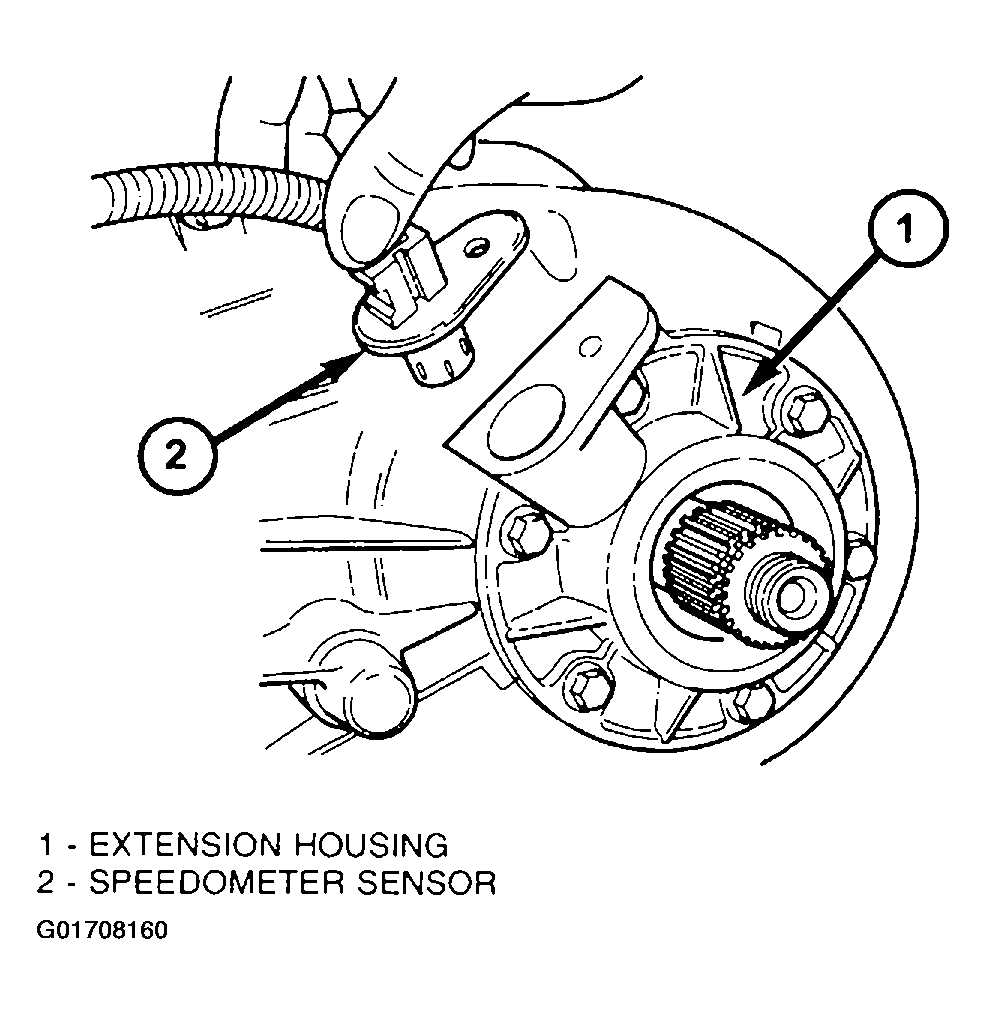

Fig 1: Locating Speed Sensor
G01708160Courtesy of DAIMLERCHRYSLER CORP.
