Yoke And Shift Lever

WARNING: This page is about a different variant/trim than selected.

Shift transfer case into a 4WD mode.
Use Holder 6958 to secure the yoke and remove the yoke nut. Discard nut after removal. It is not reusable.

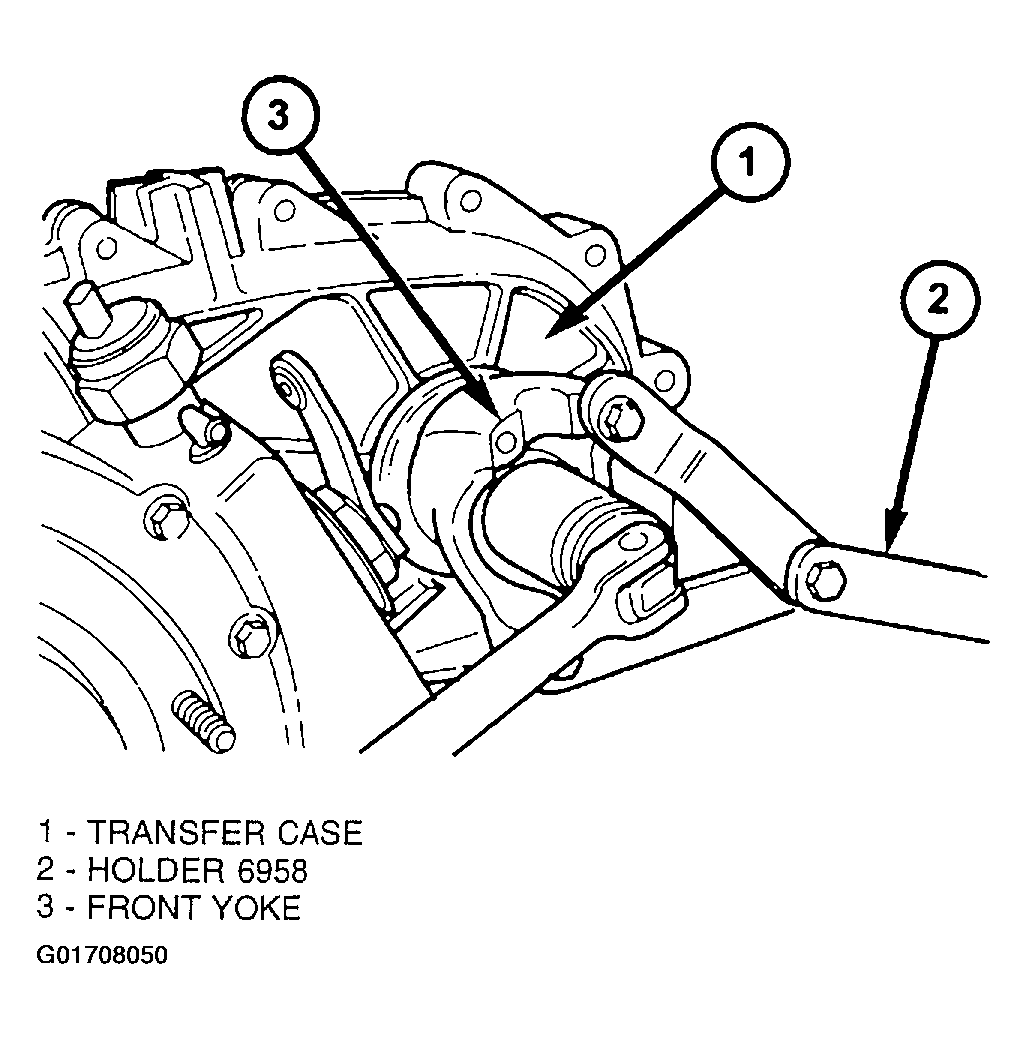

Fig 1: Removing Front Yoke Nut
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: The yoke is a taper fit onto the output shaft. It may be necessary to use a puller such as C-452 to remove the yoke.

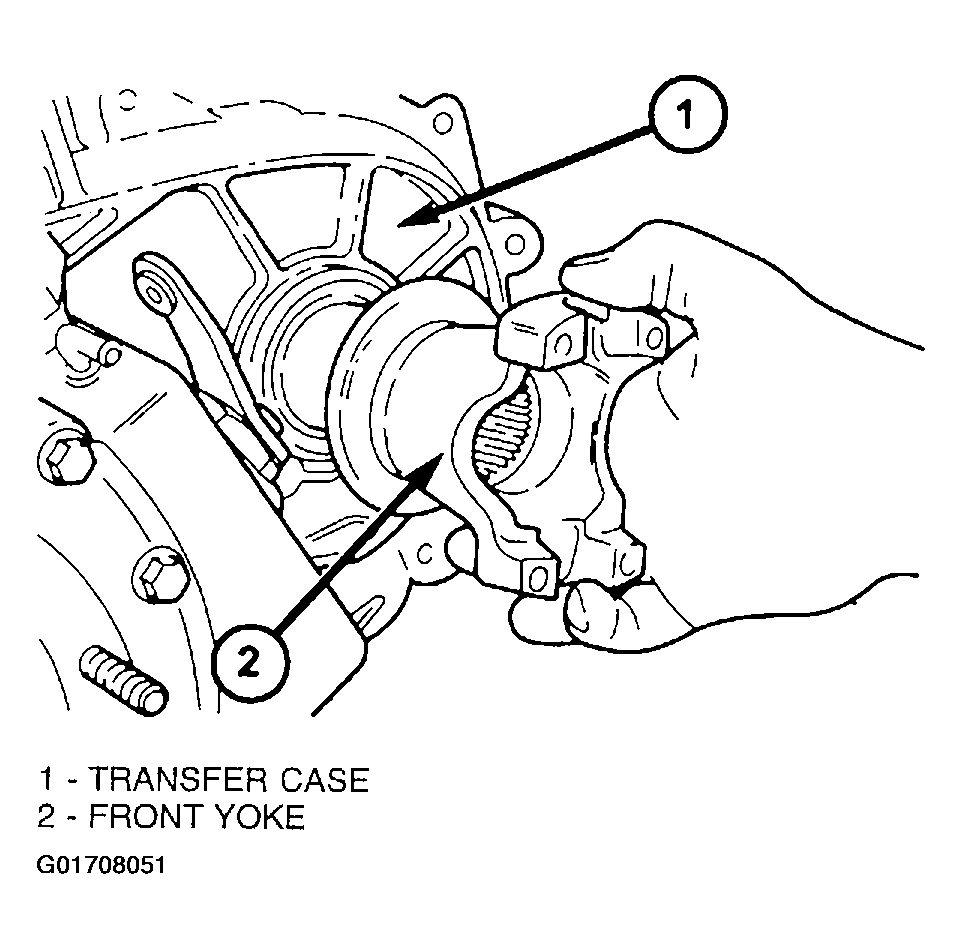

Fig 2: Removing Front Yoke

Courtesy of DAIMLERCHRYSLER CORP.

Remove the yoke from the front output shaft.
There is a seal slinger located on the rear of the yoke that can be replaced if necessary. Use a suitable cold chisel to strike the slinger hub parallel to the centerline in several spots to expand the slinger hub. A new slinger can be driven onto the yoke hub using a suitable pipe tool.
Remove yoke rubber seal from front output shaft.
Remove bolt that retains the shift lever to sector shaft.

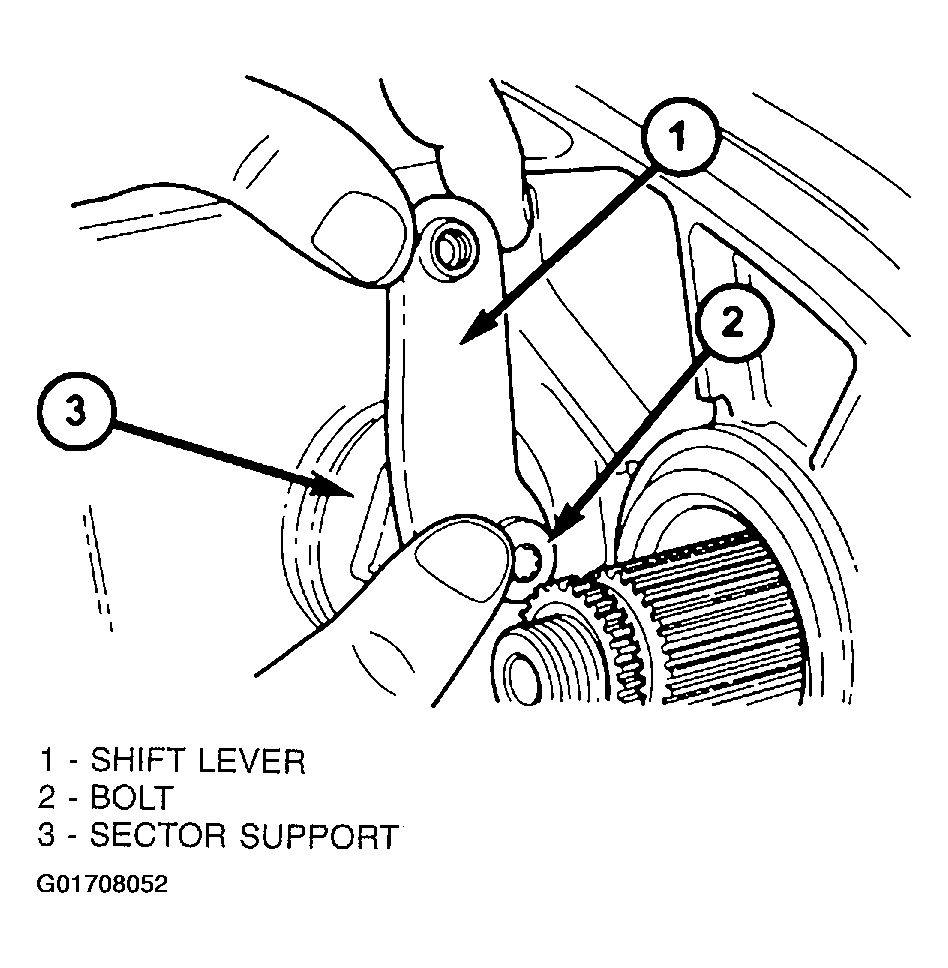

Fig 3: Removing Shift Lever Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the shift lever from the shift sector.

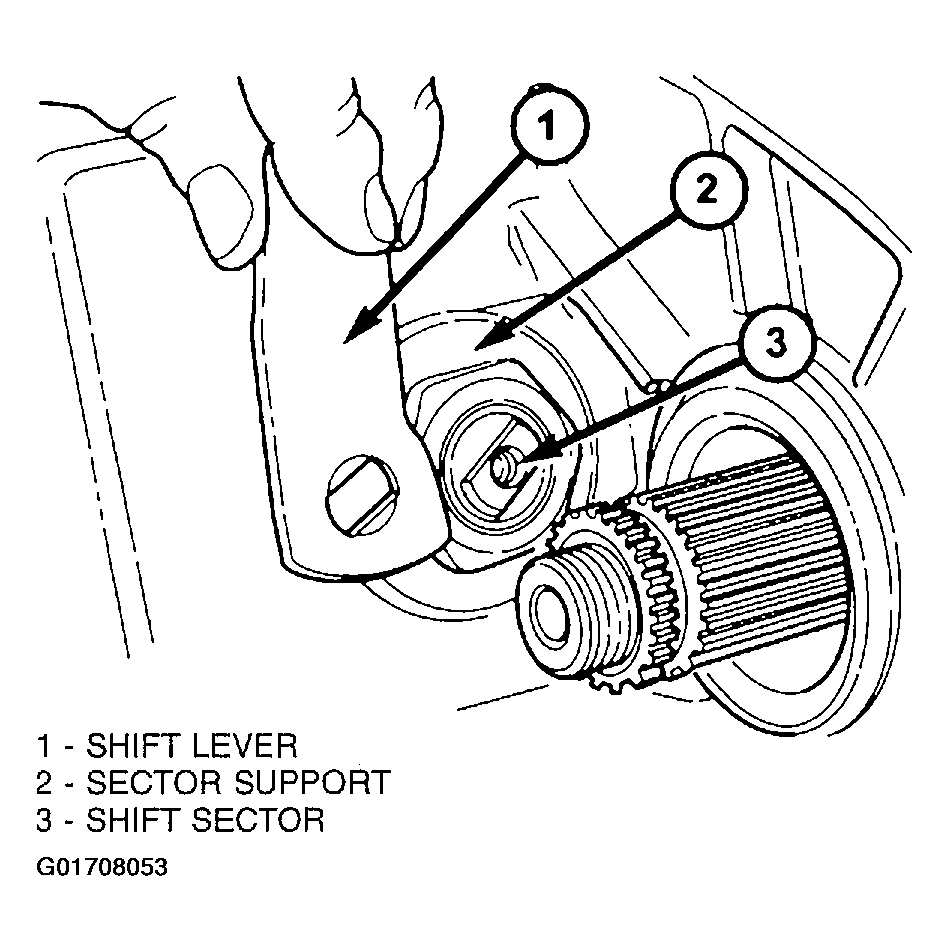

Fig 4: Removing Shift Lever
Courtesy of DAIMLERCHRYSLER CORP.
Remove the detent plug.

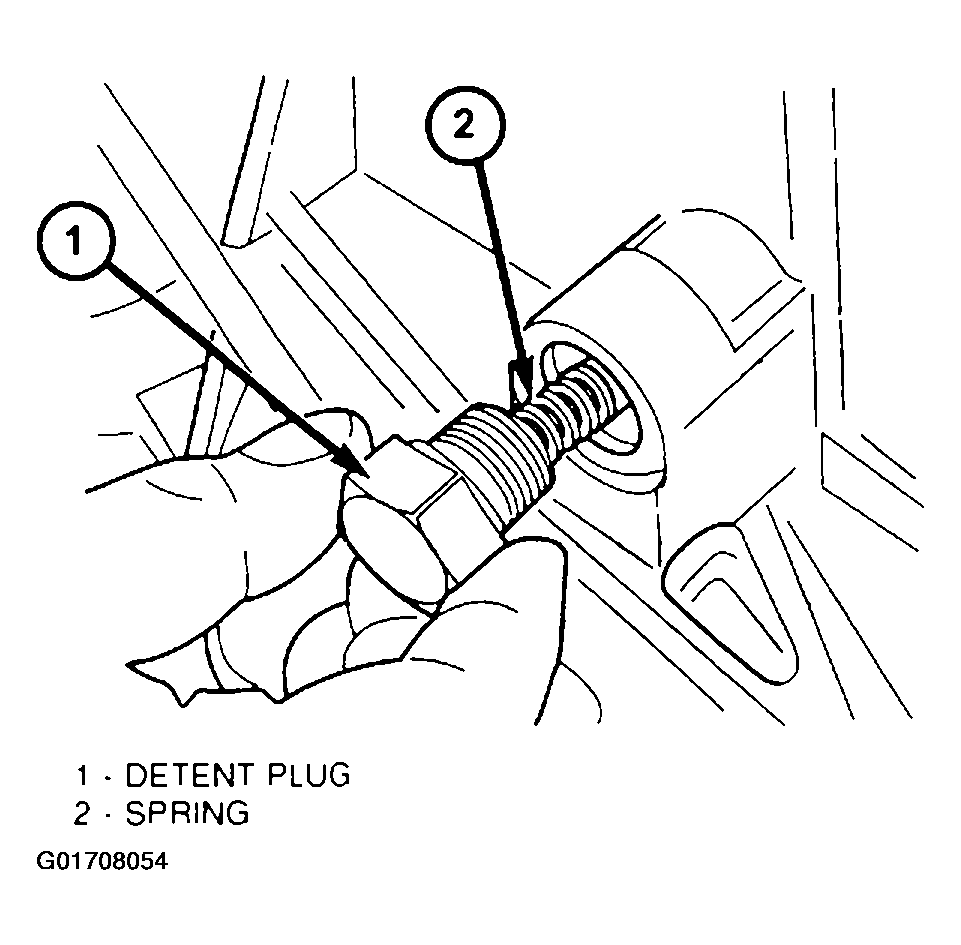

Fig 5: Removing Detent Plug
Courtesy of DAIMLERCHRYSLER CORP.
Remove the detent plug, spring, and plunger from the transfer case.

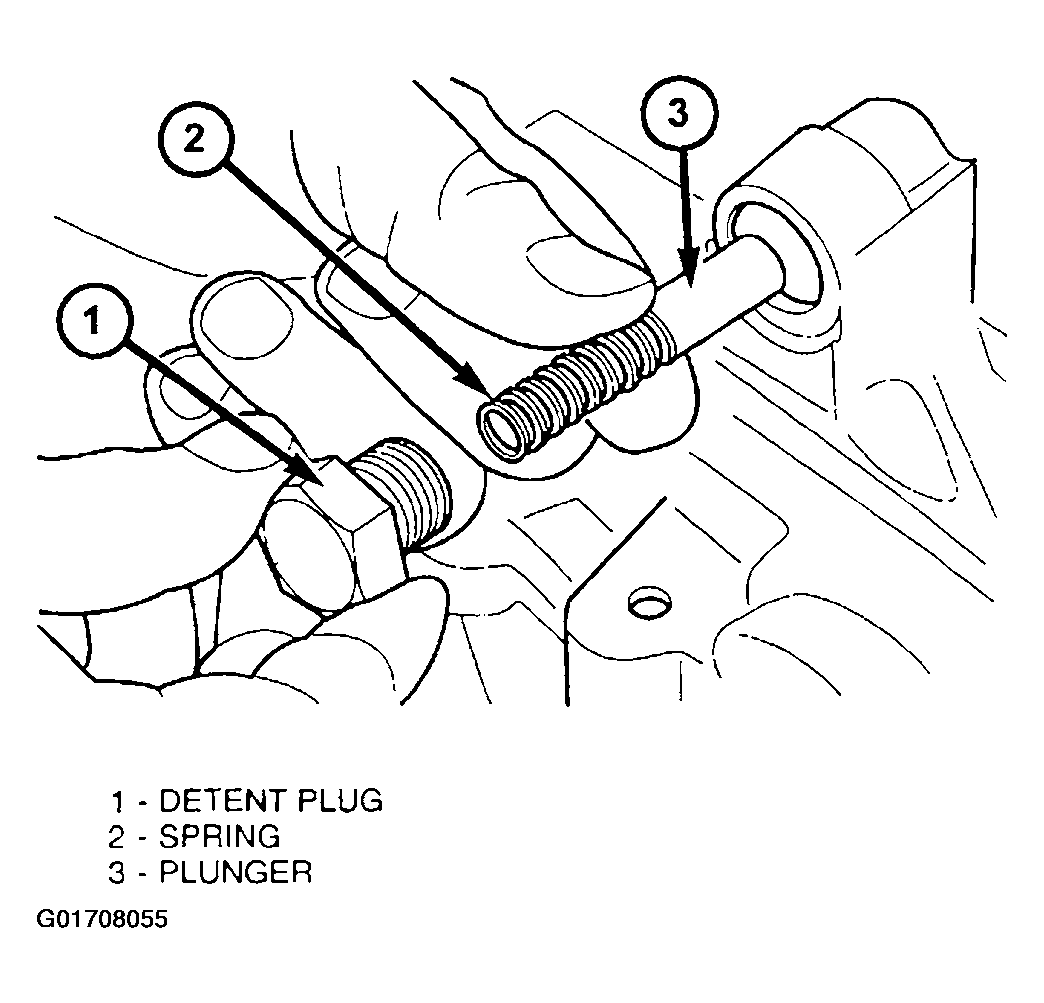

Fig 6: Removing Detent Plug, Spring & Plunger
Courtesy of DAIMLERCHRYSLER CORP.
Remove the transfer case position sensor.

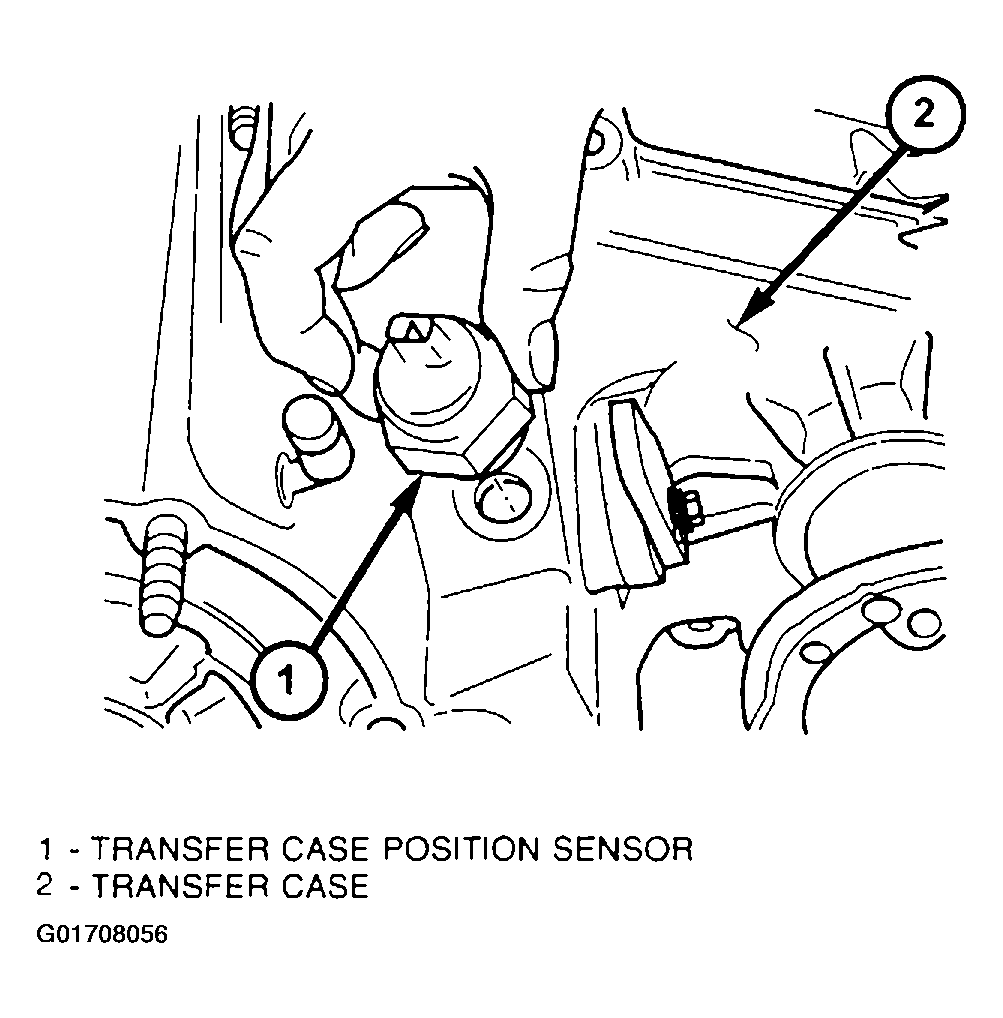

Fig 7: Removing Transfer Case Position Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove the shift sector support.

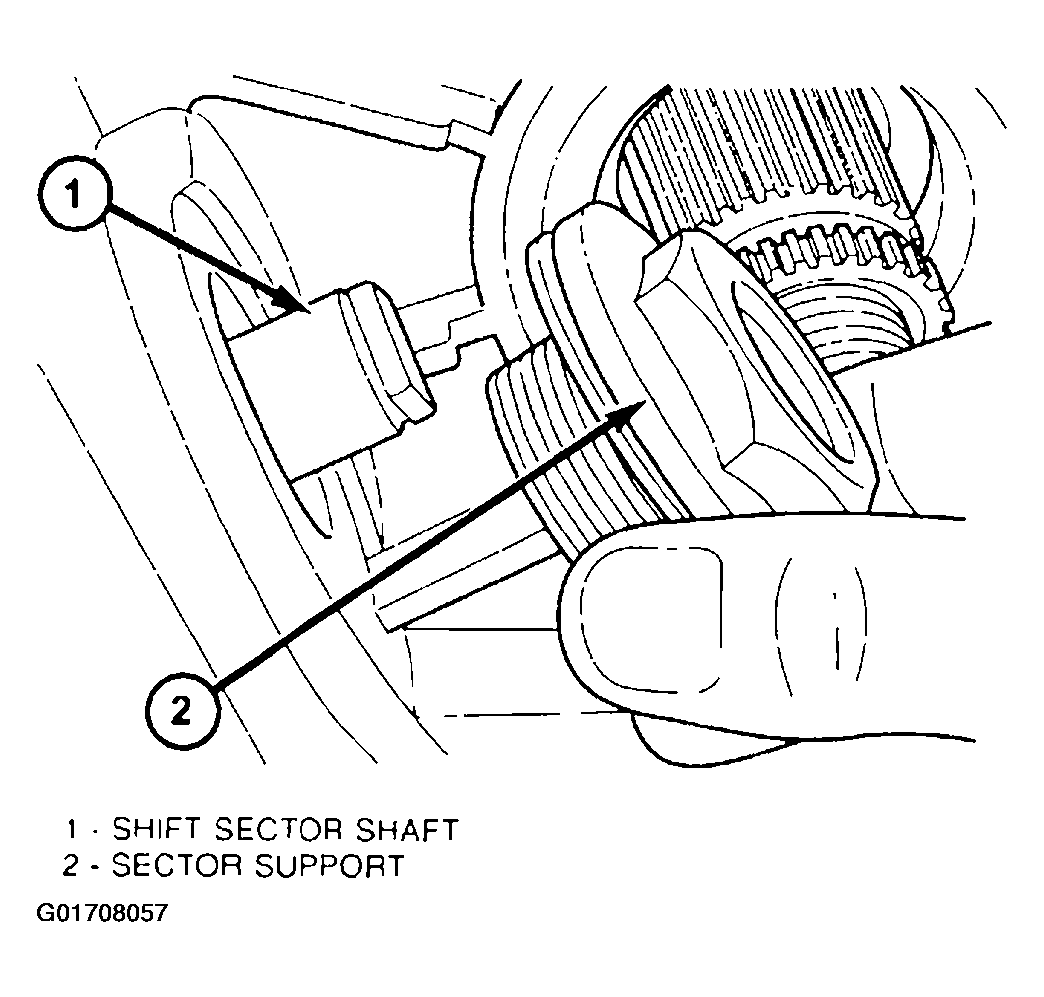

Fig 8: Removing Shift Sector Support
Courtesy of DAIMLERCHRYSLER CORP.
