Input And Planetary Gear

WARNING: This page is about a different variant/trim than selected.

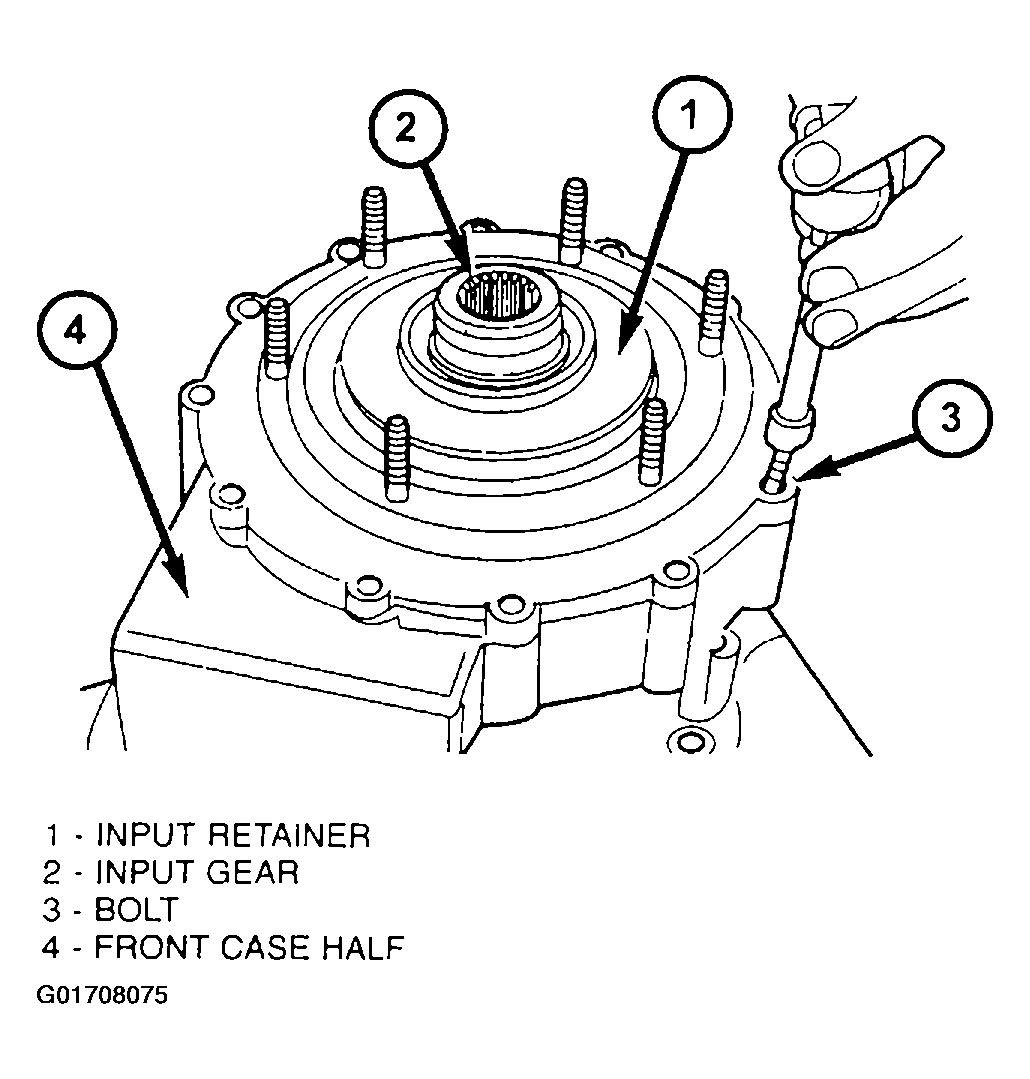

Remove front input retainer attaching bolts.

Fig 1: Removing Front Input Retainer Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the input gear seal with a suitable screw and slide hammer.

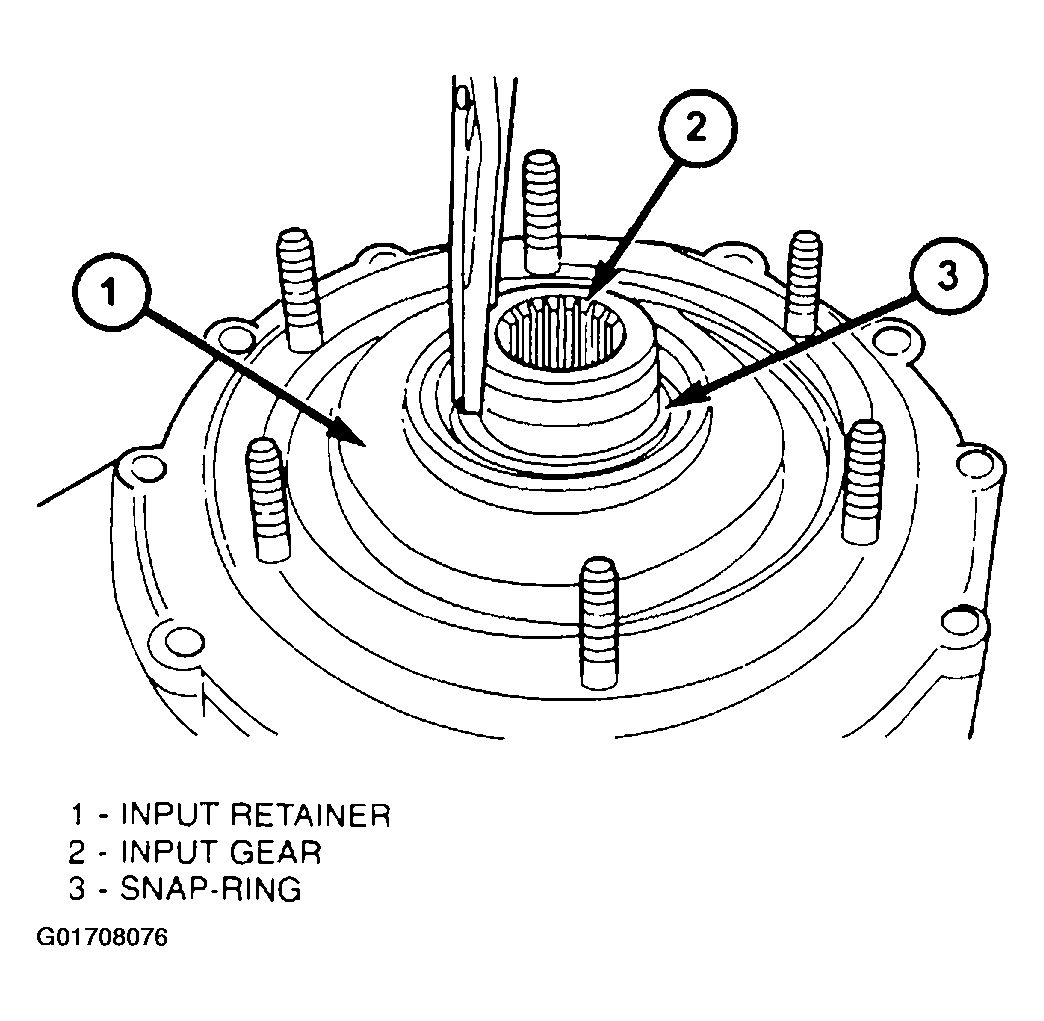

Remove the input gear snap-ring from the input retainer.

Fig 2: Removing Input Gear Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

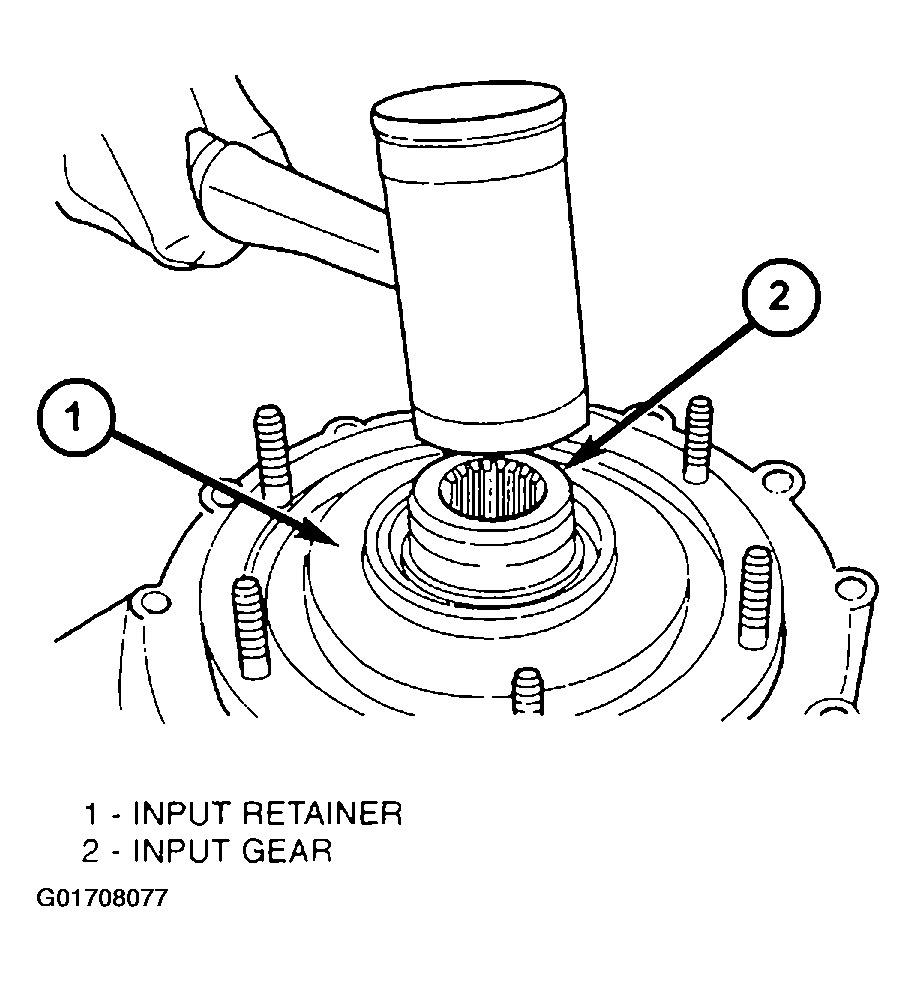

Remove the input gear from the input gear bearing with suitable hammer.

Fig 3: Removing Input Gear
Courtesy of DAIMLERCHRYSLER CORP.

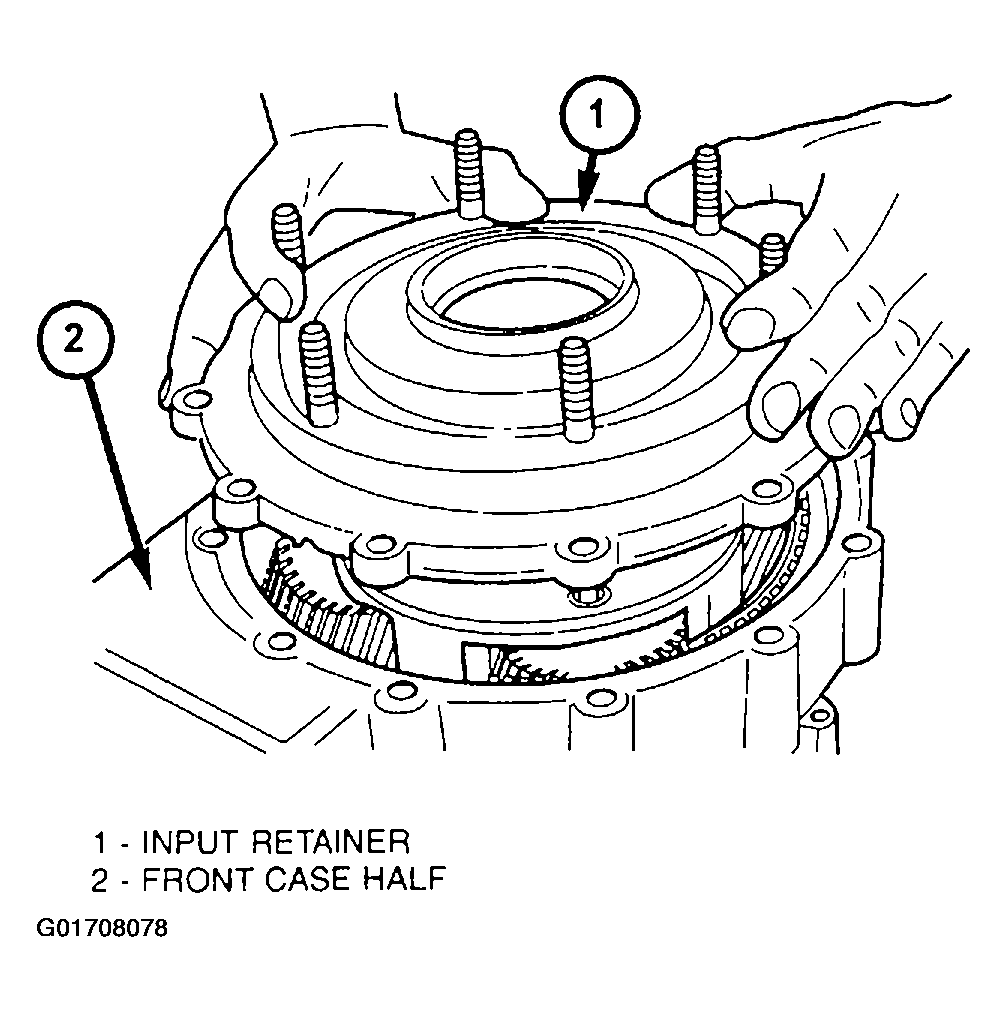

Remove front input retainer.

Fig 4: Removing Front Input Retainer
Courtesy of DAIMLERCHRYSLER CORP.

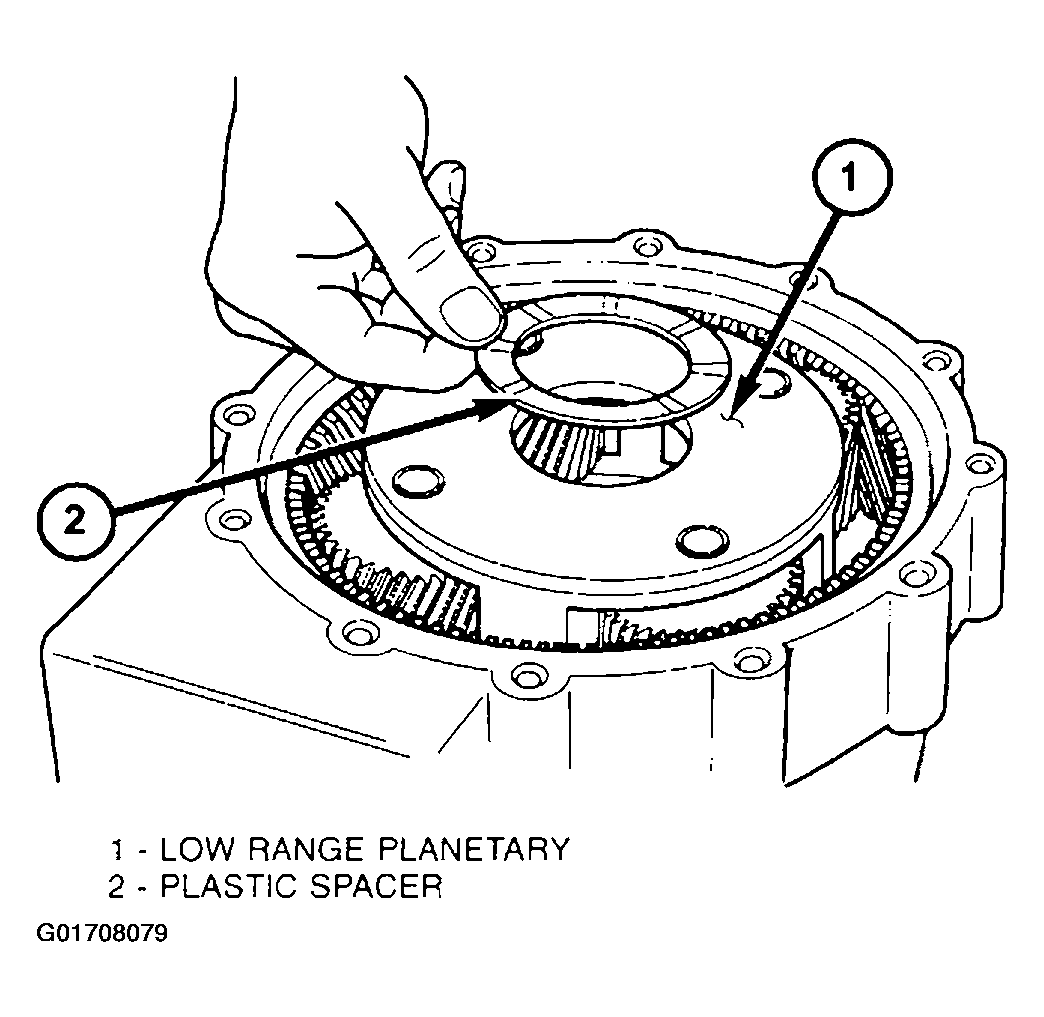

Remove the low range planetary plastic spacer from the planetary carrier or back side of the input retainer.

Fig 5: Removing Low Range Planetary Plastic Spacer
Courtesy of DAIMLERCHRYSLER CORP.

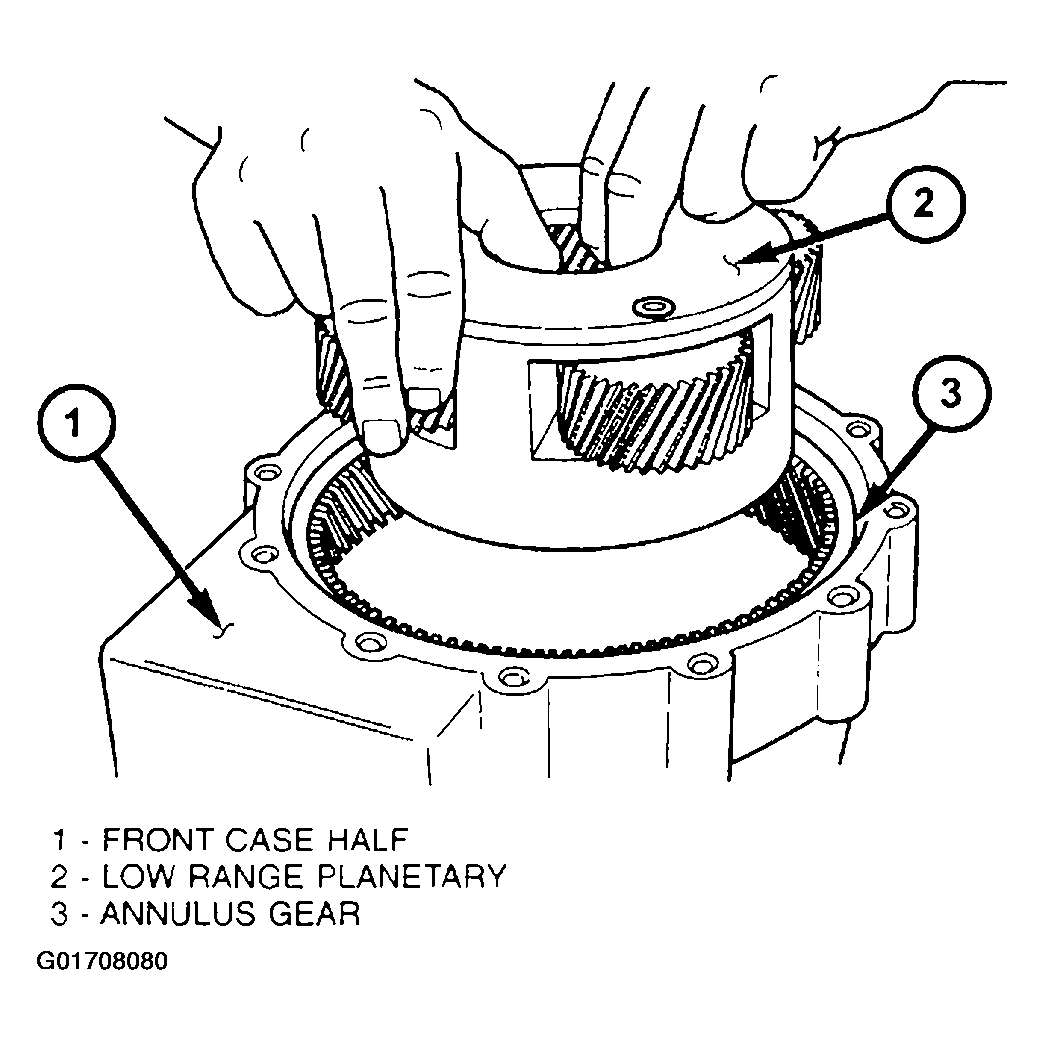

Remove the low range planetary gear set from the front case half.

Fig 6: Removing Low Range Planetary
Courtesy of DAIMLERCHRYSLER CORP.

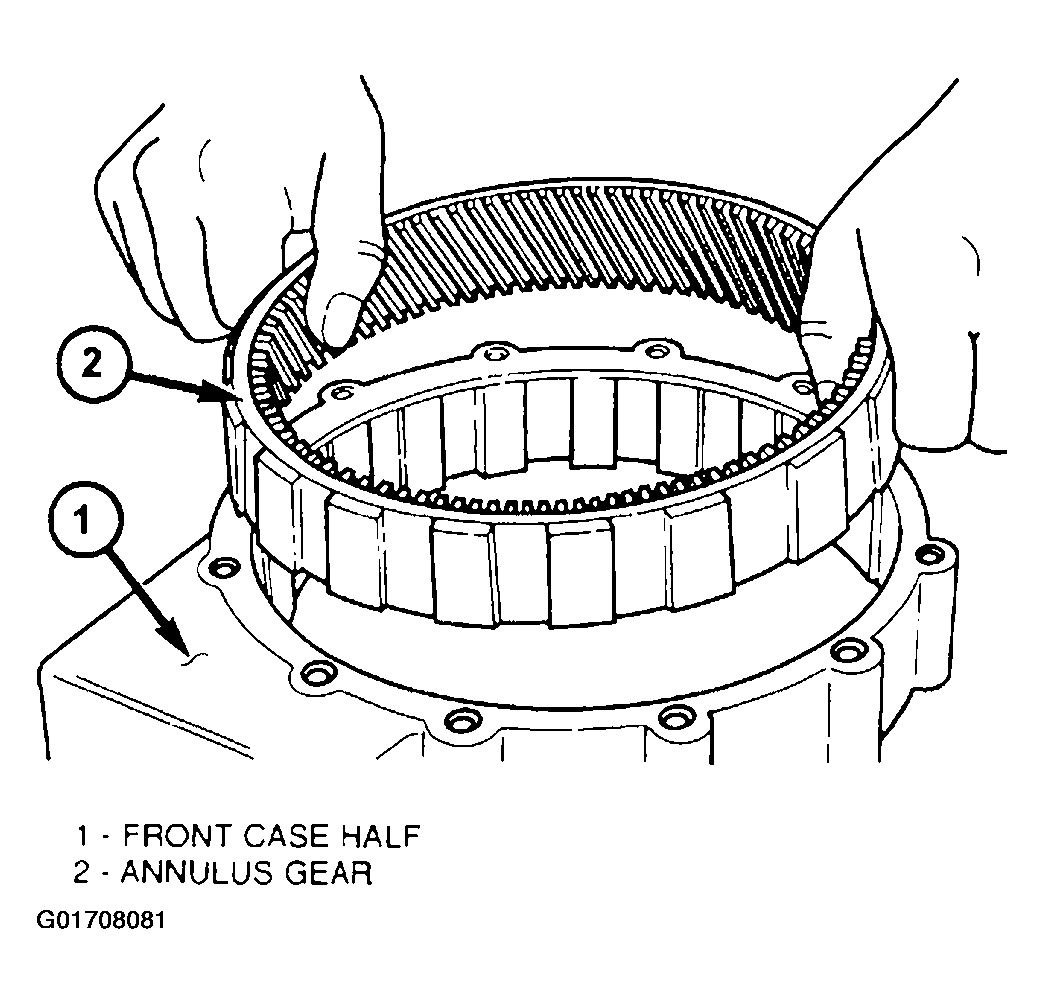

Remove the annulus gear from the front case half.

Fig 7: Removing Annulus Gear
Courtesy of DAIMLERCHRYSLER CORP.

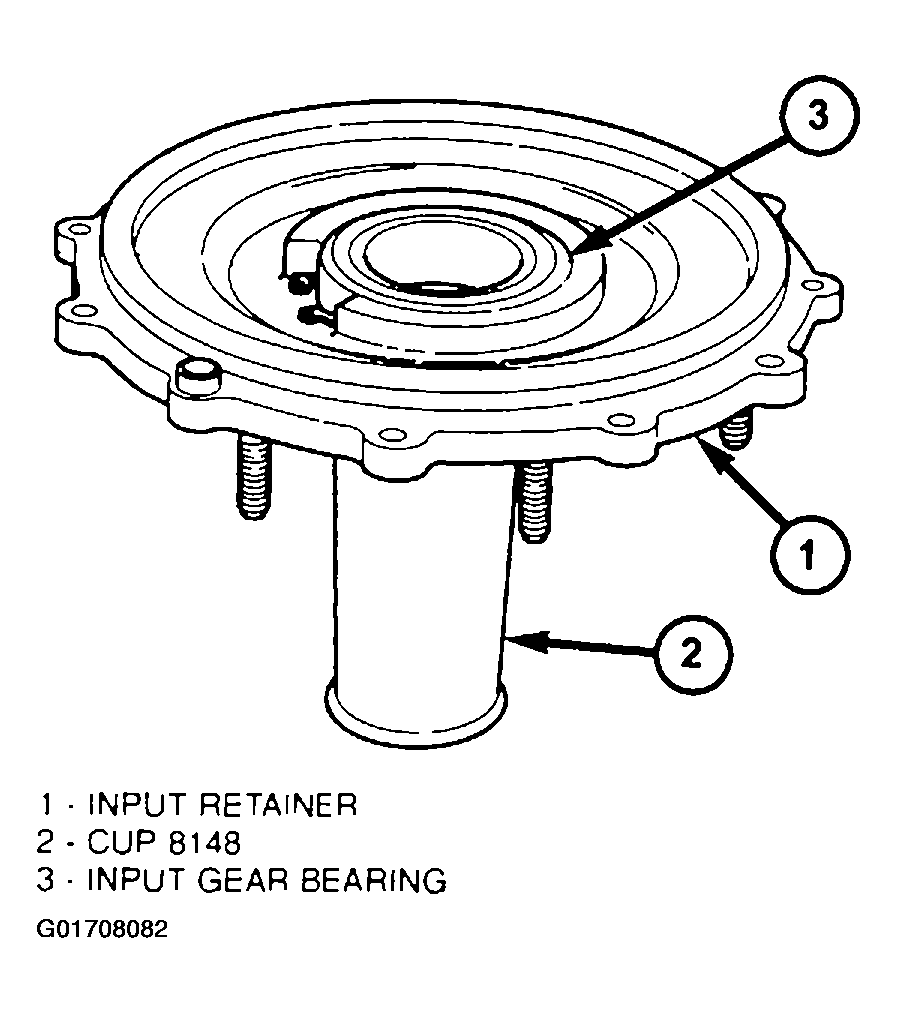

Support the input retainer on Cup 8148 as shown.

Fig 8: Removing Support Input Gear Bearing
Courtesy of DAIMLERCHRYSLER CORP.

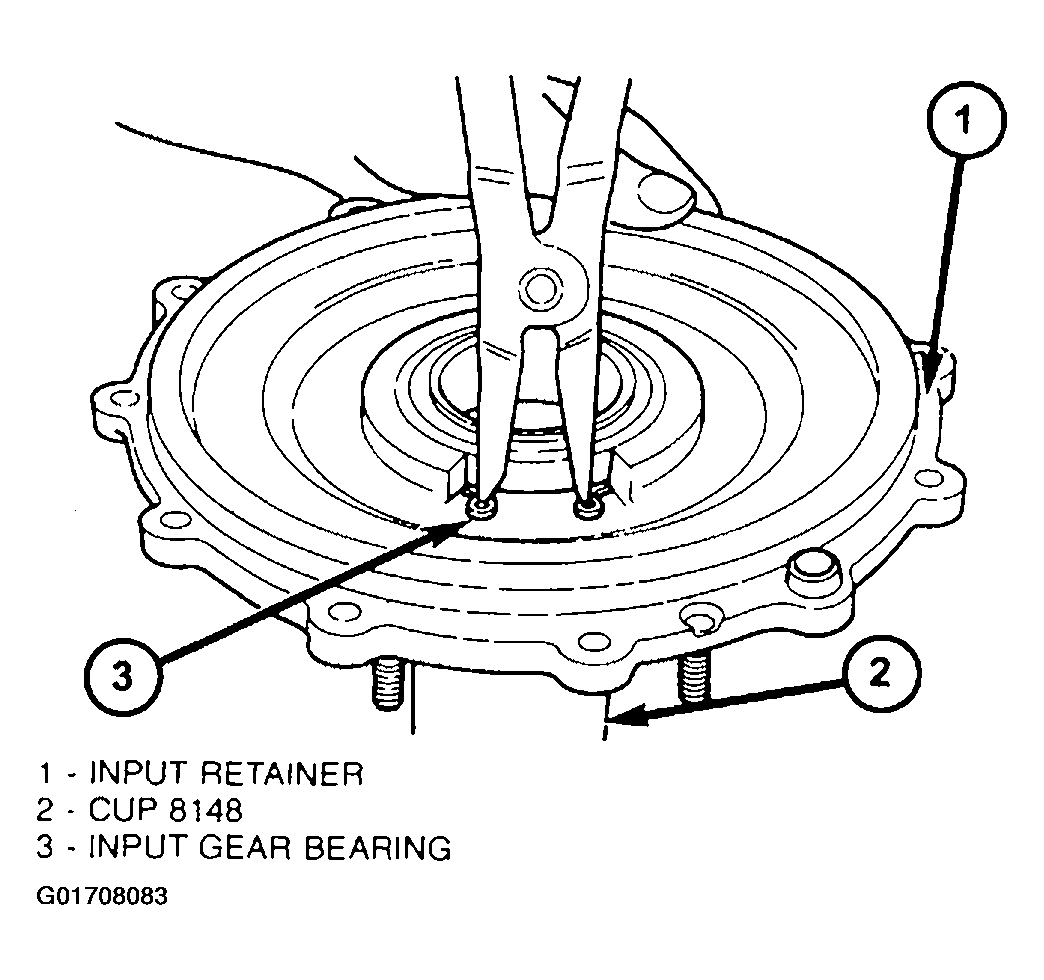

While using suitable snap-ring pliers to spread the input gear bearing snap-ring, press downward on the retainer to remove the bearing.

Fig 9: Removing Input Gear Bearing
Courtesy of DAIMLERCHRYSLER CORP.

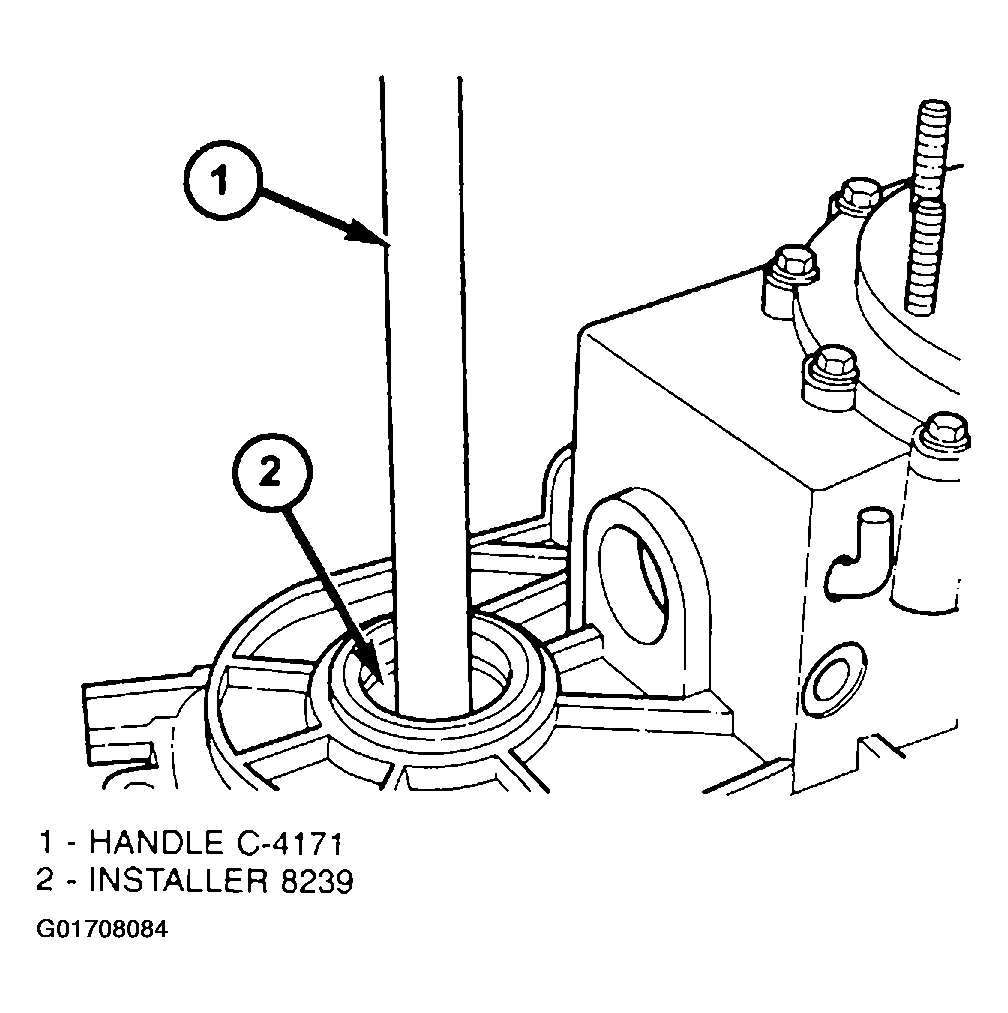

Remove the front output shaft bearing with Handle C-4171 and Installer 8239.

Fig 10: Removing Front Output Bearing
Courtesy of DAIMLERCHRYSLER CORP.

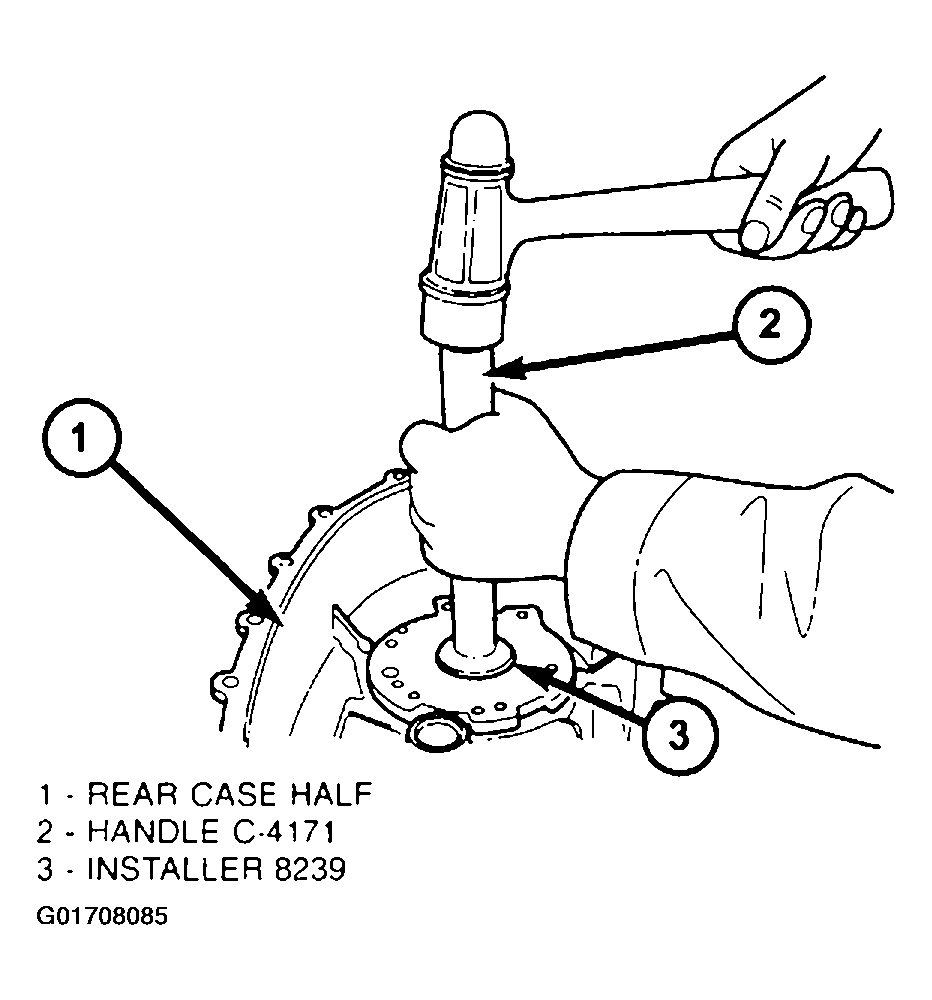

Remove the rear output shaft bearing with Handle C-4171 and Installer 8239.

Fig 11: Removing Rear Output Bearing
Courtesy of DAIMLERCHRYSLER CORP.
