Transfer Case - NV241: Assembly: Yoke

WARNING: This page is about a different variant/trim than selected.
  1. Install yoke seal onto front shaft.

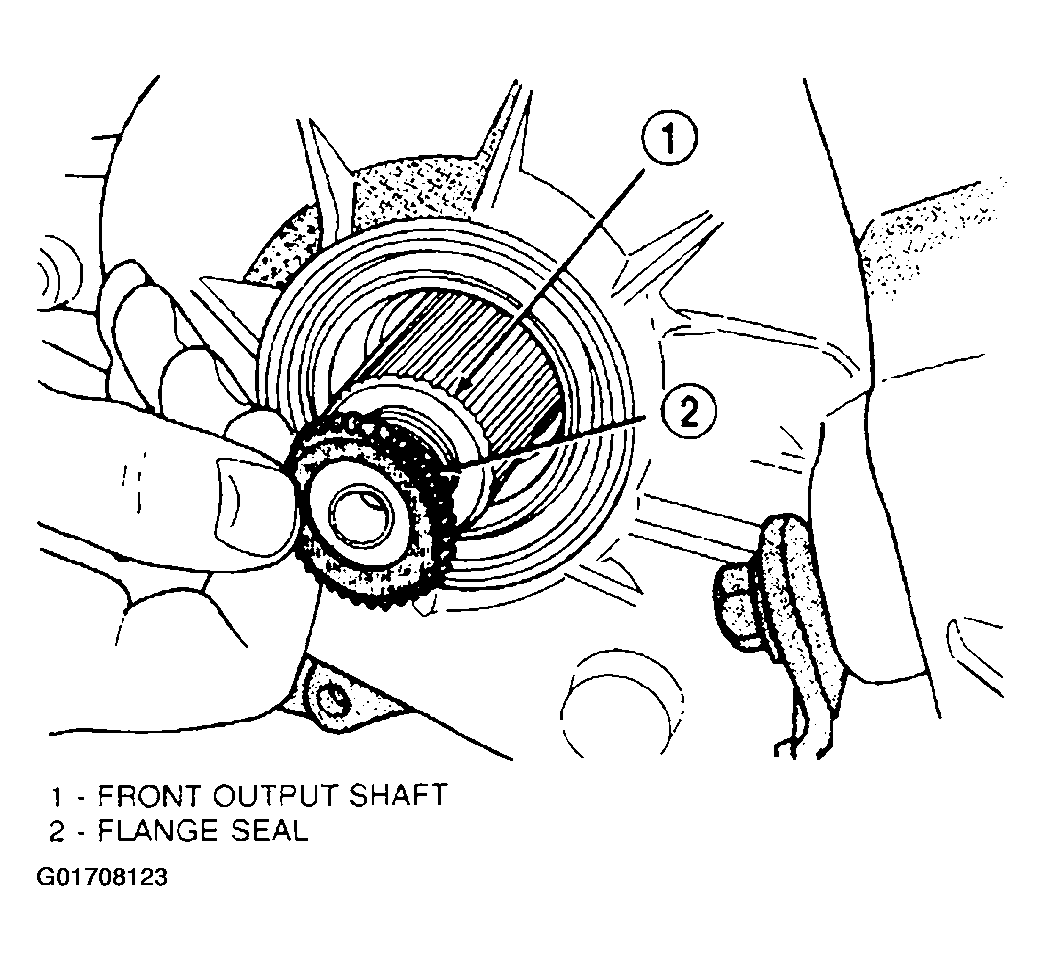

    Fig 1: Installing Flange Seal On Front Shaft
    G01708123Courtesy of DAIMLERCHRYSLER CORP.
  2. Install yoke onto front shaft. Then install and tighten a new yoke nut to 122-176 N.m (90-130 ft. lbs.) torque. Never re-use a yoke nut.

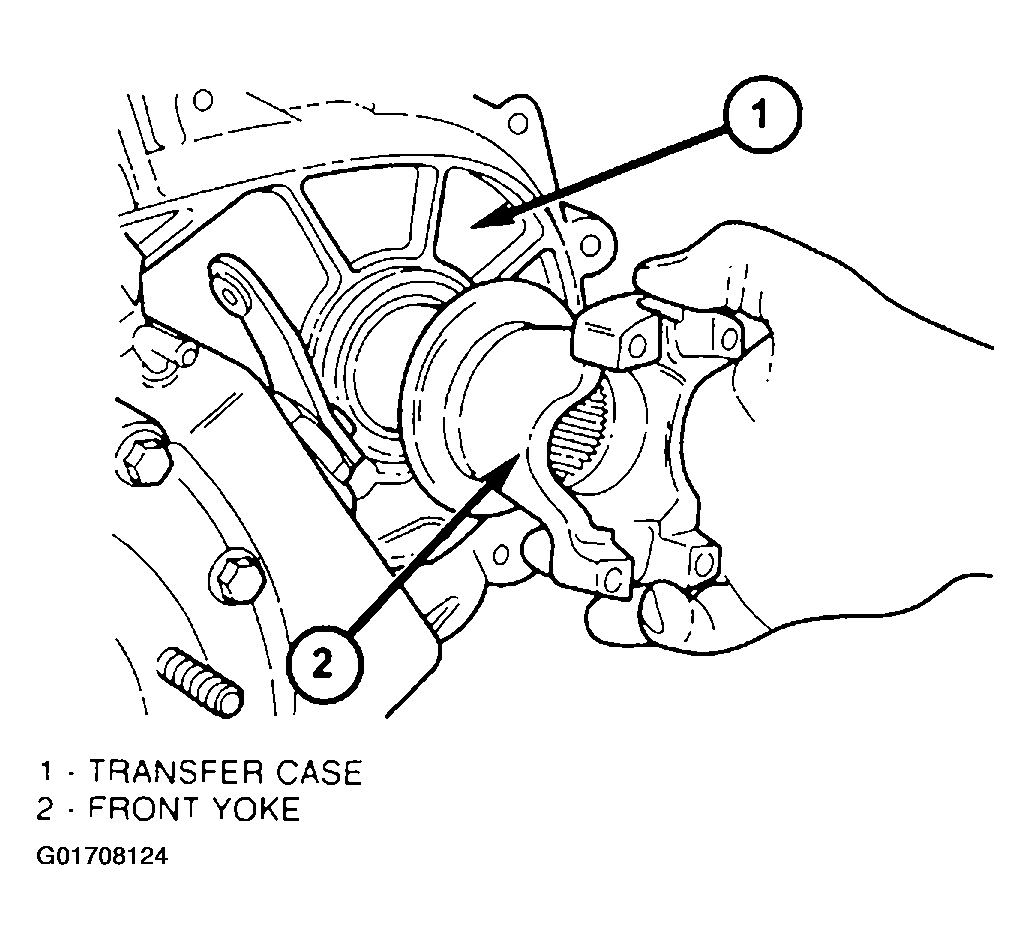

    Fig 2: Installing Front Yoke
    G01708124Courtesy of DAIMLERCHRYSLER CORP.
