Input And Planetary Gear

WARNING: This page is about a different variant/trim than selected.

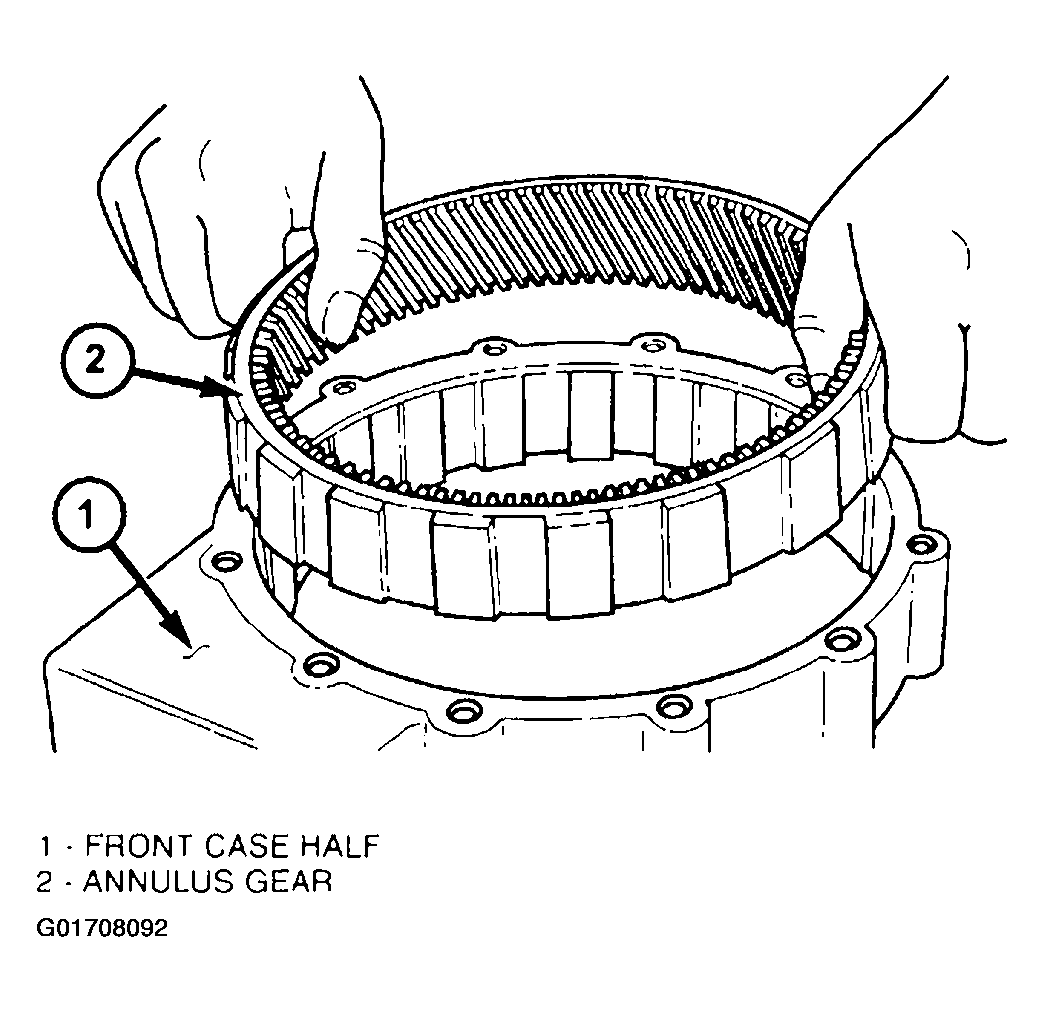

Install the annulus gear into the front case half.

Fig 1: Installing Annulus Gear
Courtesy of DAIMLERCHRYSLER CORP.

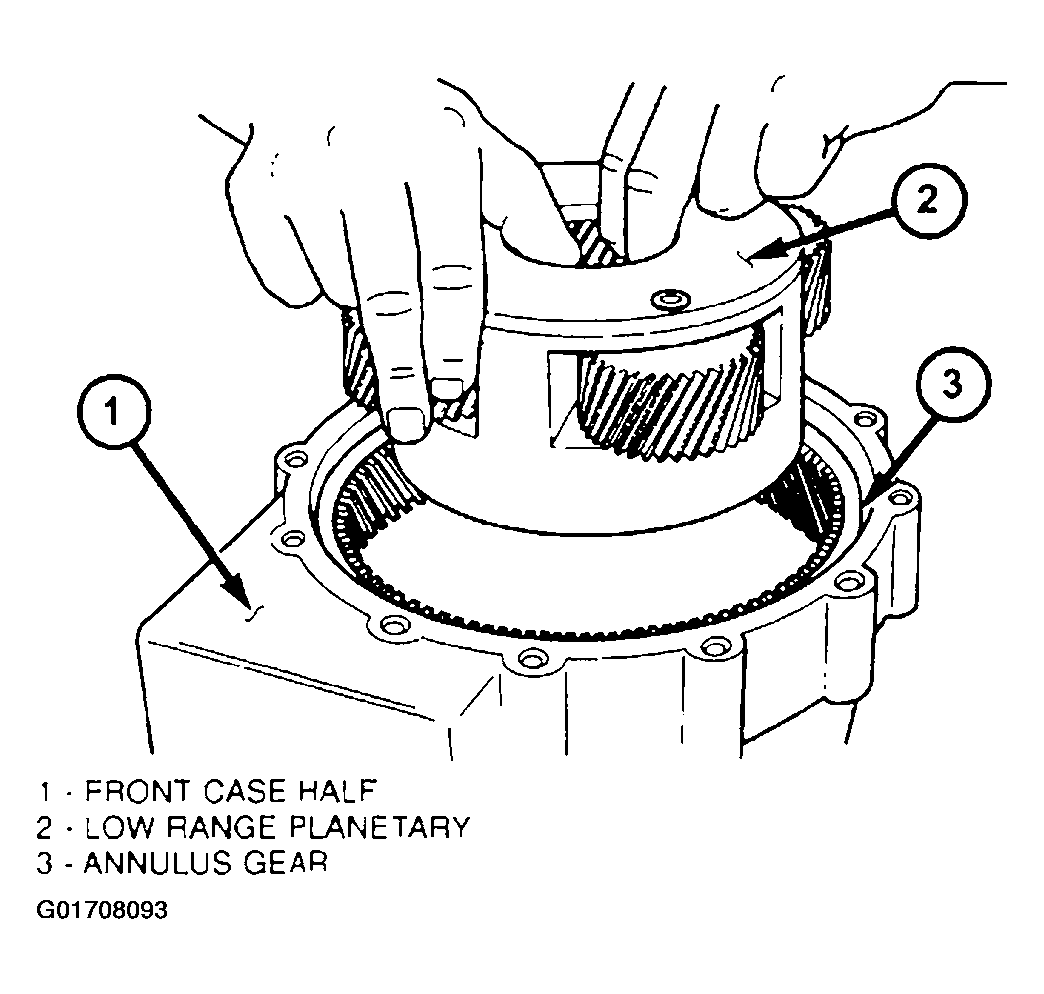

Align and install low range planetary assembly into the front case half. Be sure low range planetary pinions are engaged in annulus gear.

Fig 2: Installing Low Range Planetary
Courtesy of DAIMLERCHRYSLER CORP.

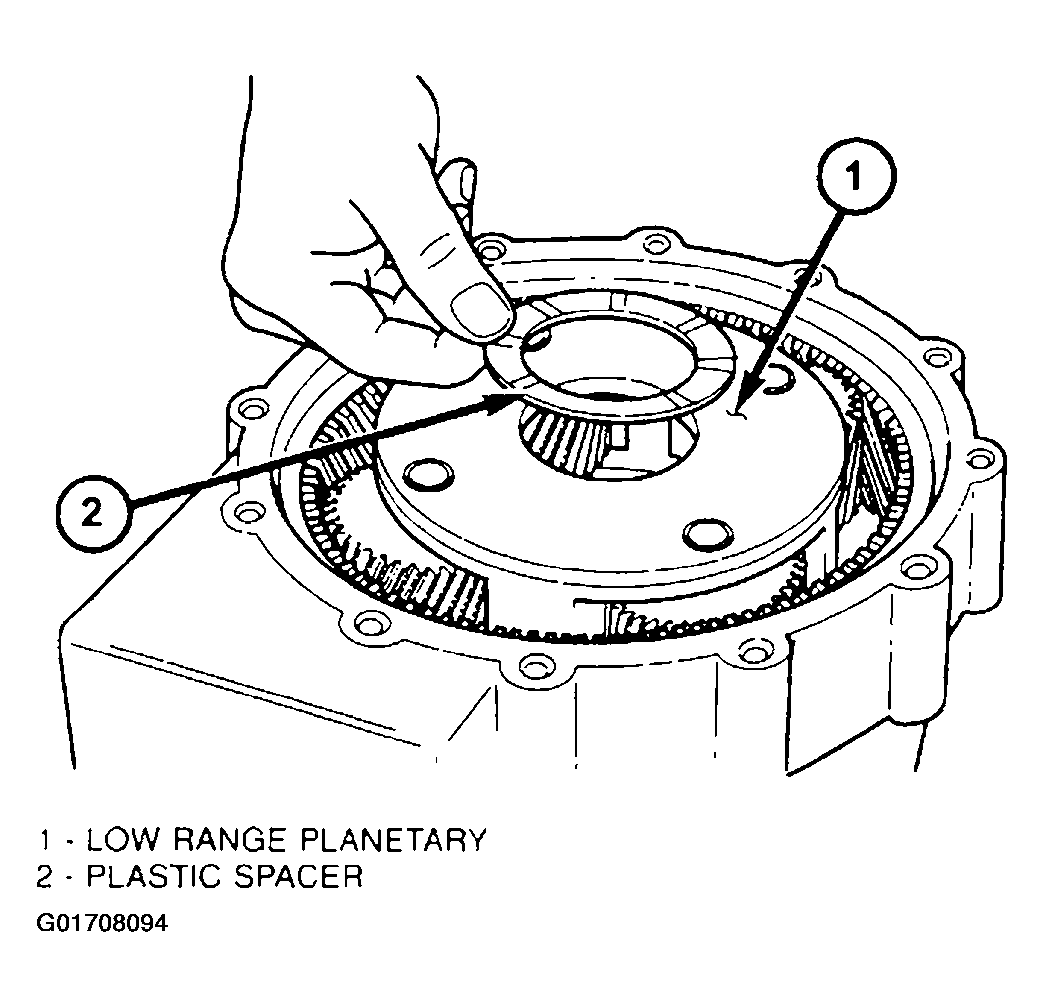

Install the low range planetary plastic spacer onto the low range planetary carrier.

Fig 3: Installing Low Range Planetary Plastic Spacer
Courtesy of DAIMLERCHRYSLER CORP.
Clean gasket sealer residue from retainer and inspect retainer for cracks or other damage.
Apply a 3 mm (1/8 in.) bead of Mopar(R) Gasket Maker, or equivalent silicone adhesive, to sealing surface of retainer.

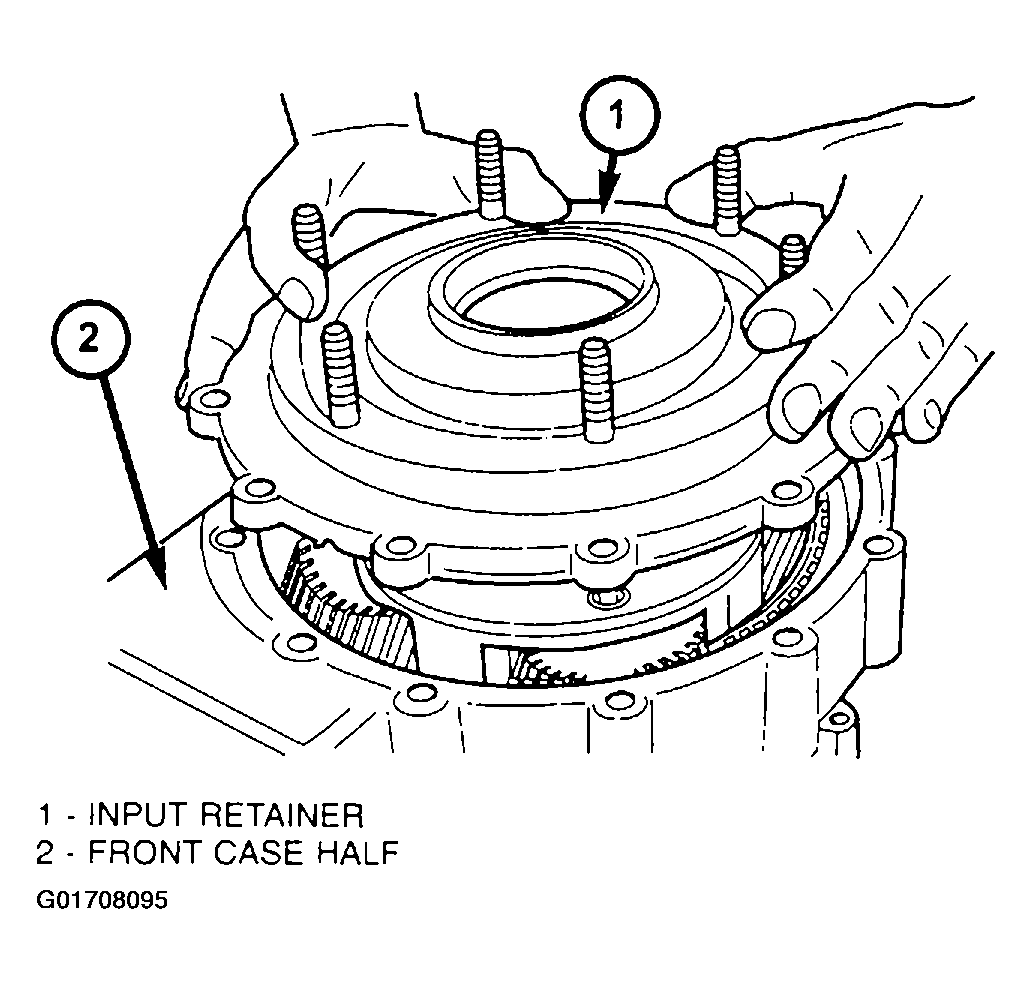

Install the front input retainer onto the front case half.

Fig 4: Installing Front Input Retainer
Courtesy of DAIMLERCHRYSLER CORP.

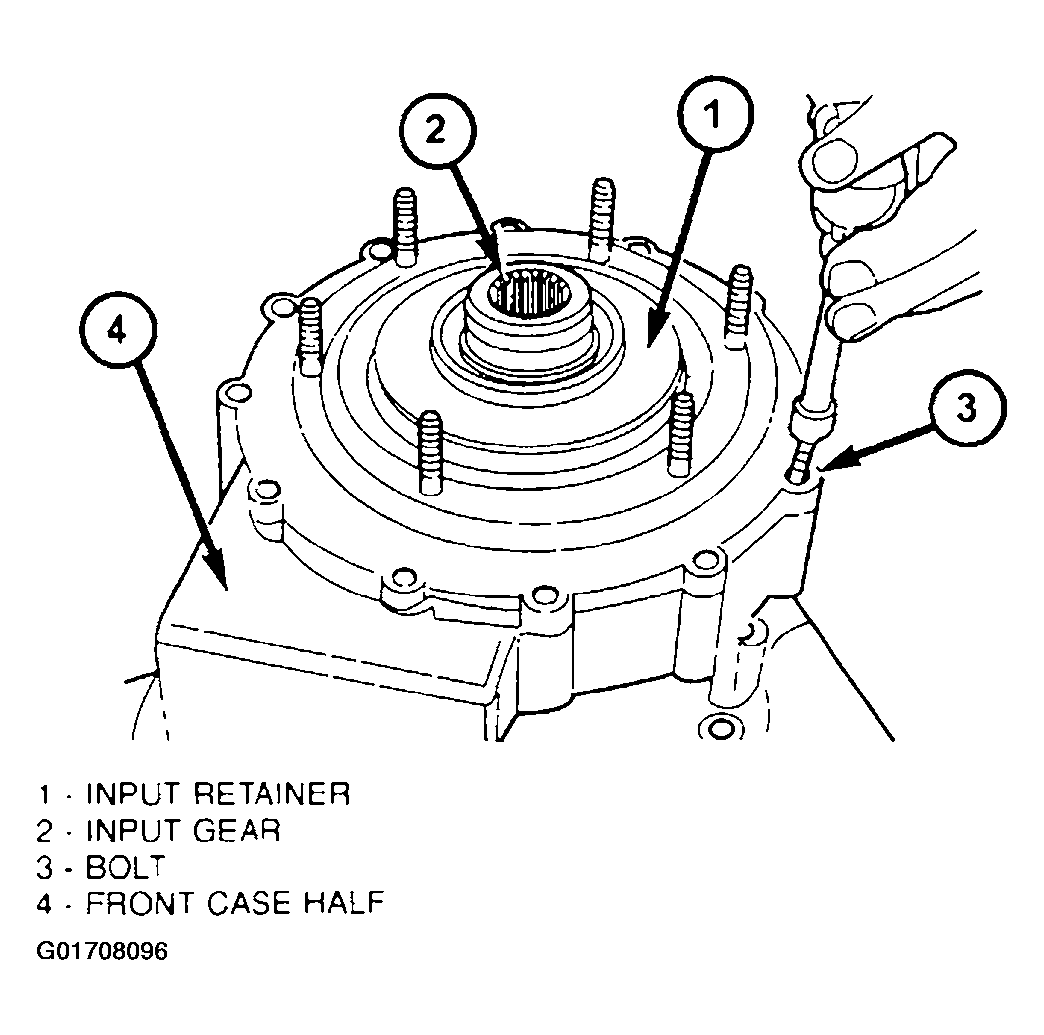

Install bolts to hold retainer to transfer case. Tighten to 21 N.m (16 ft. lbs.) of torque.

Fig 5: Installing Front Input Retainer Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Install the input gear to the low range planetary assembly and the input gear bearing.

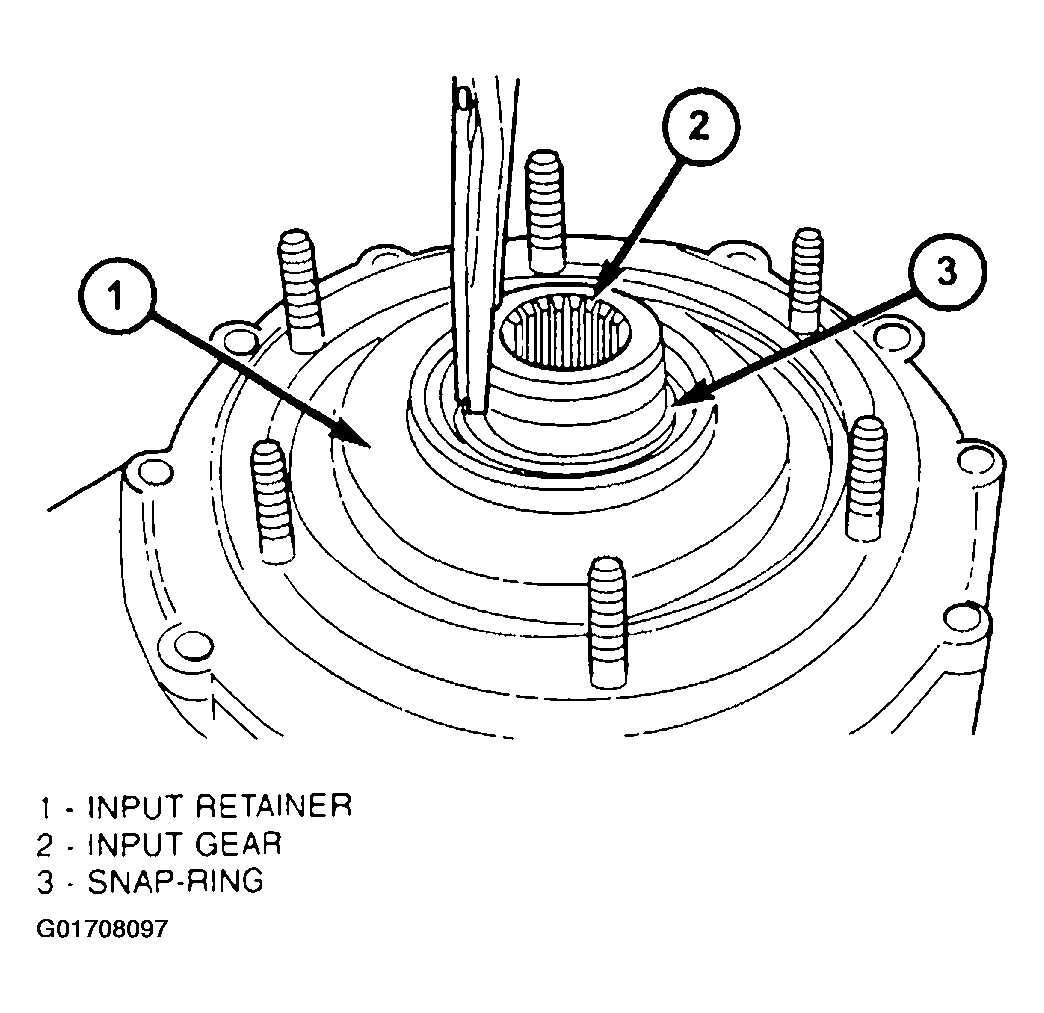

Install the input gear retaining snap-ring onto the input gear.

Fig 6: Installing Input Gear Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.

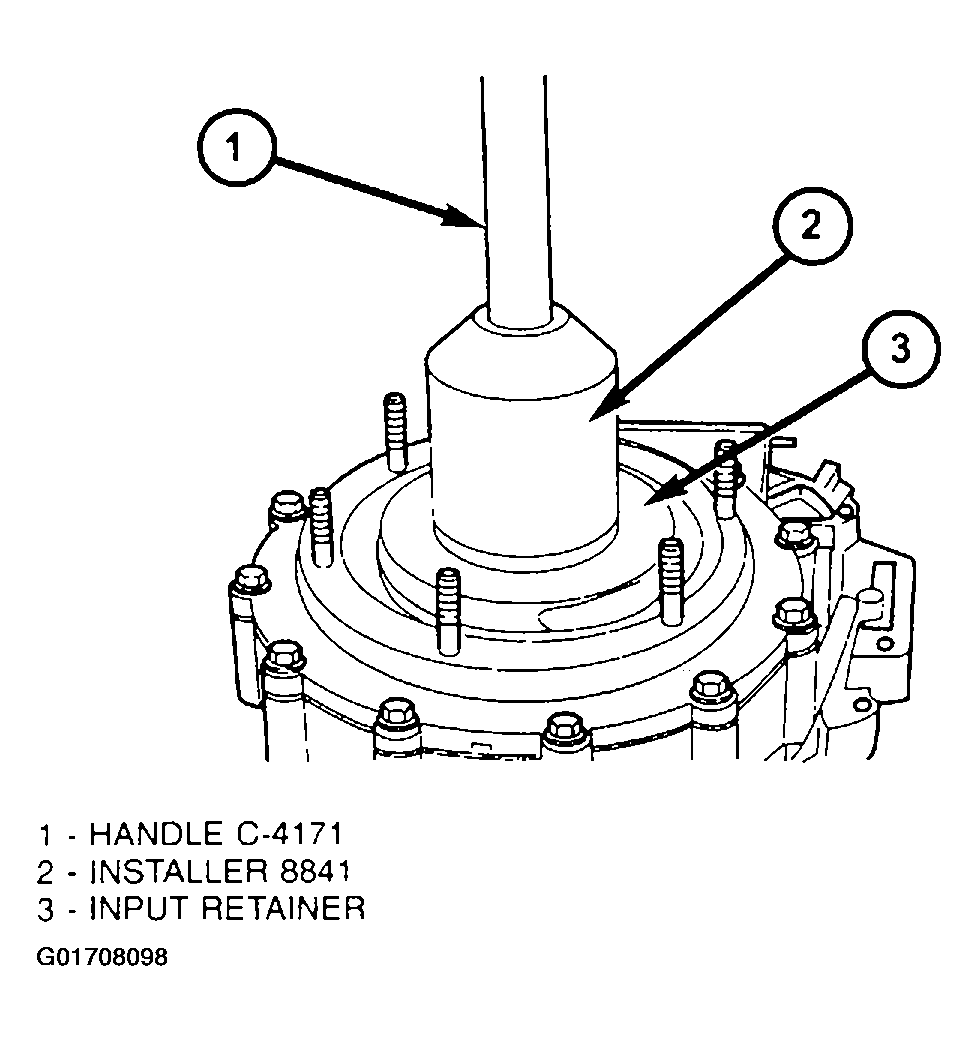

Install new oil seal in front input retainer with Installer 8841 and Handle C-4171.

Fig 7: Installing Input Gear Seal
Courtesy of DAIMLERCHRYSLER CORP.
