Front Output Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install new front output seal in front case with Installer Tool 9041 and Handle C-4171.

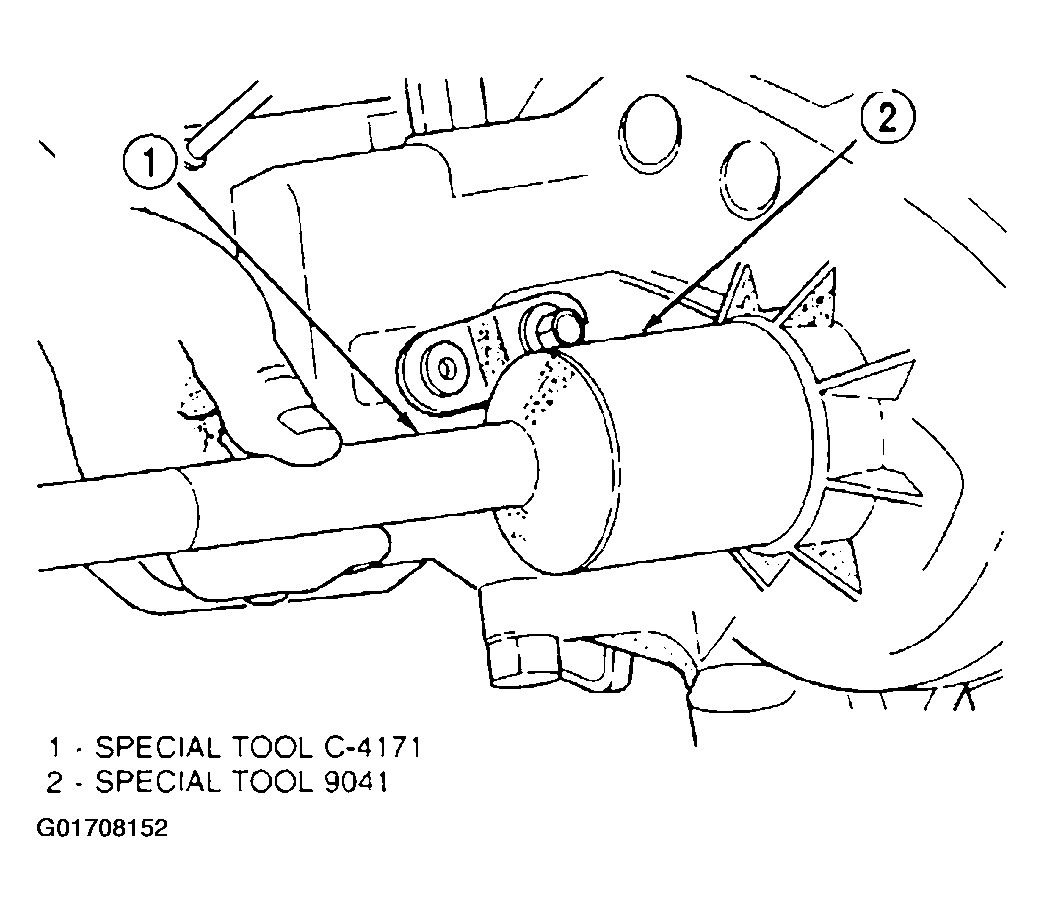

    Fig 1: Installing Front Output Seal (Typical)
    G01708152Courtesy of DAIMLERCHRYSLER CORP.
  2. Install yoke seal on front output shaft.

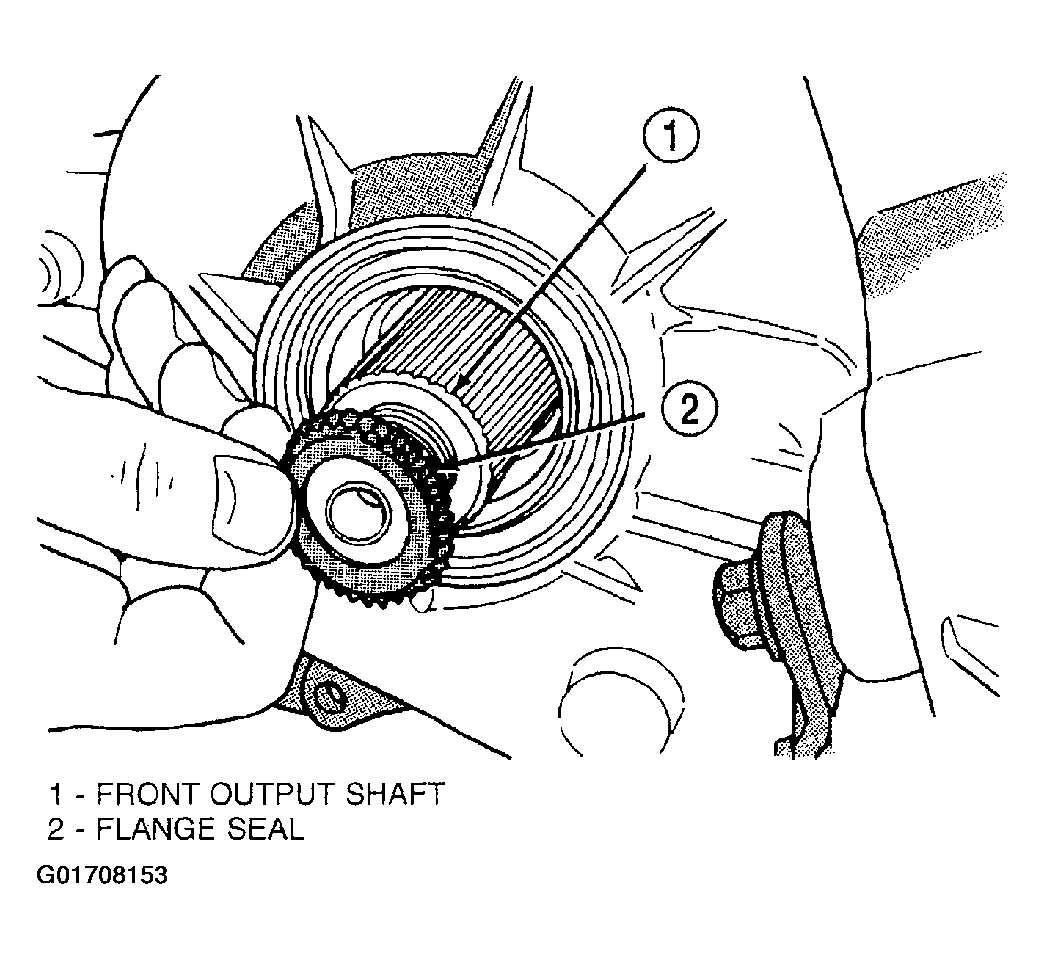

    Fig 2: Installing Flange Seal On Front Shaft
    G01708153Courtesy of DAIMLERCHRYSLER CORP.
  3. Install yoke on front output shaft. Install a new yoke nut onto the front output shaft.

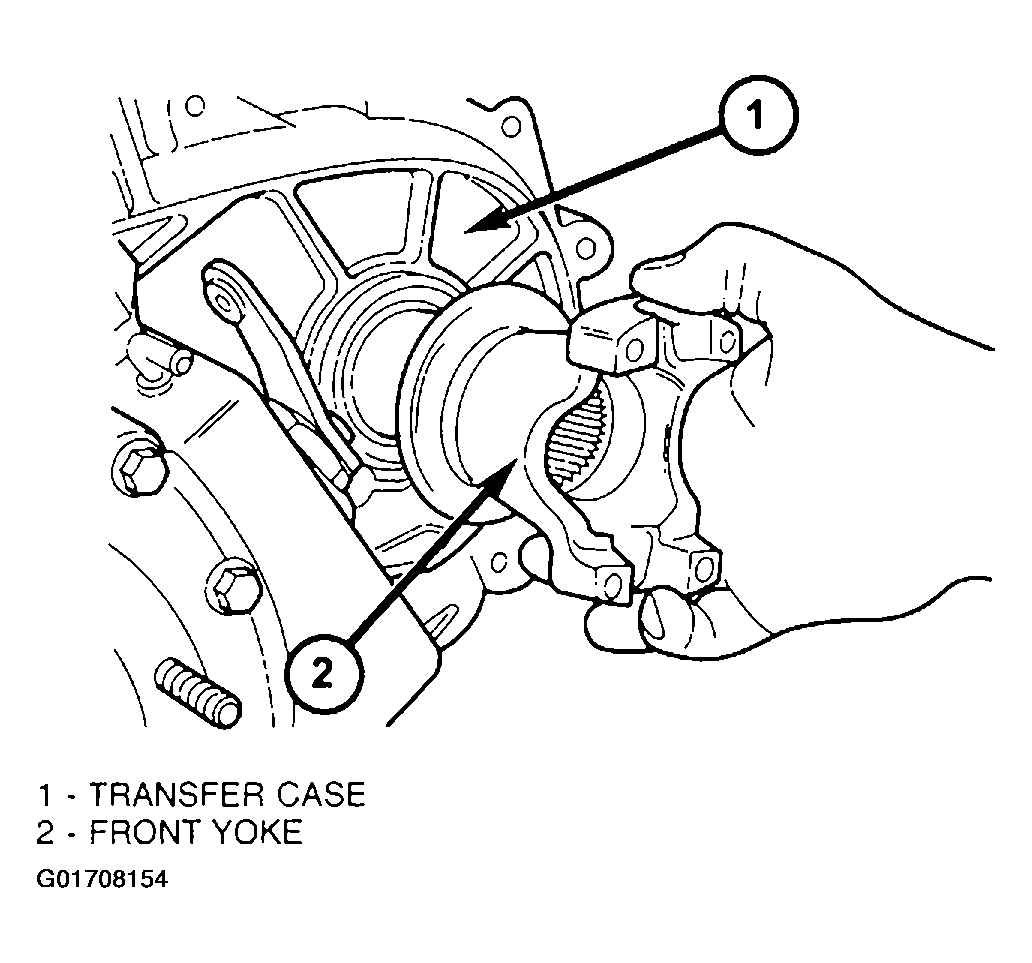

    Fig 3: Installing Front Yoke
    G01708154Courtesy of DAIMLERCHRYSLER CORP.
  4. Using Spanner Wrench 6958, tighten the yoke nut to 176-271 N.m (130-200 ft. lbs.) torque.

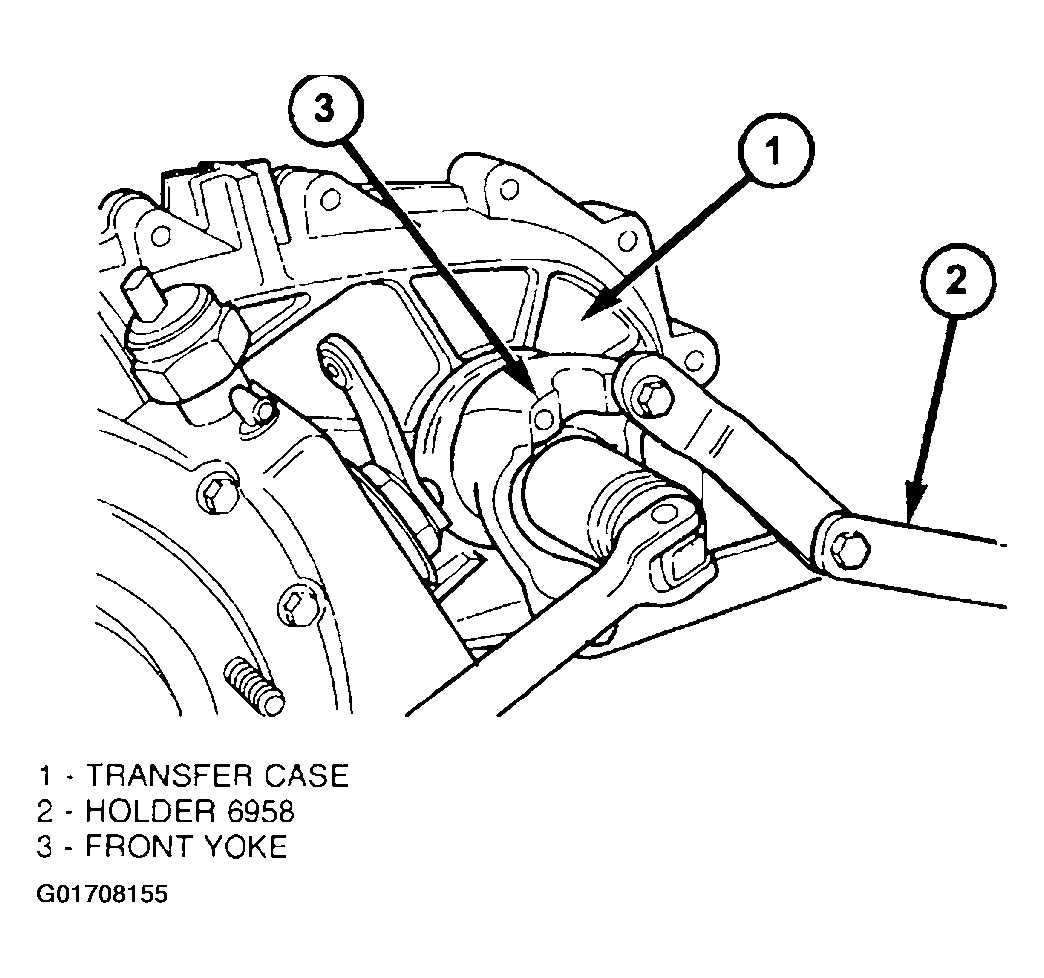

    Fig 4: Installing Front Yoke Nut
    G01708155Courtesy of DAIMLERCHRYSLER CORP.
  5. Install propeller shaft. (Refer to PROPELLER SHAFT article.)
