Standard Procedure - Fluid Drain And Fill

The fill and drain plugs are both in the rear case. Correct fill level is to the bottom edge of the fill plug hole. Be sure the vehicle is level to ensure an accurate fluid level check.

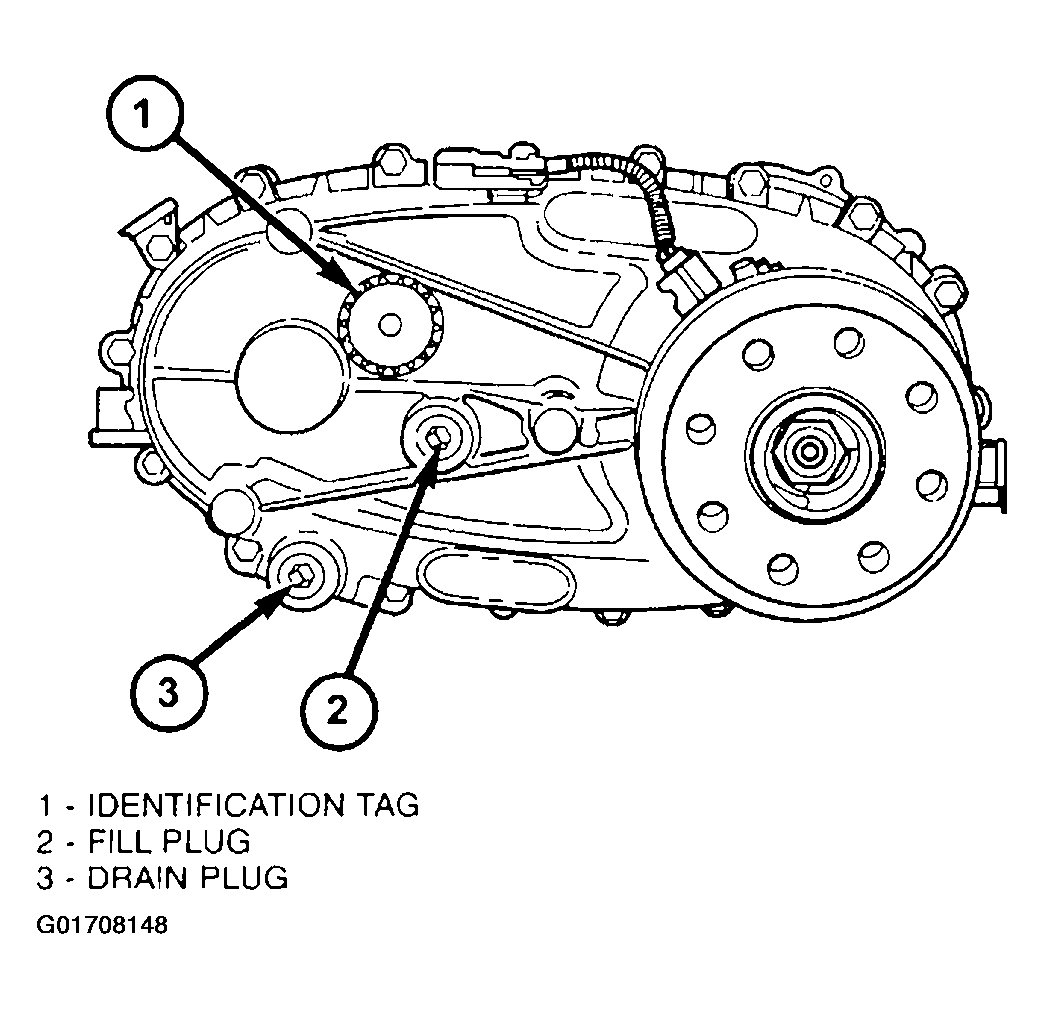

Fig 1: Locating Transfer Case Identification Tags & Fill/Drain Plugs

Courtesy of DAIMLERCHRYSLER CORP.
