Radio - Gray 22 Way

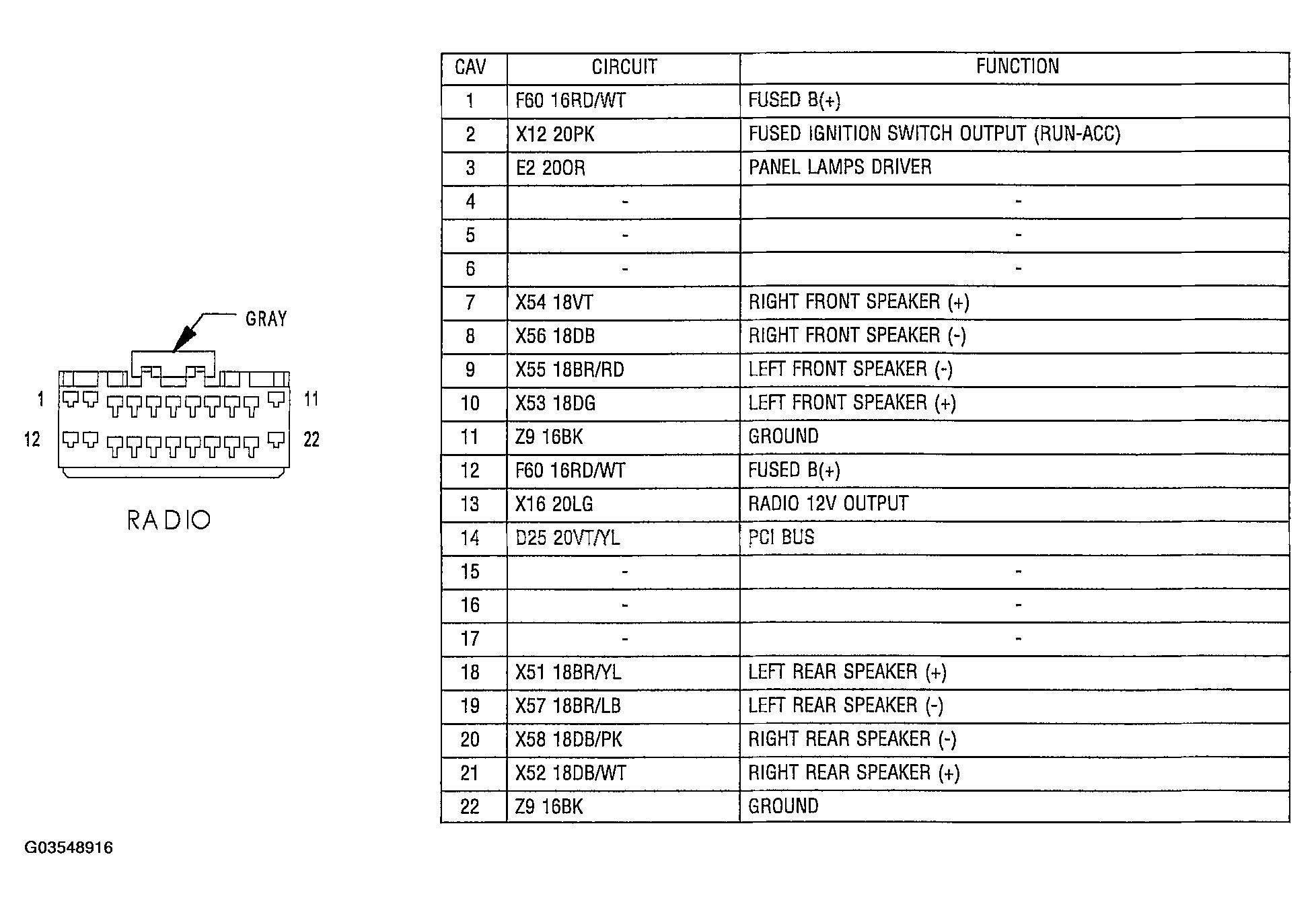

Fig 1: Identifying Radio Connector Terminals And Specification (Gray 22 Way)

G03548916

Courtesy of DAIMLERCHRYSLER CORP.
