Cluster Bulb

This procedure applies to each of the incandescent cluster illumination lamp or indicator bulb and bulb holder units. However, the illumination lamps and the indicators use different bulb and bulb holder unit sizes. They must never be interchanged.

1. Disconnect and isolate the battery negative cable.
2. Remove the instrument cluster from the instrument panel. See INSTRUMENT CLUSTER  .
3. Turn the bulb holder counterclockwise about sixty degrees on the cluster electronic circuit board.

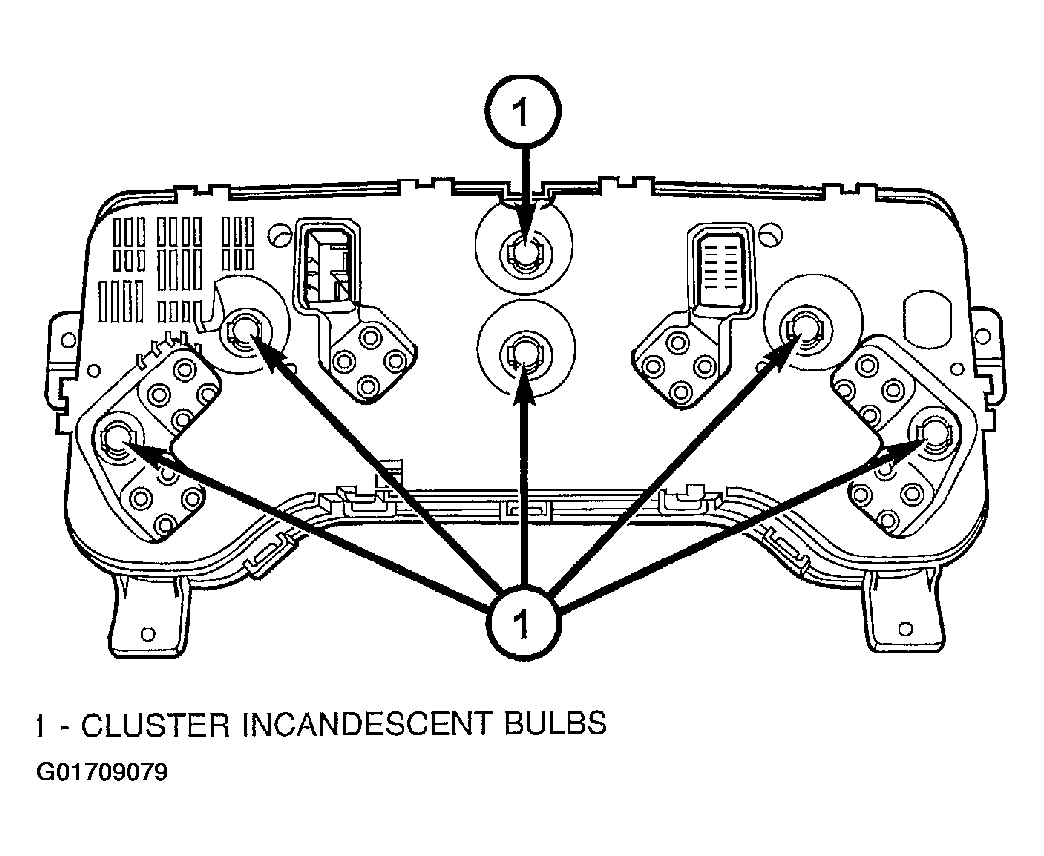

   Fig 1: Locating Cluster Bulbs

   Courtesy of DAIMLERCHRYSLER CORP.
4. Pull the bulb and bulb holder unit straight back to remove it from the bulb mounting hole in the cluster electronic circuit board.
