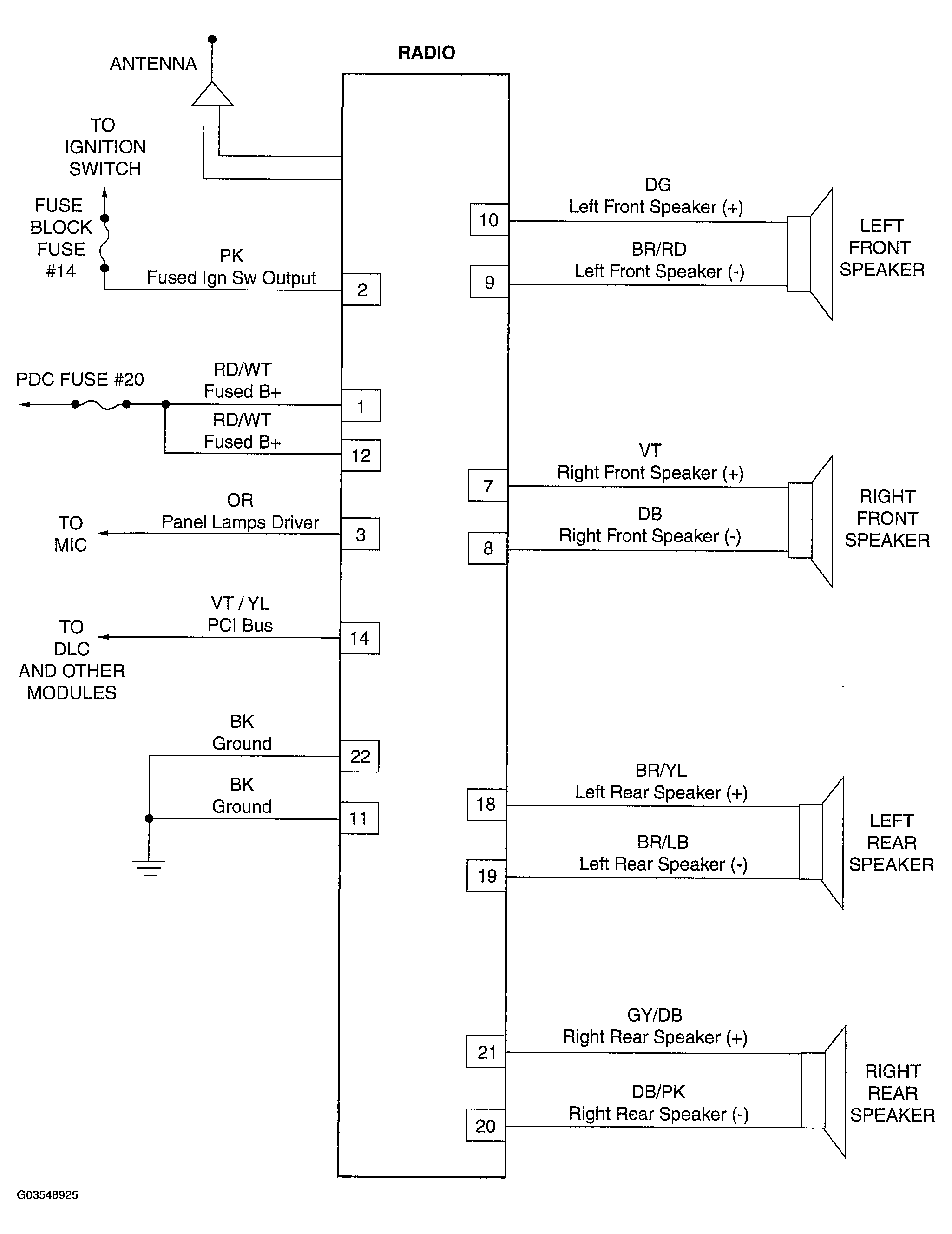

Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Schematic Diagrams >> Audio System >> Base Audio System
