Transmission Control Module - 60 Way

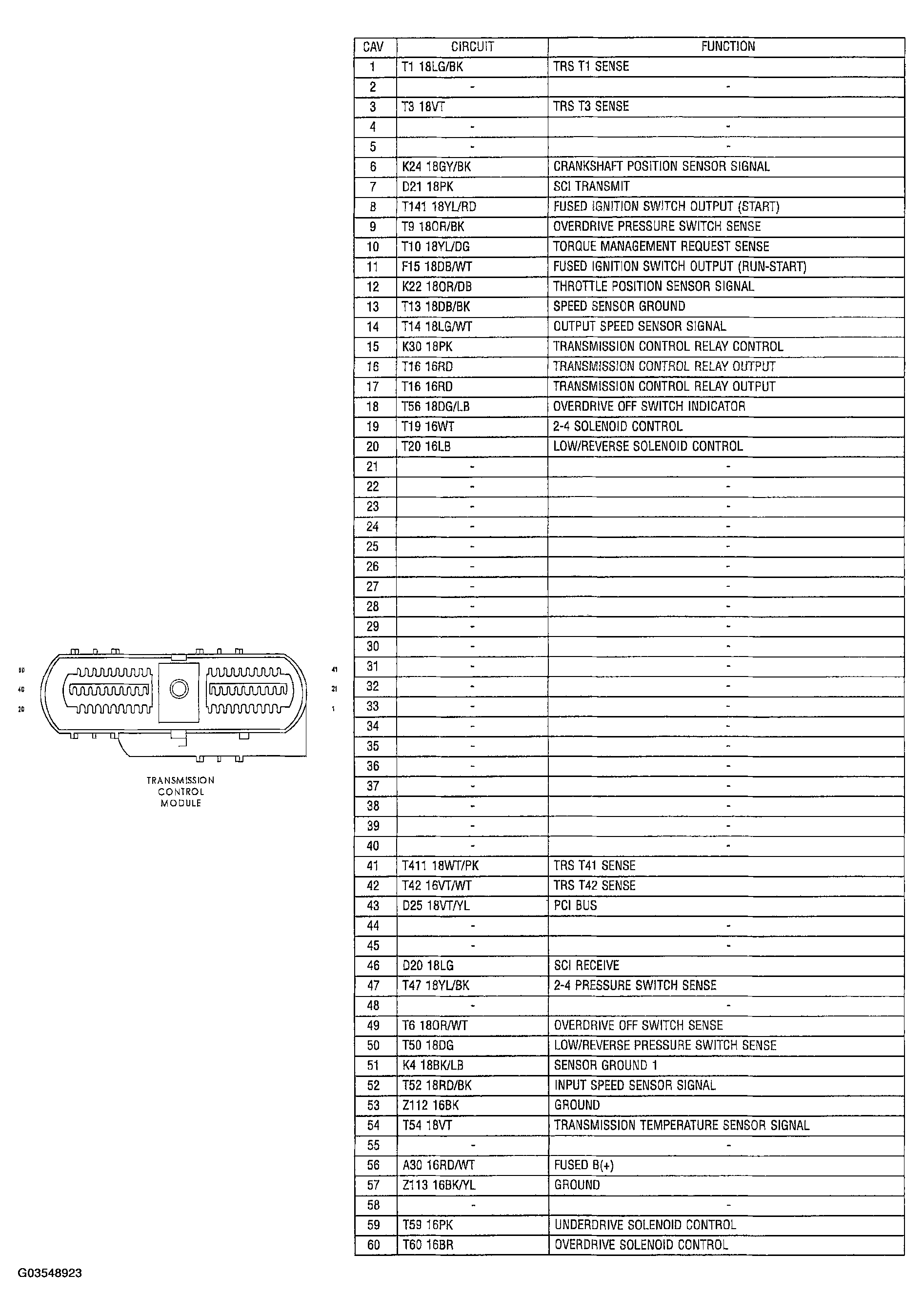

Fig 1: Identifying Transmission Control Module Connector Terminals And Specification (60 Way)

G03548923

Courtesy of DAIMLERCHRYSLER CORP.
