Subwoofer - 12 Way

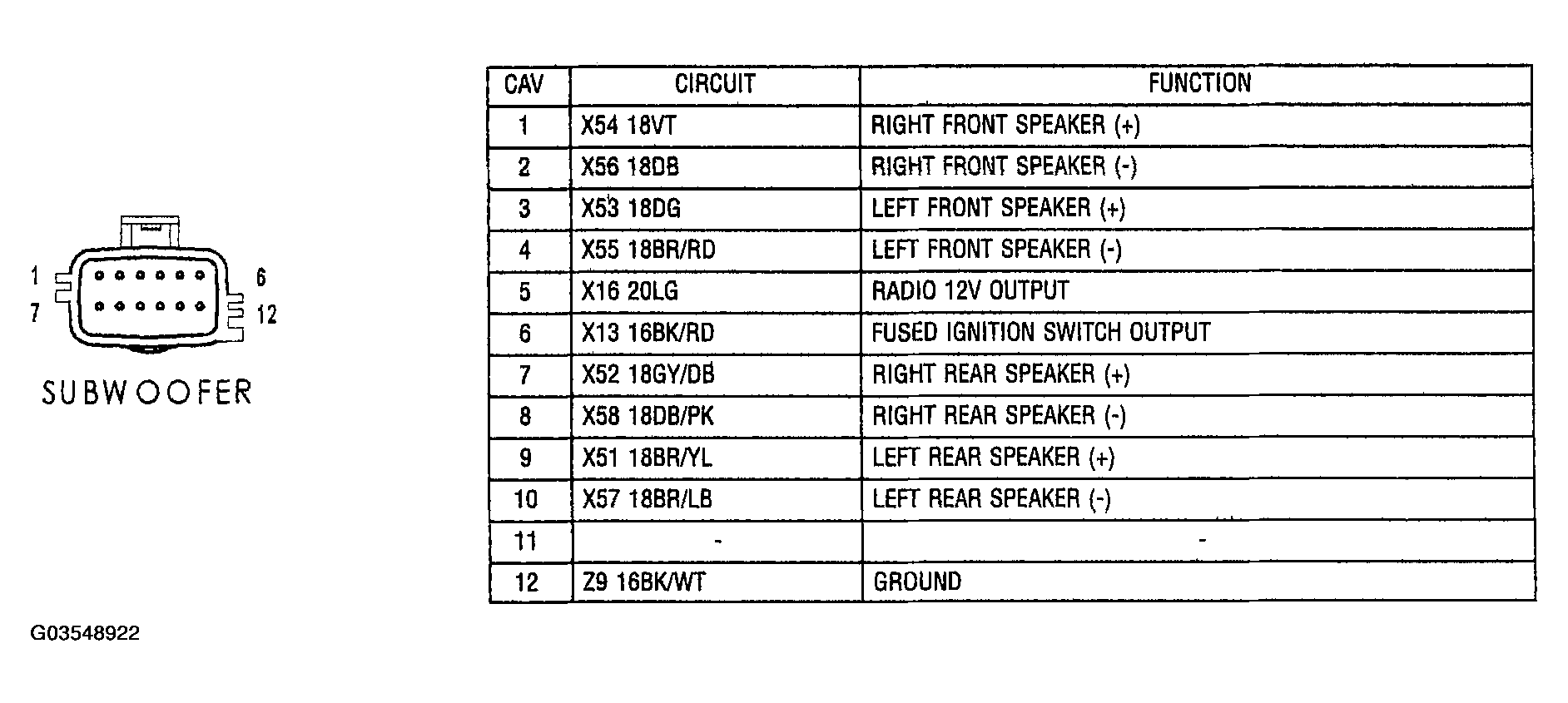

Fig 1: Identifying Subwoofer Connector Terminals And Specification (12 Way)

G03548922

Courtesy of DAIMLERCHRYSLER CORP.
