Powertrain Control Module C2 - White 32 Way

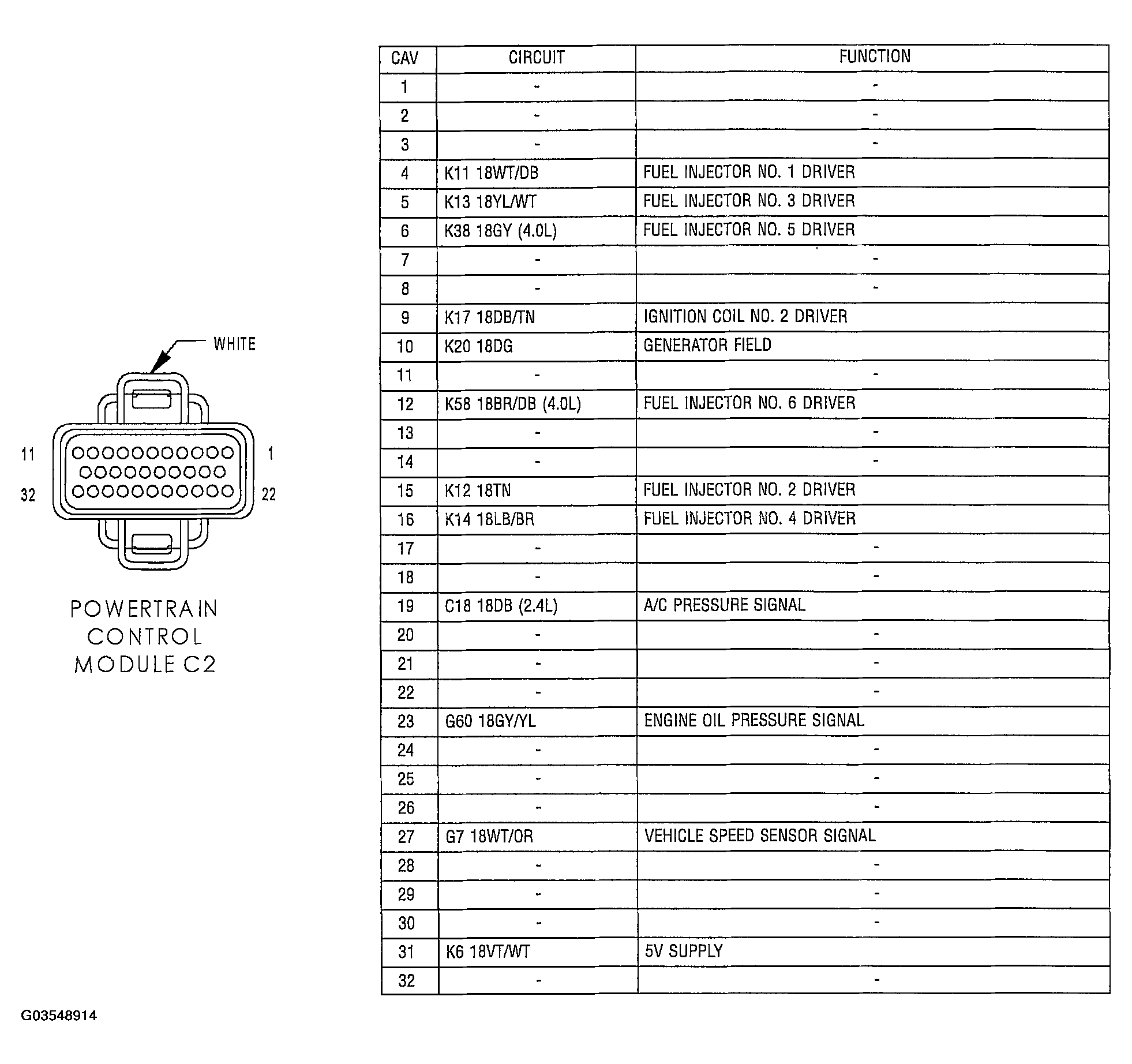

Fig 1: Identifying Powertrain Control Module C2 Connector Terminals And Specification (White 32 Way)

G03548914

Courtesy of DAIMLERCHRYSLER CORP.
