Passenger Airbag Squib 1 - Yellow 2 Way

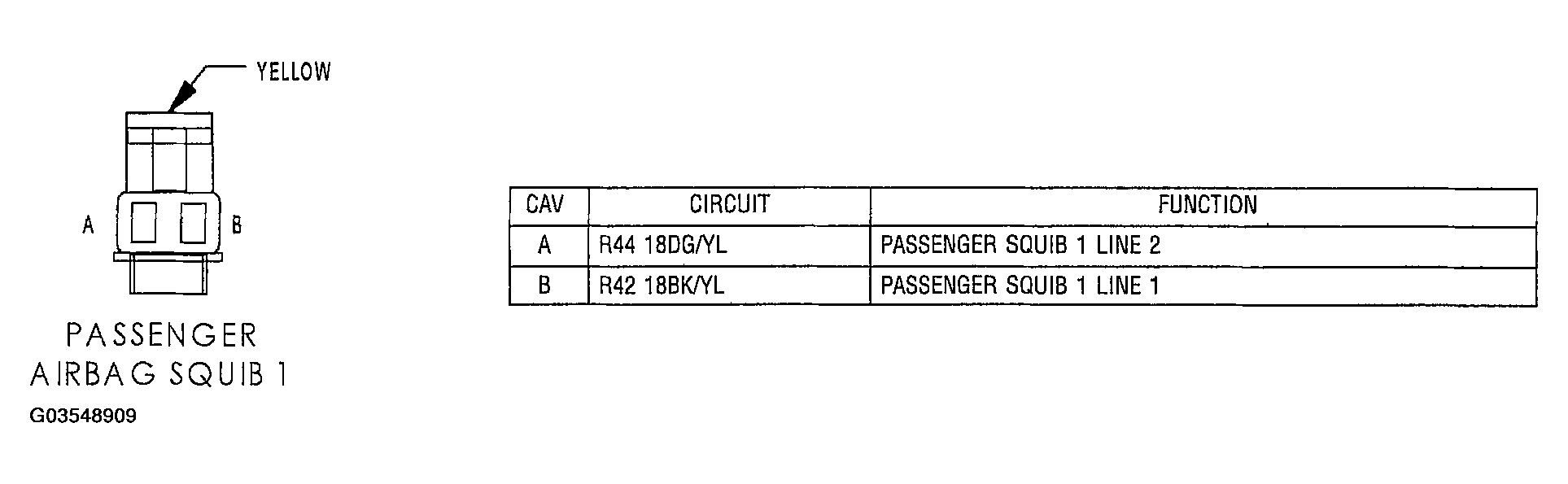

Fig 1: Identifying Passenger Airbag Squib 1 Connector Terminals And Specification (Yellow 2 Way)

Courtesy of DAIMLERCHRYSLER CORP.

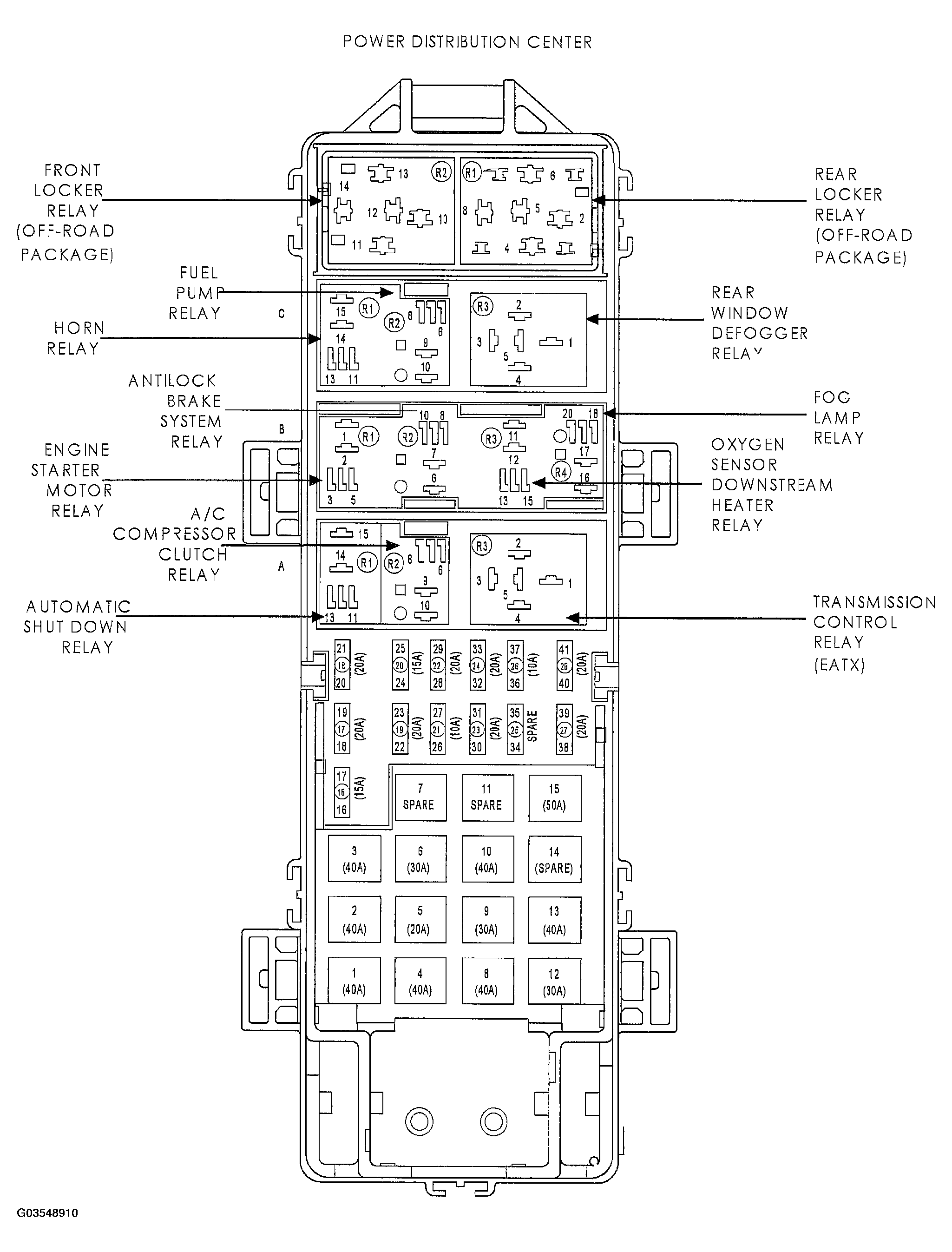

Fig 2: Identifying Fuses Connector Terminals And Specification (PDC) (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
