Left Rear Speaker - Black 3 Way
Left Rear Speaker - Black 3 Way

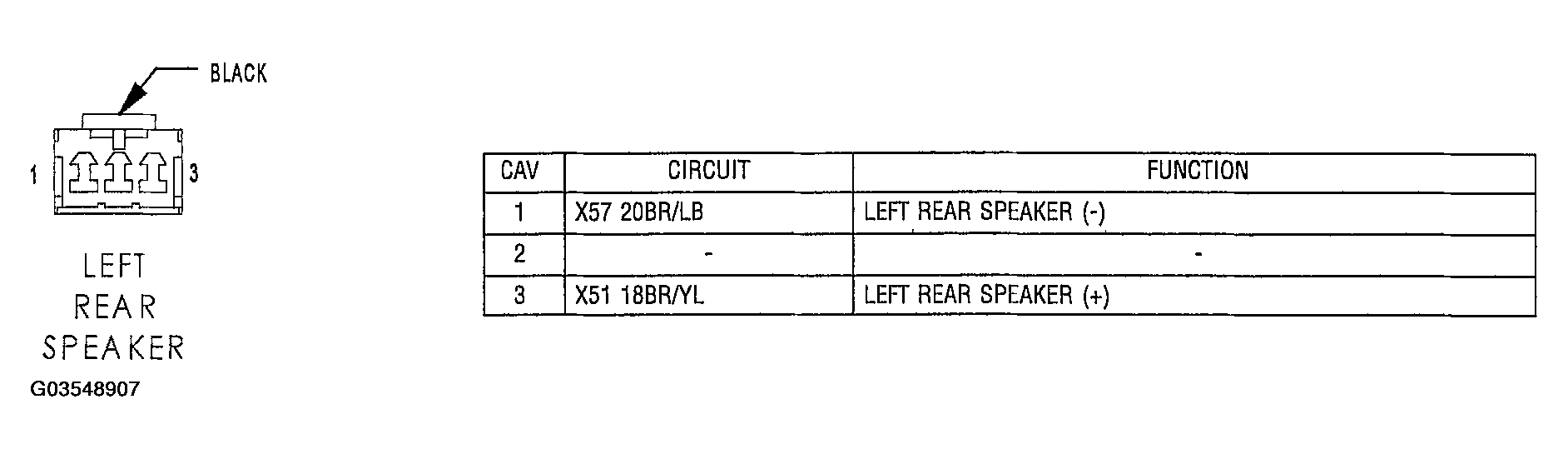

Fig 1: Identifying Left Rear Speaker Connector Terminals And Specification (Black 3 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
