Ignition Switch - 10 Way

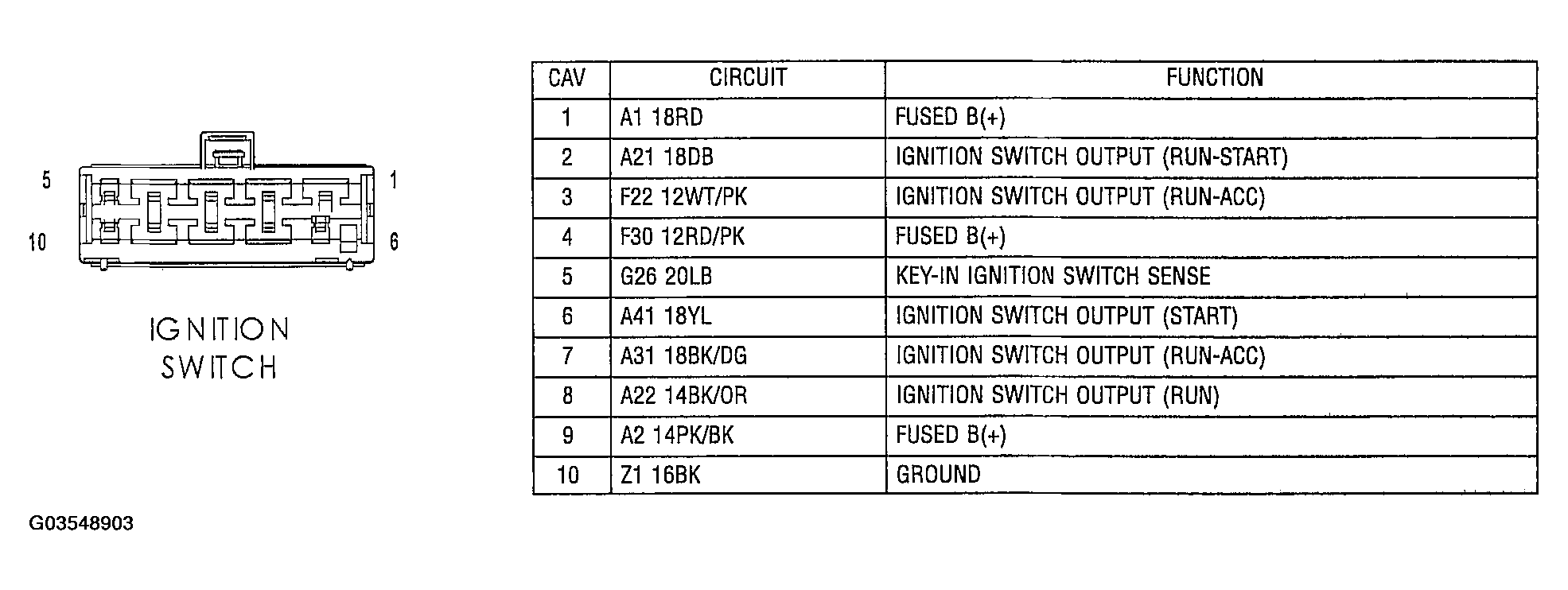

Fig 1: Identifying Ignition Switch Connector Terminals And Specification (10 Way)

G03548903

Courtesy of DAIMLERCHRYSLER CORP.
