Gauges & Instrument Panels
>>
Body Diagnostic Procedures
>>
Connector PINOUTS
>>
Data Link Connector - Black 16 Way
Data Link Connector - Black 16 Way

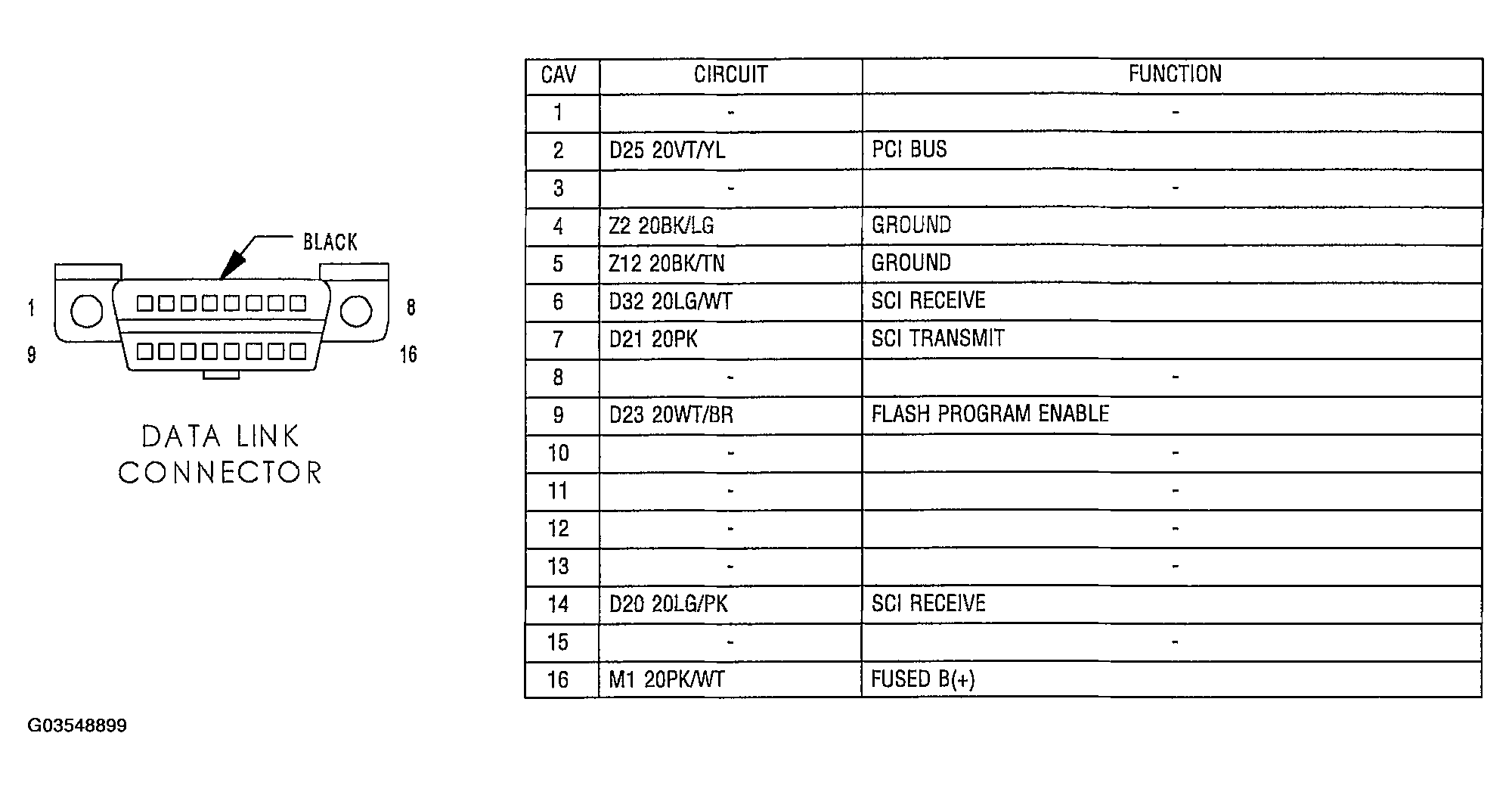

Fig 1: Identifying Data Link Connector Connector Terminals And Specification (Black 16 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
