Compass/Temperature Mirror - Black 7 Way

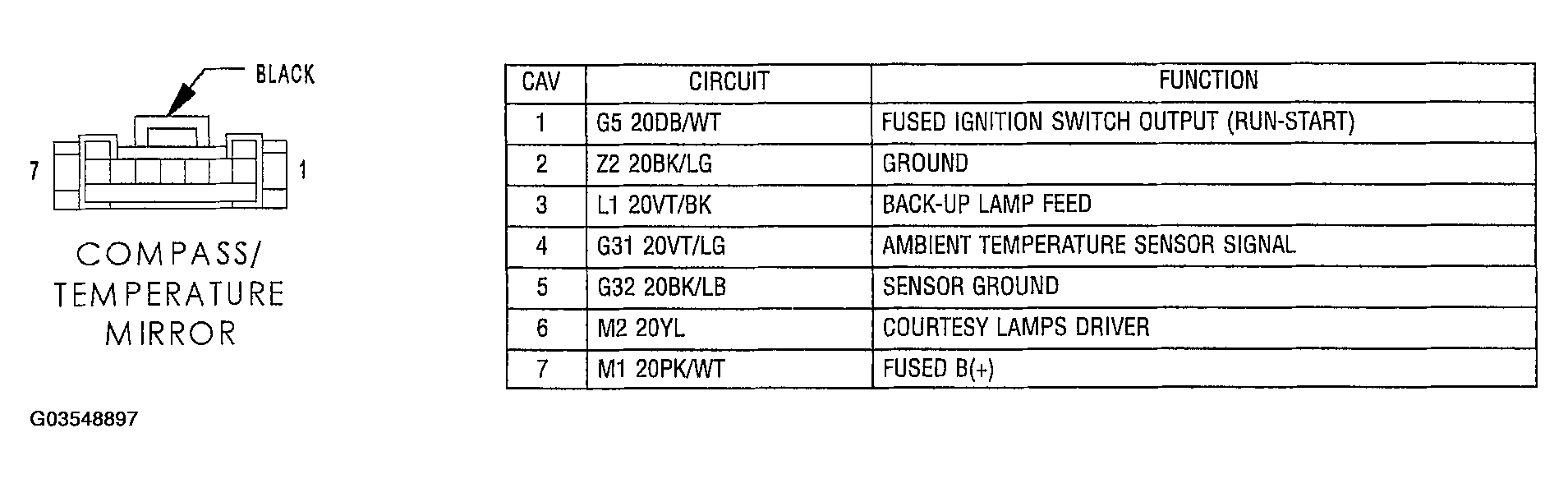

Fig 1: Identifying Compass/Temperature Mirror Connector Terminals And Specification (Black 7 Way)

G03548897

Courtesy of DAIMLERCHRYSLER CORP.
