Ambient Temperature Sensor - Gray 2 Way

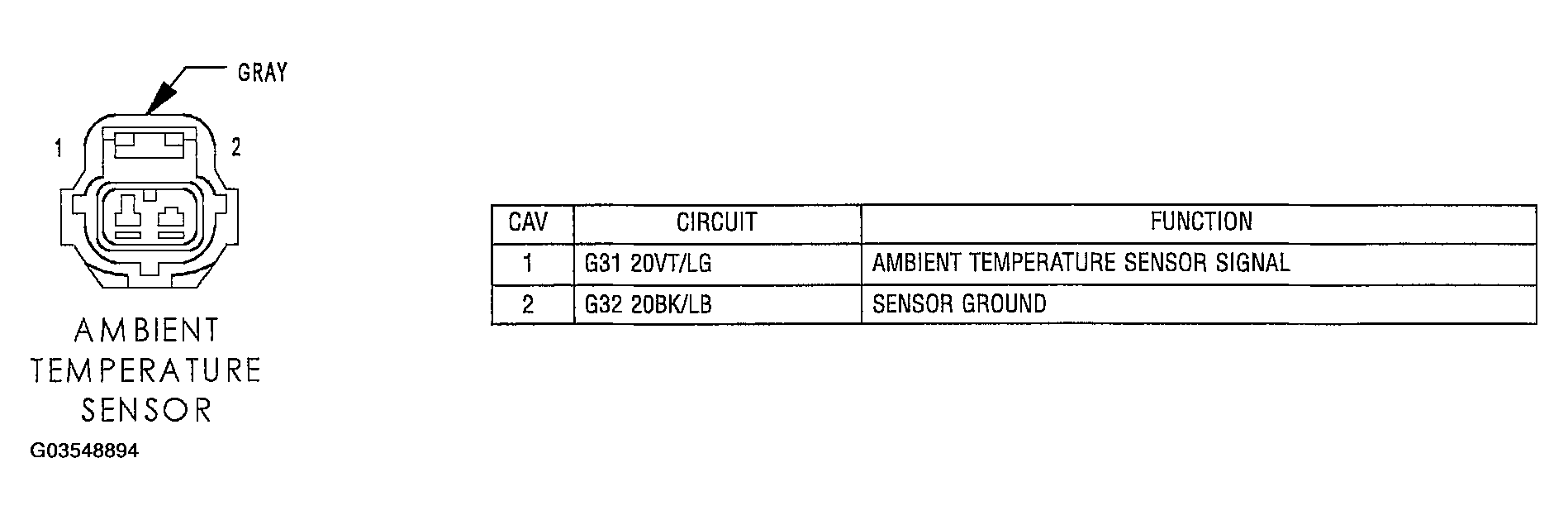

Fig 1: Identifying Ambient Temperature Sensor Connector Terminals And Specification (Gray 2 Way)

G03548894

Courtesy of DAIMLERCHRYSLER CORP.
