Shift Forks/Hubs/Sleeves

Check condition of the shift forks and mode fork shift rail. Minor nicks on the shift rail can be smoothed with 320-400 grit emery cloth.

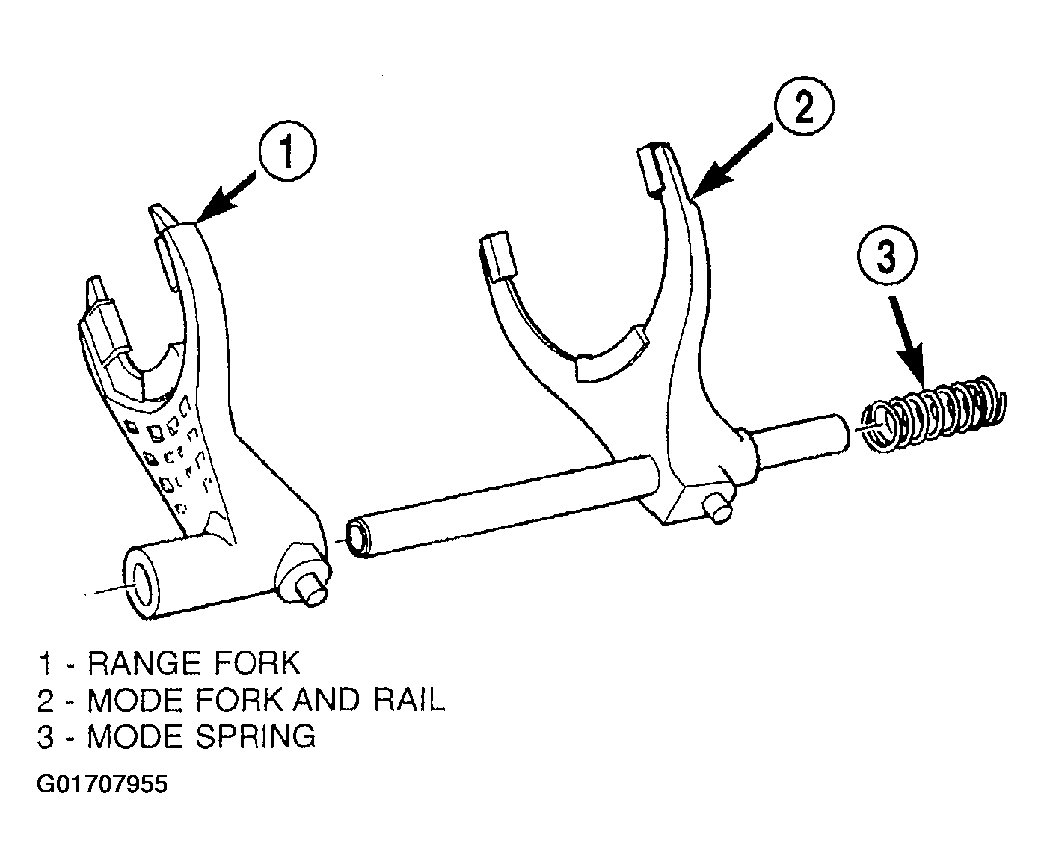

Fig 1: Checking Shift Forks

Courtesy of DAIMLERCHRYSLER CORP.

Inspect the shift fork wear pads. The mode fork pads are serviceable and can be replaced if necessary. The range fork pads are not serviceable. The fork must be replaced as an assembly if the pads are worn or damaged.

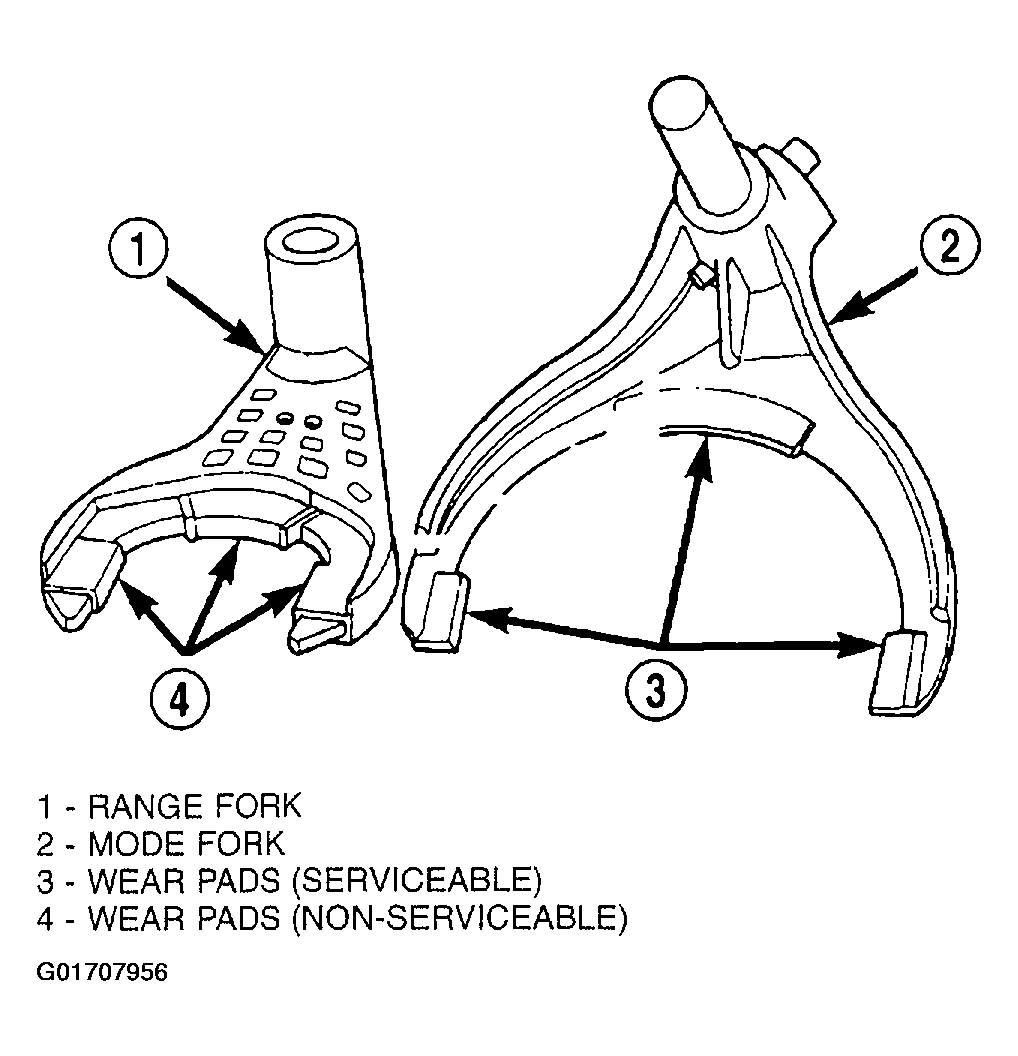

Fig 2: Locating & Checking Shift Fork & Wear Pad

Courtesy of DAIMLERCHRYSLER CORP.

Check both of the sleeves for wear or damage, especially on the interior teeth. Replace the sleeves if wear or damage is evident.
