Low Range Annulus Gear
WARNING: This page is about a different variant/trim than selected.

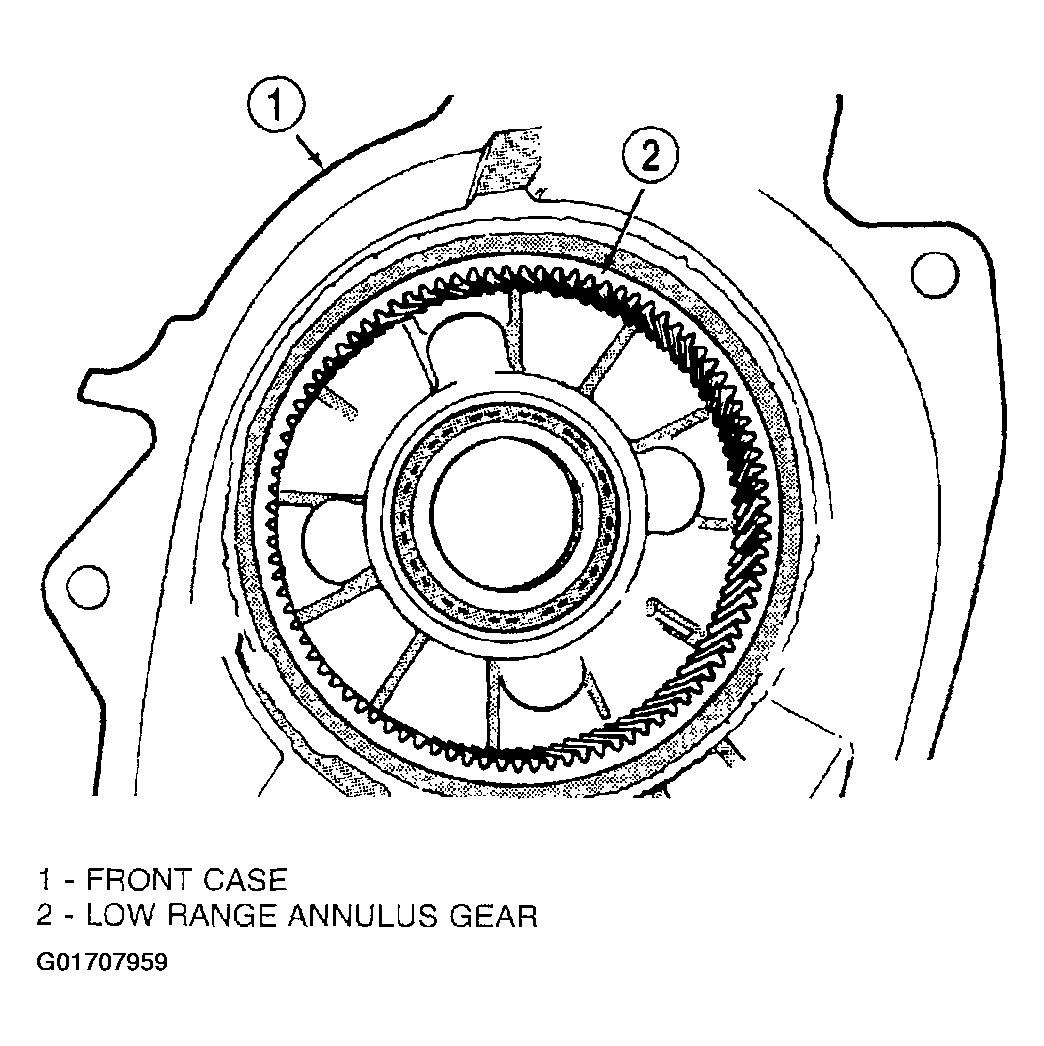

Inspect annulus gear condition carefully. The gear is only serviced as part of the front case. If the gear is damaged, it will be necessary to replace the gear and front case as an assembly. Do not attempt to remove the gear.
Courtesy of DAIMLERCHRYSLER CORP.
