Yoke And Range Lever

WARNING: This page is about a different variant/trim than selected.
  1. Remove transfer case indicator switch.
  2. Remove front yoke nut as follows:
    1. Move range lever to 4L position.
    2. Then remove nut with socket and impact wrench.

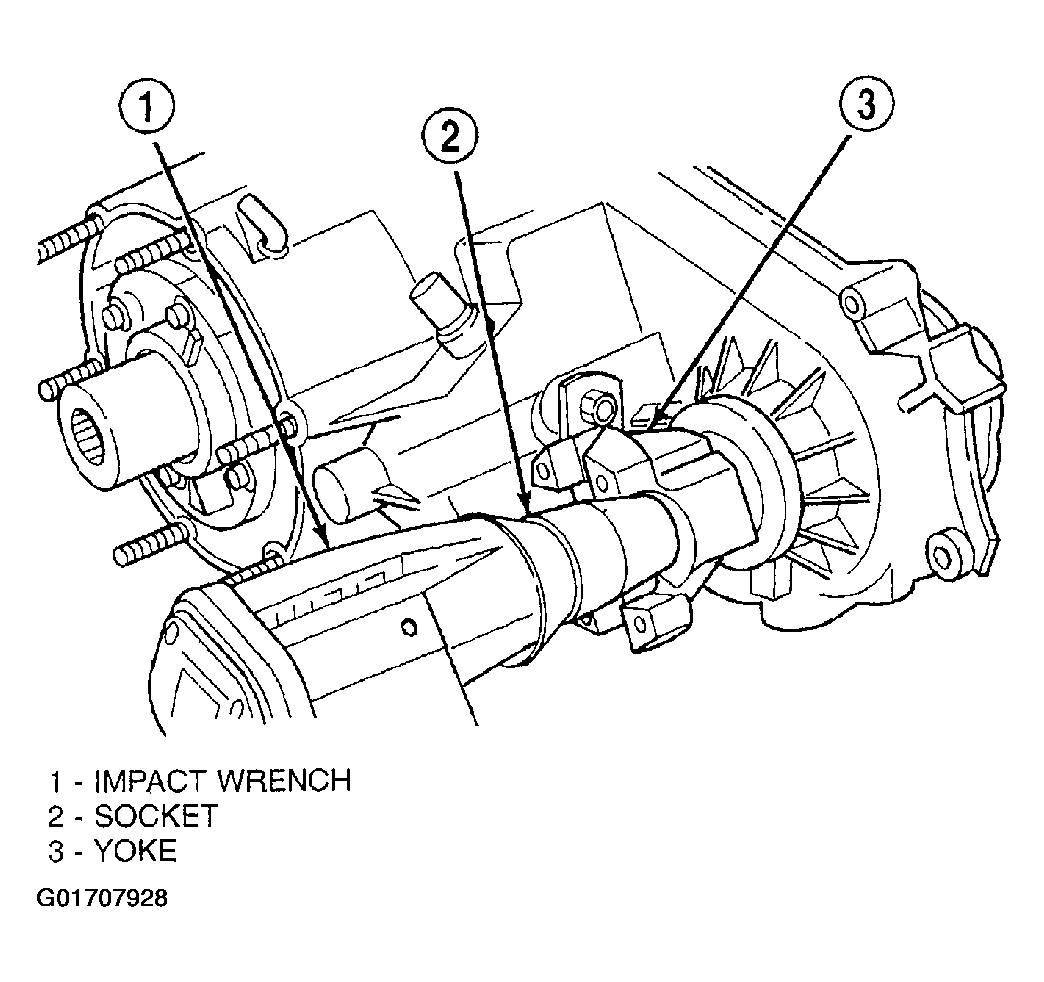

      Fig 1: Removing Yoke Nut
      G01707928Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove yoke. If yoke is difficult to remove by hand, remove it with bearing splitter, or with standard two jaw puller. Be sure puller tool is positioned on yoke and not on slinger as slinger will be damaged.

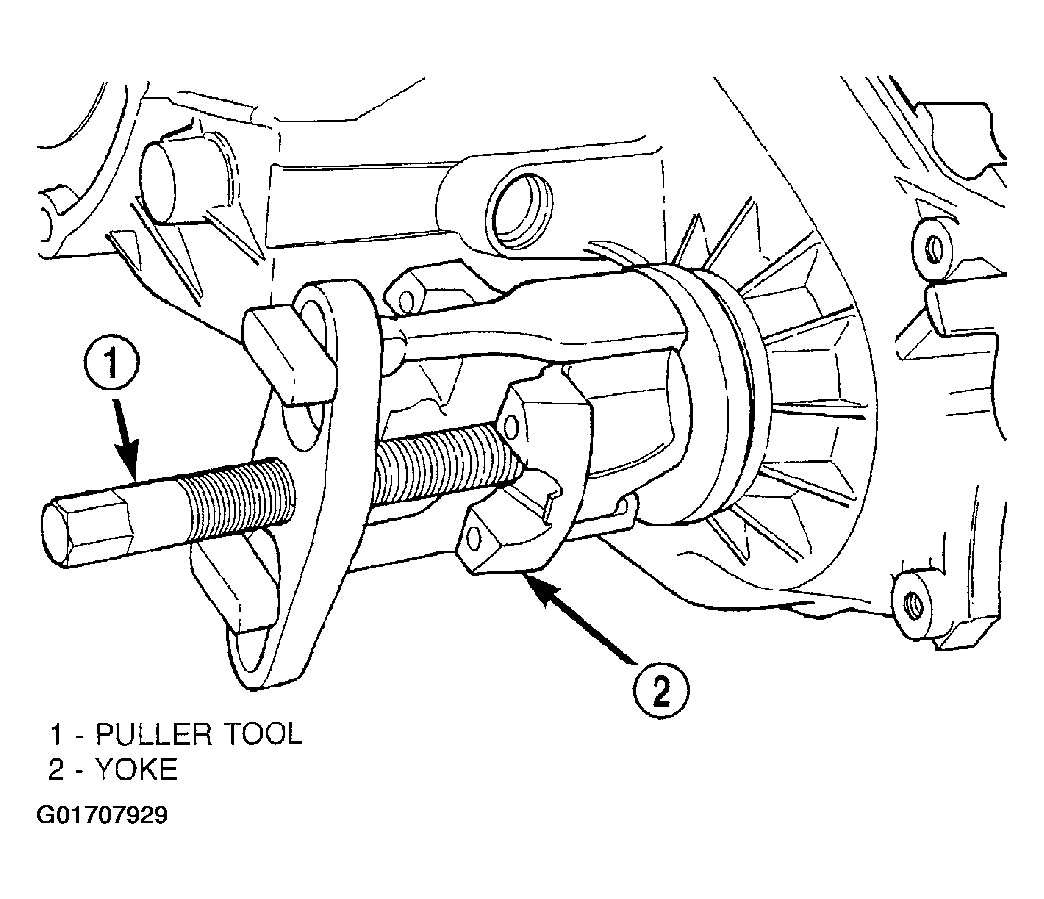

    Fig 2: Removing Yoke
    G01707929Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove seal washer from front output shaft. Discard washer as it should not be reused.
  5. Remove nut and washer that attach range lever to sector shaft. Then move sector to neutral position and remove range lever from shaft.

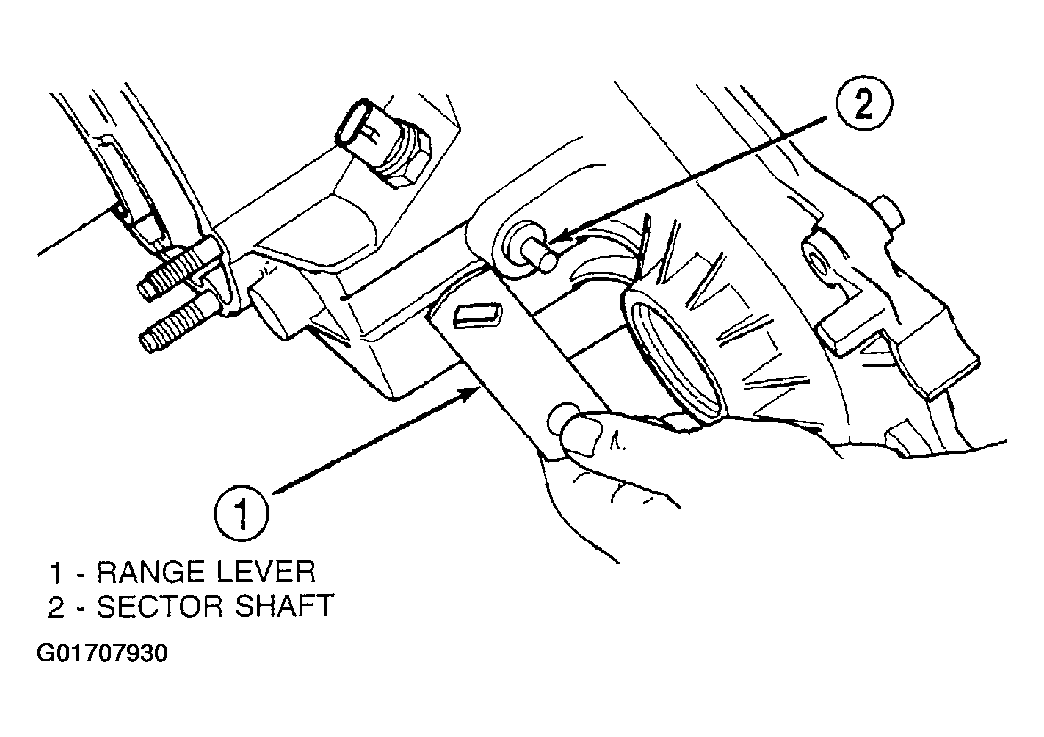

    Fig 3: Removing Range Lever
    G01707930Courtesy of DAIMLERCHRYSLER CORP.
