Transfer Case - NV231: Disassembly: MAINSHAFT

WARNING: This page is about a different variant/trim than selected.
  1. Remove mode hub retaining ring with heavy duty snap-ring pliers.

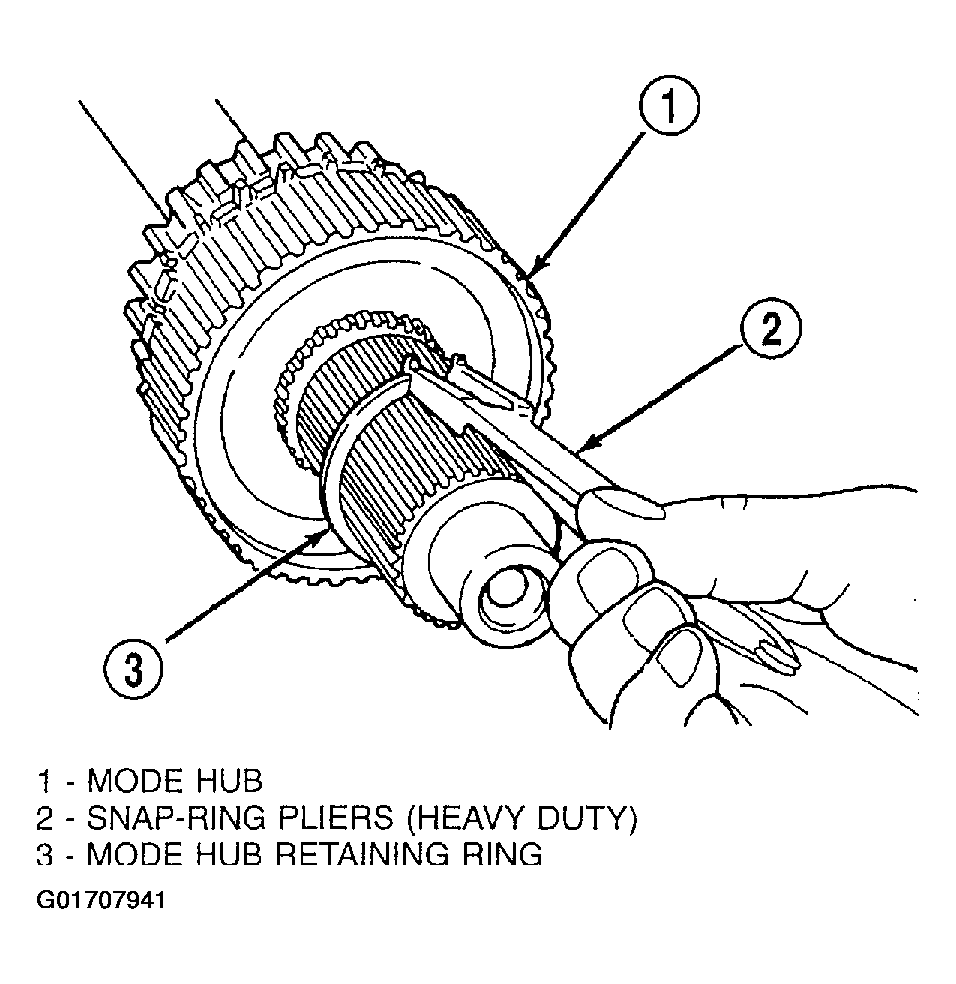

    Fig 1: Removing Mode Hub Retaining Ring
    G01707941Courtesy of DAIMLERCHRYSLER CORP.
  2. Slide mode hub off mainshaft.

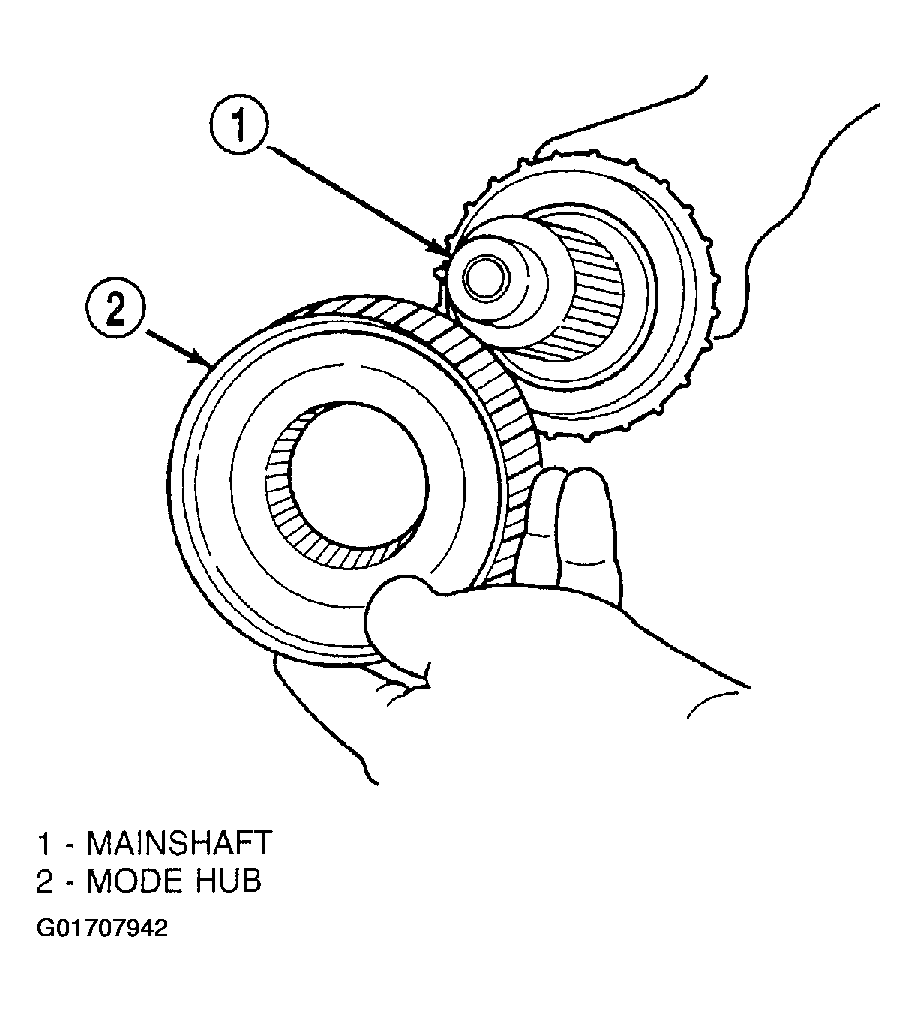

    Fig 2: Removing Mode Hub
    G01707942Courtesy of DAIMLERCHRYSLER CORP.
  3. Slide drive sprocket off mainshaft.

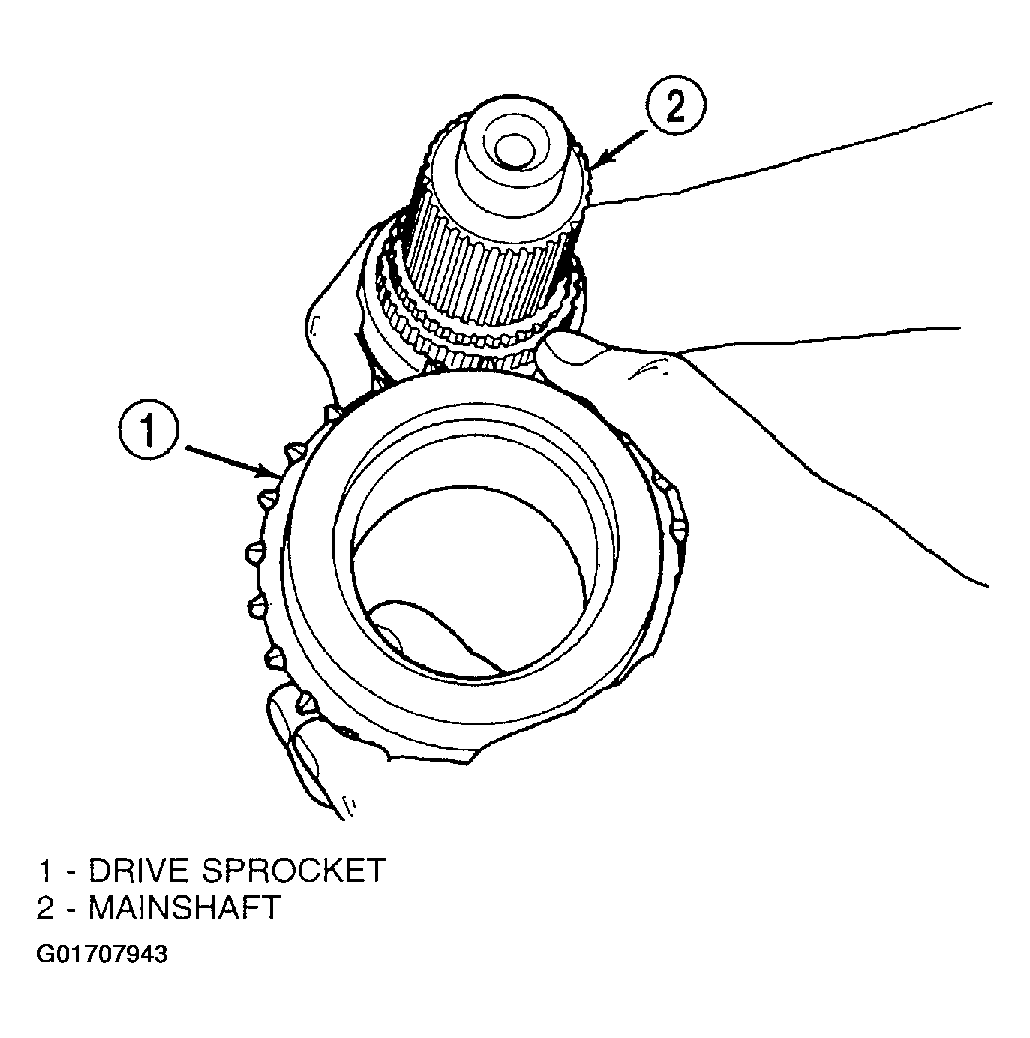

    Fig 3: Removing Drive Sprocket
    G01707943Courtesy of DAIMLERCHRYSLER CORP.
