Input Gear And Low Range Gear

WARNING: This page is about a different variant/trim than selected.

Remove front bearing retainer attaching bolts.

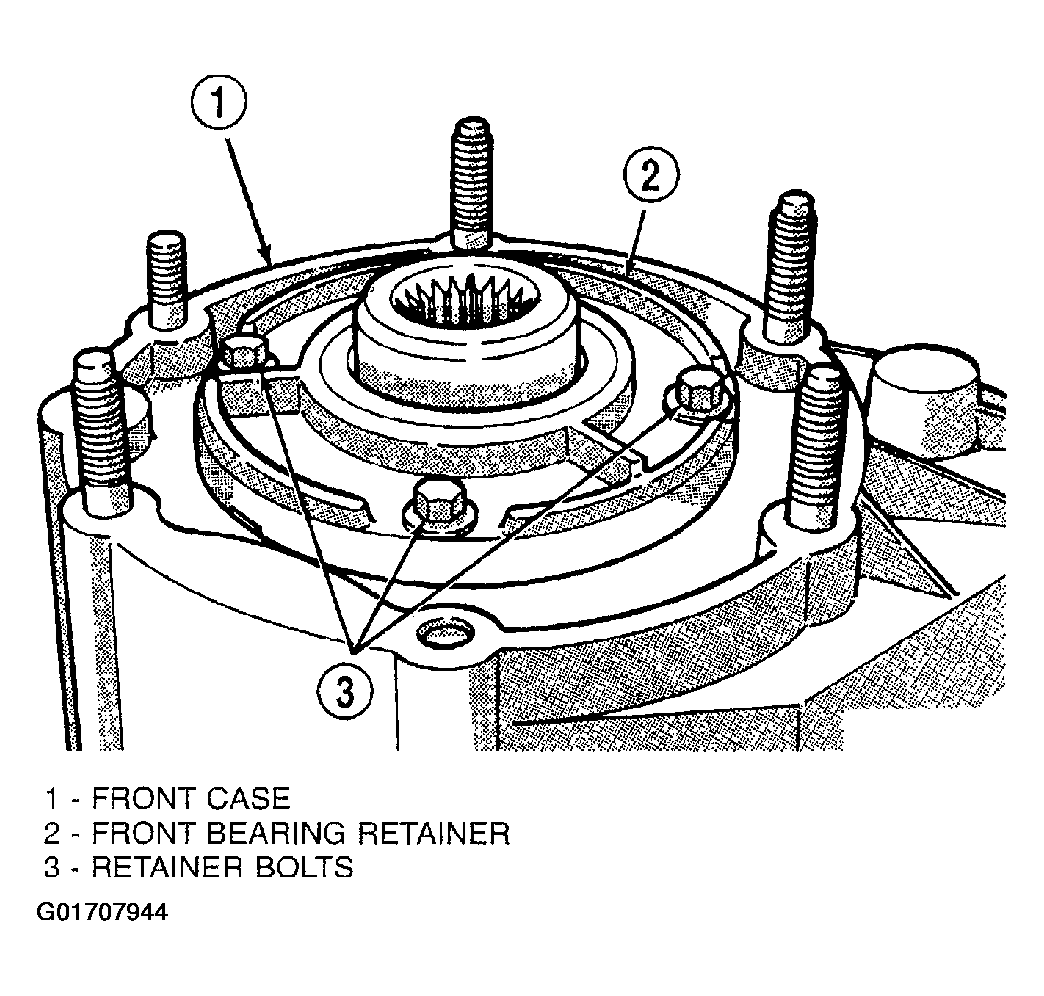

Fig 1: Removing Front Bearing Retainer Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove front bearing retainer. Pry retainer loose with pry tool positioned in slots at each end of retainer.

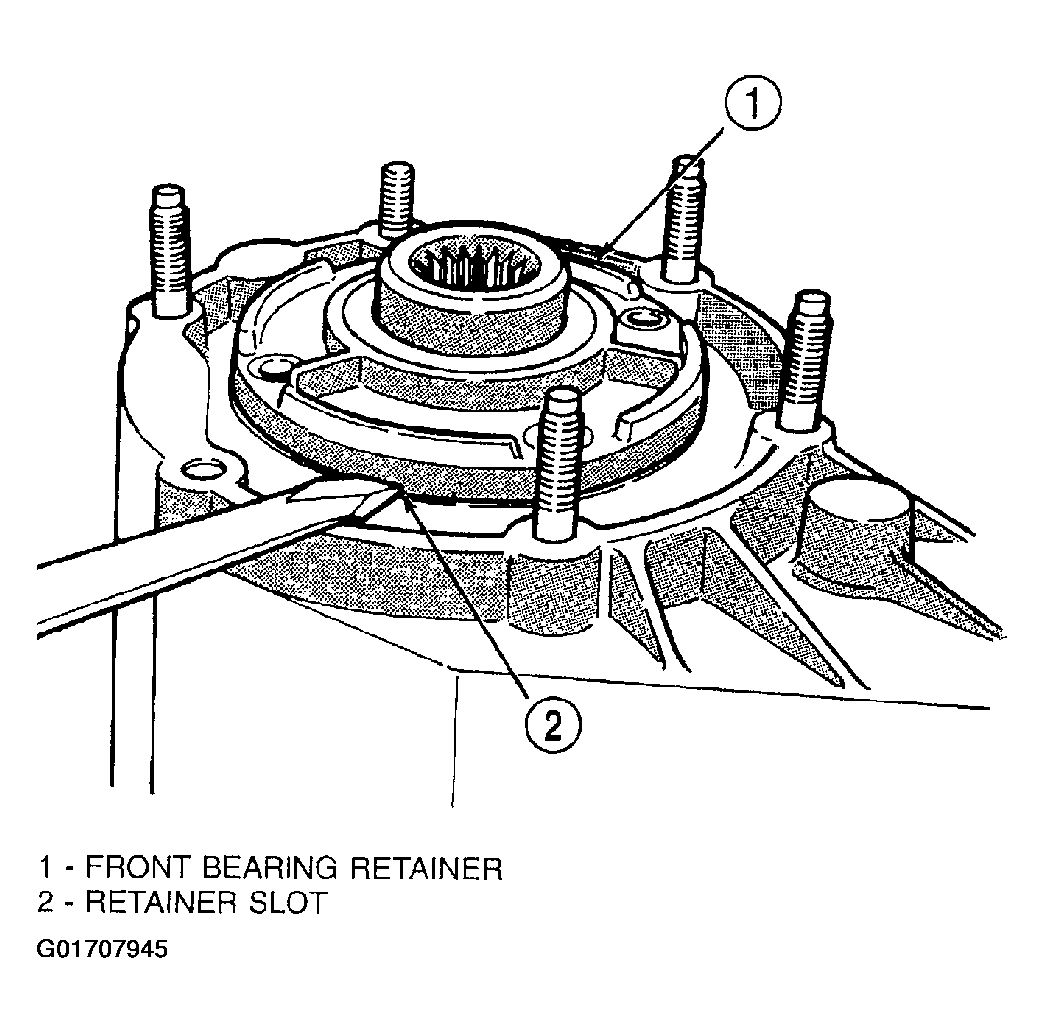

Fig 2: Removing Front Bearing Retainer
Courtesy of DAIMLERCHRYSLER CORP.
Remove front bearing retainer seal. Tap seal out with drift and hammer.
Remove input gear retaining ring with heavy duty snap-ring pliers.

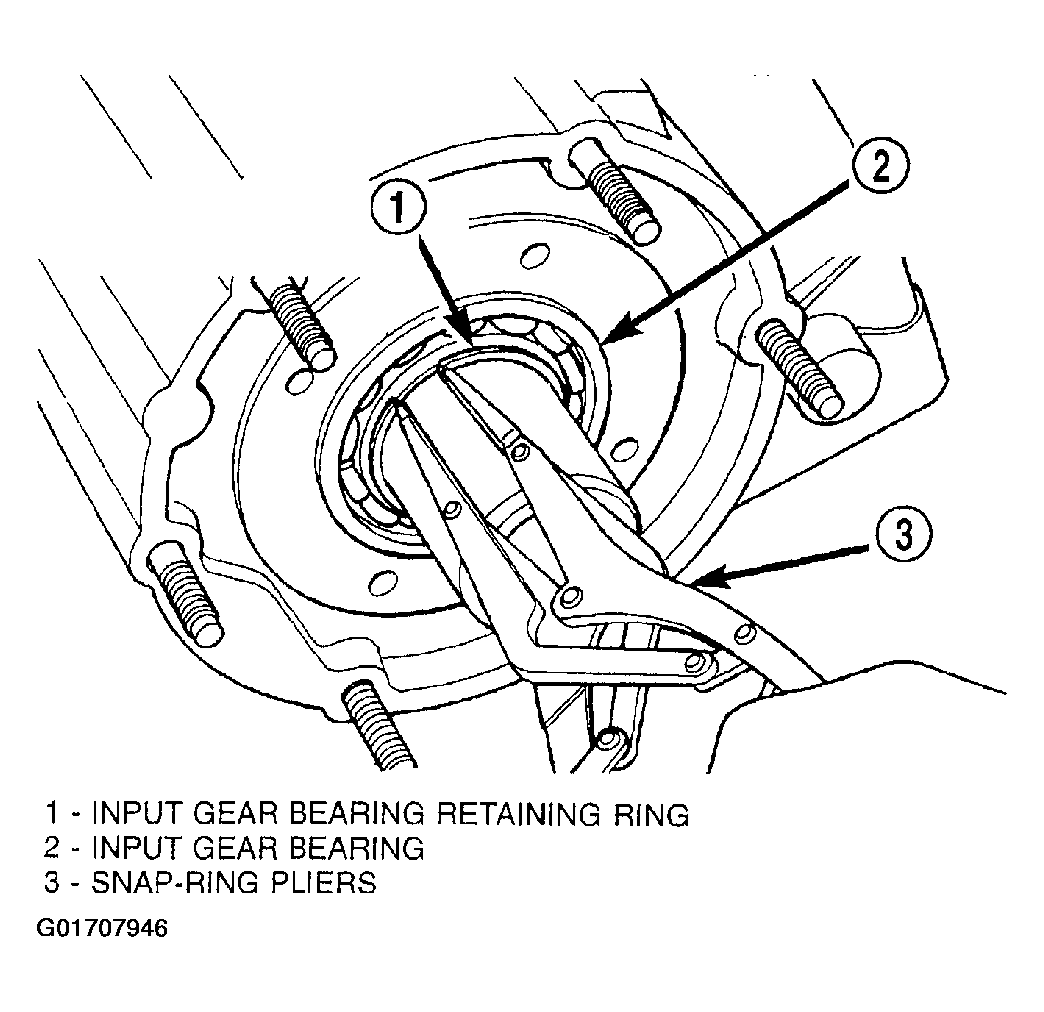

Fig 3: Removing Input Gear Retaining Ring
Courtesy of DAIMLERCHRYSLER CORP.
Place front case in horizontal position. Then remove input gear and low range gear as an assembly. Tap gear out of bearing with plastic mallet if necessary.

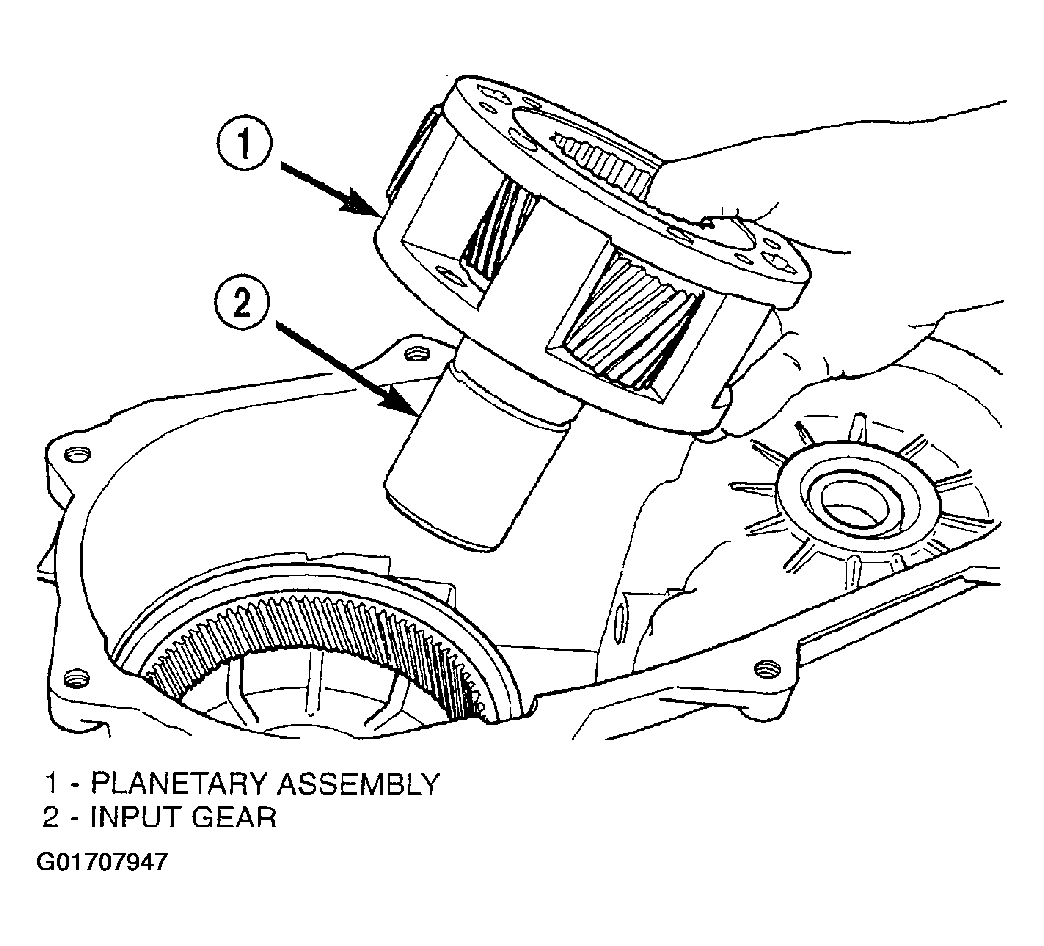

Fig 4: Removing Input Gear & Planetary Carrier
Courtesy of DAIMLERCHRYSLER CORP.
