Transfer Case - NV231: Description: Identification

WARNING: This page is about a different variant/trim than selected.

A circular ID tag is attached to the rear case of each transfer case. The ID tag provides the transfer case model number, assembly number, serial number, and low range ratio.

The transfer case serial number also represents the date of build.

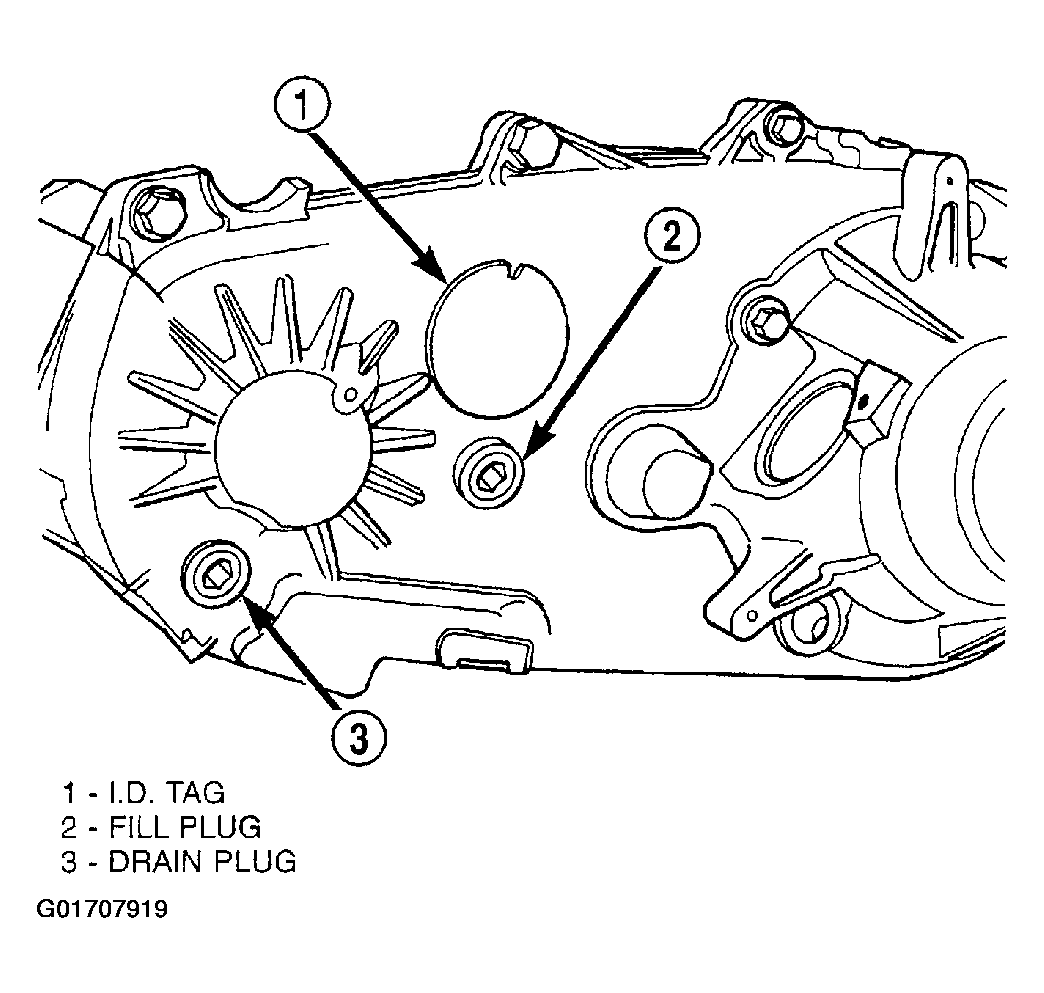

Fig 1: Locating Fill/Drain Plug & I.D. Tags
G01707919Courtesy of DAIMLERCHRYSLER CORP.
