Yoke And Range Lever

WARNING: This page is about a different variant/trim than selected.
  1. Install indicator switch in front case. Tighten switch to 20-34 N.m (15-25 ft. lbs.) torque.
  2. Install range lever, washer and locknut on sector shaft. Tighten locknut to 27-34 N.m (20-25 ft. lbs.) torque.

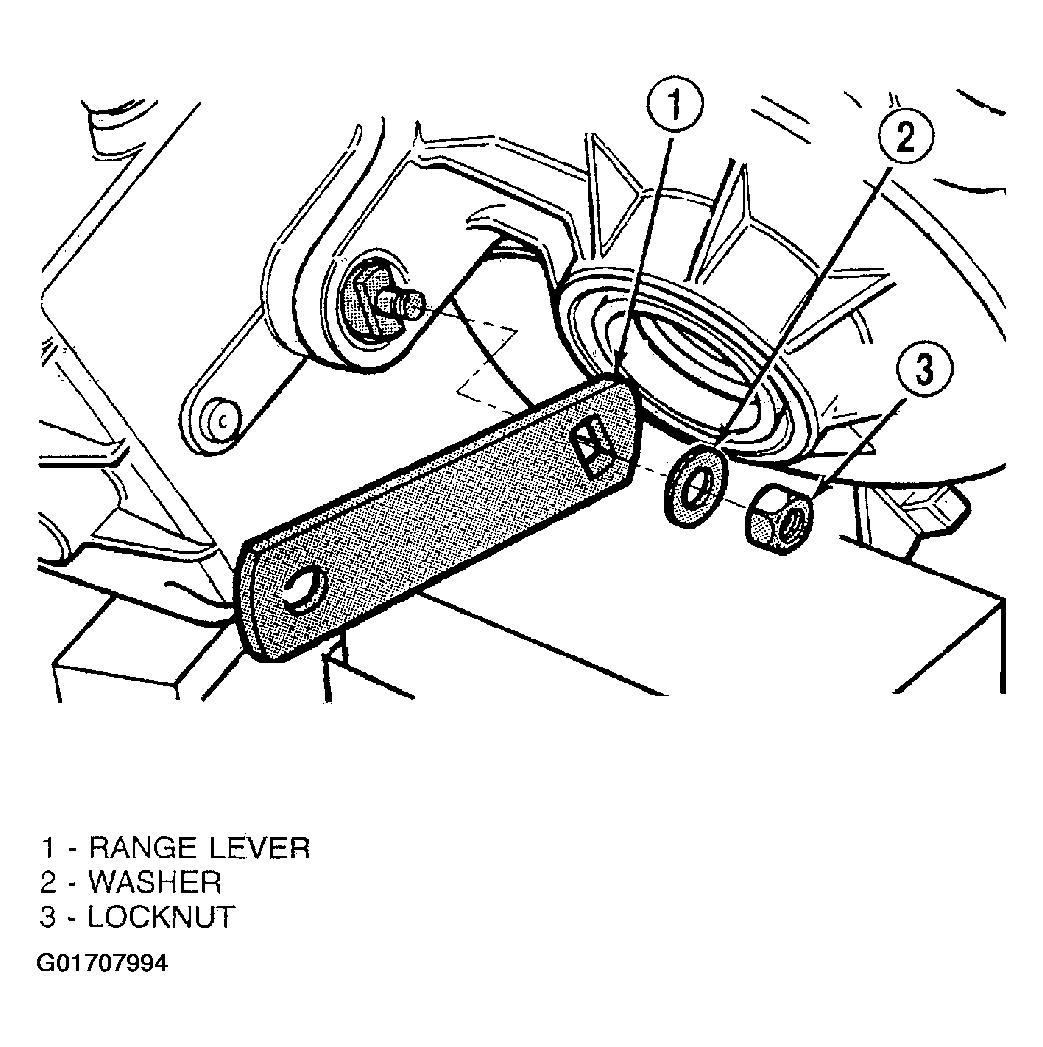

    Fig 1: Installing Range Lever
    G01707994Courtesy of DAIMLERCHRYSLER CORP.
  3. Install new seal washer on front output shaft.

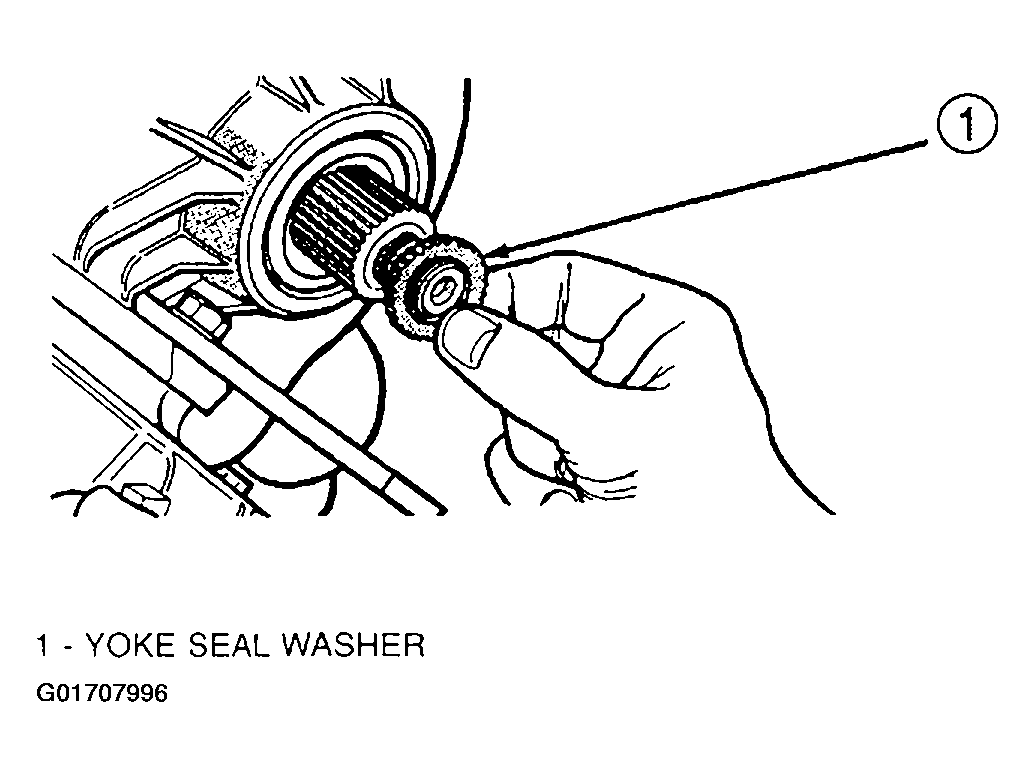

    Fig 2: Installing Seal Washer
    G01707996Courtesy of DAIMLERCHRYSLER CORP.
  4. Lubricate yoke hub with transmission fluid and install yoke on front shaft.
  5. Install new seal washer on front shaft.
  6. Install yoke and new yoke nut on front output shaft.

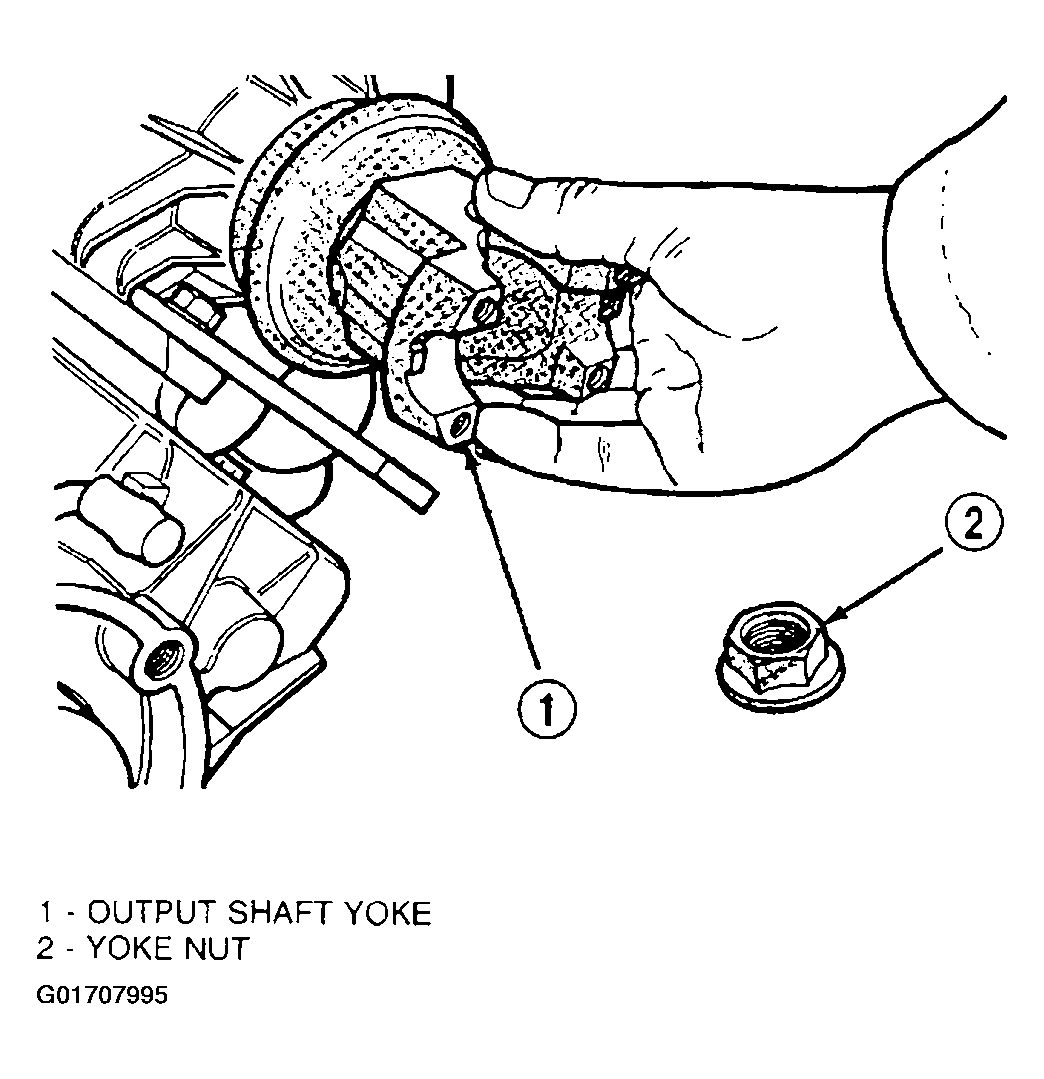

    Fig 3: Installing Output Shaft Yoke
    G01707995Courtesy of DAIMLERCHRYSLER CORP.
  7. Tighten yoke nut to 122-176 N.m (90-130 ft. lbs.) torque. Use Tool C-3281, or similar tool to hold yoke while tightening yoke nut.
