Input And Low Range Gear

WARNING: This page is about a different variant/trim than selected.
  1. Install first thrust washer in low range gear. Be sure washer tabs are properly aligned in gear notches.

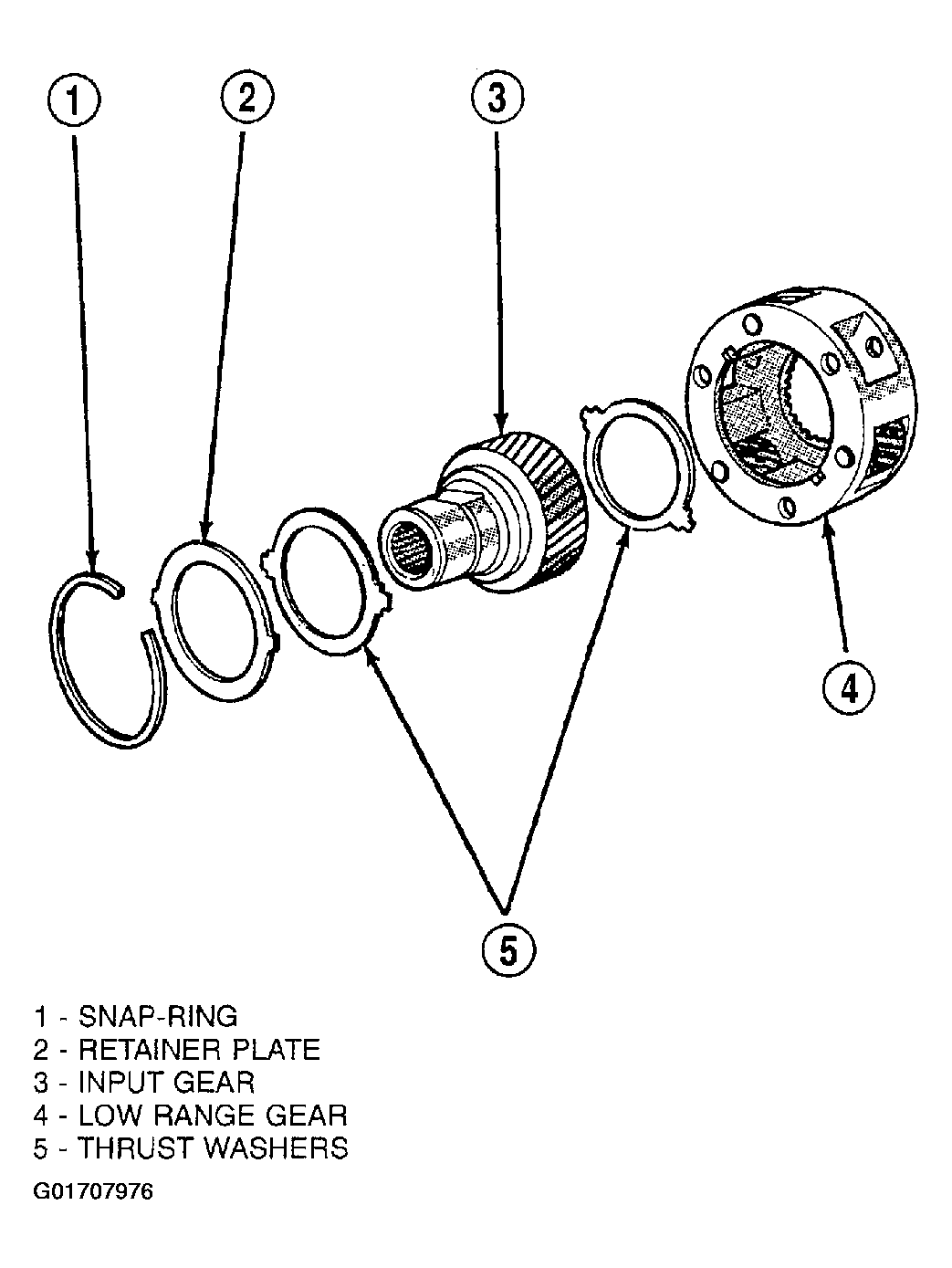

    Fig 1: Installing Input/Low Range Gear Components
    G01707976Courtesy of DAIMLERCHRYSLER CORP.
  2. Install input gear in low range gear. Be sure input gear is fully seated.
  3. Install remaining thrust washer in low range gear and on top of input gear. Be sure washer tabs are properly aligned in gear notches.
  4. Install retainer on input gear and install snap ring.
