Front Output Shaft And Drive Chain

WARNING: This page is about a different variant/trim than selected.
  1. Lubricate front output shaft-sprocket assembly, drive chain, and drive sprocket with transmission fluid.
  2. Assemble drive chain and front output shaft.

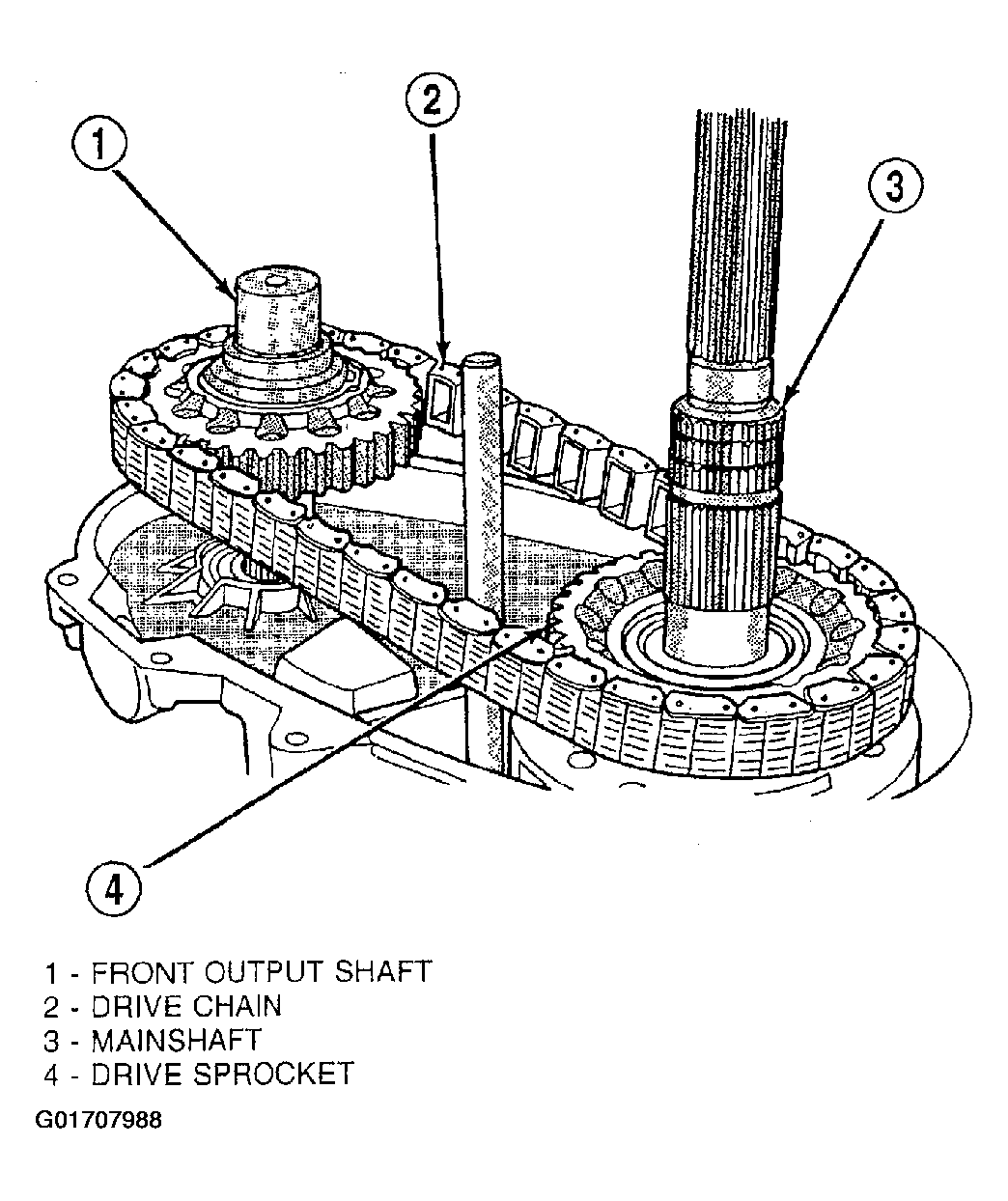

    Fig 1: Installing Drive Chain & Front Output Shaft
    G01707988Courtesy of DAIMLERCHRYSLER CORP.
  3. Start chain on mainshaft drive sprocket.
  4. Guide front shaft into bearing and drive sprocket onto mainshaft drive gear. See Fig 1.
  5. Install mode spring on upper end of mode fork shift rail.

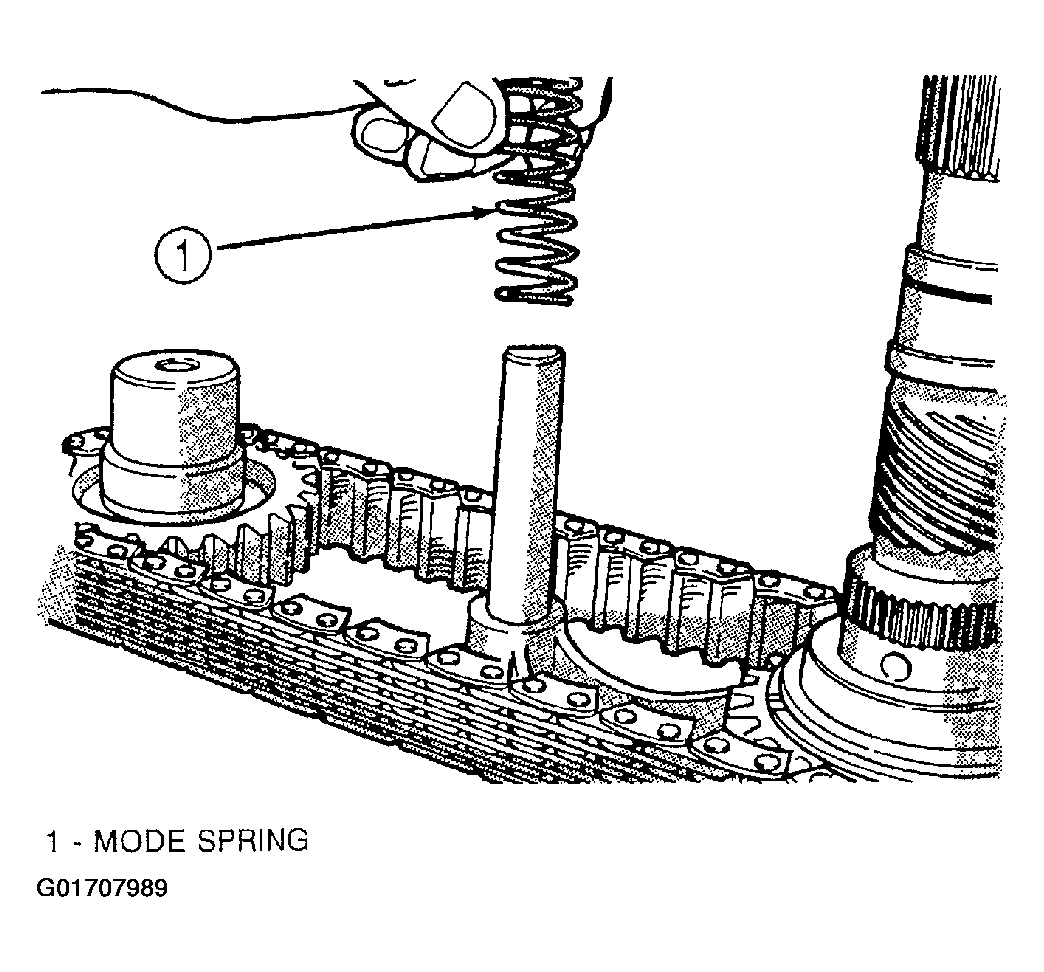

    Fig 2: Installing Mode Fork Spring
    G01707989Courtesy of DAIMLERCHRYSLER CORP.
