Shift Lever: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift transfer case into 4L.
  2. Raise vehicle.
  3. Loosen adjusting trunnion locknut and slide shift rod out of trunnion. If rod lacks enough travel to come out of trunnion, push trunnion out of torque shaft.

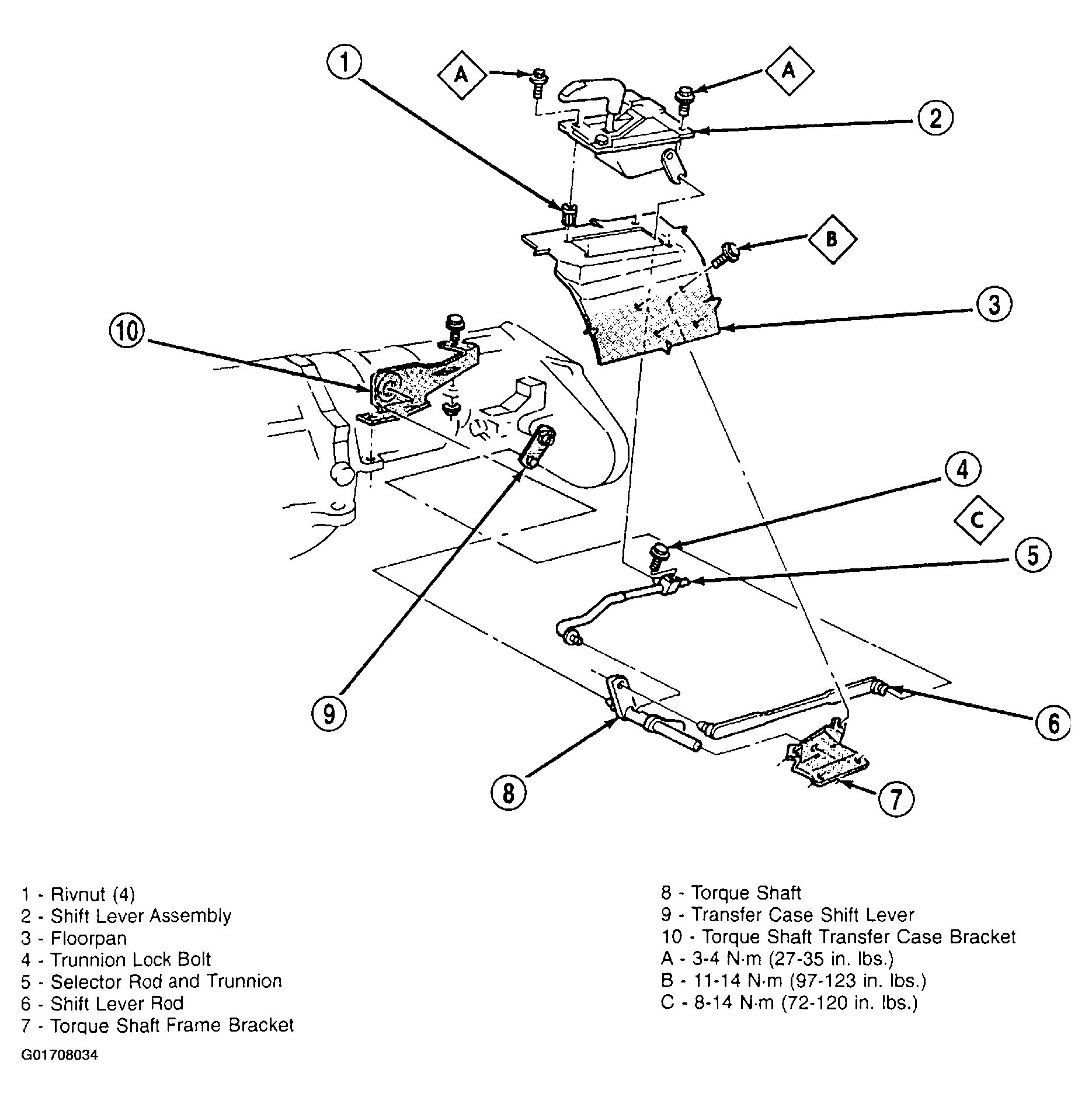

    Fig 1: Identifying Shift Linkage
    G01708034Courtesy of DAIMLERCHRYSLER CORP.
  4. Lower vehicle.
  5. Remove console.
  6. Remove screws attaching lever assembly to floorpan and remove assembly and shift rod (if left attached).
