Front Output Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Raise vehicle.
  2. Remove front propeller shaft. (Refer to PROPELLER SHAFT article.)
  3. Remove front output shaft yoke.
  4. Remove seal from front case with pry tool.

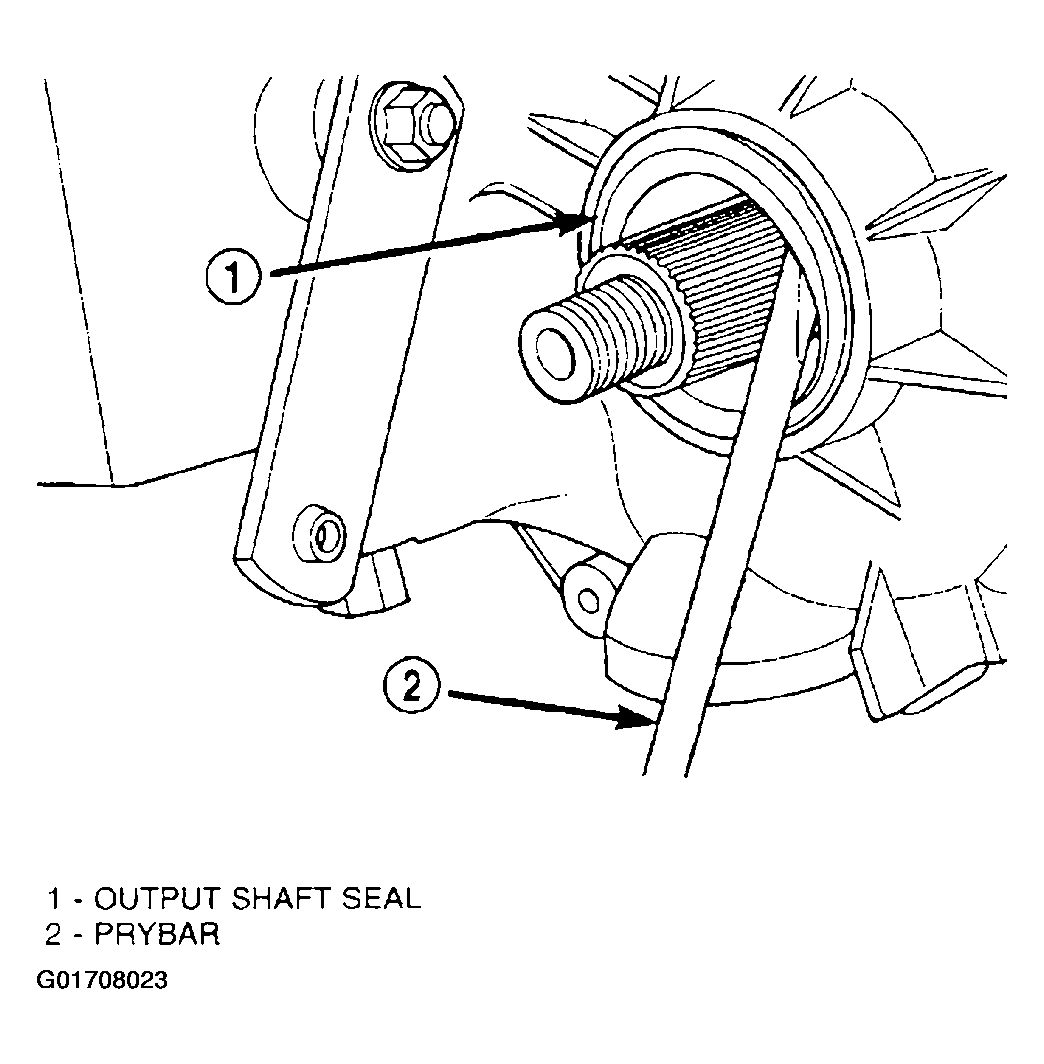

    Fig 1: Removing Front Output Shaft Seal (Typical)
    G01708023Courtesy of DAIMLERCHRYSLER CORP.
