Front Output Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install new front output seal in front case with Installer Tool 8143-A as follows:
    1. Place new seal on tool. Garter spring on seal goes toward interior of case.
    2. Start seal in bore with light taps from hammer. Once seal is started, continue tapping seal into bore until installer tool seats against case.

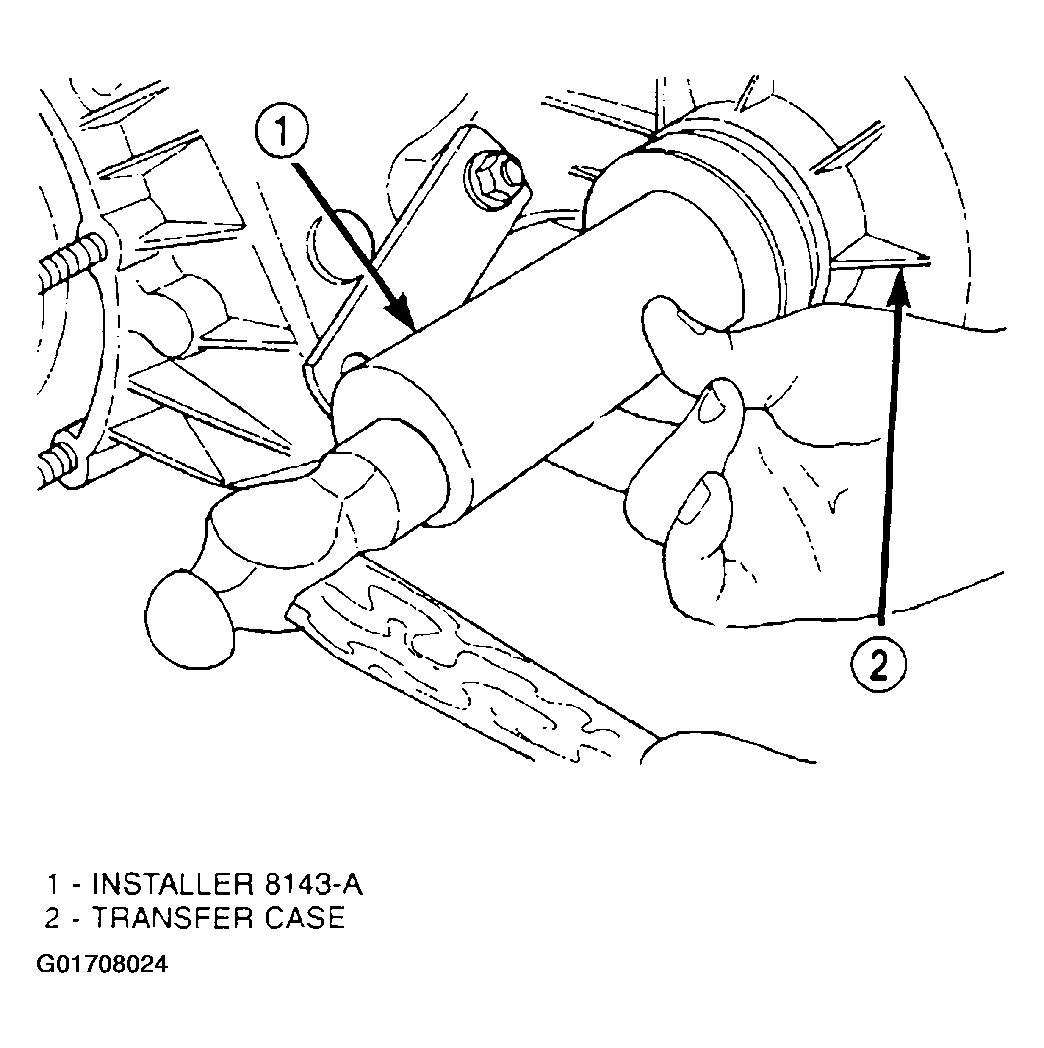

      Fig 1: Installing Front Output Seal (Typical)
      G01708024Courtesy of DAIMLERCHRYSLER CORP.
