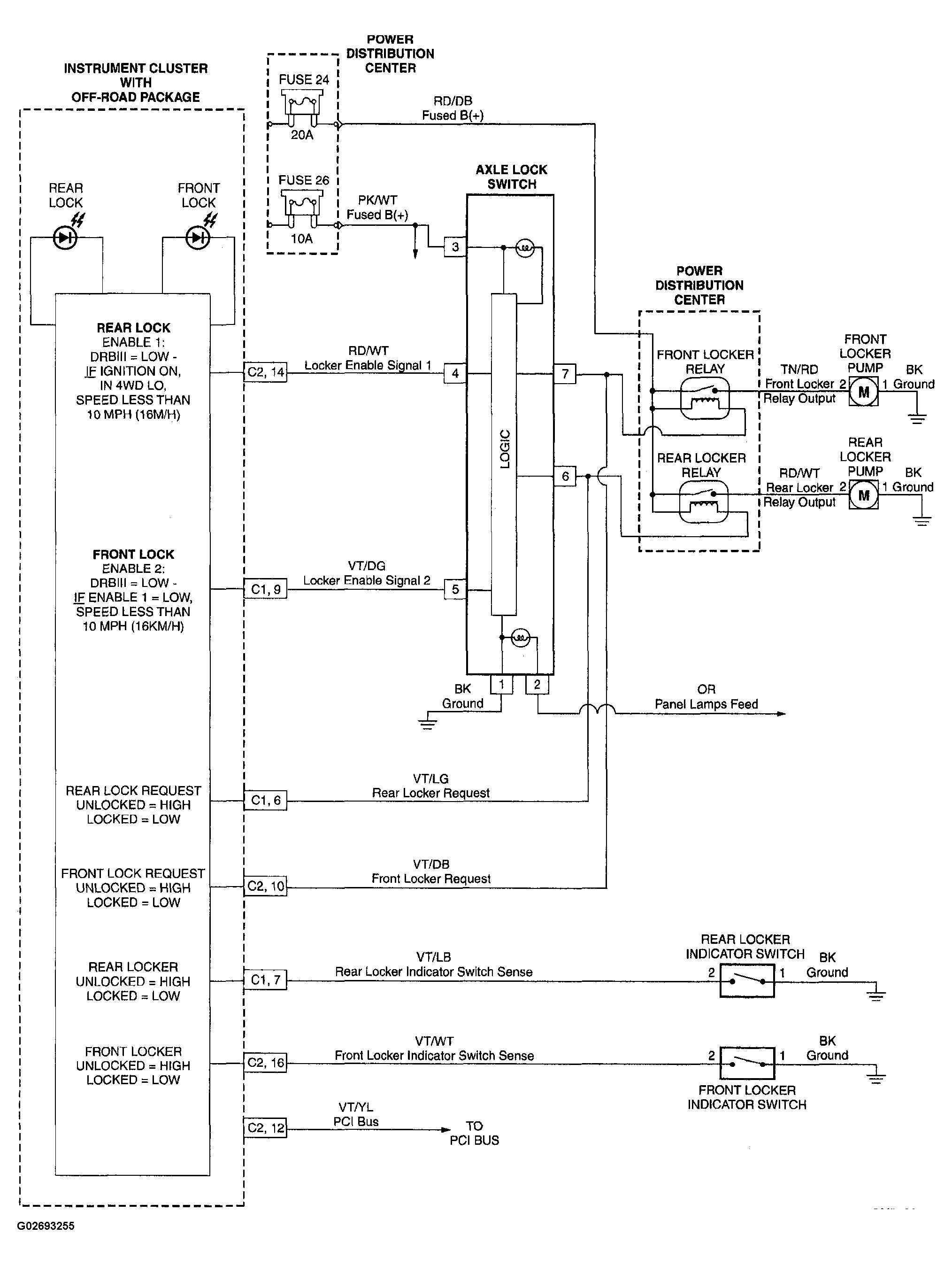

Home >> Jeep >> 2003 >> Wrangler X, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Schematic Diagrams >> Instrument Cluster >> Instrument Cluster/Axle Locker System
