Diagnostic Procedure

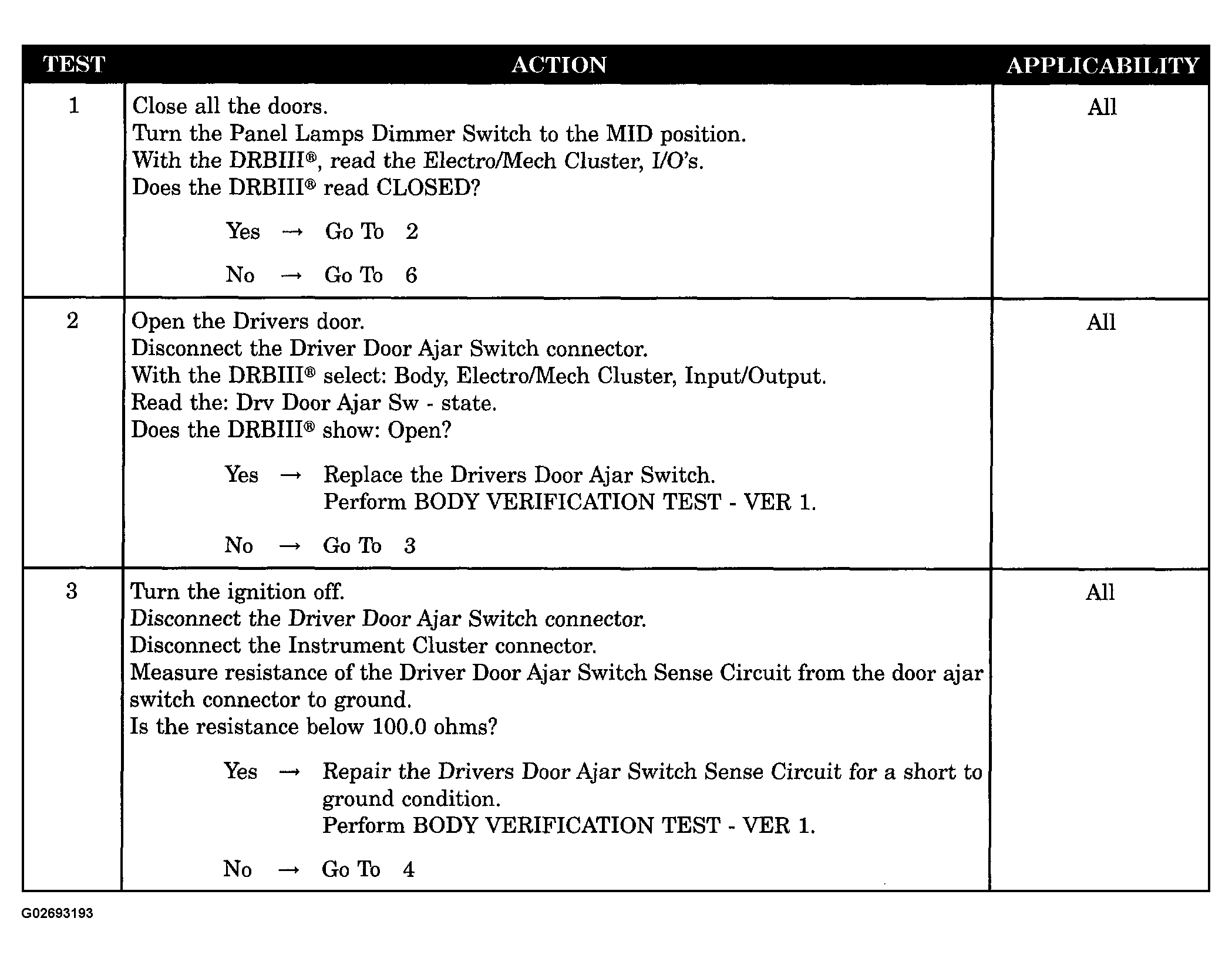

Fig 1: Diagnosis Procedure For Symptom: Courtesy Lamps On At All Times (1 Of 2)
G02693193Courtesy of DAIMLERCHRYSLER CORP.

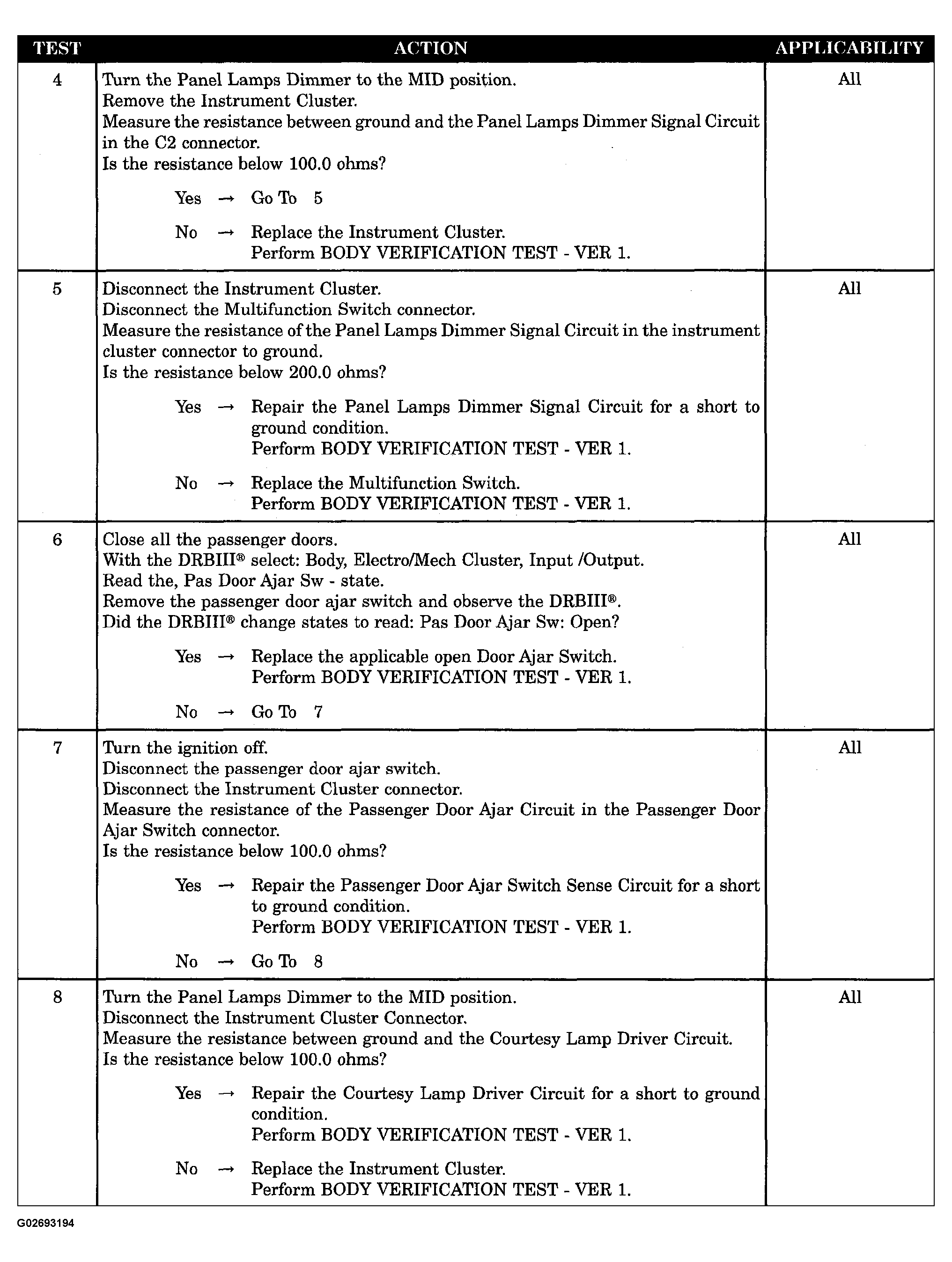

Fig 2: Diagnosis Procedure For Symptom: Courtesy Lamps On At All Times (2 Of 2)
G02693194Courtesy of DAIMLERCHRYSLER CORP.
