Diagnostic Procedure

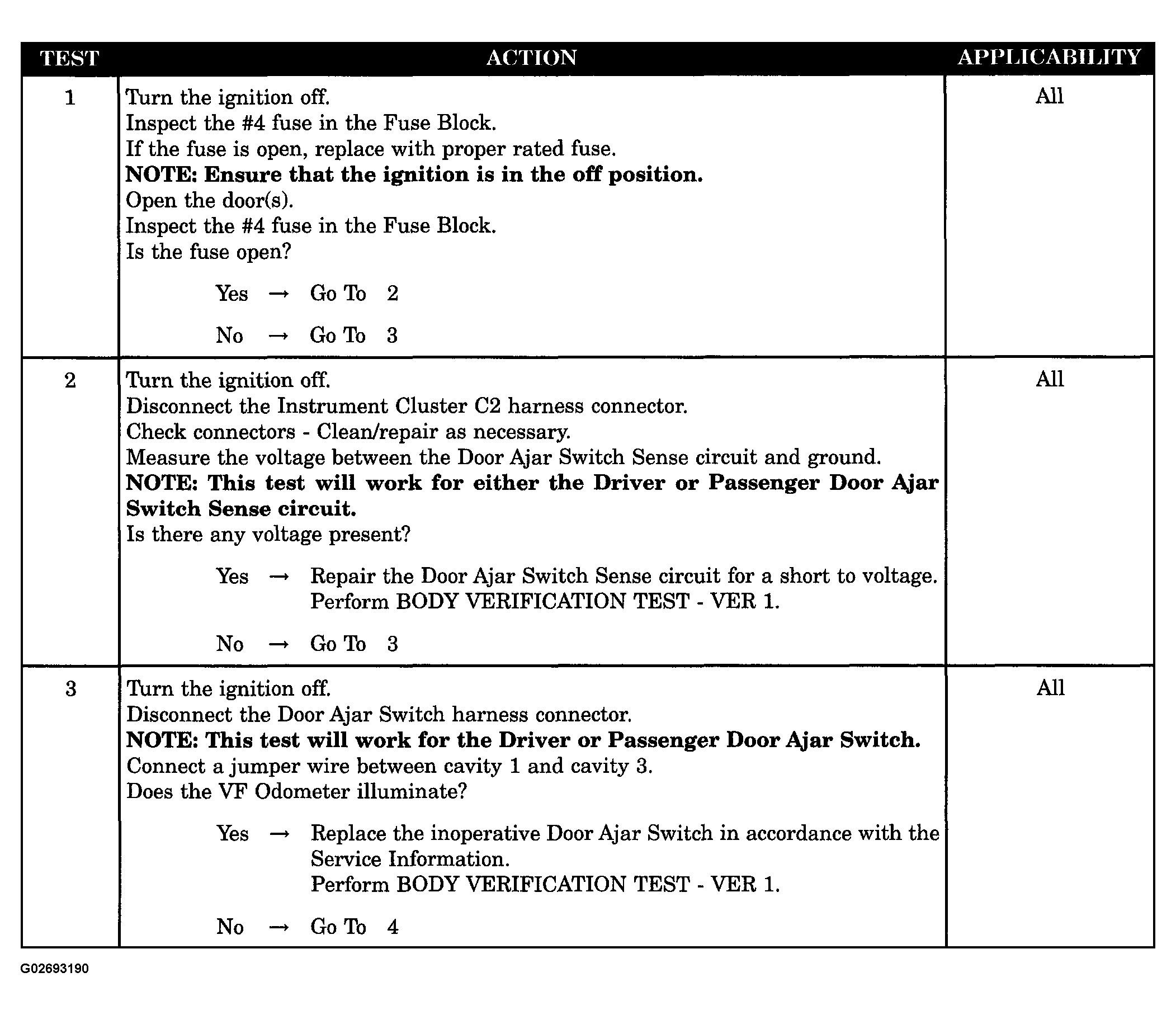

Fig 1: Diagnosis Procedure For Symptom: VF Odometer Inoperative With Door Open (1 Of 2)
G02693190Courtesy of DAIMLERCHRYSLER CORP.

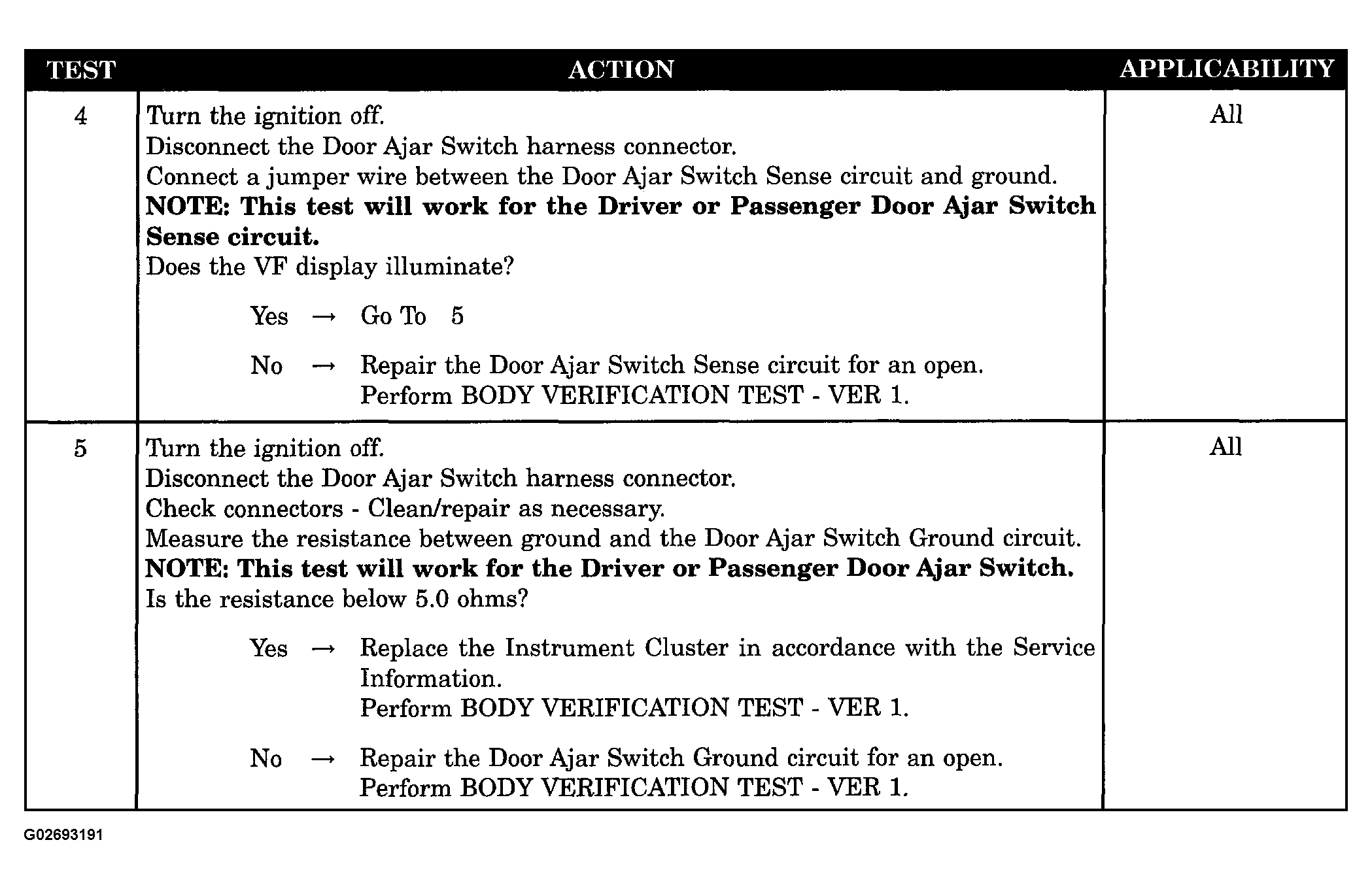

Fig 2: Diagnosis Procedure For Symptom: VF Odometer Inoperative With Door Open (2 Of 2)
G02693191Courtesy of DAIMLERCHRYSLER CORP.
