Diagnostic Procedure

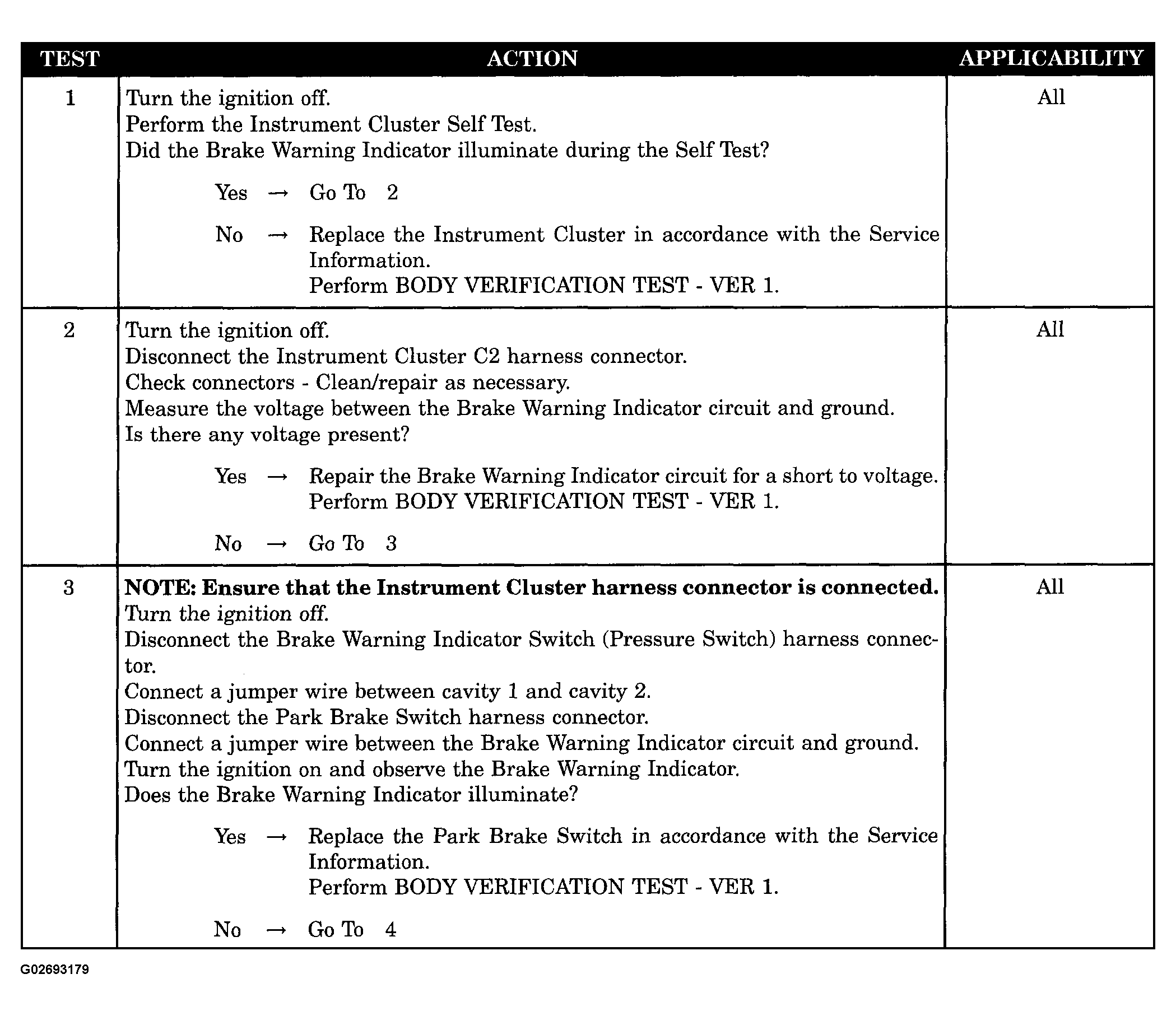

Fig 1: Diagnosis Procedure For Symptom: Brake Warning Indicator Inoperative (1 Of 2)
G02693179Courtesy of DAIMLERCHRYSLER CORP.

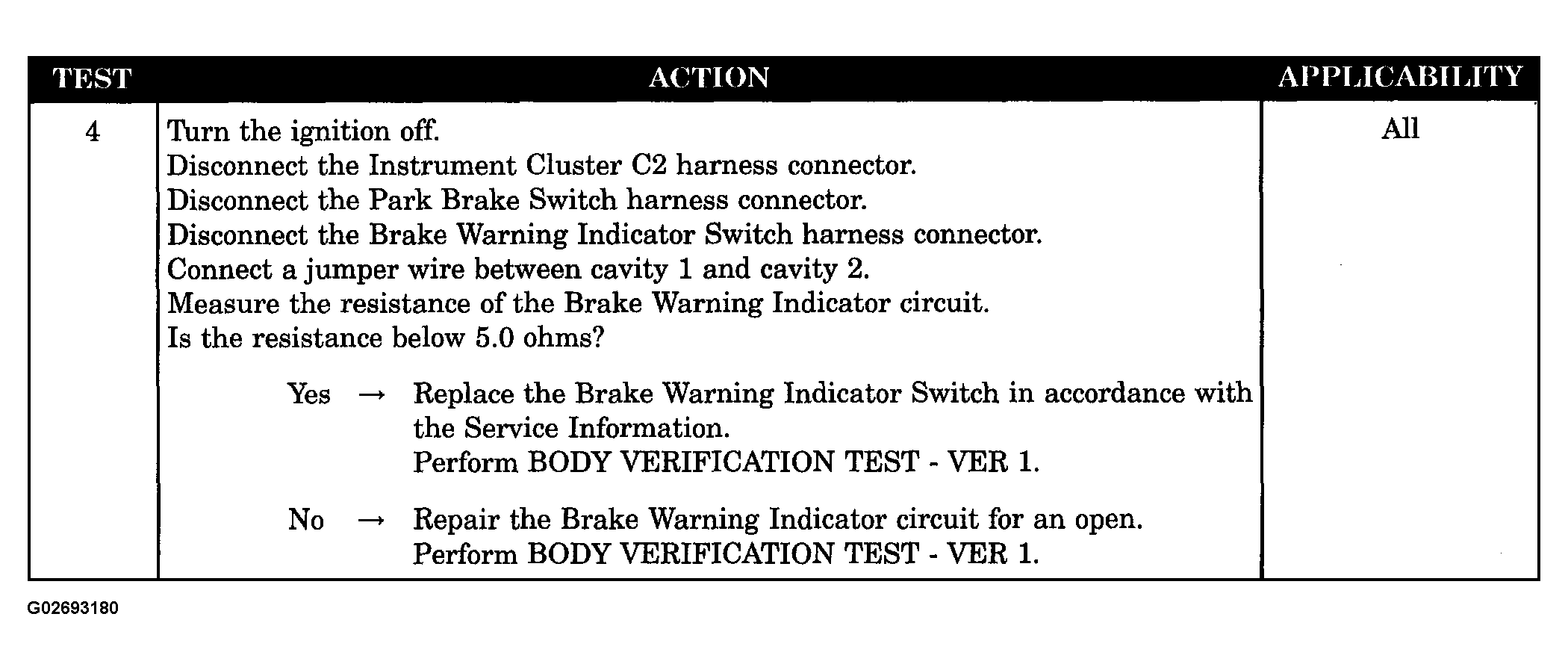

Fig 2: Diagnosis Procedure For Symptom: Brake Warning Indicator Inoperative (2 Of 2)
G02693180Courtesy of DAIMLERCHRYSLER CORP.
