Diagnostic Procedure

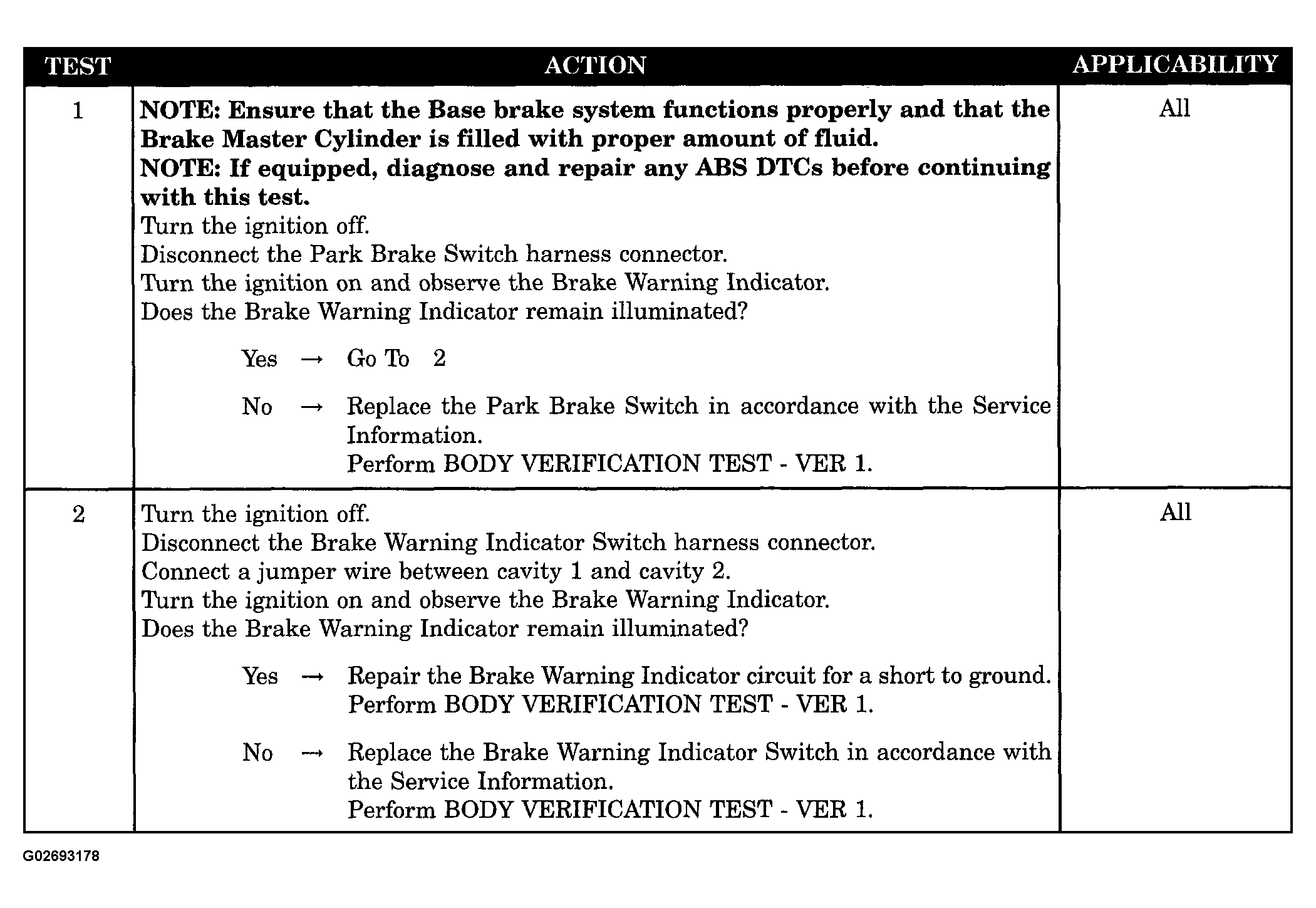

Fig 1: Diagnosis Procedure For Symptom: Brake Warning Indicator Always On
G02693178Courtesy of DAIMLERCHRYSLER CORP.
