Diagnostic Procedure

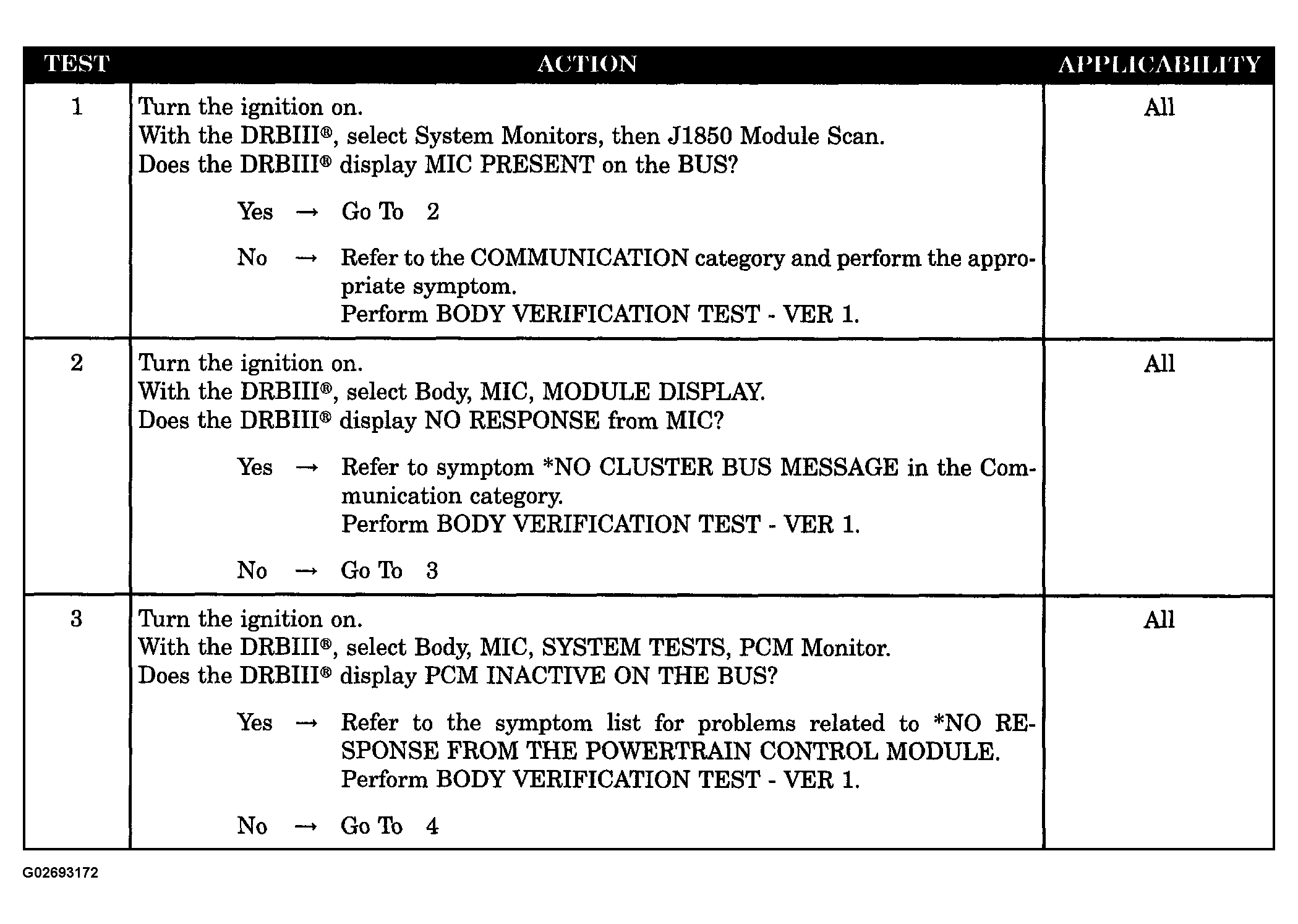

Fig 1: Diagnosis Procedure For Symptom: All Gauges Inoperative (1 Of 2)
G02693172Courtesy of DAIMLERCHRYSLER CORP.

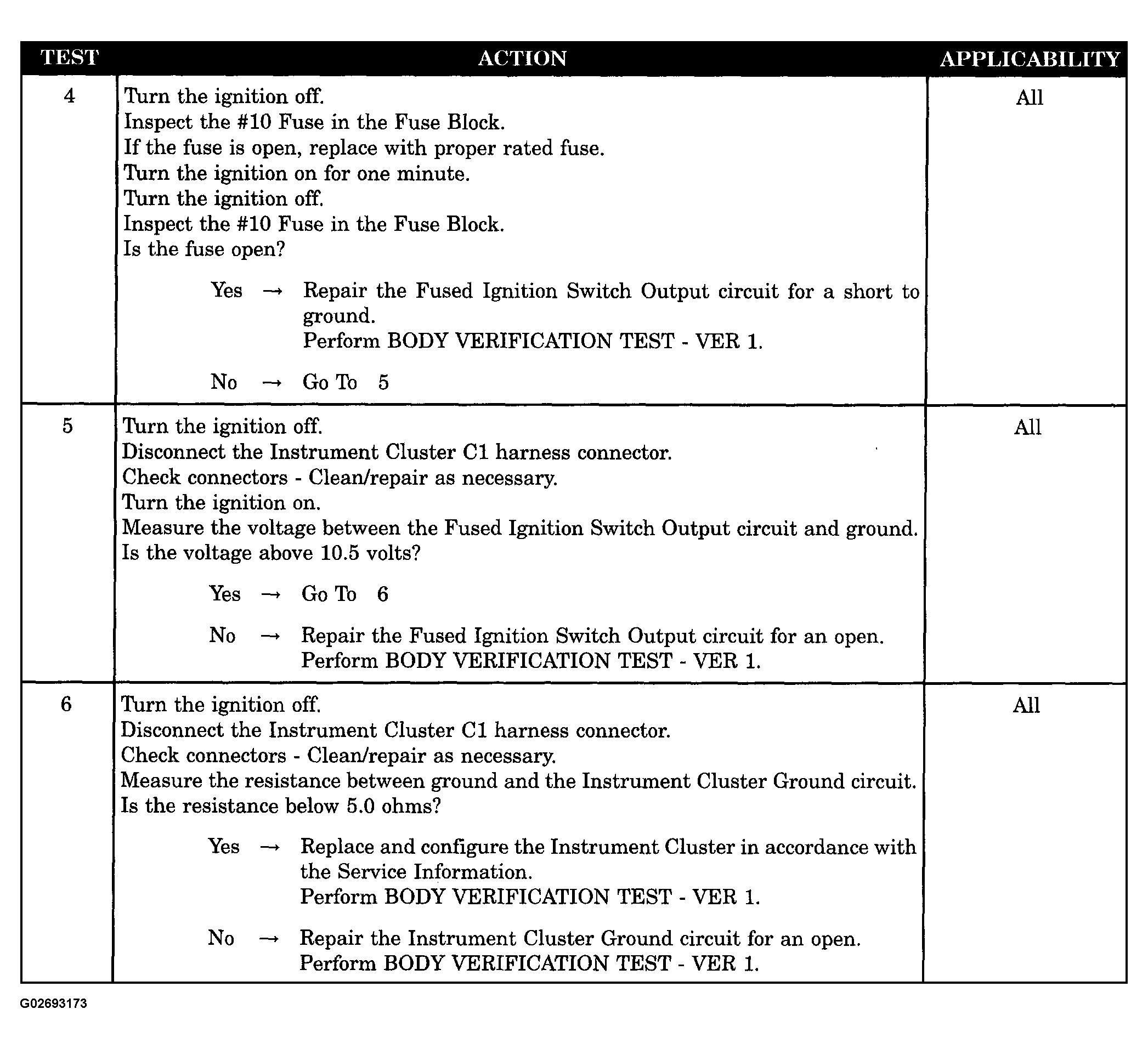

Fig 2: Diagnosis Procedure For Symptom: All Gauges Inoperative (2 Of 2)
G02693173Courtesy of DAIMLERCHRYSLER CORP.
